2SD1782KT146R: DescriptionRated power: 200mW Collector current Ic: 500mA Collector-emitter breakdown voltage Vce: 80V Transistor type: NPN NPN, Vceo=80V, Ic=500mA, hfe=180-390; CategoryDiscrete semiconductor The transistor; File Size1MB，9 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

2SD1782KT146R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2SD1782KT146R	-	-	View	Buy Now

2SD1782KT146R Overview

Rated power: 200mW Collector current Ic: 500mA Collector-emitter breakdown voltage Vce: 80V Transistor type: NPN NPN, Vceo=80V, Ic=500mA, hfe=180-390

2SD1782KT146R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SC-59
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	13 weeks
Is Samacsys	N
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	80 V
Configuration	SINGLE
Minimum DC current gain (hFE)	180
JESD-30 code	R-PDSO-G3
JESD-609 code	e1
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.2 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	120 MHz
VCEsat-Max	0.5 V
Base Number Matches	1

Preview

Download Datasheet

View All

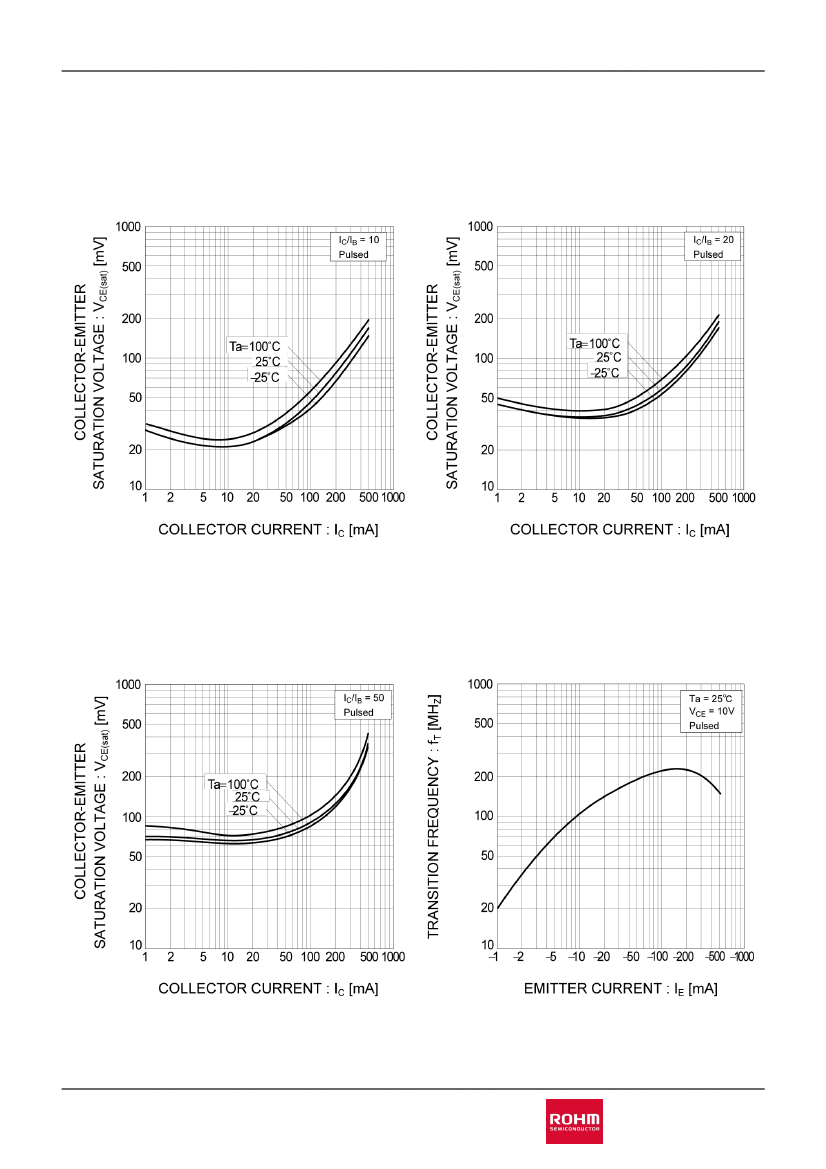

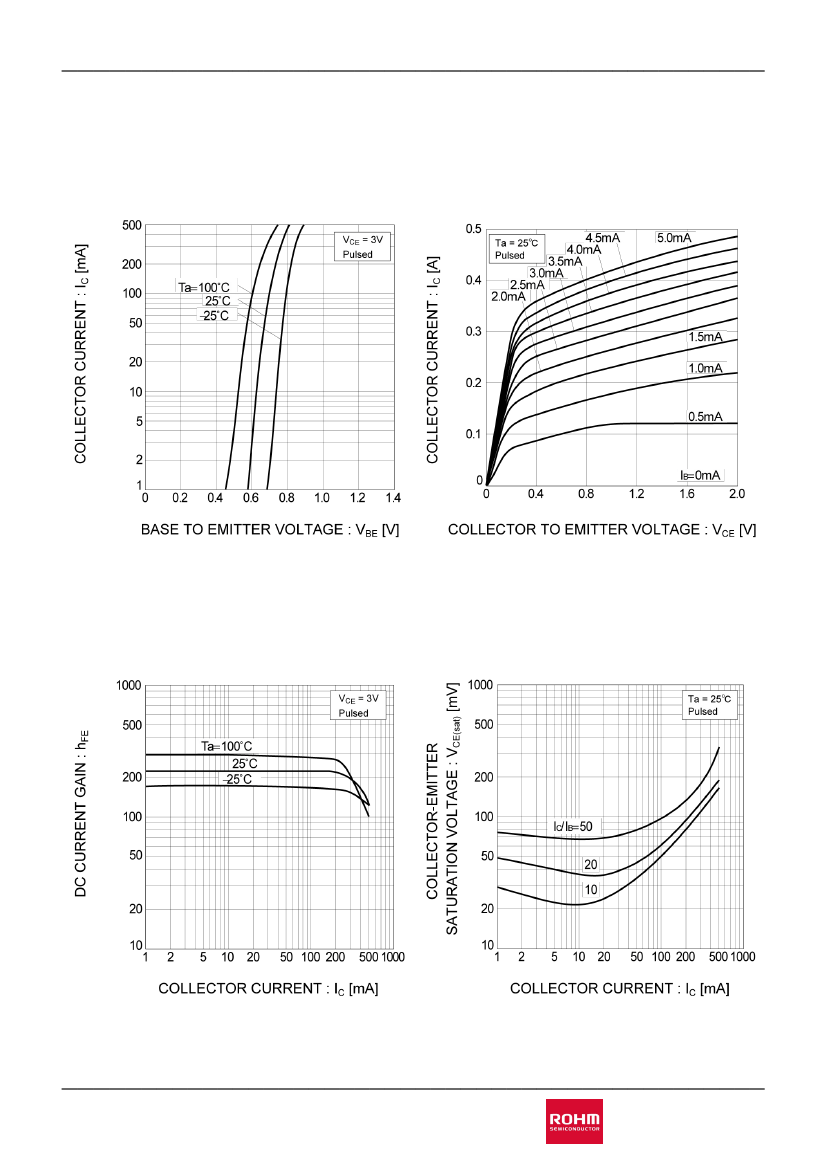

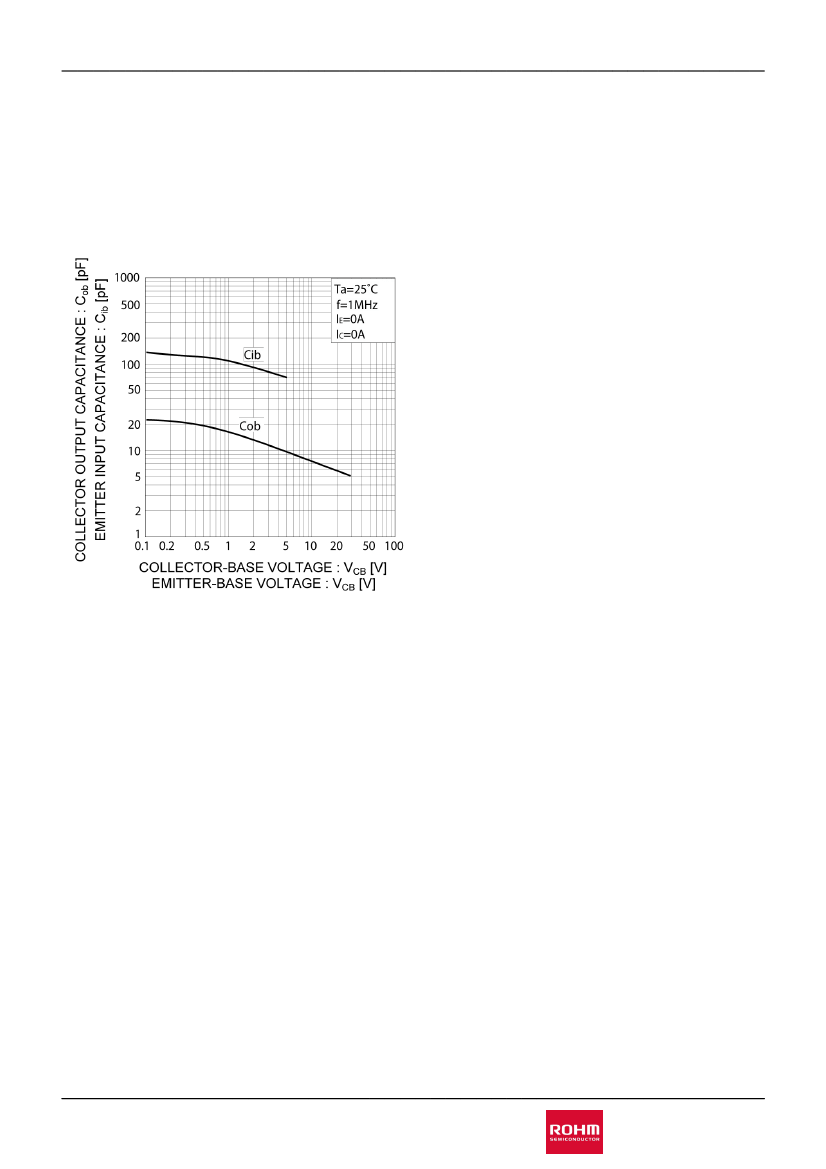

2SD1782K

Power Transistor (80V, 500mA)

Datasheet

Outline

Parameter

Value

SOT-346

SC-59

CEO

80V

500mA

SMT3

Features

Inner circuit

1)Low V

CE(sat)

=0.2V(Typ.)

=500mA/50mA)

2)High breakdown voltage.

CEO

=80V

3)Complements the 2SB1198K

Application

DRIVER

Packaging specifications

Part No.

Package

SOT-346

(SMT3)

Package

size

2928

Taping

code

T146

Basic

Reel size Tape width ordering

(mm)

unit.(pcs)

180

3000

Marking

2SD1782K

www.rohm.com

1/6

20160909 - Rev.003
