REVISION CE
DO NOT
SCALE FROM
THIS PRINT
(NO. OF POSITIONS x .07874)+.000/-.010
[NO. OF POSITIONS x 2.000]+.00/-.25
{(NO. OF POS x .07874) - .07874}±.005
([NO. OF POS x [2.000] - [2.000])
PATENT NUMBERS
5713755 / 5961339
TMM-1XX-XX-XX-X-SM-XX-X
NO. OF POSITIONS PER ROW
-02 THRU -40
TERMINAL SPEC
-01: USE T-1S13-07-X-2
-04: USE T-1S13-04-X-2
-05: USE T-1S13-21-X-2
-06: USE T-1S13-08-X-2
(SEE NOTE 8)
PLATING SPECIFICATION
-G: 20µ" GOLD ON CONTACT AREA,
3µ" GOLD ON TAIL
-T: MATTE TIN ON CONTACT AND TAIL
-S: 30µ" SELECTIVE GOLD ON
CONTACT, MATTE TIN ON TAIL
-L: 10µ" SELECTIVE GOLD ON
CONTACT, MATTE TIN ON TAIL
-F: 3µ" SELECTIVE GOLD ON
CONTACT, MATTE TIN ON TAIL
-H: 30µ" GOLD ON CONTACT,
3µ" GOLD MIN ON TAIL
-SM: 30µ" SELECTIVE GOLD ON
CONTACT, MATTE TIN ON TAIL
-TM: MATTE TIN ON CONTACT AND TAIL
-LM: 10µ" SELECTIVE GOLD ON
CONTACT, MATTE TIN ON TAIL
-FM: 3µ" SELECTIVE GOLD ON
CONTACT, MATTE TIN ON TAIL
OPTION
-P: PICK & PLACE PAD
(AVAILABLE ON POSITIONS
-03 THRU -40)(SEE SHEET 2, FIG 2)
*-M: METAL PICK & PLACE PAD
(SEE SHEET 2, FIG 2)(4 POS. MIN)
-A: ALIGNMENT PIN
(SEE SHEET 2, FIG 3)
(5 POS. PER ROW MINIMUM)
(NOT AVAILABLE ON SINGLE
BODY SPECIFICATION)
-TR: TAPE & REEL (AVAILABLE ON
POS -03 THRU 36, POS 37 THRU
-40 AVAILABLE TO EXISTING
CUSTOMERS ONLY)
(SEE SHEET 3)
OPTION
POLARIZED SPECIFY POS-XX AS
POS TO BE OMITTED
OPTION
-SM: SURFACE MOUNT
BODY SPECIFICATION
-S: SINGLE (TMM-50-S)
-D: DOUBLE (TMM-50-D)
*
FOR EXISTING CUSTOMERS ONLY
TABLE 2
"A" POST
"B" (OAL)
"C"
.126 [3.20]
.302 [7.67]
.100 [2.54]
.075 [1.91]
.255 [6.48]
.100 [2.54]
.065 [1.65]
.323 [8.20]
.080 [2.03]
.168 [4.27]
.476 [12.09]
.100 [2.54]
POST AREA
(SEE NOTE 7 & 9)
C
01
39
.078 1.981
REF
02
40
2 MAX SWAY
(EITHER DIRECTION)
80
02
.155 3.937 REF
C
01
79
2 MAX SWAY
(EITHER DIRECTION)
.020 0.500
SQ. REF. (TYP)
+.005
+0.127
"A" - .002 "A" - 0.051
(SEE TABLE 2)
C
2 MAX SWAY
(EITHER DIRECTION)
LEAD STYLE
-01
-04
-05
-06
C
2 MAX SWAY
(EITHER DIRECTION)
2 MAX SWAY
(EITHER DIRECTION)
.07874±.005 2.000±0.127
POST AREA
(SEE NOTE 7& 9)
C
+4°
90°
- 0°
C
C
C
90°
- 0°
+4°
SEE TABLE 3
SEE TABLE 3
C
.190 4.83 REF
.278 7.06 MAX
.059 1.499 REF
NOTES:
1.
2.
3.
4.
5.
6.
7.
C
FIG 1
-D
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
+.000
.050
- .010
(SEE
0.000
1.270
- 0.254
NOTE 6)
C
*
-S
.050
- .010
1.267
- 0.254
(SEE NOTE 6)
C
+.000
0.000
REPRESENTS A CRITICAL DIMENSION.
MAX. PIN ROTATION IN BODY: 2°
PUSHOUT FORCE SHALL BE 1 lb MIN.
ALL DIMENSIONS IN BRACKETS [ ] TO BE MILLIMETERS.
PACKAGE POSITIONS 03-40 IN TUBES; LAYER PACKAGE -02 POSITION.
.050 [1.27] DIMS TO BE CHECKED AT BEND RADIUS, NOT AT END OF PIN
PINS TO BE INSERTED TAIL SIDE FIRST TO AVOID SCRATCHES ON
CONTACT
8. SHEAR TAILS FOR -05 & -06 LEAD STYLE.
9. NO BANDOLIER MARKS ARE ALLOWED IN THE POST AREA.
10. MAX. CUT FLASH: .010 [.25]
.XX: .01
.XXX: .005
.XXXX: .0020
ANGLES
2
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL
BODIES:
LCP UL 94 VO, COLOR BLACK
TERMINALS:
PHOSPHER BRONZE
DO NOT SCALE DRAWING
SHEET SCALE: 4:1

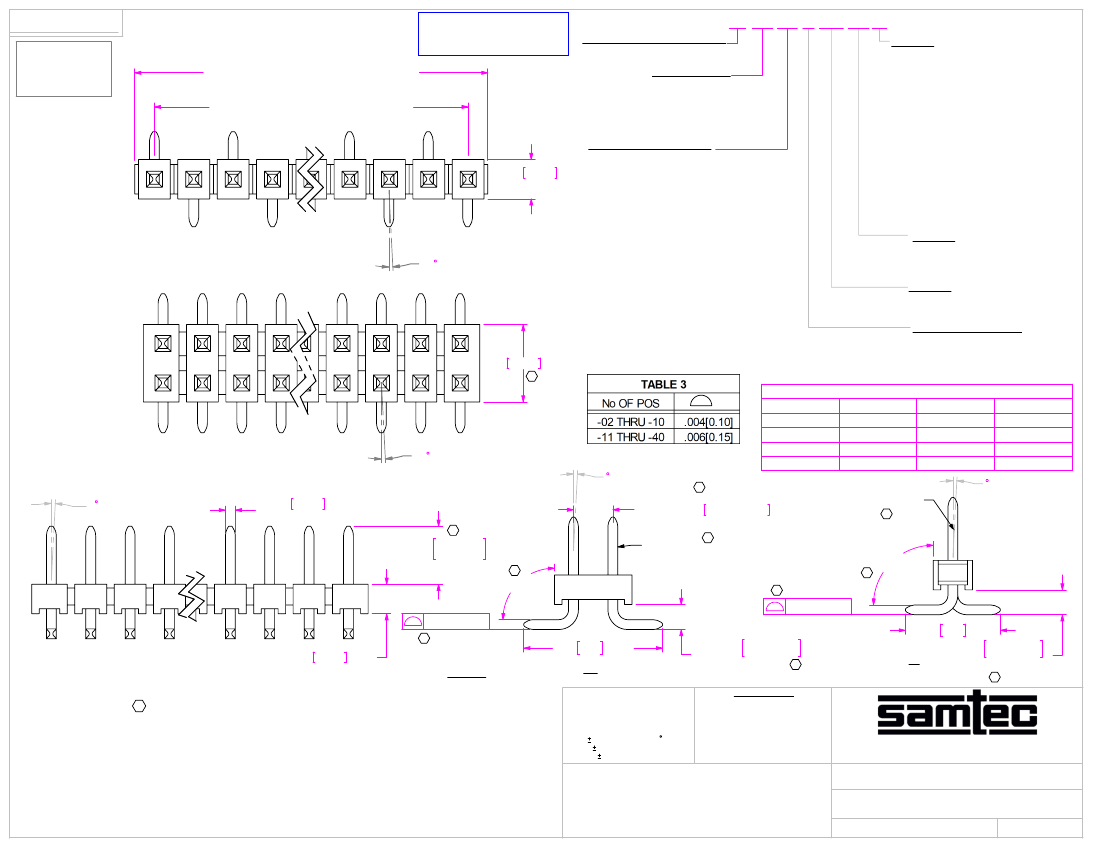

2MM TERMINAL STRIP ASSEMBLY
TMM-1XX-XX-XX-X-SM-XX-X
BY:
REIDINGER
F:\DWG\MISC\MKTG\TMM-1XX-XX-XX-X-SM-XX-X-MKT.SLDDRW
05-22-1991
SHEET
1
OF
3
REVISION CE
"R"
LMP-04: .225 [5.72] REF
PPP-28: .315 [8.00] REF
PPP-11: .400 [10.2] REF
.197 5.004 REF
.200 5.080 REF
.144 3.658
REF
"S" ±.020
PPP-28
.210 5.334
PPP-11
LMP-04
.072 1.829
REF
"R"= PAD SIZE ABOVE
"S" =((No OF POS x .07874)-"R")/2
-P: PICK & PLACE PAD
DOUBLE

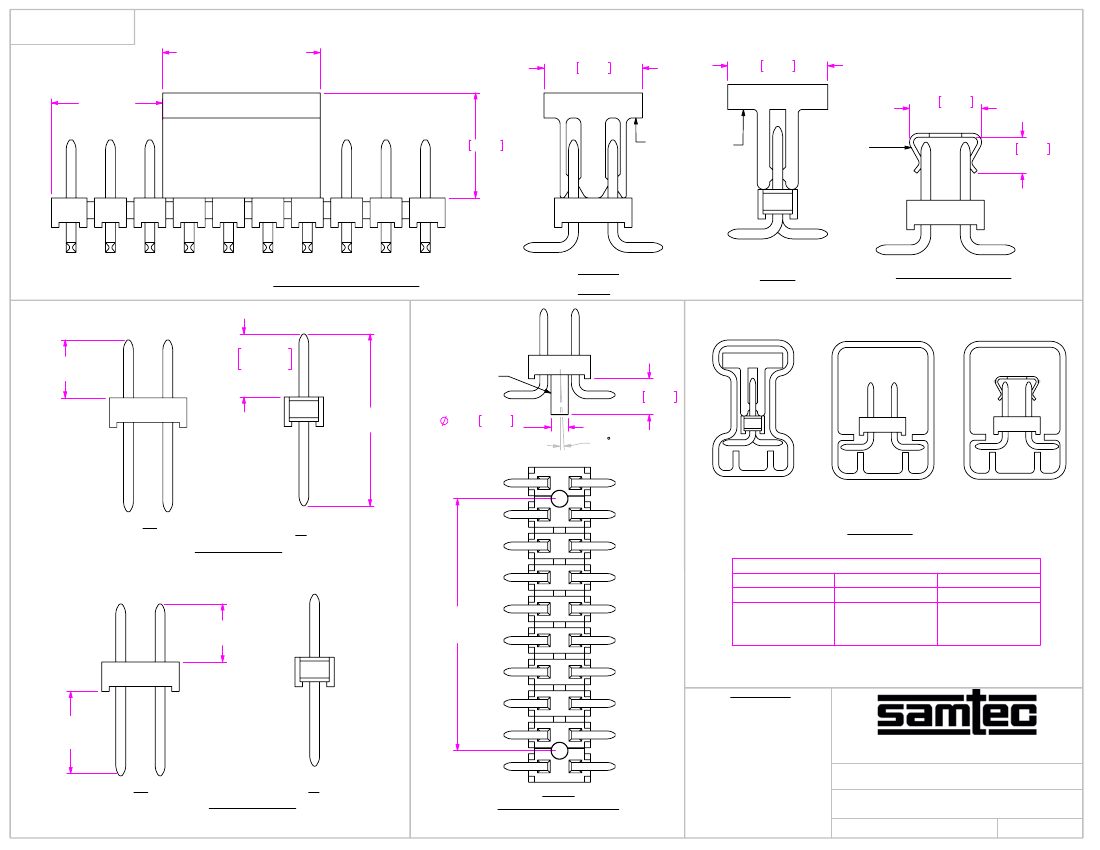

FIG 2
SINGLE
-M: PICK & PLACE PAD
DOUBLE ONLY
"C" REF MIN GOLD
(SEE TABLE 2)
+.005
+0.127
"A" - .002 "A" - 0.051
(SEE TABLE 2)
"B" REF
(SEE TABLE 2)
SM-A8H
.090 2.286
.0430 1.092
REF
2 MAX TOE
(EITHER DIRECTION)
PT-1-24-01-17
TMM-1XX-XX-X-X-SM-S
TMM-1XX-XX-X-X-SM-S-P
PT-TMMH001-DV-P
TMM-1XX-XX-X-X-SM-D
PT-TMMH001-DV-P
TMM-1XX-XX-X-X-SM-D-M
-D
IN-PROCESS 1
-S
TUBE VIEW
TABLE 1 (SEE NOTE 5)
PKG TUBE
PT-1-24-01-17
OPTION
-S, -S-P
A" ±.005 [.13]
SEE TABLE 2)
(NO. OF POS.-2)
X .07874±.003
[2.000±.08]
PLUG
TP-24
TP-03
-D, -D-A, -D-M, -D- PT-TMMH001-DV-P
A-M, -D-P, D-A-P
(SEE NOTE 8)
+.002
.118 - .008
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
-D
IN-PROCESS 2
-05 & -06 LEAD STYLE ONLY
-S
FIG 3
-A: ALINGMENT PIN
(5 POS. PER ROW MINIMUM)
F:\DWG\MISC\MKTG\TMM-1XX-XX-XX-X-SM-XX-X-MKT.SLDDRW
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
2MM TERMINAL STRIP ASSEMBLY
TMM-1XX-XX-XX-X-SM-XX-X
BY:
REIDINGER 05-22-1991
SHEET
2
OF
3
REVISION CE
ROUND HOLES
"A"
"A"
OBLONG HOLES
USER DIRECTION OF UNREELING

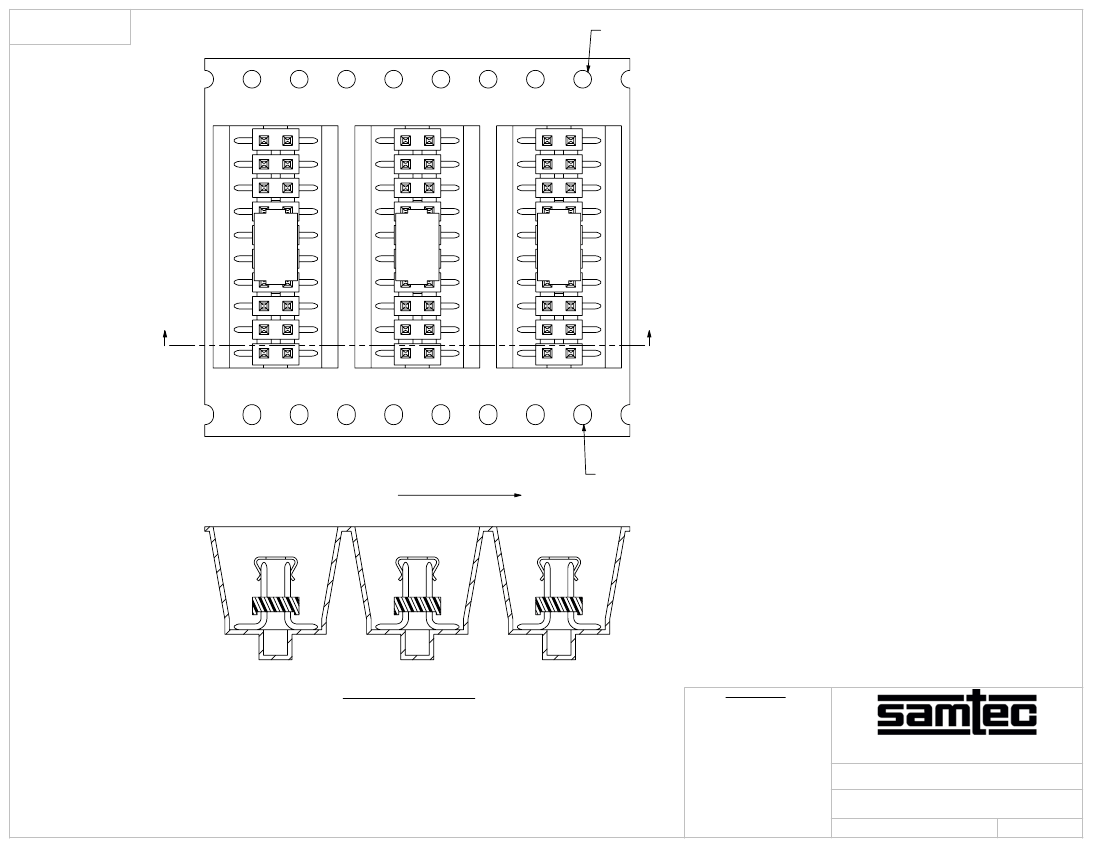

TAPE AND REEL VIEW
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
2MM TERMINAL STRIP ASSEMBLY
F:\DWG\MISC\MKTG\TMM-1XX-XX-XX-X-SM-XX-X-MKT.SLDDRW
BY:
REIDINGER 05-22-1991
TMM-1XX-XX-XX-X-SM-XX-X
SHEET
3
OF
3
