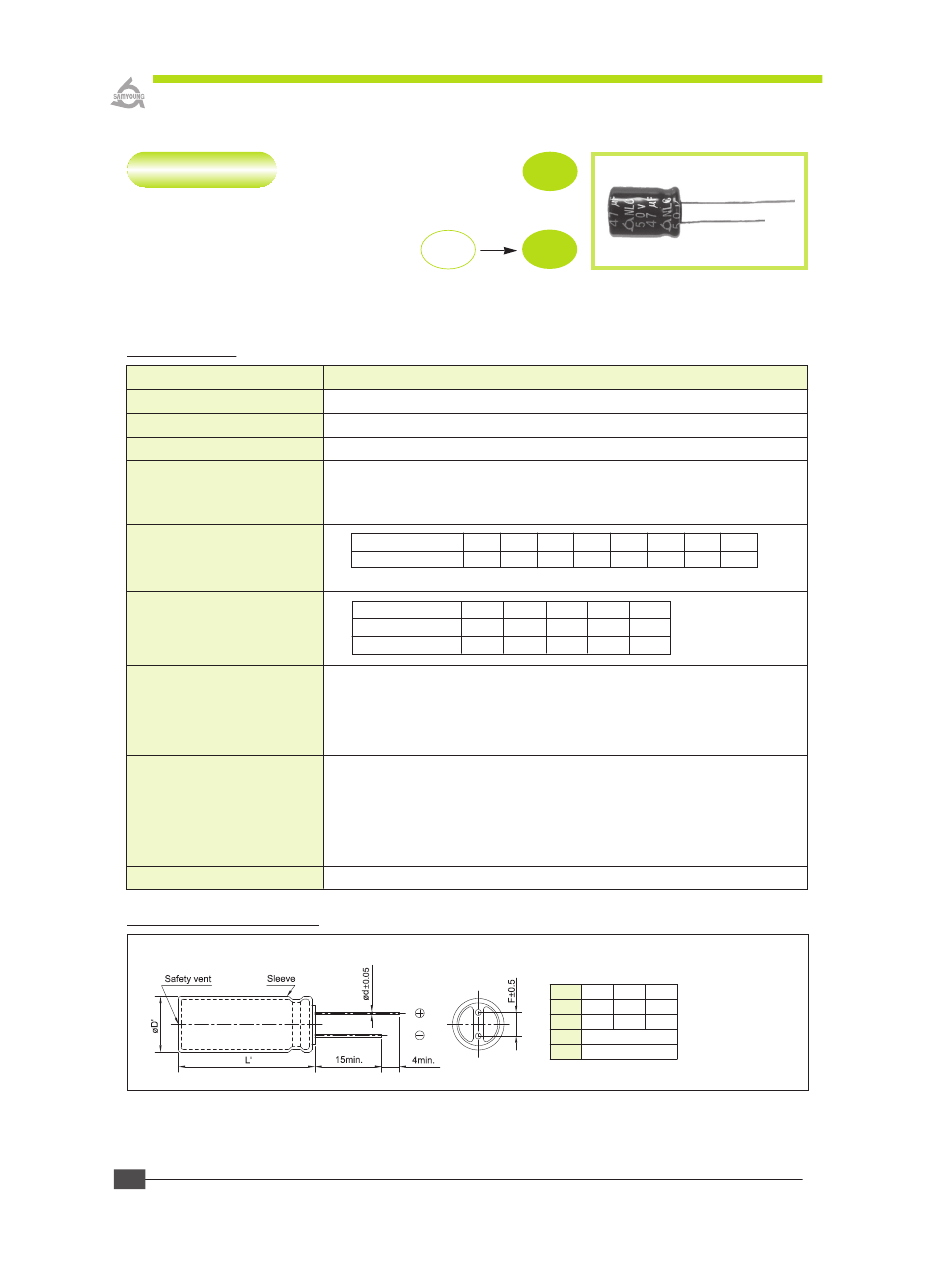

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
NLC
Series
•
105℃ 10,000Hrs assured.
Solvent-
proof
WV ≦ 50V
DC
•Low impedance.
•Long Life.
•For SMPS, IP-Board, Adaptor.
•RoHS
compliant.
•Halogen-free
capacitors are also available.
NLA
Ø8↓
Long Life
NLC
SPECIFICATIONS
ltem
Rated Voltage Range
Operating Temperature Range
Capacitance Tolerance
Characteristics
6.3 ~ 100 V
DC
-40 ~ +105℃
±20%(M)
(at 20℃, 120Hz)
Leakage Current
I=0.01CV(㎂) or 3㎂, whichever is greater.
Where, I: Max.Leakage current(㎂) C: Nominal capacitance (㎌) V: Rated voltage (V
DC
)
(at 20℃, 2 minutes)
Dissipation Factor
(Tanδ
)
Rated Voltage(V
DC
)
Tan δ
(Max.)
6.3
0.22
10
0.19
16
0.16
25
0.14
35
0.12
50
0.10
63
0.17
100
0.15
(at 20℃, 120Hz)
Temperature Characteristics
(Max. Impedance ratio)
Rated voltage(V
DC
)
Z(-25℃)/Z(+20℃)
Z(-40℃)/Z(+20℃)
6.3
4
8
10
3
6
16
2
4
25~35 50~100
2
3
2
4
(at 120Hz)
Load Life
The following specifications shall be satisfied when the capacitors are restored to 20℃
after the rated voltage with the rated ripple current is applied (the peak voltage shall not
exceed the rated voltage) for 10,000 hours at 105℃.
Capacitance change ≦ ±25% of the initial value
Tan δ
≦ 200% of the initial specified value
Leakage current
≦ The initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃
after exposing them for 1,000 hours at 105℃ without voltage applied.
The rated voltage shall be applied to the capacitors for a minimum of 30 minutes,
at least 24 hours and not more than 48 hours before the measurements.
Capacitance change
Tan δ
Leakage current
≦ ±25% of the initial value
≦ 200% of the initial specified value(where, 300% for ≥WV63VDC)
≦ The initial specified value
Shelf Life
Others
Satisfied characteristics KS C IEC 60384-4
DIMENSIONS OF NLC Series
Unit
(mm)
Marking : DARK BROWN SLEEVE, SILVER INK
ØD
8
6.3
5
Ød 0.5 0.5 0.6
F
2.0 2.5 3.5
ØD′ ØD+0.5 max.
L′
L
+2.0 max.
172
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
RATINGS OF NLC Series
V
DC
ØD×L(mm)
5×11
6.3×11
8×11.5
㎌
150
330
680
6.3
IMP.
0.70
0.50
0.24
Ripple
175
252
400
㎌
100
220
470
10
IMP.
0.70
0.50
0.24
Ripple
175
250
400
㎌
47
100
330
16
IMP.
0.70
0.50
0.24
Ripple
175
252
400
V
DC
ØD×L(mm)
5×11
5×11
5×11
5×11
5×11
6.3×11
100
6.3×11
8×11.5
8×15
220
47
㎌
25
IMP.
Ripple
㎌
35
IMP.
Ripple
㎌
1
2.2
3.3
4.7
50
IMP.
4.0
3.0
2.5
2.5
2.0
1.6
1.6
0.80
0.50
Ripple
32
43
84
100
110
228
228
330
400
0.70
175
33
47
0.70
0.60
0.50
0.24
0.18
175
252
252
400
520
10
22
33
47
100
0.50
252
56
0.24
400
150
220
Impedance (Ωmax./20℃, 100kHz)
V
DC
ØD×L(mm)
8×11.5
㎌
47
63
Ripple
270
㎌
33
100
Ripple
240
Rated Ripple Current (mArms/105℃, 100kHz)
NLC
Nominal Capacitance(㎌)
RATED RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Freq.(Hz)
Series
Cap.(㎌)
1~150
220~470
680
120
0.40
0.50
0.60
1k
0.75
0.85
0.87
10k
0.90
0.94
0.95
50k
0.93
0.96
0.97
100k
1.00
1.00
1.00
