MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
SHL
Series
●
●
85℃ 2,000Hrs assured.
SHL
Downsized
Non-solvent proof.
●
General
●
RoHS compliant.
●
Halogen-free capacitors are also available.
MHA

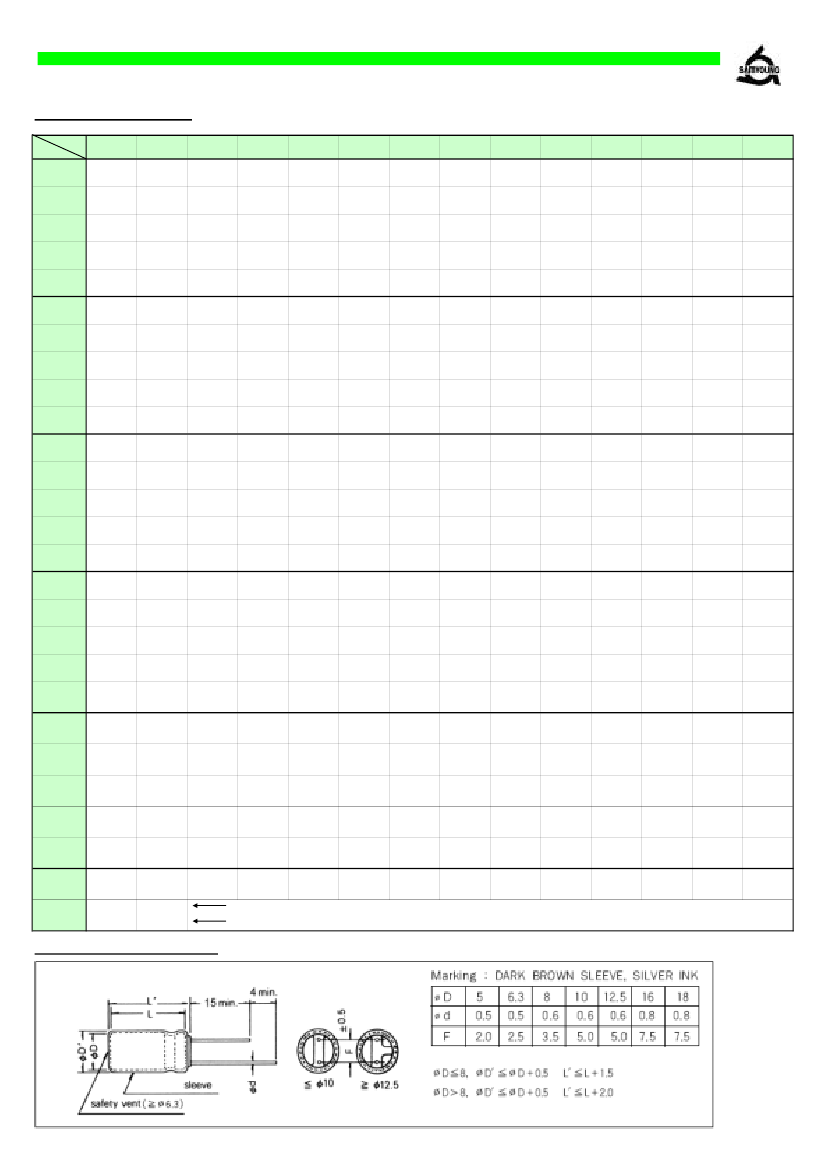

SPECIFICATIONS
Item
Series
Rated Voltage Range
Operating Temperature Range
Capacitance Tolerance
100V
DC
or less
-40 ~ +85℃
±20% (M)
Characteristics
SHL
160 ~ 450V
DC
-25 ~ +85℃
(at 20℃, 120㎐)
The following specifications shall be satisfied when the rated voltage is applied for the required time.
≤100V
DC
＞100V
DC
Leakage Current
After 1minute:0.03 CV(㎂) or 4㎂ whichever is greater
After 2minutes:0.01 CV(㎂) or 3㎂ whichever is greater
Where, C=Nominal Capacitance(㎌)
V=Rated Voltage(V
DC
)
After 1 minute
CV≤1000
0.1CV+40
CV>1000
0.04CV+100
After 5 minutes
CV≤1000
0.03CV+15
CV>1000
0.02CV+25
Rated Voltage(V
DC
)
Dissipation Factor(Tanδ)
6.3
0.34
10
0.24
16
0.20
25
0.16
35
0.14
50
0.12
63
0.10
100
0.09
160~250 350~450
0.20
0.24
(at 20℃,120㎐)
Tan
δ
When the capacitance exceeds 1,000㎌, 0.02 shall be added every 1,000㎌ increase.
Temperature
Characteristic
(Max. Impedance ratio)
Rated voltage(V
DC
)
Z(-25℃)/Z(20℃)
Z(-40℃)/Z(20℃)
6.3
5
12
10
4
10
16
3
8
25
2
5
35
2
4
50
2
3
63~100 160
3
4
4
-
200~250 350~450
8
-
16
-
(at 120㎐)
The following specifications shall be satisfied when the capacitors are restored to 20℃ after
the rated voltage is applied for 2000 hours at 85℃.
Load life
Capacitance change
≤
± 20% of the initial value
Tanδ
Leakage current
≤
200% of the initial specified value
≤
The initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after
exposing them for 1000 hours at 85℃, without voltage applied. The rated voltage shall be applied
to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than 48 hours
Shelf life
before the measurement.
Capacitance change
≤
± 20% of the initial value
Tanδ
Leakage current
≤
200% of the initial specified value
≤
The initial specified value(where, 200% for
≥
WV 160V
DC
)
Others
Satisfied characteristics W of KS C6421
RATED RIPPLE CURRENT MULTIPLIERS
Frequency Multipliers
Freq.(㎐)
Cap.(㎌)
~ 6.8
10 ~ 68
100 ~ 1000
2200 ~
60
0.65
0.75
0.80
0.85
120
1.00
1.00
1.00
1.00
300
1.35
0.25
1.15
1.03
1k
1.75
1.50
1.30
1.05
10k~
2.30
1.75
1.40
1.08
