LM324QT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LM324QT

LM324QT: DescriptionGain bandwidth product (GBP): 1.3MHz Number of amplifier groups: 4 Op amp type: General Purpose Power consumption of each channel: - Slew rate (SR): 0.4 V/us Power supply voltage: 3V ~ 30V, ±1.5V ~ 15V low Power consumption quad operational amplifier; CategoryAnalog mixed-signal IC Amplifier circuit; File Size1MB，21 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Download user manual Parametric Compare View All

LM324QT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LM324QT	-	-	View	Buy Now

LM324QT Overview

Gain bandwidth product (GBP): 1.3MHz Number of amplifier groups: 4 Op amp type: General Purpose Power consumption of each channel: - Slew rate (SR): 0.4 V/us Power supply voltage: 3V ~ 30V, ±1.5V ~ 15V low Power consumption quad operational amplifier

LM324QT Parametric

Parameter Name	Attribute value
Brand Name	STMicroelectronics
Maker	STMicroelectronics
package instruction	HVQCCN, LCC16,.12SQ,20
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	10 weeks
Samacsys Description	Operational Amplifiers - Op Amps Low Power QUAD 1.3 MHz 100dB
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.3 µA
Maximum bias current (IIB) at 25C	0.15 µA
Nominal Common Mode Rejection Ratio	80 dB
frequency compensation	YES
Maximum input offset voltage	9000 µV
JESD-30 code	S-PQCC-N16
length	3 mm
low-dissonance	NO
micropower	YES
Number of functions	4
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	HVQCCN
Encapsulate equivalent code	LCC16,.12SQ,20
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-1.5/+-15/3/30 V
Certification status	Not Qualified
Maximum seat height	1 mm
Nominal slew rate	0.4 V/us
Maximum slew rate	3 mA
Supply voltage upper limit	32 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	1300 kHz
Minimum voltage gain	25000
width	3 mm

User Manual

【User Guide】UM0065 MACROMODELS USER MANUAL FOR STANDARD LINEAR PRODUCTS

Preview

Download Datasheet

View All

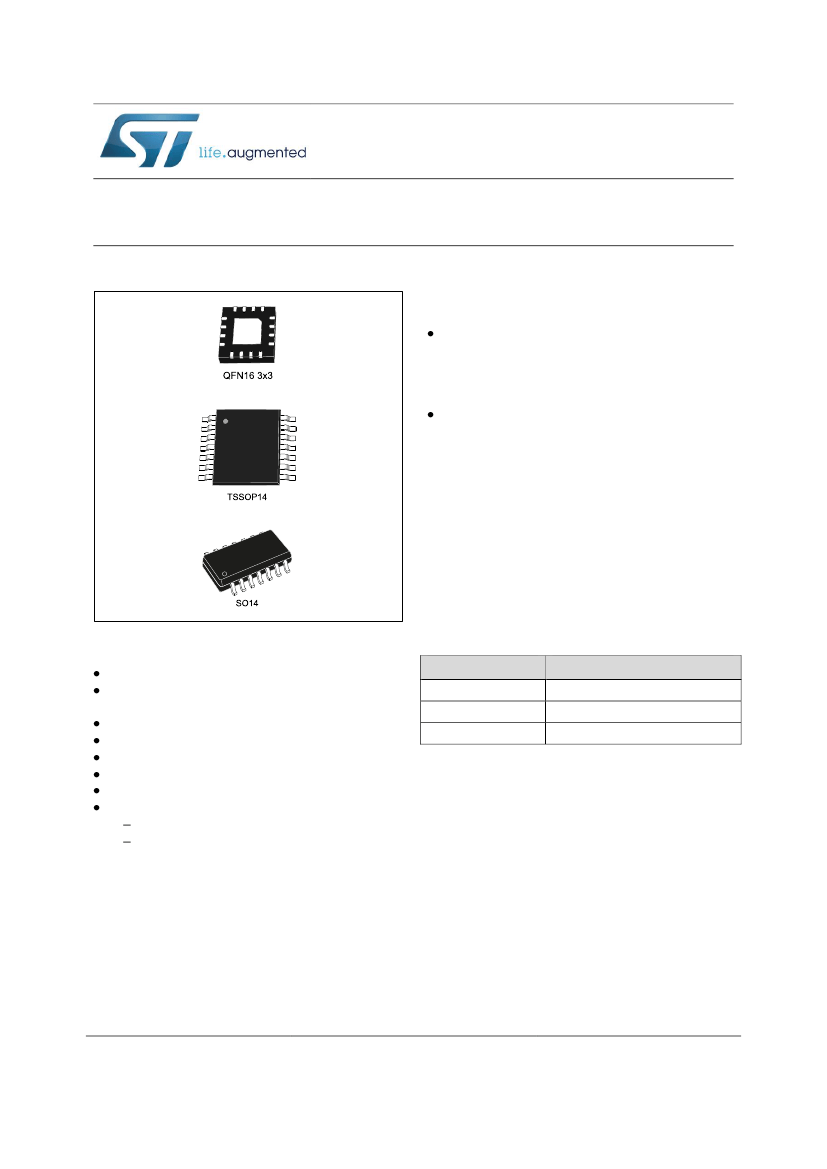

LM124, LM224x, LM324x

Low-power quad operational amplifiers

Datasheet - production data

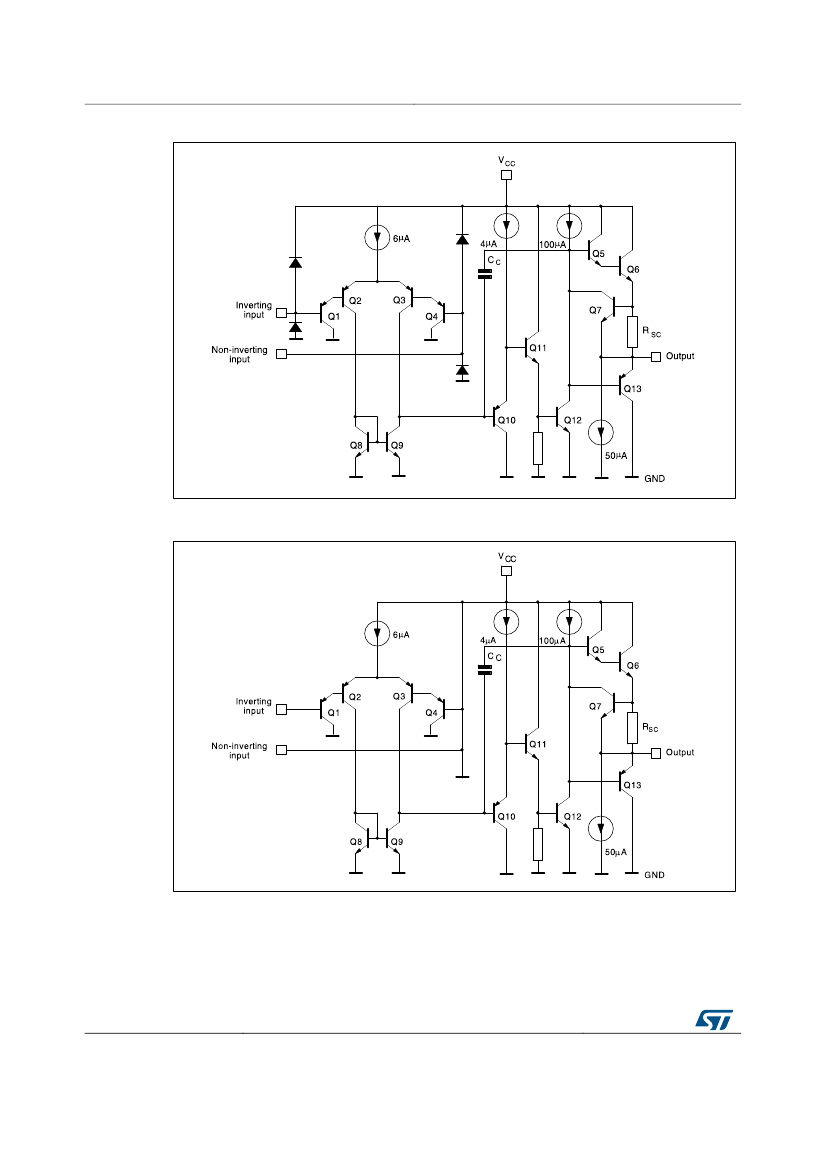

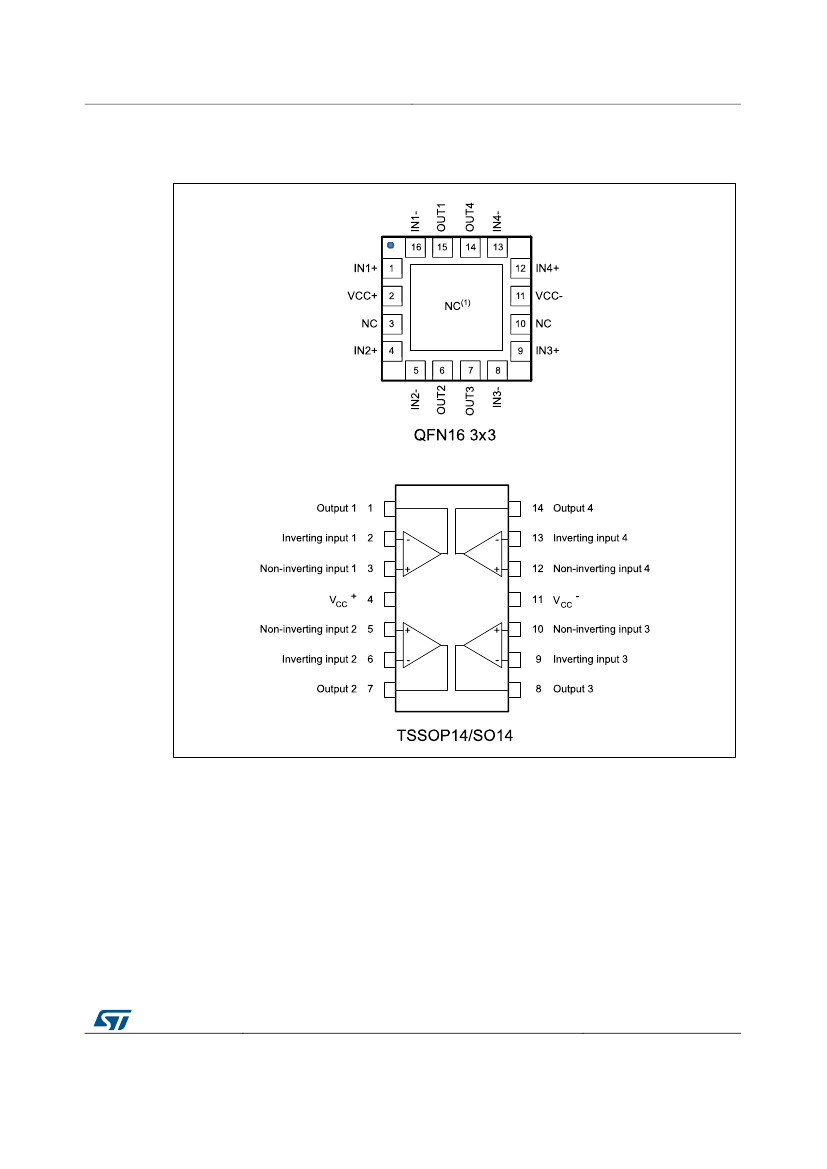

LM324QT Related Products

	LM324QT	LM324AWPT	LM324AWDT	LM324APT	LM224ADT	PRA100I72K640.1%0.02%31
Description	Gain bandwidth product (GBP): 1.3MHz Number of amplifier groups: 4 Op amp type: General Purpose Power consumption of each channel: - Slew rate (SR): 0.4 V/us Power supply voltage: 3V ~ 30V, ±1.5V ~ 15V low Power consumption quad operational amplifier	IC OPAMP LP QUAD 14TSSOP	IC OPAMP LP QUAD 14SOIC		Gain bandwidth product (GBP): 1.3MHz Number of amplifier groups: 4 Op amp type: General Purpose Power consumption of each channel: - Slew rate (SR): 0.4 V/us Power supply voltage: 3V ~ 30V, ±1.5V ~ 15V Low power, low input bias current Pin2Pin replacement: LM224DR LM224DT	Array/Network Resistor, Isolated, Thin Film, 0.1W, 2640ohm, 50V, 0.1% +/-Tol, -10,10ppm/Cel, 2806,
Brand Name	STMicroelectronics	-	STMicroelectronics	STMicroelectronics	STMicroelectronics	-
package instruction	HVQCCN, LCC16,.12SQ,20	-	SOP-14	TSSOP, TSSOP14,.25	SOP, SOP14,.25	SMT, 2806
Reach Compliance Code	compliant	-	compliant	compliant	compliant	compliant
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	10 weeks	-	10 weeks	12 weeks	10 weeks	-
Amplifier type	OPERATIONAL AMPLIFIER	Universal	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	-
Architecture	VOLTAGE-FEEDBACK	-	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	-
Maximum average bias current (IIB)	0.3 µA	-	0.2 µA	0.2 µA	0.2 µA	-
Maximum bias current (IIB) at 25C	0.15 µA	-	0.1 µA	0.1 µA	0.1 µA	-
Nominal Common Mode Rejection Ratio	80 dB	-	80 dB	80 dB	80 dB	-
frequency compensation	YES	-	YES	YES	YES	-
Maximum input offset voltage	9000 µV	-	5000 µV	5000 µV	5000 µV	-
JESD-30 code	S-PQCC-N16	-	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	-
length	3 mm	-	8.65 mm	5 mm	8.65 mm	-
low-dissonance	NO	-	NO	NO	NO	-
micropower	YES	-	YES	YES	YES	-
Number of functions	4	-	4	4	4	-
Number of terminals	16	-	14	14	14	14
Maximum operating temperature	70 °C	-	70 °C	70 °C	105 °C	155 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	HVQCCN	-	SOP	TSSOP	SOP	-
Encapsulate equivalent code	LCC16,.12SQ,20	-	SOP14,.25	TSSOP14,.25	SOP14,.25	-
Package shape	SQUARE	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	-	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMT
method of packing	TAPE AND REEL	-	-	TAPE AND REEL	TAPE AND REEL	Box
Maximum seat height	1 mm	-	1.75 mm	1.2 mm	1.75 mm	-
Nominal slew rate	0.4 V/us	-	0.4 V/us	0.4 V/us	0.4 V/us	-
Maximum slew rate	3 mA	-	3 mA	3 mA	3 mA	-
Supply voltage upper limit	32 V	-	32 V	32 V	32 V	-
Nominal supply voltage (Vsup)	5 V	-	5 V	5 V	5 V	-
surface mount	YES	-	YES	YES	YES	-
technology	BIPOLAR	-	BIPOLAR	BIPOLAR	BIPOLAR	THIN FILM
Temperature level	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	INDUSTRIAL	-
Terminal form	NO LEAD	-	GULL WING	GULL WING	GULL WING	-
Terminal pitch	0.5 mm	-	1.27 mm	0.65 mm	1.27 mm	-
Terminal location	QUAD	-	DUAL	DUAL	DUAL	-
Nominal Uniform Gain Bandwidth	1300 kHz	-	1300 kHz	1300 kHz	1300 kHz	-
Minimum voltage gain	25000	-	50000	25000	25000	-
width	3 mm	-	3.9 mm	4.4 mm	3.9 mm	-
