Wire-wound Chip Power Inductors (BR series)[BRL]
BRL1608T4R7M
Features
Item Summary
4.7uH±20%, 0.24A, 0603/1608 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 3000pcs
Products characteristics table
Inductance
Case Size (EIA/JIS)
Rated Current (max)
Saturation Current (max)
Temperature Rise Current (max)
DC Resistance (max)
DC Resistance (typ)
LQ Measuring Frequency
Self Resonant Frequency (min)
Operating Temp. Range
Temperature characteristic
(Inductance change)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
Yes
Yes
Yes
Reflow
4.7 uH ± 20 %
0603/1608
0.24 A
0.24 A (⊿L=30%)
0.31 A (⊿T=40℃)
1.3 Ω
1Ω
1 MHz
150 MHz
-40 to +105 ℃
(Including-self-generated heat)
± 15 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
1.6 ±0.2 mm
0.8 ±0.2 mm
Max 0.7 mm
0.45 ±0.15 mm
2018.08.15
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Halogen free / RoHS compliant
Wire Wound Inductor

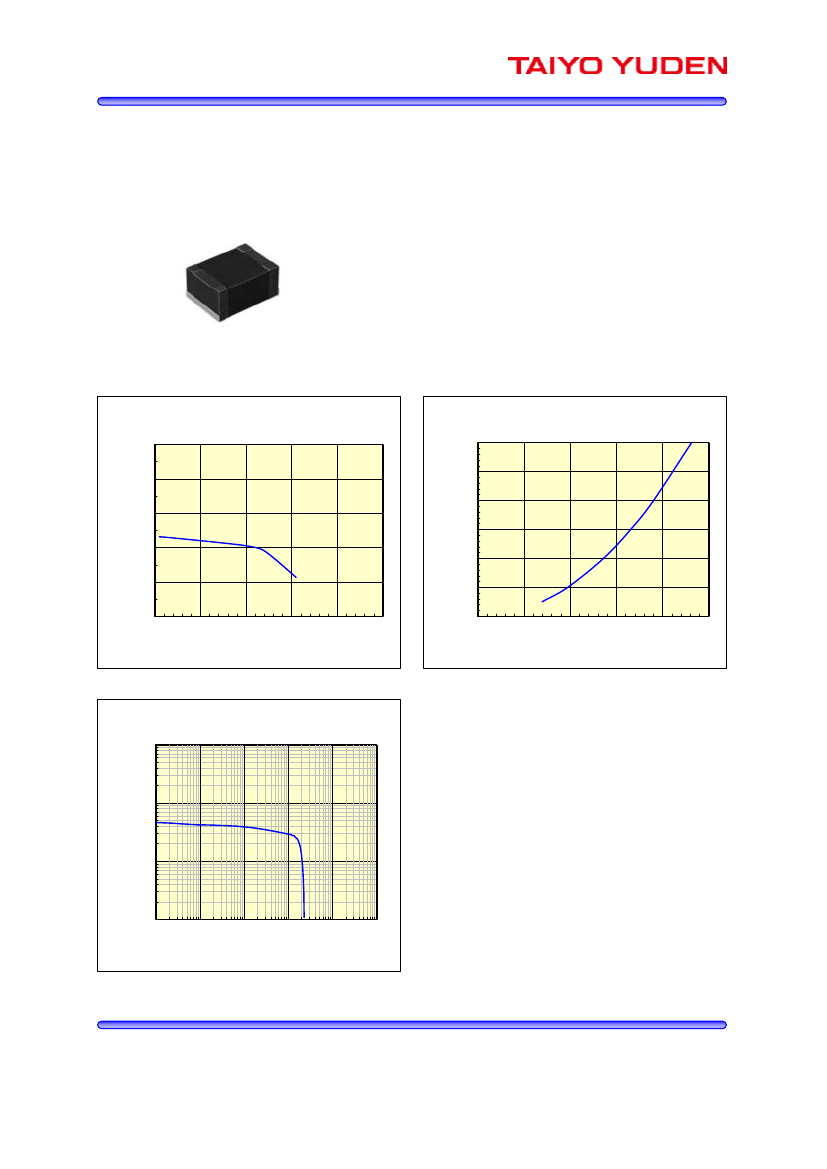

-Electrical Characteristics Data-
2016/7/27
Wire-wound Chip Power Inductors (BR series)
Dimension
Length :
Width :
Height :
Inductance :
DC Resistance :
Saturation Current :
Temp. rise Current :
unit : mm
1.6 + / - 0.2
0.8 + / - 0.2
0.7
max.
4.7
1.0
/
240
310
uH
1.3
mA
mA
unit : inch
( 0.063 + / - 0.008 )
( 0.031 + / - 0.008 )
( 0.028
max. )
BRL1608T4R7M
( test freq at 1MHz )
ohm ( typ / max )
Saturation current typical : 30% reduction from initial L value.
Temp rise Current typical : Temperature will rise by 40 deg C
DC Bias vs Inductance
10
60
DC Bias vs Temperature
Self-temperature rise [deg]
0
100
200
300
400
500
8
50
40
30
20
10
0
0
100
200
300
400
500
Inductance [uH]
6
4
2
0
DC Bias [mA]
DC Bias [mA]
Frequency vs Inductance
100
Inductance [uH]
10
1
0.1
0.1
1
10
100
1000
10000
Frequency [MHz]
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
