BK2125HS121-T: DescriptionImpedance @ Frequency: 120Ω @ 100MHz Number of Lines: 1 Rated Current (Max): 800mA DC Resistance (DCR) (Max): 150mΩ; CategoryAnalog mixed-signal IC filter; File Size7MB，36 Pages; ManufacturerTaiyo Yuden; Environmental Compliance

Download Datasheet Parametric Compare View All

BK2125HS121-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BK2125HS121-T	-	-	View	Buy Now

BK2125HS121-T Overview

Impedance @ Frequency: 120Ω @ 100MHz Number of Lines: 1 Rated Current (Max): 800mA DC Resistance (DCR) (Max): 150mΩ

BK2125HS121-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	0805
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
shell code	0805
structure	Chip Bead
Maximum DC resistance	0.15 Ω
filter type	FERRITE CHIP
maximum frequency	100 MHz
minimum frequency	100 MHz
high	0.85 mm
JESD-609 code	e3
length	2 mm
Material	Ferrite
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	120 OHM Ω
method of packing	TAPE AND REEL
physical size	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)
Rated current	0.8 A
Rated voltage	800 V
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
width	1.25 mm
Base Number Matches	1

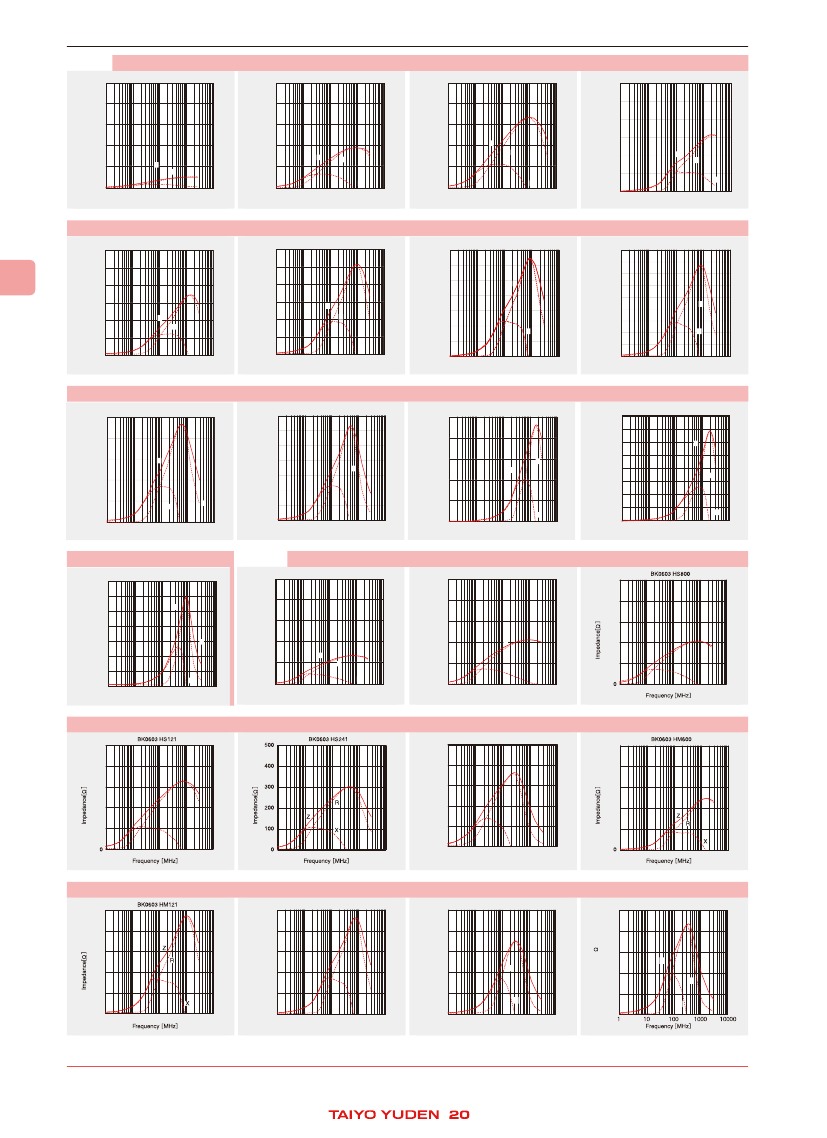

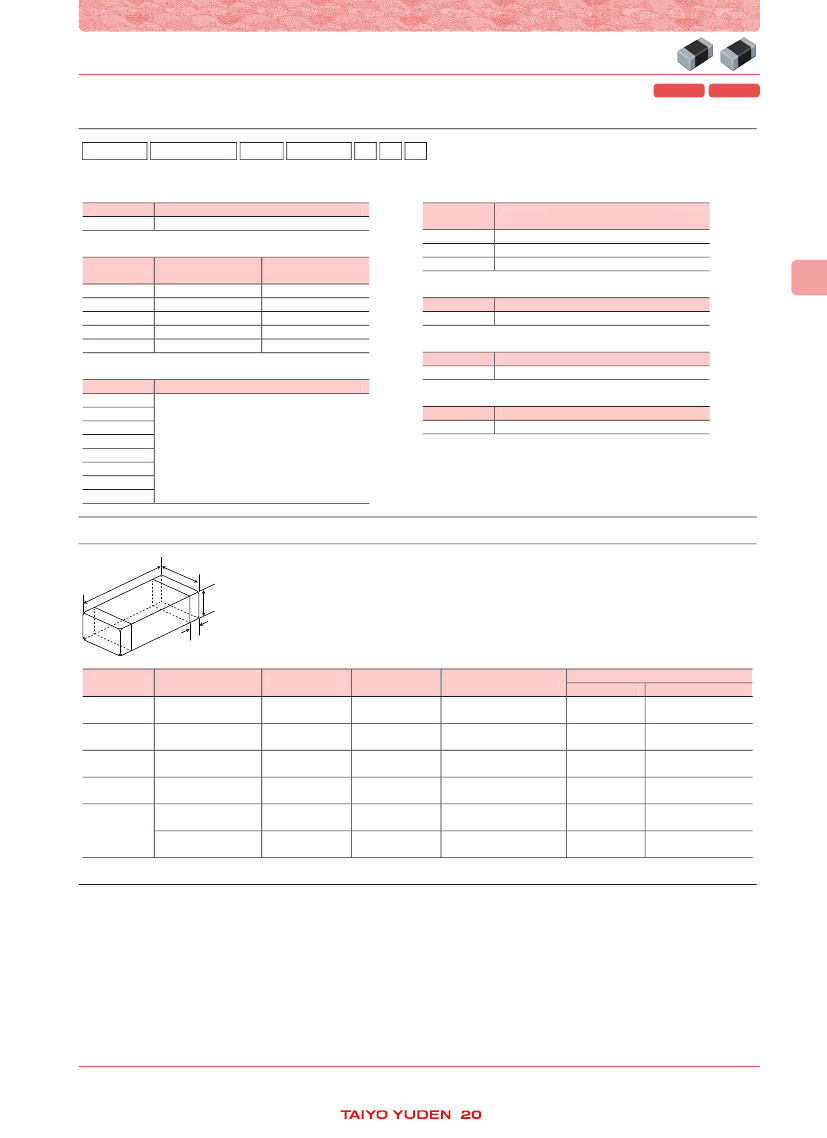

Preview

Download Datasheet

View All

有关敝司产品的注意事项

请务必在½用敝司产品之前阅读。

注意

■

本产品目½所记½½的内容为

2016

年

月之内容。因改良等原因，可½会不经预告而变更记½½内容，所以请务必在

½用前先确认最新的产品信息。未按照本产品目½所记½½的内容或交货规格说明书½用敝司产品的，即便其致½½

用设备发生损害、瑕疵等时，敝司也不承担任½责任，敬请悉知。

■

就规格相关的详细内容，敝司备有交货规格说明书，详情请向敝司咨询。

■

½用敝司产品时，请务必事先安装到设备之后，在实际½用的环境下进行评估和确认。

■

本产品目½所中记½½的产品可½用于一般电子设备

［音像设备、

办公自动化设备、

家电产品、

办公设备、

信息

通讯设

备

（手机、

电脑等）。

½ 因此，

若考虑将本产品目½所记½½的产品½用于可½会直接危及生½或身½的设备

［运输用设

备

（½½驱动控制设备、

火½控制设备、

船舶控制设备等）交通信号设备、

、

防灾设备、

医疗用器械、

高公共性信息通

信设备

（电话交换机以及电话、

无线、

广播电视等基站）等时，

请务必事先向敝司咨询。

另外，请勿将敝司产品½用于对安全性和可靠性要求较高的设备（航天设备、航空设备、原子½控制设备、海底设

备、军事设备等）。

且即便属于一般电子设备，½用于对安全性和可靠性要求较高的设备、电路上时，敝司建议进行充分的安全评估，

并根据需要，在设计时½加保护电路等。

未经敝司的事先书面同意，把本产品目½中记½½的产品½用于前述需要向敝司咨询的设备或敝司禁止½用的设备，

从而给客户或第三方造成的损害的，敝司不承担任½责任，敬请悉知。

■

因½用敝司产品，发生第三方的知识产权等权利相关问题的，敝司不承担责任。另外，并不代表授予这些权利的实

½权，敬请悉知。

■

除非书面合同中另有规定，敝司产品的保证范围仅限于交付的敝司产品单品，并且就敝司产品的故障或瑕疵所导致

的损害，敝司不承担任½责任，敬请悉知。

■

本产品目½所记½½的内容适用于从敝司营业所、销售子公司、销售代理店（即“正规销售渠道”）购买的敝司产

品，并不适用于从上述以外的渠道购买的敝司产品，敬请悉知。

■

出口相关注意事项

本产品目½所记½½的部分产品在出口时须事先确认《外汇和对外贸易法》以及美½出口管理的相关法规，并办理相

关手续。如有不明之处，请向敝司咨询。

BK2125HS121-T Related Products

	BK2125HS121-T	BK1005HM601-T	BK1608HS800-T	BK1608LM182-T	BK1608HM601-T	BK1005HS601-T	BK2125HM601-T	BK1005HM102-T	BK1608HM102-T	BK1005HS100-T
Description	Impedance @ Frequency: 120Ω @ 100MHz Number of Lines: 1 Rated Current (Max): 800mA DC Resistance (DCR) (Max): 150mΩ	Impedance @ Frequency: 600Ω @ 100MHz Number of Lines: 1 Rated Current (Max): 250mA DC Resistance (DCR) (Max): 500mΩ	Impedance @ Frequency: 80Ω @ 100MHz Number of Lines: 1 Rated Current (Max): 600mA DC Resistance (DCR) (Max): 100mΩ	Impedance @ Frequency: 1.8kΩ @ 100MHz Number of Lines: 1 Rated Current (Max): 200mA DC Resistance (DCR) (Max): 850mΩ	Impedance @ Frequency: 600Ω @ 100MHz Number of Lines: 1 Rated Current (Max): 250mA DC Resistance (DCR) (Max): 600mΩ	Impedance @ Frequency: 600Ω @ 100MHz Number of Lines: 1 Rated Current (Max): 300mA DC Resistance (DCR) (Max): 550mΩ	Impedance @ Frequency: 600Ω @ 100MHz Number of Lines: 1 Rated Current (Max): 500mA DC Resistance (DCR) (Max): 250mΩ	Impedance @ Frequency: 1kΩ @ 100MHz Number of Lines: 1 Rated Current (Max): 150mA DC Resistance (DCR) (Max): 700mΩ	Impedance @ Frequency: 1kΩ @ 100MHz Number of Lines: 1 Rated Current (Max): 200mA DC Resistance (DCR) (Max): 700mΩ	Impedance @ Frequency: 10Ω @ 100MHz Number of Lines: 1 Rated Current (Max): 1A DC Resistance (DCR) (Max): 30mΩ
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	0805	0402	0603	0603	0603	0402	0805	0402	0603	0402
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
shell code	0805	0402	0603	0603	0603	0402	0805	0402	0603	0402
structure	Chip Bead	Chip Bead	Chip Bead	Chip Bead	Chip Bead	Chip Bead	Chip Bead	Chip Bead	Chip Bead	Chip Bead
Maximum DC resistance	0.15 Ω	0.5 Ω	0.1 Ω	0.85 Ω	0.6 Ω	0.55 Ω	0.25 Ω	0.7 Ω	0.7 Ω	0.03 Ω
filter type	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP
maximum frequency	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
minimum frequency	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
high	0.85 mm	0.5 mm	0.8 mm	0.8 mm	0.8 mm	0.5 mm	0.85 mm	0.5 mm	0.8 mm	0.5 mm
length	2 mm	1 mm	1.6 mm	1.6 mm	1.6 mm	1 mm	2 mm	1 mm	1.6 mm	1 mm
Material	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output impedance	120 OHM Ω	600 OHM Ω	80 OHM Ω	1800 OHM Ω	600 OHM Ω	600 OHM Ω	600 OHM Ω	1000 OHM Ω	1000 OHM Ω	10 OHM Ω
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
physical size	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)	L1.6XB0.8XH0.8 (mm)/L0.063XB0.031XH0.031 (inch)	L1.6XB0.8XH0.8 (mm)/L0.063XB0.031XH0.031 (inch)	L1.6XB0.8XH0.8 (mm)/L0.063XB0.031XH0.031 (inch)	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)	L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch)	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)	L1.6XB0.8XH0.8 (mm)/L0.063XB0.031XH0.031 (inch)	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)
Rated current	0.8 A	0.25 A	0.6 A	0.2 A	0.25 A	0.3 A	0.5 A	0.15 A	0.2 A	1 A
width	1.25 mm	0.5 mm	0.8 mm	0.8 mm	0.8 mm	0.5 mm	1.25 mm	0.5 mm	0.8 mm	0.5 mm
JESD-609 code	e3	e3	e3	-	-	e3	-	e3	e3	e3
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	-	-	Matte Tin (Sn) - with Nickel (Ni) barrier	-	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn)	Matte Tin (Sn) - with Nickel (Ni) barrier
Maker	-	Taiyo Yuden	Taiyo Yuden	Taiyo Yuden	Taiyo Yuden	-	-	Taiyo Yuden	Taiyo Yuden	Taiyo Yuden
