Spec Sheet
Medium-High Voltage Multilayer Ceramic Capacitors
QMK325BJ154KN-T
Features
Item Summary
0.15uF±10%, 250V,
X5R/B, 1210/3225 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 2000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
Temperature Characteristic (JIS)
Operating Temp. Range (JIS)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
100 MΩ·μF
Yes
Yes
Yes
Reflow
0.15 uF ± 10 %
1210/3225
250 V
2.5 %
X5R
-55 to +85 ℃
B
-25 to +85 ℃
150 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
3.2 ±0.30 mm
2.5 ±0.20 mm
1.9 ±0.20 mm
0.60 ±0.30 mm
2018.10.08
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

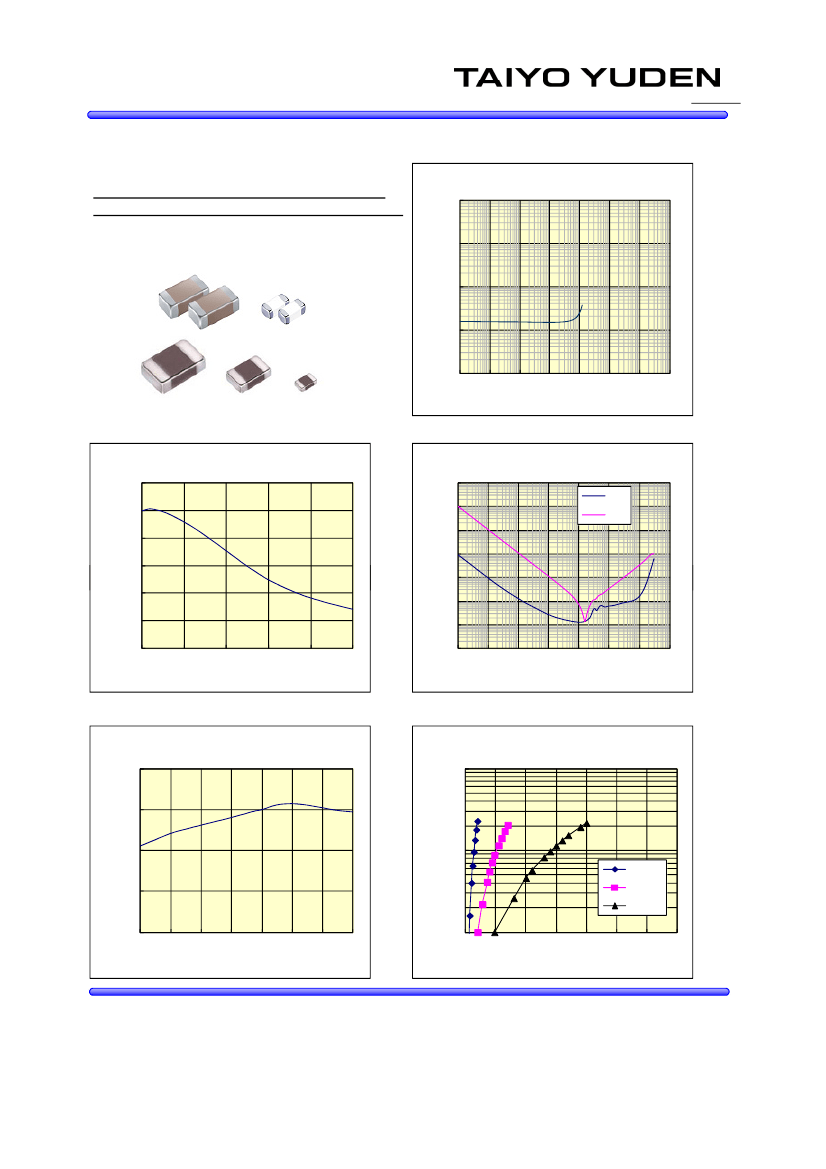

Multi Layer Ceramic Capacitor
○QMK325BJ154KN
250V 3225 B/X5R 0.15uF +/- 10% t=2.1mmMAX
250V 1210 B/X5R 0.15uF +/- 10% t=0.083inchMAX
100
-Electrical Characteristics Data-
16QA02
RoHS compliance product
QMK325BJ154KN
Capacitance Freq.
10
Capacitance[uF]
1
0.1
0.01
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
20
0
-20
QMK325BJ154KN
DC Bias Char.
10000
1000
100
QMK325BJ154KN
Impedance,ESR Freq.
ESR
Z
Z,ESR[O
Z,ESR[OHM]
dC/C
dC/C[%]
-40
-60
-80
10
1
0.1
01
0.01
0
50
100
150
200
DC Bias Voltage[V]
250
0.001
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
-100
QMK325BJ154KN
Capacitance Temp.
10
100
QMK325BJ154KN
Ripple Current
-10
dTemp.[degreeC]
0
dC/C[%]
10
10kHz
100kHz
1MHz
-20
-30
-55
-35
-15
5
25
45
Temperature[degreeC]
65
85
1
0
0.5
1
1.5
2
2.5
Ripple Current[Arms]
3
3.5
