MULTILAYER CERAMIC CHIP CAPACITORS
REMINDERS FOR USING THESE PRODUCTS
Before using these products, be sure to request the delivery specifications.
SAFETY REMINDERS
Please pay sufficient attention to the warnings for safe designing when using this products.
REMINDERS
1. The products listed in this specification are intended for use in automotive applications under normal operation and usage conditions.
The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality
requires a more stringent level of safety or reliability, or whose failure, malfunction or defect could cause serious damage to society, person or
property.
Please understand that we are not responsible for any damage or liability caused by use of the products in any of the applications below or for
any other use exceeding the range or conditions set forth in this specification sheet. If you intend to use the products in the applications listed
below or if you have special requirements exceeding the range or conditions set forth in this specification, please contact us.
(1) Aerospace/aviation equipment
(2) Transportation equipment (electric trains, ships, etc.)
(3) Medical equipment (excepting Pharmaceutical Affairs Law
classification Class1,2)
(4) Power-generation control equipment
(5) Atomic energy-related equipment
(6) Seabed equipment
(7) Transportation control equipment
(8) Public information-processing equipment
(9) Military equipment
(10) Electric heating apparatus, burning equipment
(11) Disaster prevention/crime prevention equipment
(12) Safety equipment
(13) Other applications that are not considered general-purpose
applications
When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection
circuit/device or providing backup circuits in your equipment.
In addition, although the products listed in this specification are intended for use in automotive applications as described above, they are not
prohibited to use in general electronic equipment, whose performance and/or quality doesn’t require a more stringent level of safety or reliability,
or whose failure, malfunction or defect could not cause serious damage to society, person or property. Therefore, the description of this caution
will be applied, when the products are used in general electronic equipment under a normal operation and usage conditions.
We may modify products or discontinue production of a product listed in this catalog without prior notification.
We provide “Delivery Specification” that explain precautions for the specifications and safety of each product listed in this catalog. We strongly
recommend that you exchange these delivery specifications with customers that use one of these products.
If you plan to export a product listed in this catalog, keep in mind that it may be a restricted item according to the “Foreign Exchange and For-
eign Trade Control Law”. In such cases, it is necessary to acquire export permission in harmony with this law.
Any reproduction or transferring of the contents of this catalog is prohibited without prior permission from our company.
We are not responsible for problems that occur related to the intellectual property rights or other rights of our company or a third party when you
use a product listed in this catalog. We do not grant license of these rights.
This catalog only applies to products purchased through our company or one of our company’s official agencies. This catalog does not apply to
products that are purchased through other third parties.
2.
3.
4.
5.
6.
7.
Notice: Effective January 2013, TDK will use a new catalog number which adds product thickness and packaging specification detail.
This new catalog number should be referenced on all catalog orders going forward, and is not applicable for OEM part number
orders.
Please be aware the last five digits of the catalog number will differ from the item description (internal control number) on the
product label.
Contact your local TDK Sales representative for more information.
(Example)
Catalog issued date
Prior to January 2013
January 2013 and later
Catalog number
C1608C0G1E103J(080AA)
C1608C0G1E103J080AA
Item description (on delivery label)
C1608C0G1E103JT000N
C1608C0G1E103JT000N
20190401 / mlcc_automotive_hightemp_en.fm
(3/16)

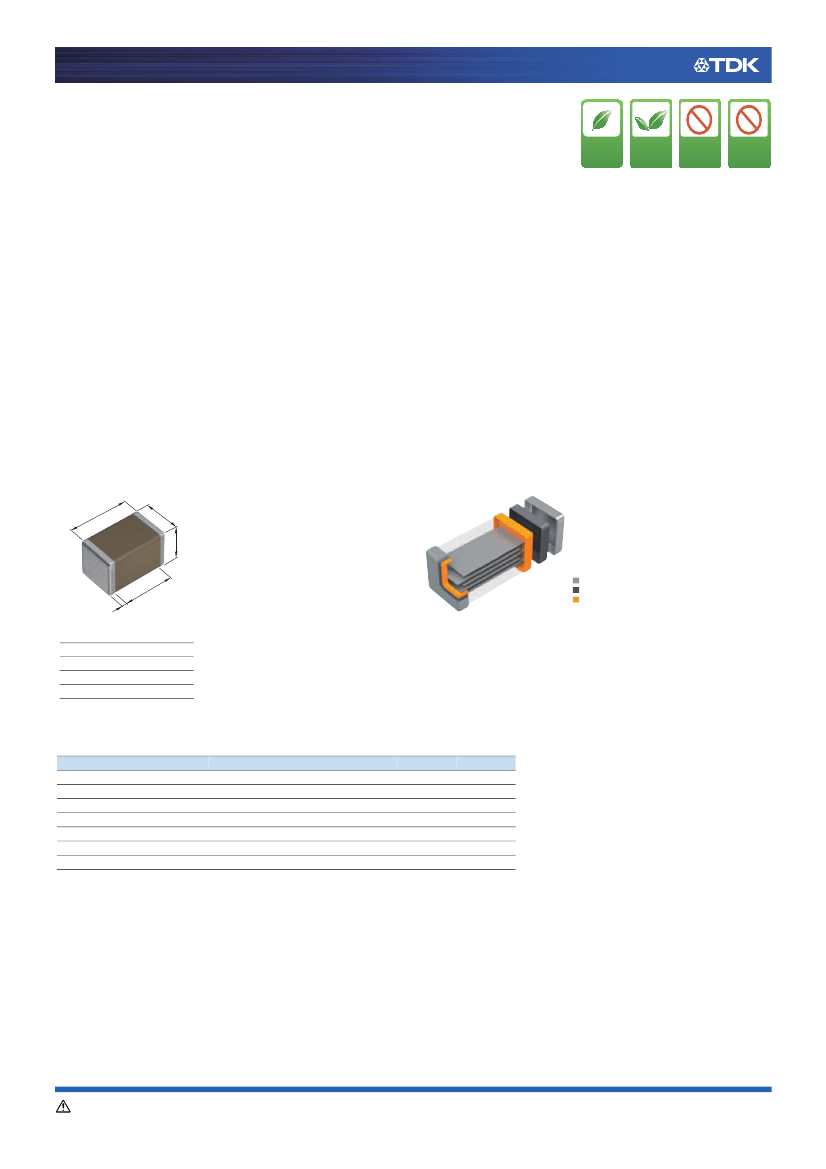

MULTILAYER CERAMIC CHIP CAPACITORS
CGA
series
High temperature application
Type: CGA2/1005 [0402 inch], CGA3/1608 [0603 inch], CGA4/2012 [0805 inch],
CGA5/3216 [1206 inch], CGA6/3225 [1210 inch], CGA8/4532 [1812 inch],
CGA9/5750 [2220 inch]
■
SERIES OVERVIEW
RoHS
Cl
Br
REACH Halogen
Free
SVHC-Free
Pb
Lead
Free
High temperature application CGA series, automotive grade of TDK's multilayer ceramic chip capacitor, is a product whose maximum operating
temperature is 150°C. The capacitance range is up to 22µF.
■
FEATURES
• Operating temperature range: –55 to +150°C.
• NP0 temperature characteristic which has excellent stable tempera-
ture and DC-bias characteristcs is applicable. (NP0 0±30ppm/°C,
：
–55 to +150°C)
• AEC-Q200 compliant.
■
APPLICATIONS
• Engine rooms
• Peripheral circuits of IGBT, SiC, GaN used at high temperature envi-
ronments
• Decoupling, smoothing, snubber and resonant circuit of high-temper-
ature operating equipment.
■
SHAPE & DIMENSIONS
L
■
PRODUCT STRUCTURE
W
T
G
B
Sn
Ni
Cu
L
W
T
B
G
Body length
Body width
Body height
Terminal width
Terminal
spacing
The structure which multiple sheets of dielectric and conductive material
are layered alternately. The superior mechanical strength and reliability
are realized by the monolithic and simple structure.
Type
L
W
CGA2
1.00±0.05
0.50±0.05
CGA3
1.60±0.10
0.80±0.10
CGA4
2.00±0.20
1.25±0.20
CGA5
3.20±0.20
1.60±0.20
CGA6
3.20±0.40
2.50±0.30
4.50±0.40
3.20±0.40
CGA8
CGA9
5.70±0.40
5.00±0.40
Dimensional
tolerances are typical values.
T
0.50±0.05
0.80±0.10
1.25±0.20
1.60±0.20
2.50±0.30
3.20±0.30
2.80±0.30
Dimensions in mm
B
G
0.10 min.
0.30 min.
0.20 min.
0.30 min.
0.20 min.
0.50 min.
0.20 min.
1.00 min.
0.20 min.
—
0.20 min.
—
0.20 min.
—
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20190401 / mlcc_automotive_hightemp_en.fm
(4/16)
MULTILAYER CERAMIC CHIP CAPACITORS
■
CATALOG NUMBER CONSTRUCTION
CGA
(1)
6
(2)
P
(3)
1
(4)
X8L
(5)
1C
(6)
226
(7)
M
(8)
250
(9)
A
(10)
C
(11)
(1) Series
(2) Dimensions L x W (mm)
Code
2
3
4
5
6
8
9
EIA
CC0402
CC0603
CC0805
CC1206
CC1210
CC1812
CC2220
Length
1.00
1.60
2.00
3.20
3.20
4.50
5.70
Width
0.50
0.80
1.25
1.60
2.50
3.20
5.00
Terminal width
0.10
0.20
0.20
0.20
0.20
0.20
0.20
(7) Nominal capacitance (pF)
The capacitance is expressed in three digit codes and in units of
pico Farads (pF). The first and second digits identify the first and
second significant figures of the capacitance. The third digit identi-
fies the multiplier. R designates a decimal point.
(Example)0R5 = 0.5pF
101 = 100pF
225 = 2,200,000pF = 2.2µF
(8) Capacitance tolerance
Code
C
D
J
K
M
Tolerance
±0.25pF
±0.50pF
±5%
±10%
±20%
(3) Thickness code
Code
B
C
E
F
H
J
L
M
N
P
Q
R
Thickness
0.50 mm
0.60 mm
0.80 mm
0.85 mm
1.15 mm
1.25 mm
1.60 mm
2.00 mm
2.30 mm
2.50 mm
2.80 mm
3.20 mm
(9) Thickness
Code
050
060
080
085
115
125
160
200
230
250
280
320
Thickness
0.50mm
0.60mm
0.80mm
0.85mm
1.15mm
1.25mm
1.60mm
2.00mm
2.30mm
2.50mm
2.80mm
3.20mm
(4) Voltage condition for life test
Symbol
1
2
3
4
Condition
1 × R.V.
2 × R.V.
1.5 × R.V.
1.2 x R.V.
(10) Packaging style
(5) Temperature characteristics
Temperature
characteristics
NP0
X8R
X8L
Temperature coefficient
or capacitance change
0±30ppm/°C
±15%
+15,–40%
Temperature range
–55 to +150°C
–55 to +150°C
–55 to +150°C
Code
A
B
K
Style
178mm reel, 4mm pitch
178mm reel, 2mm pitch
178mm reel, 8mm pitch
(11) Special reserved code
Code
A,B,C,N
Description
TDK internal code
(6) Rated voltage (DC)
Code
0G
0J
1A
1C
1E
1H
2A
2E
2W
2J
Voltage (DC)
4V
6.3V
10V
16V
25V
50V
100V
250V
450V
630V
