WizFi360 Datasheet
(Version 1.0)
http://www.wiznet.io
© Copyright 2019 WIZnet Co., Ltd. All rights reserved.
Document Revision History
Date
2019-07-26
2019-09-02
Revision
V0.9
V1.0
Temporary Release
Edited
“5. Pin Definitions”
Added “5.1 Initial Value of GPIO Pins”
Added
“Figure3.
WizFi360 Pinout”
Changes
2 / 13
WizFi360 Datasheet
Table of Contents
1.
2.
3.
4.
Overview
................................................................................................................................................................... 4
Features
.................................................................................................................................................................... 4
Parameters
.............................................................................................................................................................. 5
Package Information
.......................................................................................................................................... 7
4.1.
4.2.
5.
WizFi360-PA
.............................................................................................................................................. 7
WizFi360-CON
.......................................................................................................................................... 7
Pin Definitions
....................................................................................................................................................... 8
5.1.
Initial Value of GPIO Pins
.................................................................................................................. 9
6.
7.
8.
Physical Dimensions
....................................................................................................................................... 10
Peripheral Circuit Reference Design
...................................................................................................... 11
Important Notice
.............................................................................................................................................. 12
WizFi360 Hardware Design Guide
3 / 13
1. Overview

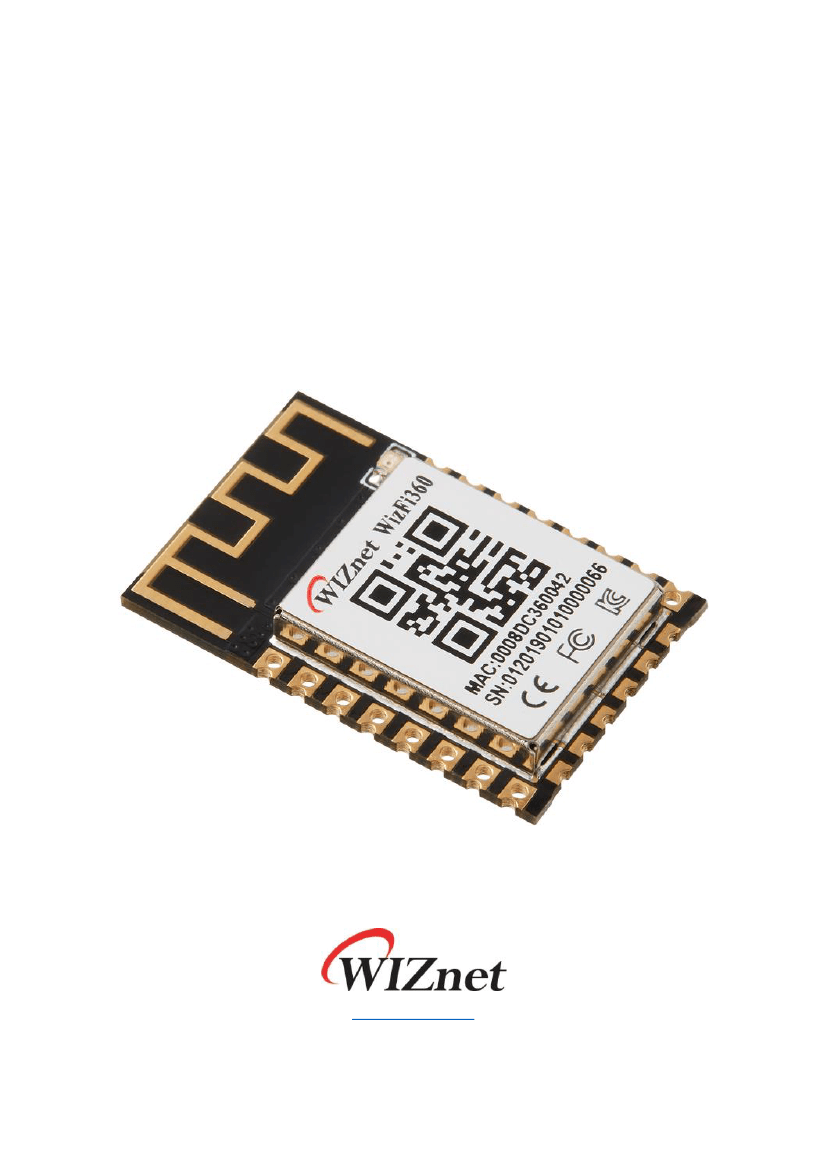

WizFi360 is a low cost and low-power consumption industrial-grade WiFi module. It is c
ompatible with IEEE802.11 b/g/n standard and supports SoftAP, Station and SoftAP+Stati
on modes. The serial port baud rate can be up to 2Mbps, which can meet the require
ment of various applications.
2. Features
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
WiFi 2.4G, 802.11 b/g/n
Support Station / SoftAP / SoftAP+Station operation modes
Support “Data pass-through” and “AT command data transfer” mode
Support serial AT command configuration
Support TCP Server / TCP Client / UDP operating mode
Support configuration of operating channel 0 ~ 13
Support auto 20MHz / 40MHz bandwidth
Support WPA_PSK / WPA2_PSK encryption
Serial port baud rate up from 600bps to 2Mbps with 16 common values
Support up to 5 TCP / UDP links
Obtaining IP address automatically from the DHCP server (Station mode)
DHCP service for Wireless LAN clients (AP mode)
Support DNS for communication with servers by domain name
Support “Keep-Alive” to monitor TCP connection
Support “Ping” for monitoring network status
Built-in SNTP client for receiving the network time
Support built-in unique MAC address and user configurable
Support firmware upgrade by UART Download / OTA (via WLAN)
Industrial grade (operating temperature range: -40
° C ~ 85 ° C)
CE, FCC, KC certification
4 / 13
WizFi360 Datasheet
3. Parameters
Categories
Wireless
Items
Wireless Standard
Frequency Range
Serial Data Interface
Hardware
Operating Voltage
Operating Temperature
WiFi Operation Modes
Encryption Method
Software
Operation Modes
Configuration Mode
Firmware Upgrade
Certification Report
802.11 b/g/n
2.4GHz-2.5GHz（2400MHz~2483.5MHz）
3.3V TTL×1：TXD、RXD、CTS、RTS、GND
3.0~3.6V（Typical 3.3V）
-40℃ ~85℃
Station / SoftAP / SoftAP + Station
WPA_PSK/WPA2_PSK
TCP Server/TCP Client/UDP
AT commend set
UART Download / OTA (via WLAN) upgrade
CE, FCC, KC
Values
Table 1. Parameters
Parameter
Input Frequency
Typical value
2400~2484
Output Power
PA Output Power at 72.2Mbps
PA Output Power in 802.11b
12
19
Sensitivity
DSSS,1 Mbps
CCK,11 Mbps
OFDM,6 Mbps
OFDM,54 Mbps
HT20, MCS0
HT20, MCS7
-95
-86
-89
-73
-89
-71
Adjacent-channel interference (ACI)
OFDM,6 Mbps
OFDM,54 Mbps
HT20, MCS0
HT20, MCS7
32
15
29
10
dB
dB
dB
dB
dBm
dBm
dBm
dBm
dBm
dBm
dBm
dBm
Unit
MHz
Table 2. Receiver Sensitivity
WizFi360 Hardware Design Guide
5 / 13
