TH06 SI7006: DescriptionHumidity range: 0 ~ 100% RH Temperature range: - Accuracy: - Sensor type: Humidity, Temperature Output type: I²C C in the TH06C specification sheet means chip; CategoryThe sensor Temperature and humidity sensor; File Size595KB，28 Pages; ManufacturerHOPERF; Websitehttp://www.hoperf.com/

Download Datasheet Parametric View All

TH06 SI7006 Overview

Humidity range: 0 ~ 100% RH Temperature range: - Accuracy: - Sensor type: Humidity, Temperature Output type: I²C C in the TH06C specification sheet means chip

TH06 SI7006 Parametric

Parameter Name	Attribute value
Humidity range	0 ~ 100% RH
temperature range	-
Accuracy	-
Response time	-
operating temperature	-40°C ~ 125°C
Supply voltage	1.9 V ~ 3.6 V
sensor type	Humidity, Temperature
Output type	I²C

Preview

Download Datasheet

View All

C H

UMIDITY

Features



AND

E M P E R A T U R E

E N S O R

Precision Relative Humidity Sensor



± 5% RH (max), 0–80% RH

High Accuracy Temperature Sensor



±1 °C (max), –10 to 85 °C

0 to 100% RH operating range

–40 to +125 °C operating range

Wide operating voltage

(1.9 to 3.6 V)

Low Power Consumption



150 µA active current



60 nA standby current



Factory-calibrated

C Interface

Integrated on-chip heater

3x3 mm DFN6

Excellent long term stability

Optional factory-installed cover



Low-profile



Protection during reflow



Excludes liquids and particulates

Applications



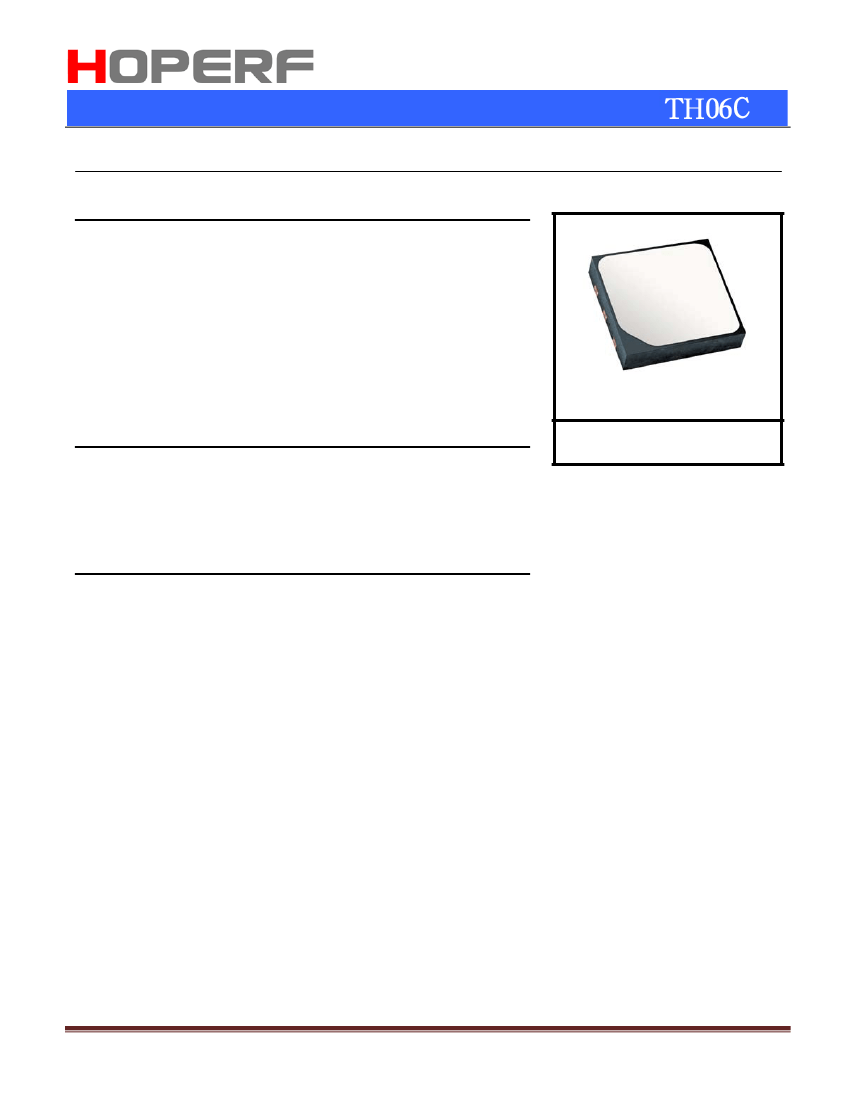

TH06C: 3x3 mm DFN6



HVAC/R

Thermostats/humidistats

Respiratory therapy

White goods

Indoor weather stations

Micro-environments/data centers



Automotive climate control and

defogging



Asset and goods tracking



Mobile phones and tablets

Description

The TH06C I2C Humidity and Temperature Sensor is a monolithic CMOS IC integrating humidity and temperature

sensor elements, an analog-to-digital converter, signal processing, calibration data, and an I2C Interface. The

patented use of industry-standard, low-K polymeric dielectrics for sensing humidity enables the construction of low-

power, monolithic CMOS Sensor ICs with low drift and hysteresis, and excellent long term stability.

The humidity and temperature sensors are factory-calibrated and the calibration data is stored in the on-chip non-

volatile memory. This ensures that the sensors are fully interchangeable, with no recalibration or software changes

required

The TH06C is reflow solderable. It can be used as a hardware- and software-compatible drop-in upgrade for existing

RH/ temperature sensors , featuring precision sensing over a wider range and lower power consumption. The

optional factory-installed cover offers a low profile, convenient means of protecting the sensor during assembly (e.g.,

reflow soldering) and throughout the life of the product, excluding liquids (hydrophobic/oleophobic) and particulates.

The TH06C offers an accurate, low-power, factory-calibrated digital solution ideal for measuring humidity, dew-point,

and temperature, in applications ranging from HVAC/R and asset tracking to industrial and consumer platforms.

Tel:+86-755-82973805

Fax: +86-755-82973550

Email:sales@hoperf.com

http://www.hoperf.com
