RFM95/96/97/98

RFM95/96/97/98 - Low Power Long Range Transceiver Module

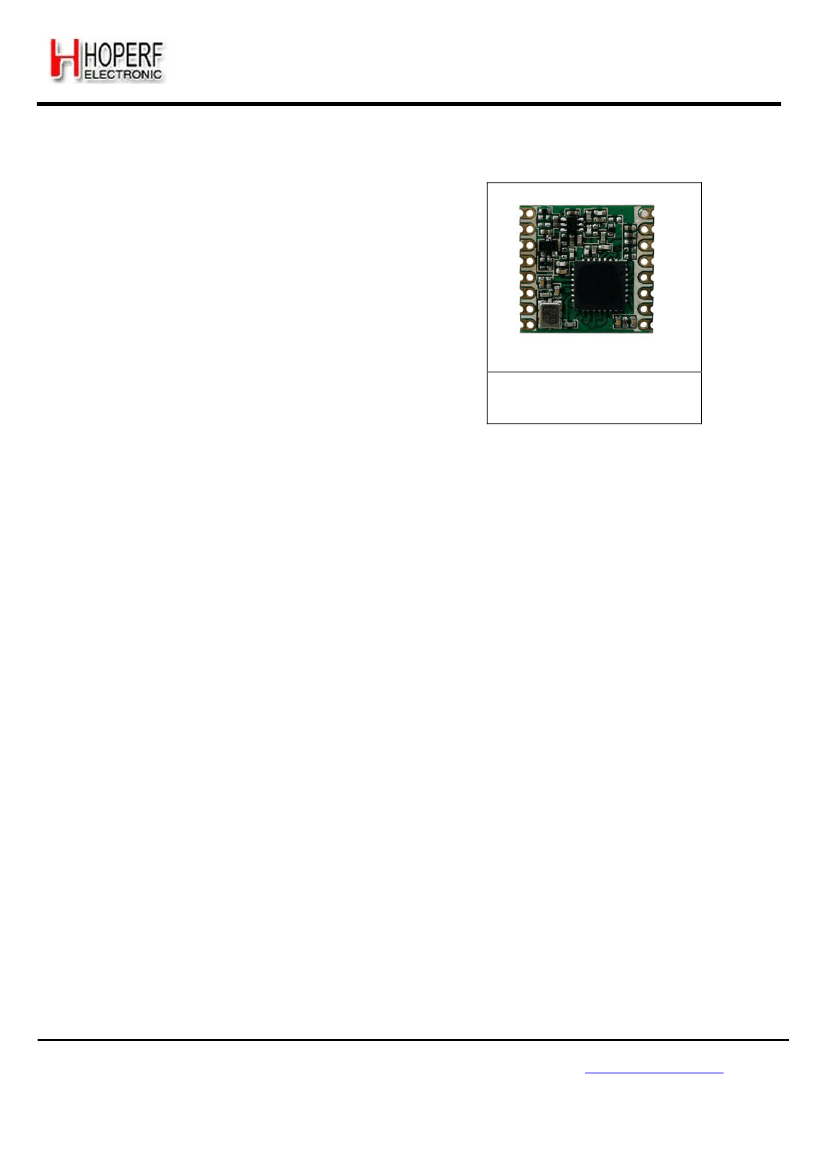

GENERAL DESCRIPTION

The RFM95/96/97/98 transceivers feature the

LoRa

long range modem that provides ultra-long range spread

spectrum communication and high interference immunity

whilst minimising current consumption.

Using Hope RF’s patented

LoRa

modulation technique

RFM95/96/97/98 can achieve a sensitivity of over -148dBm

using a low cost crystal and bill of materials. The high

sensitivity combined with the integrated +20 dBm power

amplifier yields industry leading link budget making it

optimal for any application requiring range or robustness.

LoRa

also provides significant advantages in both blocking

and selectivity over conventional modulation techniques,

solving the traditional design compromise between range,

interference immunity and energy consumption.

These devices also support high performance (G)FSK

modes for systems including WMBus, IEEE802.15.4g. The

RFM95/96/97/98 deliver exceptional phase noise,

selectivity, receiver linearity and IIP3 for significantly

lower current consumption than competing devices.

V1.0

RFM95/96/97/98

KEY PRODUCT FEATURES

LoRa

Modem.

168 dB maximum link budget.

+20 dBm - 100 mW constant RF output vs. V supply.

+14 dBm high efficiency PA.

Programmable bit rate up to 300 kbps.

High sensitivity: down to -148 dBm.

Bullet-proof front end: IIP3 = -12.5 dBm.

Excellent blocking immunity.

Low RX current of 10.3 mA, 200 nA register retention.

Fully integrated synthesizer with a resolution of 61 Hz.

FSK, GFSK, MSK, GMSK,

LoRa

and OOK modulation.

Built-in bit synchronizer for clock recovery.

Preamble detection.

127 dB Dynamic Range RSSI.

Automatic RF Sense and CAD with ultra-fast AFC.

Packet engine up to 256 bytes with CRC.

Built-in temperature sensor and low battery indicator.

Modue Size：16*16mm

APPLICATIONS

Automated Meter Reading.

Home and Building Automation.

Wireless Alarm and Security Systems.

Industrial Monitoring and Control

Long range Irrigation Systems

Tel: +86-755-82973805 Fax: +86-755-82973550 E-mail: sales@hoperf.com http:/ / www.hoperf.com

Page 1
