PS2501-1-A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PS2501-1-A

PS2501-1-A: DescriptionInput type: DC Number of channels: 1 Isolation voltage: 5000Vrms Product type: Transistor output Transistor output photocoupler PS2501-1-A; CategoryLED optoelectronic/LED photoelectric; File Size363KB，13 Pages; ManufacturerCalifornia Eastern Labs; Websitehttp://www.cel.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PS2501-1-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PS2501-1-A	-	-	View	Buy Now

PS2501-1-A Overview

Input type: DC Number of channels: 1 Isolation voltage: 5000Vrms Product type: Transistor output Transistor output photocoupler PS2501-1-A

PS2501-1-A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	California Eastern Labs

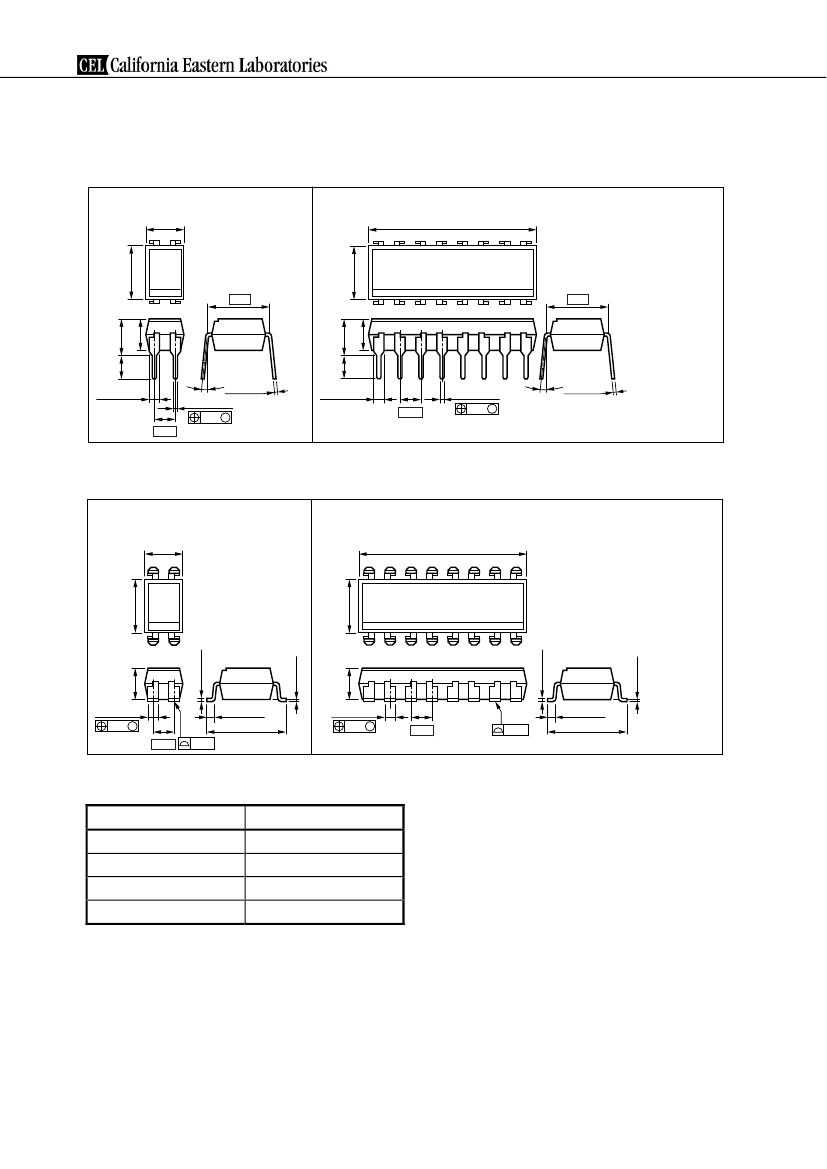

package instruction	LEAD FREE, PLASTIC, DIP-4
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min	80 V
Configuration	SINGLE
Nominal current transfer ratio	300%
Maximum dark power	100 nA
Maximum forward current	0.08 A
Maximum insulation voltage	5000 V
JESD-609 code	e6
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER
Terminal surface	Tin/Bismuth (Sn/Bi)
Base Number Matches	1

Preview

Download Datasheet

View All

PHOTOCOUPLER

PS2501-1,-4,PS2501L-1,-4

HIGH ISOLATION VOLTAGE

SINGLE TRANSISTOR TYPE

MULTI PHOTOCOUPLER SERIES

−NEPOC

Series−

DESCRIPTION

The PS2501-1, -4 and PS2501L-1, -4 are optically coupled isolators containing a GaAs light emitting diode and an

NPN silicon phototransistor.

The PS2501-1, -4 are in a plastic DIP (Dual In-line Package) and the PS2501L-1, -4 are lead bending type (Gull-

wing) for surface mount.

FEATURES

• High isolation voltage (BV = 5 000 Vr.m.s.)

• High collector to emitter voltage (V

CEO

= 80 V)

• High-speed switching (t

= 3

s TYP., t

= 5

s TYP.)

• Ordering number of tape product: PS2501L-1-F3: 2 000 pcs/reel

• Safety standards

• UL approved: No. E72422

PIN CONNECTION

(Top View)

PS2501-1, PS2501L-1

1. Anode

2. Cathode

3. Emitter

4. Collector

APPLICATIONS

• Power supply

• Telephone/FAX.

• FA/OA equipment

• Programmable logic controller

PS2501-4, PS2501L-4

16 15 14 13 12 11 10 9

2 3 4 5 6 7 8

1, 3, 5, 7. Anode

2, 4, 6, 8. Cathode

9, 11, 13, 15. Emitter

10, 12, 14, 16. Collector

Document No. PN10225EJ05V0DS (5th edition)

Date Published February 2010 NS

The mark

shows major revised points.

" in the PDF file and specifying it in the "Find what:" field.

The revised points can be easily searched by copying an "

PS2501-1-A Related Products

	PS2501-1-A	PS2501L-4-A	PS2501-4-A	PS2501L-4-E3-A	PS2501L-1-A
Description	Input type: DC Number of channels: 1 Isolation voltage: 5000Vrms Product type: Transistor output Transistor output photocoupler PS2501-1-A	Input type: DC Number of channels: 4 Isolation voltage: 5000Vrms Product type: Transistor output	Input type: DC Number of channels: 4 Isolation voltage: 5000Vrms Product type: Transistor output	Input type: DC Number of channels: 4 Isolation voltage: 5000Vrms Product type: Transistor output	Input type: DC Number of channels: 1 Isolation voltage: 5000Vrms Product type: Transistor output
Is it Rohs certified?	conform to	conform to	conform to	-	conform to
Maker	California Eastern Labs	California Eastern Labs	California Eastern Labs	-	California Eastern Labs
package instruction	LEAD FREE, PLASTIC, DIP-4	LEAD FREE, SURFACE MOUNT, PLASTIC PACKAGE-16	LEAD FREE, PLASTIC, DIP-16	-	LEAD FREE, SURFACE MOUNT, PLASTIC PACKAGE-4
Reach Compliance Code	compliant	compliant	compliant	-	compliant
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	-	UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min	80 V	80 V	80 V	-	80 V
Configuration	SINGLE	SEPARATE, 4 CHANNELS	SEPARATE, 4 CHANNELS	-	SINGLE
Nominal current transfer ratio	300%	300%	300%	-	300%
Maximum dark power	100 nA	100 nA	100 nA	-	100 nA
Maximum forward current	0.08 A	0.08 A	0.08 A	-	0.08 A
Maximum insulation voltage	5000 V	5000 V	5000 V	-	5000 V
JESD-609 code	e6	e6	e6	-	e6
Number of components	1	4	4	-	1
Maximum operating temperature	100 °C	100 °C	100 °C	-	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	-	TRANSISTOR OUTPUT OPTOCOUPLER
Terminal surface	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	Tin/Bismuth (Sn/Bi)	-	Tin/Bismuth (Sn/Bi)
