ROTARY CODED SWITCHES (SMD)
SA-7000

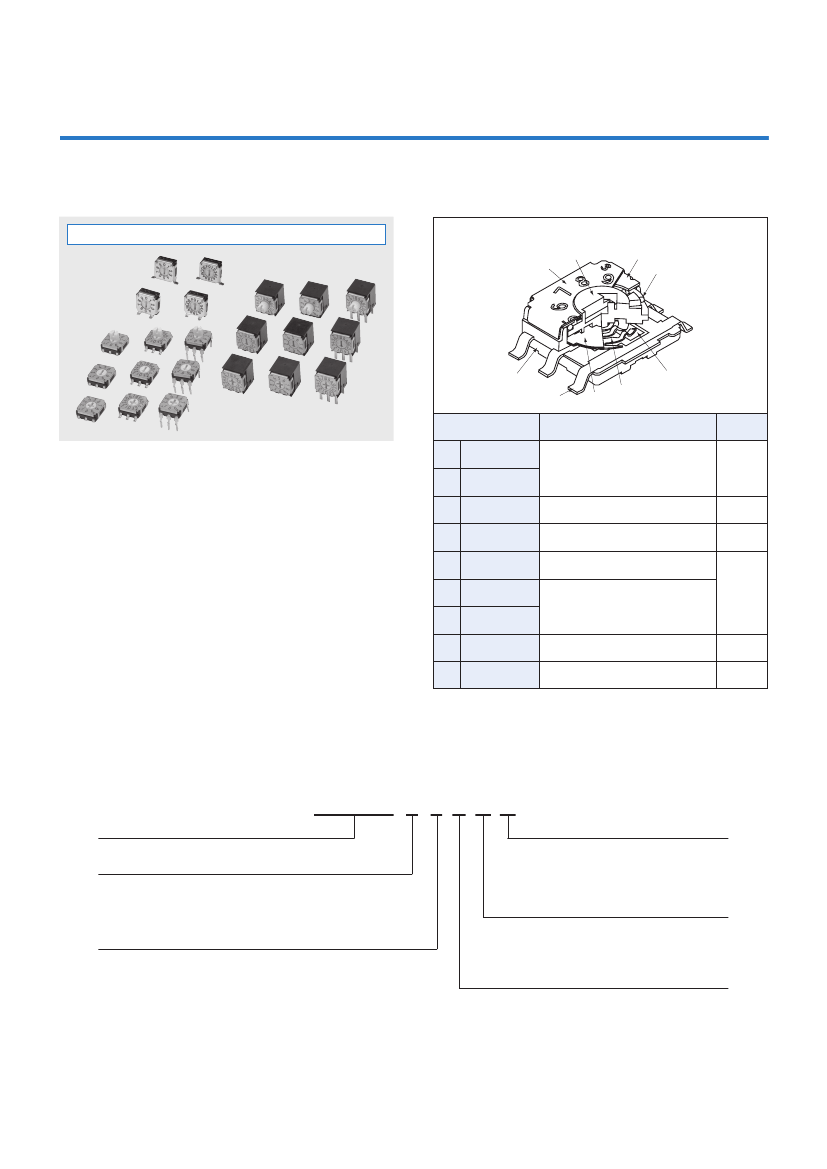

INTERNAL STRUCTURE
①
④
②
③
RoHS compliant
⑧
⑨
Part name
⑤
⑥
Material
⑦
Flammability
①
Marking cover
Cover
“O” ring
Rotor
Spacer
Moving contact
固定接点
■
FEATURES
●
RoHS compliant
●
Low profile of 3.0 mm
●
Wide variety (top or side setting, 10 or 16 positions,
J-hook, gull wing or through hole pins) to choose from
●
Easy to recognize
●
Low-profile side setting type with support terminals is
available
②
③
④
⑤
⑥
⑦
⑧
⑨
Stainless steel (SUS 304)
Silicone rubber
Polyphenylenesulphide
Stainless steel (SUS 304)
Copper alloy, Gold-plated
Polyphenylenesulphide
Copper alloy, Gold-plated
—
UL94HB
UL94V-0
—
Fixed contact
Housing
Terminal pin
UL94V-0
—
■
PART NUMBER DESIGNATION
S A - 7 0 1 0 T A
Series name
Shape of rotor
0
：
Without knob (Minus slot)
1
：
With knob
2
：
Without knob (Cross slot)
Shape of terminal
A
：
J-hook
B
：
Gull wing
C
：
Through hole pins
(Only gull wing availabe for Low-profile side setting type)
Form of packaging
T
：
Taping (Reel)
Blank
：
Bulk in plastic bag
(Only taping availabe for Low-profile side setting type)
Code format
1：10 positions, real code
3：10 positions, complementary code
5：16 positions, real code
7：16 positions, complementary code
Setting position
0
：
Top setting
1
：
Side setting
2
：
Low-profile side setting & forward support terminal type
3
：
Low-profile side setting & sideling support terminal type
※
Please refer to the LIST OF PART NUMBERS when placing orders.
ROTARY CODED SWITCHES (SMD)
SA-7000
■
LIST OF PART NUMBERS
Setting position
Shape of
rotor
Shape of
terminal
A
J-hook
Minus slot
B
Gull wing
C
Through hole pins
A
J-hook
Top setting
With knob
B
Gull wing
C
Through hole pins
A
J-hook
Cross slot
B
Gull wing
C
Through hole pins
A
J-hook
Minus slot
B
Gull wing
C
Through hole pins
A
J-hook
Side setting
With knob
B
Gull wing
C
Through hole pins
A
J-hook
Cross slot
B
Gull wing
C
Through hole pins
Minus slot
Low-profile side
setting & forward
With knob
support terminal
type
Cross slot
Minus slot
Low-profile side
setting & sideling
With knob
support terminal
type
Cross slot
Form of packaging
Taping
Plastic bag
Taping
Plastic bag
Taping
Plastic bag
Taping
Plastic bag
Taping
Plastic bag
Taping
Plastic bag
Taping
Plastic bag
Taping
Plastic bag
Taping
Plastic bag
Taping
Plastic bag
Taping
Plastic bag
Taping
Plastic bag
Taping
Plastic bag
Taping
Plastic bag
Taping
Plastic bag
Taping
Plastic bag
Taping
Plastic bag
Taping
Plastic bag
Binary coded decimal
Real code
SA-7010TA
SA-7010A
SA-7010TB
SA-7010B
SA-7010C
SA-7110TA
SA-7110A
SA-7110TB
SA-7110B
SA-7110C
SA-7210TA
SA-7210A
SA-7210TB
SA-7210B
SA-7210C
SA-7011TA
SA-7011A
SA-7011TB
SA-7011B
SA-7011C
SA-7111TA
SA-7111A
SA-7111TB
SA-7111B
SA-7111C
SA-7211TA
SA-7211A
SA-7211TB
SA-7211B
SA-7211C
SA-7012TB
SA-7112TB
Binary coded hexadecimal
Real code
SA-7050TA
SA-7050A
SA-7050TB
SA-7050B
SA-7050C
SA-7150TA
SA-7150A
SA-7150TB
SA-7150B
SA-7150C
SA-7250TA
SA-7250A
SA-7250TB
SA-7250B
SA-7250C
SA-7051TA
SA-7051A
SA-7051TB
SA-7051B
SA-7051C
SA-7151TA
SA-7151A
SA-7151TB
SA-7151B
SA-7151C
SA-7251TA
SA-7251A
SA-7251TB
SA-7251B
SA-7251C
SA-7052TB
SA-7152TB
SA-7252TB
SA-7053TB
SA-7153TB
SA-7253TB
Complementary code
SA-7030TA
SA-7030A
SA-7030TB
SA-7030B
SA-7030C
SA-7130TA
SA-7130A
SA-7130TB
SA-7130B
SA-7130C
SA-7230TA
SA-7230A
SA-7230TB
SA-7230B
SA-7230C
SA-7031TA
SA-7031A
SA-7031TB
SA-7031B
SA-7031C
SA-7131TA
SA-7131A
SA-7131TB
SA-7131B
SA-7131C
SA-7231TA
SA-7231A
SA-7231TB
SA-7231B
SA-7231C
SA-7032TB
SA-7132TB
SA-7232TB
SA-7033TB
SA-7133TB
SA-7233TB
Complementary code
SA-7070TA
SA-7070A
SA-7070TB
SA-7070B
SA-7070C
SA-7170TA
SA-7170A
SA-7170TB
SA-7170B
SA-7170C
SA-7270TA
SA-7270A
SA-7270TB
SA-7270B
SA-7270C
SA-7071TA
SA-7071A
SA-7071TB
SA-7071B
SA-7071C
SA-7171TA
SA-7171A
SA-7171TB
SA-7171B
SA-7171C
SA-7271TA
SA-7271A
SA-7271TB
SA-7271B
SA-7271C
SA-7072TB
SA-7172TB
SA-7272TB
SA-7073TB
SA-7173TB
SA-7273TB
Pieces in
package
500 pcs./reel
50 pcs./pack
500 pcs./reel
50 pcs./pack
50 pcs./pack
500 pcs./reel
50 pcs./pack
500 pcs./reel
50 pcs./pack
50 pcs./pack
500 pcs./reel
50 pcs./pack
500 pcs./reel
50 pcs./pack
50 pcs./pack
500 pcs./reel
50 pcs./pack
500 pcs./reel
50 pcs./pack
50 pcs./pack
500 pcs./reel
50 pcs./pack
500 pcs./reel
50 pcs./pack
50 pcs./pack
500 pcs./reel
50 pcs./pack
500 pcs./reel
50 pcs./pack
50 pcs./pack
500 pcs./reel
500 pcs./reel
500 pcs./reel
500 pcs./reel
500 pcs./reel
500 pcs./reel
B
Gull wing
SA-7212TB
Taping
SA-7013TB
SA-7113TB
SA-7213TB
:
Not manufactured
※
Verify the above part numbers when placing orders.
Taping version can be supplied only in reel unit.
SA-7000
ROTARY CODED SWITCHES (SMD)
■
STANDARD SPECIFICATIONS
Circuit type
Operating temperature range
−40
~ 85 °C
Storage temperature range
BCD (Real code, complementary code)
BCH (Real code, complementary code)
■
ELECTRICAL CHARACTERISTICS
Contact rating
Non-switching
Switching
Minimum
Contact resistance
DC50 V 100 mA
DC5 V 100 mA
DC20 mV 1
μA
100 mΩ maximum
100 MΩ (DC100 V) minimum
AC250 V, 60 s
Sealing
Non-Washable
Approx. 0.32 g (Top setting type without knob)
Approx. 0.34 g (Top setting type with knob)
Approx. 0.69 g (Side setting type without knob)
Approx. 0.71 g (Side setting type with knob)
Approx. 0.42 g (Low-profile side setting type without knob)
Approx. 0.44 g (Low-profile side setting type with knob)
Insulation resistance
Dielectric strength
Net weight
■
ENVIRONMENTAL CHARACTERISTICS
Vibration
(Amplitude) 1.5 mm or
(Acceleration) 98 m/s
2
,
10-500-10 Hz, 3 directions for 2 h each
490 m/s
2
, 11 ms
6 directions for 3 times each
10000 steps minimum, DC5 V, 100 mA
40 °C, Relative humidity 90 ~ 95 %,
240 h
85 °C, 96 h
−
40 °C, 96 h
−
40 (0.5 h) ~ 85 °C ( 0.5 h ), 5 cycles
■
MECHANICAL CHARACTERISTICS
No. of positions
Adjustment torque
Stepping angle
Solderability
10, 16
20 mN·m {204 gf·cm} maximum
36° (10 positions)
22.5° (16 positions)
245
±
3 °C, 2 ~ 3 s
Reflow：255 °C (Peak temperature)
Please refer to the profile below）
Shock
Load life
Humidity (Steady state)
High temperature exposure
Low temperature exposure
Thermal shock
Soldering heat
Flow：
260
±
3 °C, 5~ 6 s, two
Manual soldering：
350
±
10 °C, 3 ~ 4 s
5 N {0.51 kgf} 10 s
Width 90 mm, bend 3 mm, 5 s, 1 time
5 N {0.51 kgf} 10s
5 N {0.51 kgf} 10s
Temperature
Shear (adhesion)
Substrate bending
Pull-off strength
Stop strength (With knob only)
〈
Reflow profile for soldering heat evaluation
〉
(℃)
250
200
150
100
50
180
℃
150
℃
Peak : 250
+5
0
℃
Over 230
℃
Pre Heating Zone
{ } : Reference only
90
±
30 s
30
±
10 s
Heating time
Soldering Zone
Reflow : two times maximum
ROTARY CODED SWITCHES (SMD)
SA-7000
■
CODE FORMAT
No. of positions
Position
Real code
Code
Complemen-
tary code
8
4
2
1
8
4
2
1
0
1
2
3
16 positions
10 positions
4
5
6
7
8
9
A
B
C
● …Contact
closed
D
E
F
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
■
RECOMMENDED P.C.B. PAD OUTLINE DIMENSIONS
<Top setting>
● A
type
3.5
<Side setting>
● B
type
3
1.9
● A
type
2.3
● B
type
(Unit: mm)
3
3.5
1.9
4.3
4.3
3.5
1.9
3.5
1.9
6 – 1.6
6 – 1.6 2.54
2.54
<Low-profile side setting &
forward support terminal type (B type)>
1.27 N (N = 1~4) = 5.08
0.76
1.27 N (N = 1~4) = 5.08
0.76
3.5
2.54
6 – 1.6
2.54
6 – 1.62.54
2.54
2.54
2.54
6 – 1.2
62.54
– 1.2
2.54
2.54
2.54
2.3
2.3
4.3
3
6
0
0
0
4.3
3
6
0
0
0
2.3
0
0
6 – 1.2
6 –2.54
1.2
2.54
3
3
2.54
2.54
<Low-profile side setting &
sideling support terminal type (B type)>
1.27 N (N = 1~4) = 5.08
0.76
1.27 N (N = 1~4) = 5.08
Note) The zero point is the center
0.76
of mounting.
6.6
3.5
5
5
1.9
2
2
10.6
10.6
2
1.9
6.6
1.9
1.9
1.6
1.6
6
6
1.6
1.6
2
■
SIZE OF P.C.B. PROCESSING
<Top setting>
● C
type
6 –
φ
0.8
<Side setting>
● C
type
Operating face
▼
6 –
φ
0.8
7.62
2.54
2.54
2.54
2.54
5.08
SA-7000
ROTARY CODED SWITCHES (SMD)
■

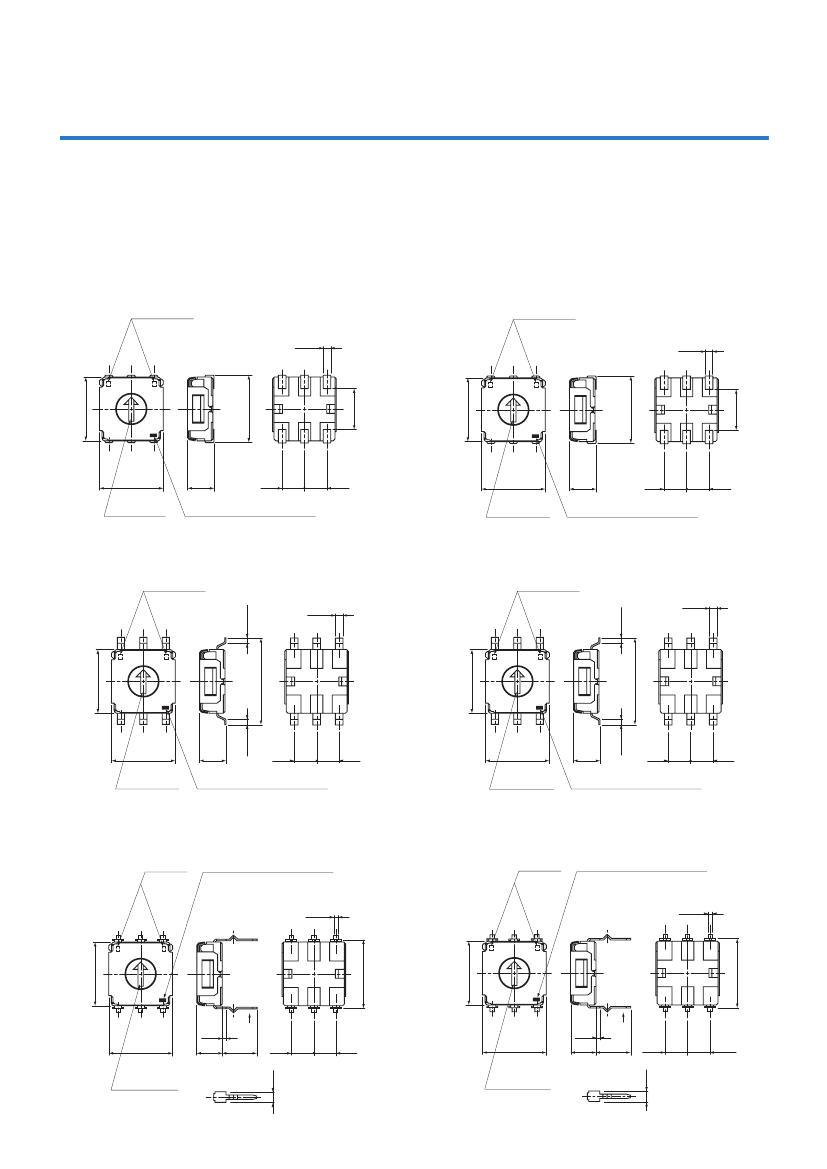

OUTLINE DIMESIONS
<Top setting>
● SA-7010A
(Real code)
● SA-7030A
(Complementary code)
Production date code
6 – 0.8
t = 0.15
Unless otherwise specified, tolerance:
±
0.3 (Unit: mm)
● SA-7050A
(Real code)
● SA-7070A
(Complementary code)
Production date code
② ① Ⓒ
② ① Ⓒ
6 – 0.8
t = 0.15
C
D
A
B
E
9
0
1
F
0
1
7
8
9
7.2
7.2
7.2
4
5
2
3
6
78
23
7.2
7.5
4.7
7.2
7.5
④ ⑧ Ⓒ
7.2
3
2.54
2.54
④ ⑧ Ⓒ
3
2.54
2.54
0.6 W
×
2.6 L
×
0.8 D
Marking appears only with complementary code
0.6 W
×
2.6 L
×
0. 8D
Marking appears only with complementary code
● SA-7010B
(Real code)
● SA-7030B
(Complementary code)
Production date code
0.6 min.
6 – 0.8
t = 0.15
● SA-7050B
(Real code)
● SA-7070B
(Complementary code)
Production date code
0.6 min.
6 – 0.8
t = 0.15
② ① Ⓒ
② ① Ⓒ
C
D
A
B
E
9
0
1
F
0
1
7
8
9
78
7.2
7.2
0.6 min.
7.2
3
2.54
2.54
3
0.6 min.
④ ⑧ Ⓒ
9.8
④ ⑧ Ⓒ
9.8
2.54
2.54
0.6 W
×
2.6 L
×
0.8 D
Marking appears only with complementary code
0.6 W
×
2.6 L
×
0.8 D
Marking appears only with complementary code
● SA-7010C
(Real code)
● SA-7030C
(Complementary code)
Production
date code
Marking appears only with complementary code
● SA-7050C
(Real code)
● SA-7070C
(Complementary code)
Production
date code
Marking appears only with complementary code
② ① Ⓒ
6 – 0.5
t = 0.15
② ① Ⓒ
6 – 0.5
t = 0.15
C
D
A
B
E
9
0
1
F
0
1
7
8
9
78
7.62
④ ⑧ Ⓒ
7.2
A
0.5
2.9
4
±
1
2.54
2.54
④ ⑧ Ⓒ
A
0.5
2.9
4
±
1
2.54
2.54
1.2
0.6 W
×
2.6 L
×
0.8 D A Projection
0.6 W
×
2.6 L
×
0.8 D
A Projection
1.2
7.62
7.2
7.2
4.7
4
5
6
4
5
6
4
5
6
4
5
2
3
6
23
4
5
2
3
6
23
京公网安备 11010802033920号
EEWORLD
