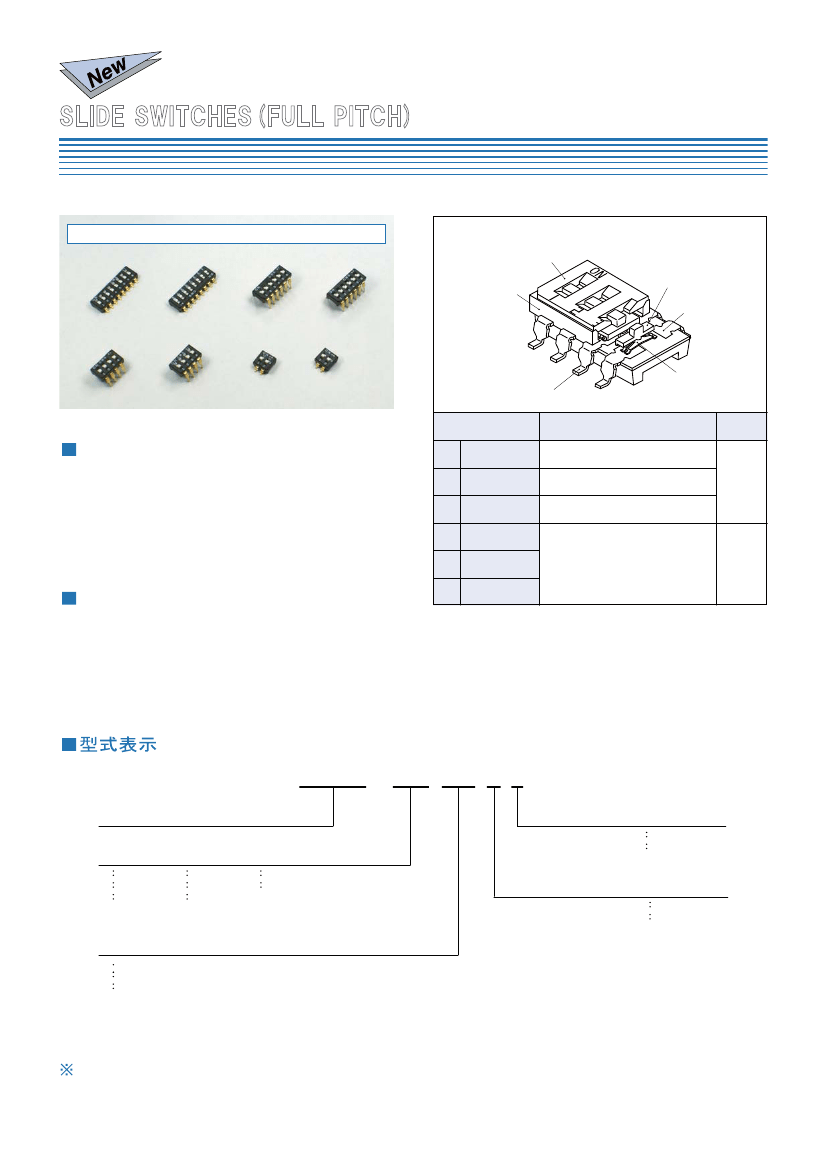

CWS
RoHS compliant
INTERNAL STRUCTURE
①
③
②
⑤
④
⑥
Part name
Material
Polyphenylenesulphide
Polyamide
Polyphenylenesulphide
UL94V-0
Flammability
FEATURES
●RoHS
compliant
●Excellet
contact stability by twin Gold-plated contact
●Cost
effective
①
②
③
④
⑤
⑥
Cover
Slider
Housing
Slider contact
Fixed contact
Terminal pin
Copper alloy, Gold-plated
–
APPLICATIONS
●
Communication devices, Air-conditioning equiment,
Vending machines and various control equipment
PART NUMBER DESIGNATION
Series name
Shape of terminal
B Gull wing
C Through hole pin
2 bits
5 bits
10 bits
3 bits
6 bits
No. of bits
1 bits
4 bits
8 bits
Form of packaging
T
M
Magazine
Structure
Please refer to the LIST OF PART NUMBERS when placing orders.
CWS
LIST OF PART NUMBERS
Structure
No. of bits
Form of packaging
hrough hole pi
Pieces in package
1
2
3
4
5
6
8
10
Taping
Magazine
Taping
Magazine
Taping
Magazine
Taping
Magazine
Taping
Magazine
Taping
Magazine
Taping
Magazine
Taping
Magazine
B
C
B
C
B
C
B
C
B
C
B
C
B
C
B
C
1000 pcs./reel
118 pcs./stick
1000 pcs./reel
72 pcs./stick
1000 pcs./reel
52 pcs./stick
1000 pcs./reel
40 pcs./stick
1000 pcs./reel
32 pcs./stick
1000 pcs./reel
28 pcs./stick
1000 pcs./reel
20 pcs./stick
1000 pcs./reel
16 pcs./stick
Structure
No. of bits
Form of packaging
hrough hole pi
Convex knob of 1 mm · non-washable type
thout seal tape
hrough hole pi
Pieces in package
1
2
3
4
5
6
8
10
Taping
Magazine
Taping
Magazine
Taping
Magazine
Taping
Magazine
Taping
Magazine
Taping
Magazine
Taping
Magazine
Taping
Magazine
B
C
B
C
B
C
B
C
B
C
B
C
B
C
B
C
B
C
B
C
B
C
B
C
B
C
B
C
B
C
B
C
800 pcs./reel
118 pcs./stick
800 pcs./reel
72 pcs./stick
800 pcs./reel
52 pcs./stick
800 pcs./reel
40 pcs./stick
800 pcs./reel
32 pcs./stick
800 pcs./reel
28 pcs./stick
800 pcs./reel
20 pcs./stick
800 pcs./reel
16 pcs./stick
: Not manufactured
Verify the above part numbers when placing orders.
Taping and magazine version can be supplied only in reel or stick units.
CWS
STANDARD SPECIFICATIONS
Operating temp. range
40 ~ 85 °C
Storage temp. range
Sealing
Non-washable
ELECTRICAL CHARACTERISTICS
Contact rating
Non-switching
Switching
Minimum
Contact resistance
Insulation resistance
DC50 V 100 mA
DC6 V, 100 mA
DC20 mV 1
μA
100 m
1000 M
AC500 V, 60 s
maximum
Net weight
Dielectric strength
MECHANICAL CHARACTERISTICS
Stroke
Operation force
Stop strength
Solderability
1 mm
0.5 ~ 7 N {0.05 ~ 0.71 kgf}
10 N {1.02 kgf} 60 s
245 ± 3 °C, 2 ~ 3 s
Flow 260 ± 3 °C, 5 ~ 6 s, two times maximum
Reflow
Manual soldering
350±
10 °C, 3 ~ 4 s
5 N {0.51 kgf} 10 s
Substrate bending
Pull-off strength
5 N {0.51 kgf} 10 s
{ }
Reference only
ENVIRONMENTAL CHARACTERISTICS
2
Vibration
Shock
Load life
Humidity
High temp. exposure
Low temp. exposure
Thermal shock
10-500 Hz, 3 directions for 10 cycles each
,
490 m/s
2
, 11 ms, 6 directions for 3 times each
Continuous load 1000 cycles, DC6 ± 0.5 V, 100 ±10 mA
10 ~ 65 °C, Relative humidity 0 ~ 96 %, 24 h for 10 cycles
85 °C, 96 h
40 °C, 96 h
Soldering heat
Reflow profile for soldering heat evaluation
(°
250
Temperature
200
150
100
50
Peak : 250
0
°
C
Over 230
°
C
C
180
°
150 °C
90 ± 30 s
30 ± 10 s
Heating time
Soldering Zone
Pre Heating Zone
+5
Reflow : two times maximum
CWS
●
●

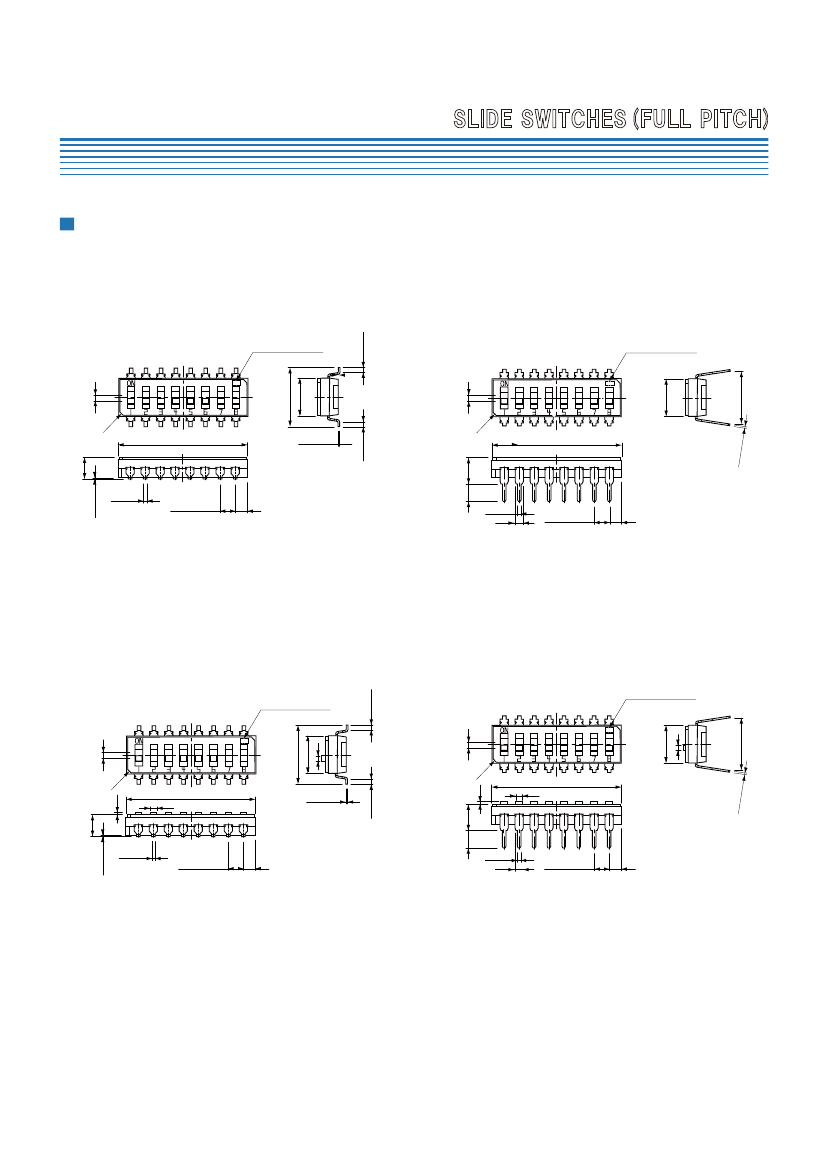

Stroke1
0.4
Production date code
Production date code
Stroke1
9.5
6.4
1
0.
6
1.2
3.7
0.4
1.2
0.2
±
0.1
0.6
+0.1
‒0.05
2.54
±
0.15
2
3
4.5
0.5
+0.1
‒0.05
1.4
2.54
±
0.15
2
Part number
CWS-01
Schematic

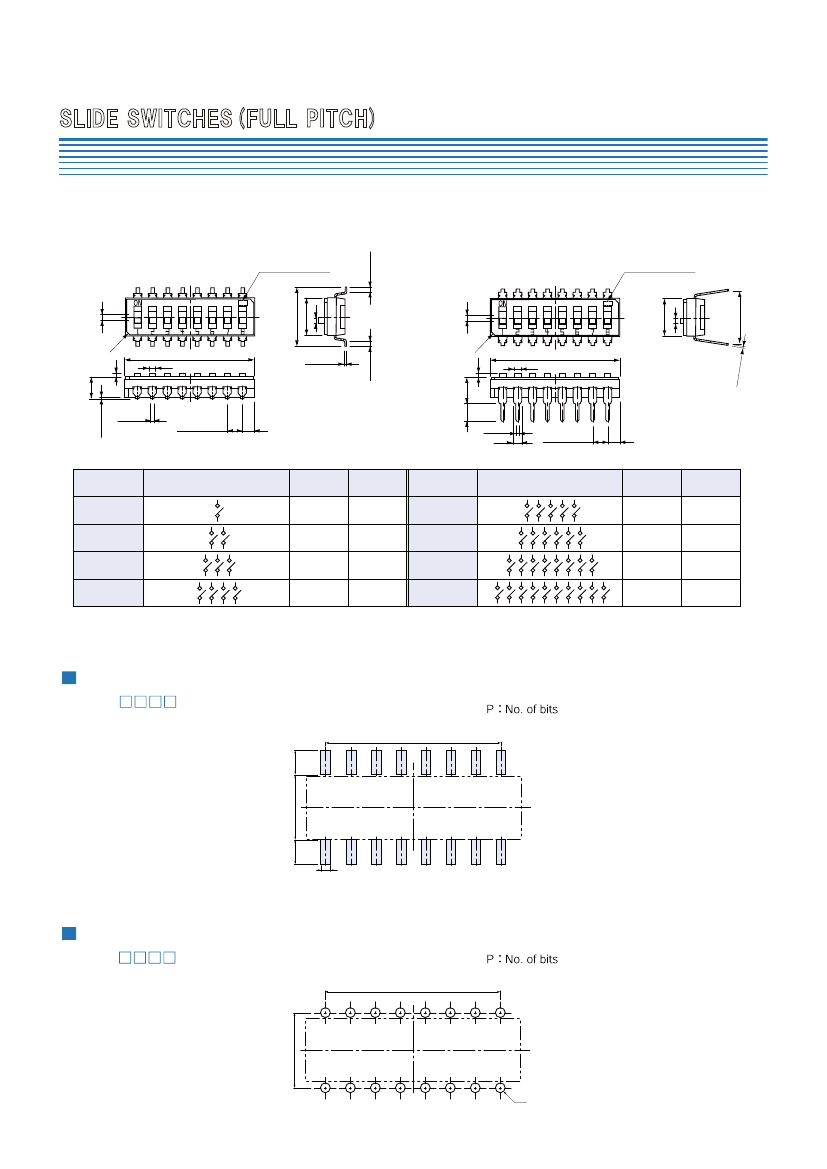

No. of bits. L dimension Part number
CWS-05
Schematic
No. of bits. L dimension
CWS-02
CWS-03
CWS-04
CWS-06
CWS-08
CWS-10
RECOMMENDED P.C.B. PAD DIMENSIONS
●
2.54
×
2.5
2.5
6.6
0
1
SIZE OF P.C.B. PROCESSING
●
2.54
×
7.62
0
1
+0.1
0.25
‒0.05
1
L
1
C0
.6
C
0.25
+0.1
‒0.05
L
9
±
0.5
6.4
1
Talking
