ANTUSB-M Overview

The latest ANT USB stick！

Preview

Download Datasheet

View All

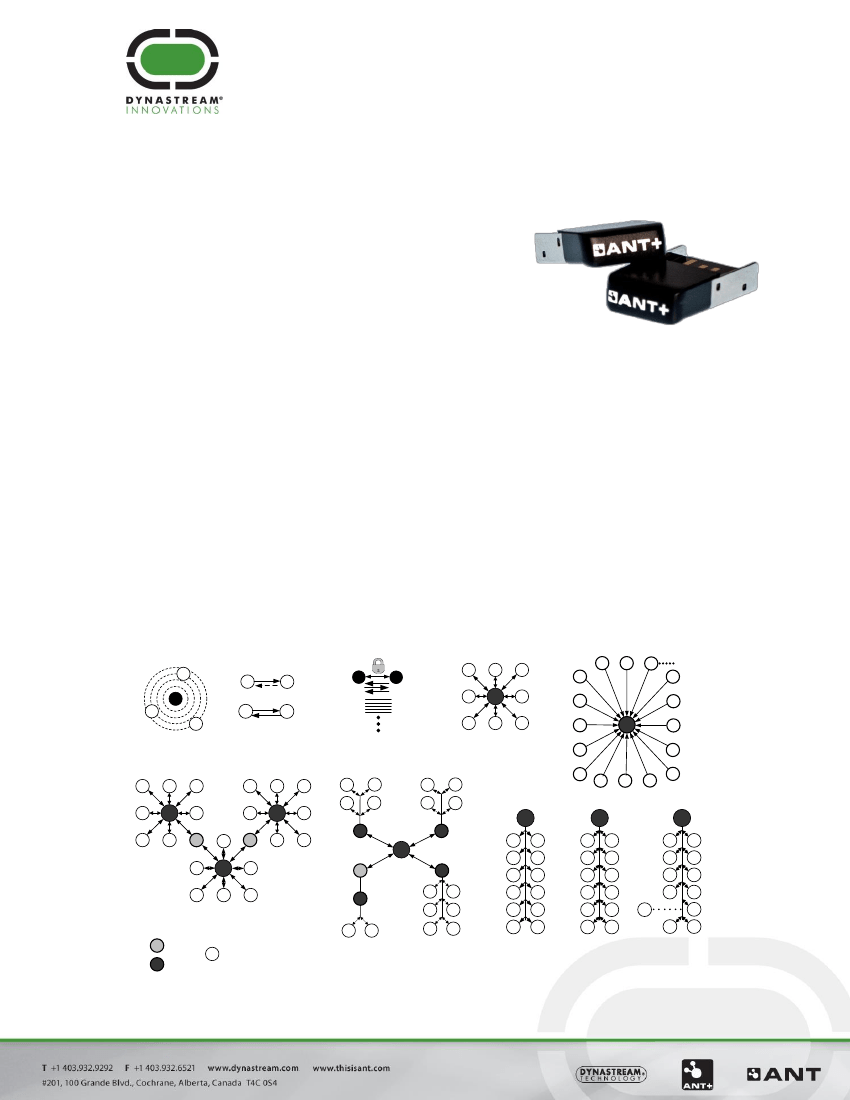

ANTUSB-m Stick

FEATURES



78 selectable RF channels in 2403 to 2480MHz ISM band

ANT channel combined message rate up to 190Hz (8byte

data payload)

Minimum message rate per ANT channel 0.5Hz

Advanced burst transfer rate up to 60Kbps (true data

throughput)*

Up to 8 ANT channels

Up to 8 public, managed and/or private network keys *

Single channel encryption*

High duty search and active search sharing *

User writable space of 500 bytes

WHQL certified Windows driver

No driver installation is required on Mac OS X machines

Support on device using Android 3.1 or later and having

USB host enabled

ANT library files for applications development

Supports USB 1.1/2.0 Full Speed specification with Type

A USB connector

Radio regulatory approval for major markets

-10°C to +50°C operating temperature

19.0 x 12.5 x 5.0 mm

RoHS compliant

Enhancements in the new generation ANT core stack

ANT NETWORK CONFIGURATIONS

PEER

ANT-FS

(Secure Authenticated)

STAR

SCANNING MODE

BROADCAST

Acknowledged

Bidirectional

PRACTICAL MESH

Relay

Sensor

Hub

SHARED CLUSTER

SHARED

UNI-DIRECTIONAL

SHARED

BI-DIRECTIONAL

AD-HOC

AUTO

SHARED

D00001513

Rev1.7

Page 2 of 16

ANTUSB-m Stick, Rev1.7

Notices and Restricted Use Information

Information contained in this document is provided only for your ("Customer" or “you”) convenience and may be

superseded by updates. It is your responsibility to ensure that your application meets with your specifications.

Dynastream Innovations Inc. ("DYNASTREAM") makes no representations or warranties of any kind whether

express or implied, written or oral, statutory or otherwise, related to the information, including but not limited to

its condition, quality, performance, merchantability or fitness for purpose. DYNASTREAM disclaims all liability

arising from this information and its use.

DYNASTREAM does not assume any responsibility for the use of the described ANT product (“the product(s)”).

Dynastream makes no representation with respect to the adequacy of the product in low-power wireless data

communications applications or systems. Any Systems using the product must be designed so that a loss of

communications due to radio interference or otherwise will not endanger either people or property, and will not

cause the loss of valuable data. DYNASTREAM assumes no liability for the performance of products which are

designed or created using the products.

The products are not designed, intended, or authorized for use as components in systems intended for surgical

implant into the body, or other applications intended to support or sustain life, or for any other application in

which the failure of the product could create a situation where personal injury or death may occur. If you use the

products for such unintended and unauthorized applications, you do so at your own risk and you shall indemnify

and hold DYNASTREAM and its officers, employees, subsidiaries, affiliates, and distributors harmless against all

claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim

of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that

DYNASTREAM was negligent regarding the design or manufacture of the Product.

The information disclosed herein is the exclusive property of DYNASTREAM, and is not to be reproduced and/or

distributed without the written consent of DYNASTREAM. No part of this publication may be reproduced or

transmitted in any form or by any means including electronic storage, reproduction, execution or transmission

without the prior written consent of DYNASTREAM. The recipient of this document by its retention and use agrees

to respect the security status of the information contained herein.

DYNASTREAM believes the information contained herein is correct and accurate at the time of its release.

However, the information contained in this document is subject to change without notice and should not be

construed as a commitment by DYNASTREAM unless such commitment is expressly given in a covering document.

One Year Limited Warranty

This product is warranted to be free from defects in materials or workmanship for 1 year from the date of

purchase of the end user. Within this period, Dynastream Innovations Inc. (Dynastream) will, at its sole option,

replace any products that fail in normal use. Such replacement will be made at no charge to distributors or

companies who purchase this product directly from Dynastream, provided the distributor or company shall be

responsible for any transportation cost. This warranty does not apply to: (i) cosmetic damage, such as scratches,

nicks and dents; (ii) damage caused by accident, abuse, misuse, water, flood, fire, or other acts of nature or

external causes; (iii) damage caused by service performed by anyone who is not an authorized service provider of

Dynastream; (iv) damage to a product that has been modified or altered without the written permission of

Dynastream, except for logo printing as described in section 1.5 of this datasheet. In addition, Dynastream

reserves the right to refuse warranty claims against products or services that are obtained and/or used in

contravention of the laws of any country.

Replaced products have 1 year warranty as stipulated in this term.

THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER

WARRANTIES EXPRESS, IMPLIED, OR STATUTORY, INCLUDING ANY LIABILITY ARISING UNDER ANY WARRANTY

OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR OTHERWISE.

dynastream.com

thisisant.com

Page 4 of 16

ANTUSB-m Stick, Rev1.7

Table of Contents

ANTUSB-m .....................................................................................................................................................7

1.1

1.2

1.3

1.4

1.5

1.6

1.7

ANT Feature Enhancements ............................................................................................................ 7

Drivers ........................................................................................................................................... 8

ANT library ..................................................................................................................................... 8

VID, PID and Other Descriptors ....................................................................................................... 8

Product Model and Brand ................................................................................................................ 9

Ordering Information .................................................................................................................... 10

Electronic Serial Number ............................................................................................................... 10

Regulatory Approval ...................................................................................................................................11

2.1

2.2

2.3

2.4

2.5

2.6

2.7

2.8

United States ................................................................................................................................ 11

Canada ......................................................................................................................................... 11

European Economic Area ............................................................................................................... 11

Australia and New Zealand ............................................................................................................ 12

China ........................................................................................................................................... 12

Japan ........................................................................................................................................... 12

Korea ........................................................................................................................................... 12

Taiwan ......................................................................................................................................... 12

Specifications...............................................................................................................................................13

3.1

3.2

3.3

3.4

Mechanical ................................................................................................................................... 13

Environmental .............................................................................................................................. 13

Electrical....................................................................................................................................... 13

RF Communications ...................................................................................................................... 13

Mechanical Drawing....................................................................................................................................15

Support ........................................................................................................................................................16

5.1

5.2

5.3

5.4

ANT Forum ................................................................................................................................... 16

Public Technical References ........................................................................................................... 16

ANT Developer’s Zone ................................................................................................................... 16

ANT Social Networks ..................................................................................................................... 16

dynastream.com

thisisant.com

ANTUSB-m Stick Rev1.7

Page 5 of 16

ANT™ Overview

ANT™ is a practical wireless sensor network protocol running on 2.4 GHz ISM band. Designed for ultra low power,

ease of use, efficiency and scalability, ANT easily handles peer-to-peer, star, tree and practical mesh topologies.

ANT provides reliable data communications, flexible and adaptive network operation and cross-talk immunity. The

protocol stack of ANT is extremely compact, requiring minimal microcontroller resources and considerably reducing

system costs.

ANT provides carefree handling of the Physical, Network, and Transport OSI layers. In addition, it incorporates key

low-level security features that form the foundation for user-defined, sophisticated, network-security

implementations. ANT ensures adequate user control while considerably lightening computational burden in

providing a simple yet effective wireless networking solution.

Application / Presentation

Layers

Higher Level Security

Network / Transport &

Low Level Security

Data Link Layer

Physical Layer

}

User Defined

Implemented

by ANT

ANT supports public, managed and private network architectures with 2

uniquely addressable devices possible,

ensuring that each device can be uniquely identified from each other in the same network.

ANT is proven with an installed base of over four million nodes in ultra low power sensor network applications in

sport, fitness, home and industrial automation. The ANT solutions are available in chips, chipsets and modules to

suit a wide variety of application needs.

Enhancements in this new generation ANT core stack:



Advanced burst data transfer up to 60 kbps (true data throughput)

Single channel encryption

Up to 8 ANT network keys

High duty search and active search sharing

Event buffer and filter

Fast channel initiation

Asynchronous transmission channel

Selective data updates

The complete description and usage of ANT features is found in the document “ANT Message Protocol and Usage”

available on

www.thisisant.com.

ANT+ and ANT+ Alliance

ANT+ is the open application layer on the top of the ANT stack. It standardizes communications and facilitates

interoperability between a wide array of personal sports, wellness and lifestyle monitoring devices. ANT+ defines

device profiles that specify access, data formats, and channel parameters.
