Technical Data Sheet
RGB Color Sensor SMD Device
Preliminary

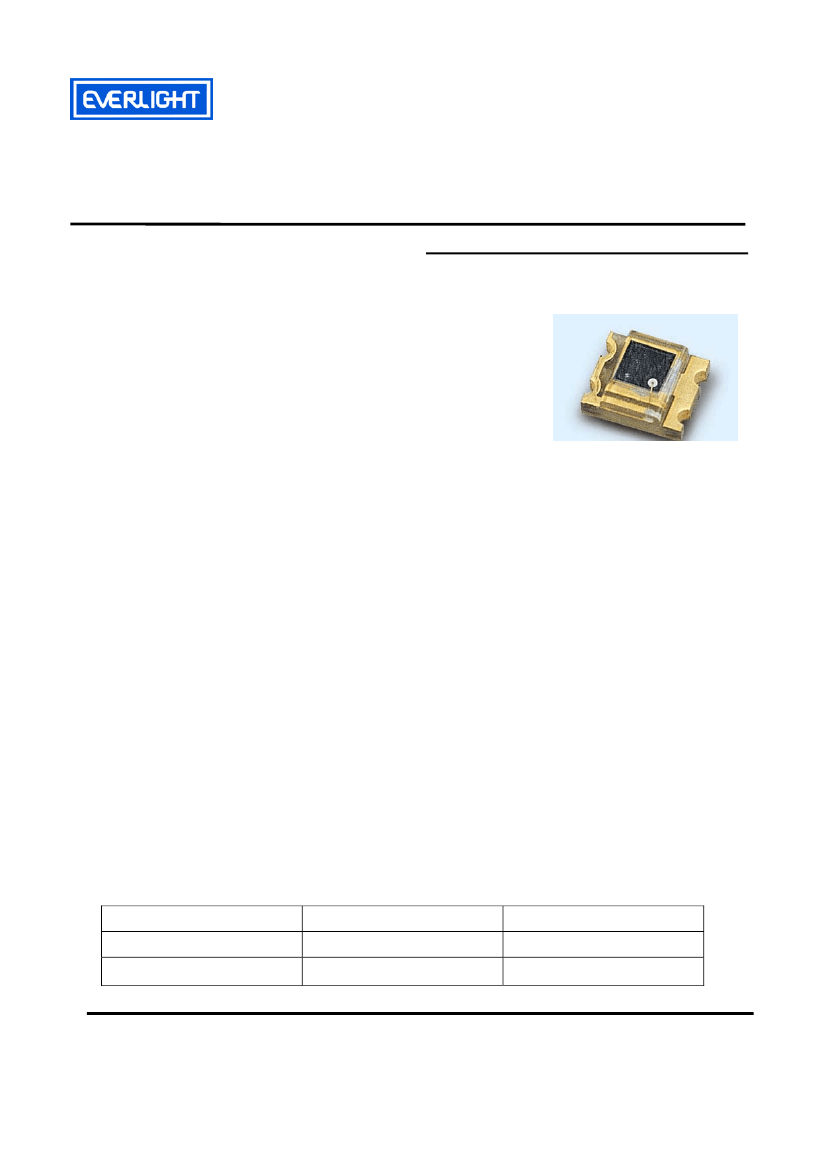

CLS15-22C/L213(R、G、B)/TR8
Features
․Package
in 8mm tape on 7〞diameter reel.
․Surface-mount
plastic package.
․Good
stable output with temperature shift.
․External
dimensions 3.2(L)*2.7(W)*1.1(H)mm
3
.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Built
in 1-Channel/1Chip (R, G, B) Si photodiode.
․Active
area: 1.8 mm
2
․Pb
free
․The
product itself will remain within RoHS compliant version.
Descriptions
CLS15-22C/L213(R
、
G
、
B)/TR8 Color Sensor
Device, consisting of 1-Channel/1Chip (R, G, B) Si
photodiode, is a good effective solution to color balance of
display backlighting appliances, such as the LCD TV and
projector. The color sensor sensitive are Red (λp=620nm),
Green (λp=550nm) and Blue (λp=470nm) regions of the
spectrum.
Applications
․Color
adjustment for LED back light system for LCD.
․Color
adjustment for LCD projector
․Color
tester and Color temperature detection.
․White
balance : Camera
Device Selection Guide
PART
Chip
Package
MATERIAL
Silicon
Epoxy
COLOR
---
Water Clear
Everlight Electronics Co., Ltd.
Device No：DCS-213-002
http:\\www.everlight.com
Prepared date：07-10-2006
Rev 0.2
Page: 1 of 9
Prepared by：Daniel Yang
CLS15-22C/L213(R、G、B)/TR8
Package Dimensions
2.1
2.3
0.45
0.9
0.6
2.0
3.2
2.3
1.15
1.15
2.7
1.4
4-R0.25
Note:
1.Alldimensions are in millimeters.
2.Tolerances unless dimension ±0.1mm
Everlight Electronics Co., Ltd.
Device No：DCS-213-002
http:\\www.everlight.com
Prepared date：07-10-2006
1.1
Rev 0.2
Page: 2 of 9
Prepared by：Daniel Yang
CLS15-22C/L213(R、G、B)/TR8
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Breakdown Voltage
Forward Voltage
Operating Temperature
Storage Temperature
Symbol
V
BR
V
F
T
opr
T
stg
Condition
I
R
= 100μA
I
F
= 10mA
---
---
---
Rating
35
0.5~1.3
-25 ~ +85
-40 ~ +85
260
Units
V
V
℃
℃
℃
Soldering Temperature
T
sol
Notes:
*1:Soldering time≦5 seconds.
Electro-Optical Characteristics (Ta=25
℃)
Red Light Sensor Device : CLS15-22C/L213R/TR8
Parameter
Peak Sensitivity Wavelength
Short-Circuit Current
Reverse Light Current(1)
Reverse Light Current(2)
Reverse Dark Current
Symbol
λ
P
I
SC
I
L1
I
L2
I
D
Condition
---
Ee=100Lux
[1]
V
R
=0V
Ee=100Lux
[1]
V
R
=5V
Ee=1000Lux
[1]
V
R
=5V
Ee=0
V
R
= 10 V
Min
---
---
---
---
---
Typ
620
0.086
0.091
0.83
2
Max
---
---
---
---
10
Unit
nm
μA
μA
μA
nA
Note:
[1]: White Fluorescent light (Color Temperature = 6500K) is used as light source.
Everlight Electronics Co., Ltd.
Device No：DCS-213-002
http:\\www.everlight.com
Prepared date：07-10-2006
Rev 0.2
Page: 3 of 9
Prepared by：Daniel Yang
CLS15-22C/L213(R、G、B)/TR8
Green Light Sensor Device : CLS15-22C/L213G/TR8
Parameter
Peak Sensitivity Wavelength
Short-Circuit Current
Reverse Light Current(1)
Reverse Light Current(2)
Reverse Dark Current
Symbol
λ
P
I
SC
I
L1
I
L2
I
D
Condition
---
Ee=100Lux
[1]
V
R
=0V
Ee=100Lux
[1]
V
R
=5V
Ee=1000Lux
[1]
V
R
=5V
Ee=0 Lux
V
R
= 10 V
Min
---
---
---
---
---
Typ
550
0.075
0.082
0.72
2
Max
---
---
---
---
10
Unit
nm
μA
μA
μA
nA
Blue Light Sensor Device : CLS15-22C/L213B/TR8
Parameter
Peak Sensitivity Wavelength
Short-Circuit Current
Reverse Light Current(1)
Reverse Light Current(2)
Reverse Dark Current
Symbol
λ
P
I
SC
I
L1
I
L2
I
D
Condition
---
100Lux
[1]
V
R
=0V
100Lux
[1]
V
R
=5V
1000Lux
[1]
V
R
=5V
V
R
= 10 V
Min
---
---
---
---
---
Typ
470
0.042
0.046
0.39
2
Max
---
---
---
---
10
Unit
nm
μA
μA
μA
nA
Everlight Electronics Co., Ltd.
Device No：DCS-213-002
http:\\www.everlight.com
Prepared date：07-10-2006
Rev 0.2
Page: 4 of 9
Prepared by：Daniel Yang
CLS15-22C/L213(R、G、B)/TR8

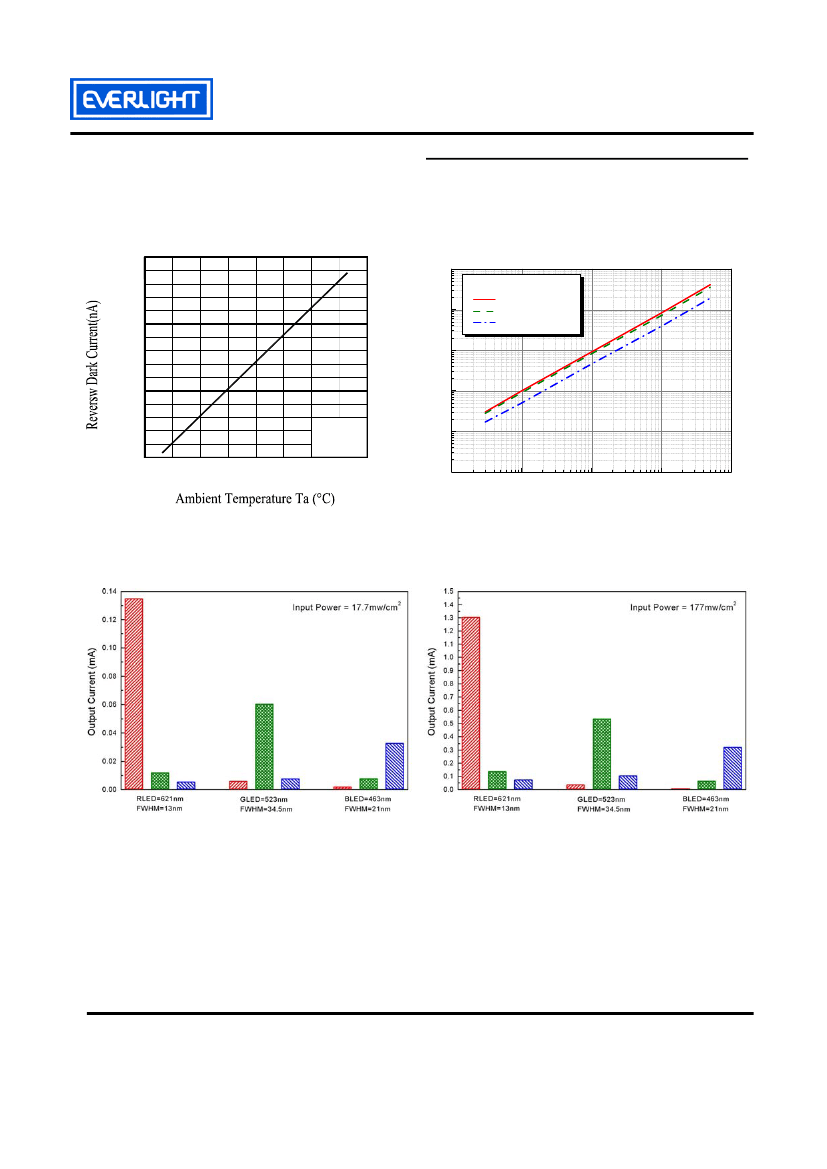

Typical Electro-Optical Characteristics Curves
CLS15-22C/L213R/TR8
Fig.1 Dark Current vs. Ambient Temperature
1000
10
V
R
=5V ; Ta=25 C
CLS15-22C/L213R
CLS15-22C/L213G
CLS15-22C/L213B
o
Fig.-2 Illuminance vs. Output Phtocurrent
1
100
Ouput Current (mA)
0.1
10
V
R
=10V
1
20
40
60
80
100
0.01
1E-3
1E-4
1
10
100
1000
10000
Illuminance (Lux)
Fig.-3 R,G, B LED Test vs. Output Photocurrent Fig.-3 R,G, B LED Test vs. Output Photocurrent
Everlight Electronics Co., Ltd.
Device No：DCS-213-002
http:\\www.everlight.com
Prepared date：07-10-2006
Rev 0.2
Page: 5 of 9
Prepared by：Daniel Yang
