Technical Data Sheet
Chip LED with Bi-Color(Multi-Color)
18-225A/S2GHC-C01/3T
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Mono-color
type.
․Pb-free.
․The
product itself will remain within RoHS
compliant version.

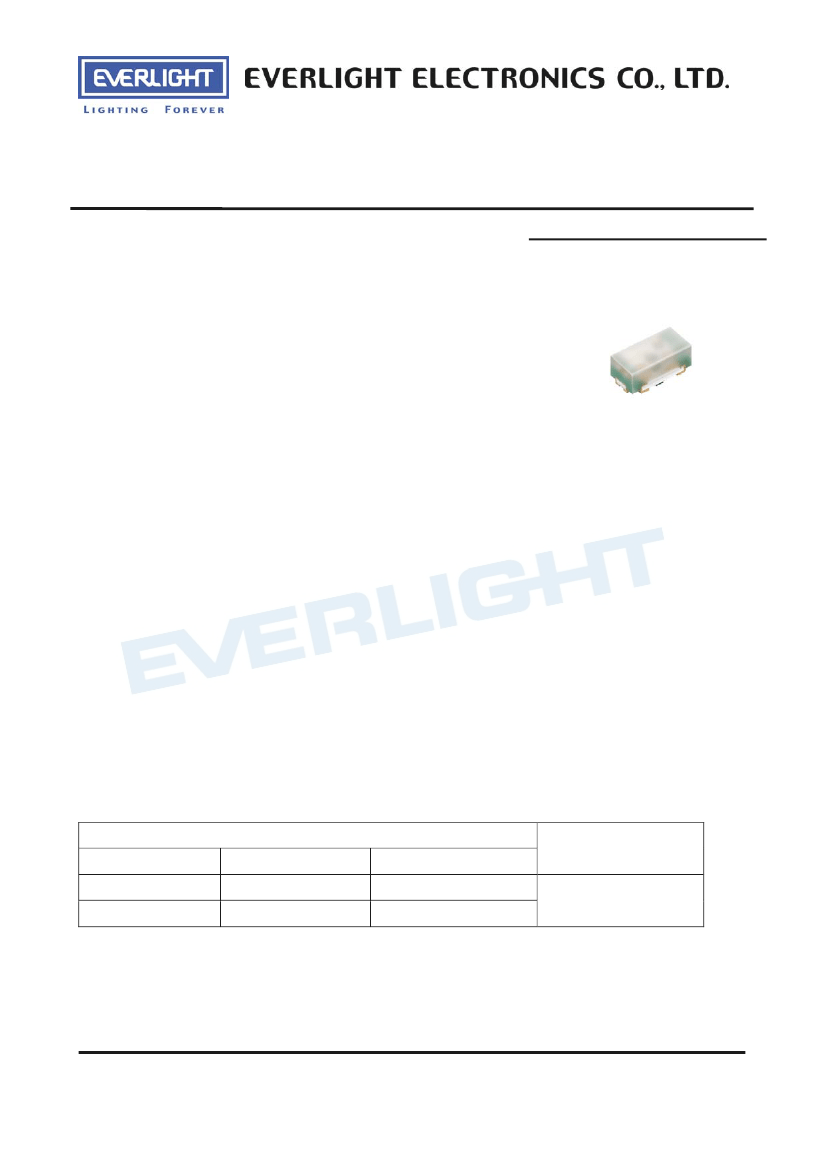

Descriptions
․The
18-225A SMD LED is much smaller than lead
frame type components, thus enable smaller board
size, higher packing density, reduced storage space
and finally smaller equipment to be obtained.
․Besides,
lightweight makes them ideal for
miniature applications. etc.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
Device Selection Guide
Chip
Type
S2
GH
Material
AlGaInP
InGaN
Emitted Color
Brilliant Orange
Brilliant Green
Resin Color
Water Clear
Everlight Electronics Co., Ltd.
Device No: DSE-0004512
http://www.everlight.com
Prepared date: 18-Nov-2010
Rev. 1
Page: 1 of 12
Prepared by: Esther Yan
Ver.:
Release Date:
狀態:
18-225A/S2GHC-C01/3T

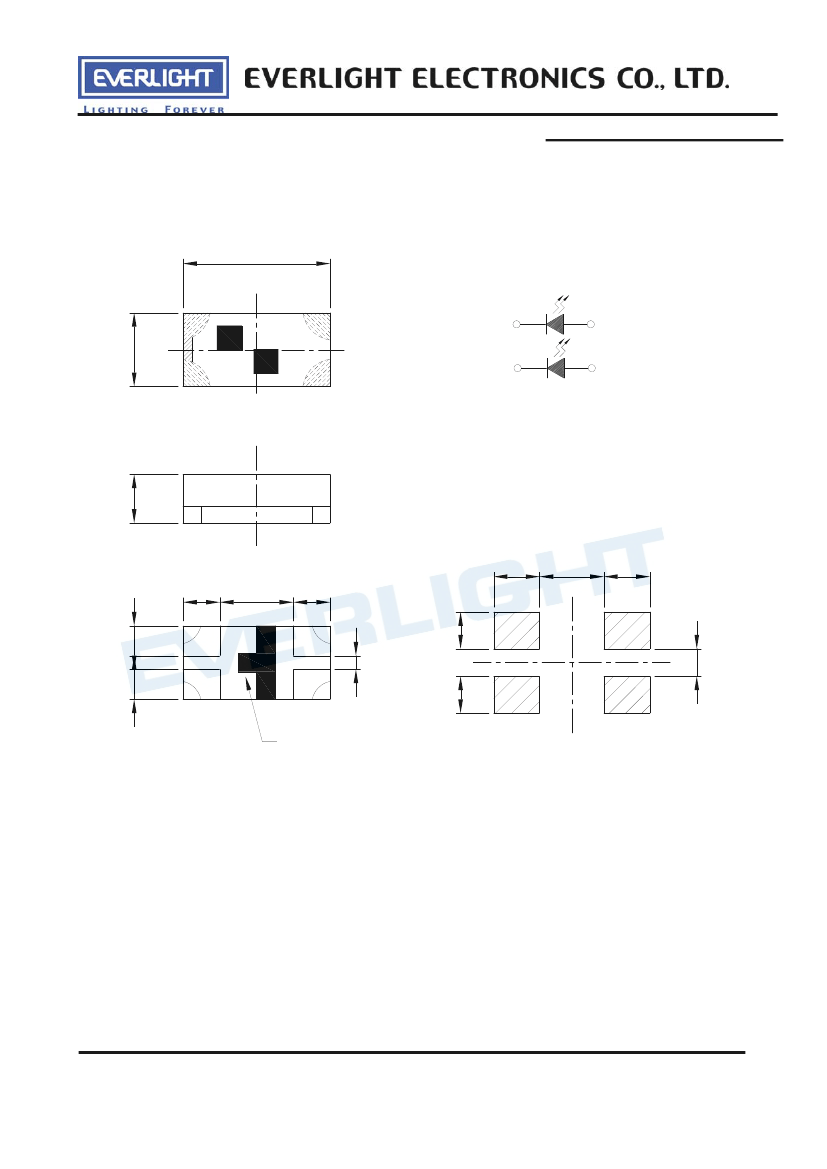

Package Outline Dimensions
1.6
3
2
3
-
4
-
4
1
+
2
+
1
Orange
Green
0.8
Polarity
0.5
Recommend Soldering Pad
0.5
0.4
0.32 0.32
4
0.7
0.5
0.8
0.4
0.15
0.4
1
3
2
Cathode Mark
Note:
The tolerances unless mentioned is
±0.1mm
,Unit = mm
Everlight Electronics Co., Ltd.
Device No: DSE-0004512
http://www.everlight.com
Prepared date: 18-Nov-2010
0.4
Rev. 1
Page: 2 of 12
Prepared by: Esther Yan
Ver.:
Release Date:
狀態:
0.3
18-225A/S2GHC-C01/3T
Absolute Maximum Ratings (Ta=25℃)
Parameter
Symbol
Rating
Unit
Reverse Voltage
V
R
5
S2:25
GH:25
S2:60
GH:100
S2:60
GH:95
S2:2000
GH:150
-40 ~ +85
V
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
I
F
mA
I
FP
mA
Pd
mW
Electrostatic Discharge (HBM)
ESD
V
Operating Temperature
Topr
℃
Storage Temperature
Tstg
-40 ~ +90
℃
Soldering Temperature
Tsol
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
Everlight Electronics Co., Ltd.
Device No: DSE-0004512
http://www.everlight.com
Prepared date: 18-Nov-2010
Rev. 1
Page: 3 of 12
Prepared by: Esther Yan
Ver.:
Release Date:
狀態:
18-225A/S2GHC-C01/3T
Electro-Optical Characteristics (Ta=25℃)
Parameter
Symbol
Iv
S2
GH
2θ1/2
λp
S2
GH
λd
S2
GH
△λ
S2
GH
V
F
S2
GH
I
R
S2
GH
Min.
18.0
72.0
-----
Typ.
Max.
45.0
180
-----
Unit
Condition
Luminous Intensity
-----
mcd
Viewing Angle
120
611
518
-----
17
35
-----
deg
Peak Wavelength
-----
600
520
-----
1.6
2.6
-----
-----
610
535
-----
2.2
3.2
10
50
nm
I
F
=5mA
Dominant Wavelength
nm
Spectrum Radiation
Bandwidth
nm
Forward Voltage
V
Reverse Current
-----
μA
V
R
=5V
Notes:
1.Tolerance of Luminous Intensity
±11%
2.Tolerance of Dominant Wavelength
±1nm
Everlight Electronics Co., Ltd.
Device No: DSE-0004512
http://www.everlight.com
Prepared date: 18-Nov-2010
Rev. 1
Page: 4 of 12
Prepared by: Esther Yan
Ver.:
Release Date:
狀態:
18-225A/S2GHC-C01/3T
S2
Bin Range Of Luminous Intensity
Bin
M
N
Min
18.0
28.5
Max
28.5
45.0
Unit
mcd
Condition
I
F
=5mA
Bin Range Of Dom. Wavelength
Bin
A
B
Min
600
605
Max
605
610
Unit
nm
Condition
I
F
=5mA
GH
Bin Range Of Luminous Intensity
Bin
Q
R
Min
72.0
112
Max
112
180
Unit
mcd
Condition
I
F
=5mA
Bin Range Of Dom. Wavelength
Bin
X
Y
Z
Min
520
525
530
Max
525
530
535
nm
I
F
=5mA
Unit
Condition
Notes:
1.Tolerance of Luminous Intensity
±11%
2.Tolerance of Dominant Wavelength
±1nm
Everlight Electronics Co., Ltd.
Device No: DSE-0004512
http://www.everlight.com
Prepared date: 18-Nov-2010
Rev. 1
Page: 5 of 12
Prepared by: Esther Yan
Ver.:
Release Date:
狀態:
