LAMP
333-2SDRD/S530-A3-L
Features
• Choice of various viewing angles
• Available on tape and reel.
• Reliable and robust
• Pb free
• The product itself will remain within RoHS compliant version.
• Compliance with EU REACH
• Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm)
Description
•The series is specially designed for applications requiring higher brightness
•The led lamps are available with different colors, intensities..
Applications
• TV set
• Monitor
• Telephone
• Computer
1
Revision
Copyright ©
:1
LifecyclePhase:
www.everlight.com
2010, Everlight All Rights Reserved. Release Date : Mar.10 .2014. Issue
Release Date:2014-03-18 16:42:53.0
No:
DLE-0006523
_Rev.1
Expired Period: Forever
DATASHEET
LAMP
333-2SDRD/S530-A3-L
Device Selection Guide
Chip Materials
AlGaInP
Emitted Color
Deep - Red
Resin Color
Red Diffused
Absolute Maximum Ratings (Ta=25℃)
Parameter
Continuous Forward Current
Peak Forward Current (Duty 1/10 @ 1KHZ)
Reverse Voltage
Power Dissipation
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
I
F
I
FP
V
R
P
d
T
opr
Tstg
T
sol
Rating
25
60
5
60
-40 ~ +85
-40 ~ +100
260
℃
for 5 sec.
Unit
mA
mA
V
mW
℃
℃
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation Bandwidth
Forward Voltage
Reverse Current
Symbol
Iv
2θ
1/2
λ
p
λ
d
Δλ
V
F
I
R
Min.
100
-----
-----
-----
-----
-----
-----
Typ.
160
30
650
639
20
2.0
-----
Max.
-----
-----
-----
-----
-----
2.4
10
Unit
mcd
deg
nm
nm
nm
V
μA
Condition
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
R
=5V
2
Revision
Copyright ©
:1
LifecyclePhase:
www.everlight.com
2010, Everlight All Rights Reserved. Release Date : Mar.10 .2014. Issue
Release Date:2014-03-18 16:42:53.0
No:
DLE-0006523
_Rev.1
Expired Period: Forever
DATASHEET
LAMP
333-2SDRD/S530-A3-L

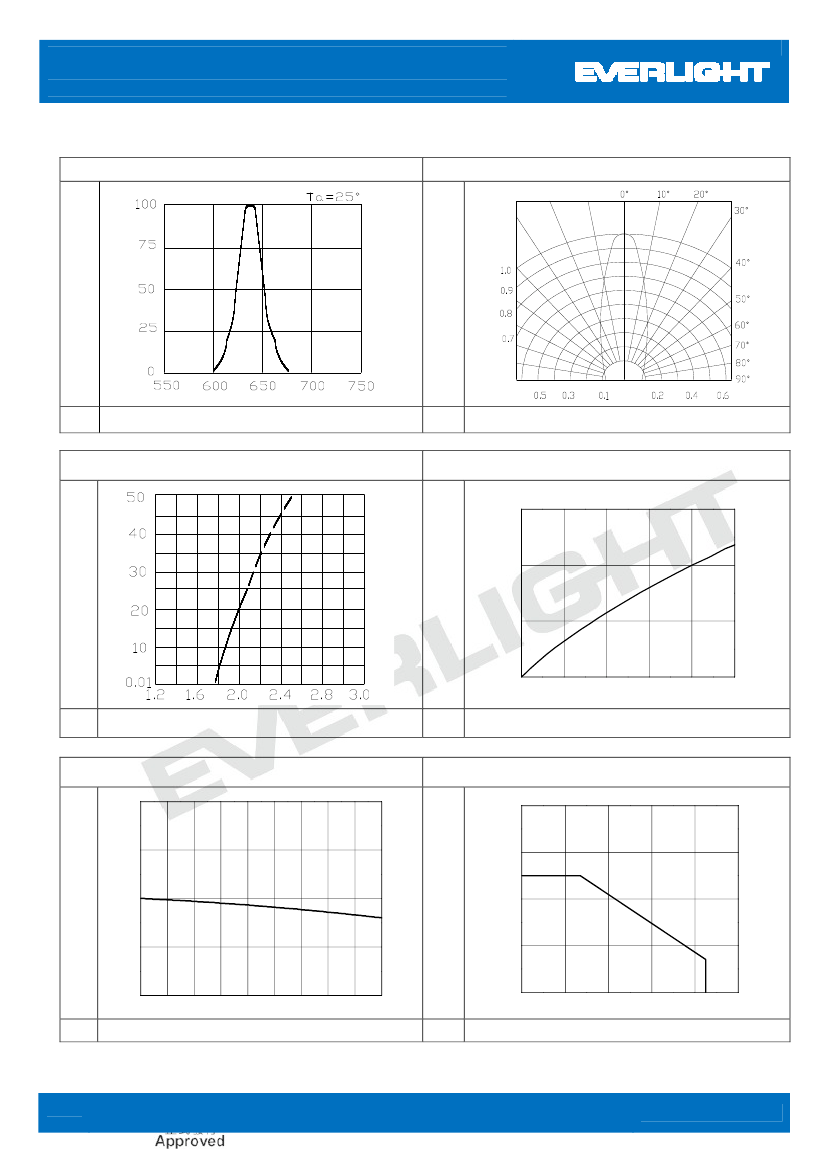

Typical Electro-Optical Characteristics Curves
Relative Intensity vs. Wavelength (Ta=25℃)
Directivity (Ta=25℃)
Relative Intensity (a.u.)
Wavelength (nm)
Forward Current vs. Forward Voltage (Ta=25℃)
Radiation Angle
Relative Intensity (a.u.)
Relative Intensity vs. Forward Current (Ta=25℃)
1.5
Relative Intensity(a.u.)
Forward Current (mA)
1.0
0.5
0.0
0
5
10
15
20
25
Forward Voltage (V)
Forward Current (mA)
Relative Intensity vs. Ambient Temp.
2.0
Forward Current vs. Ambient Temp.
40
Relative Intensity(a.u.)
1.5
Forward Current (mA)
30
1.0
20
0.5
10
0.0
25
0
30
35
40
45
50
55
60
65
70
0
20
40
60
80
100
Ambient Temperature Ta(℃)
Ambient Temperature Ta(℃)
3
Revision
Copyright ©
:1
LifecyclePhase:
www.everlight.com
2010, Everlight All Rights Reserved. Release Date : Mar.10 .2014. Issue
Release Date:2014-03-18 16:42:53.0
No:
DLE-0006523
_Rev.1
Expired Period: Forever
DATASHEET
LAMP
333-2SDRD/S530-A3-L

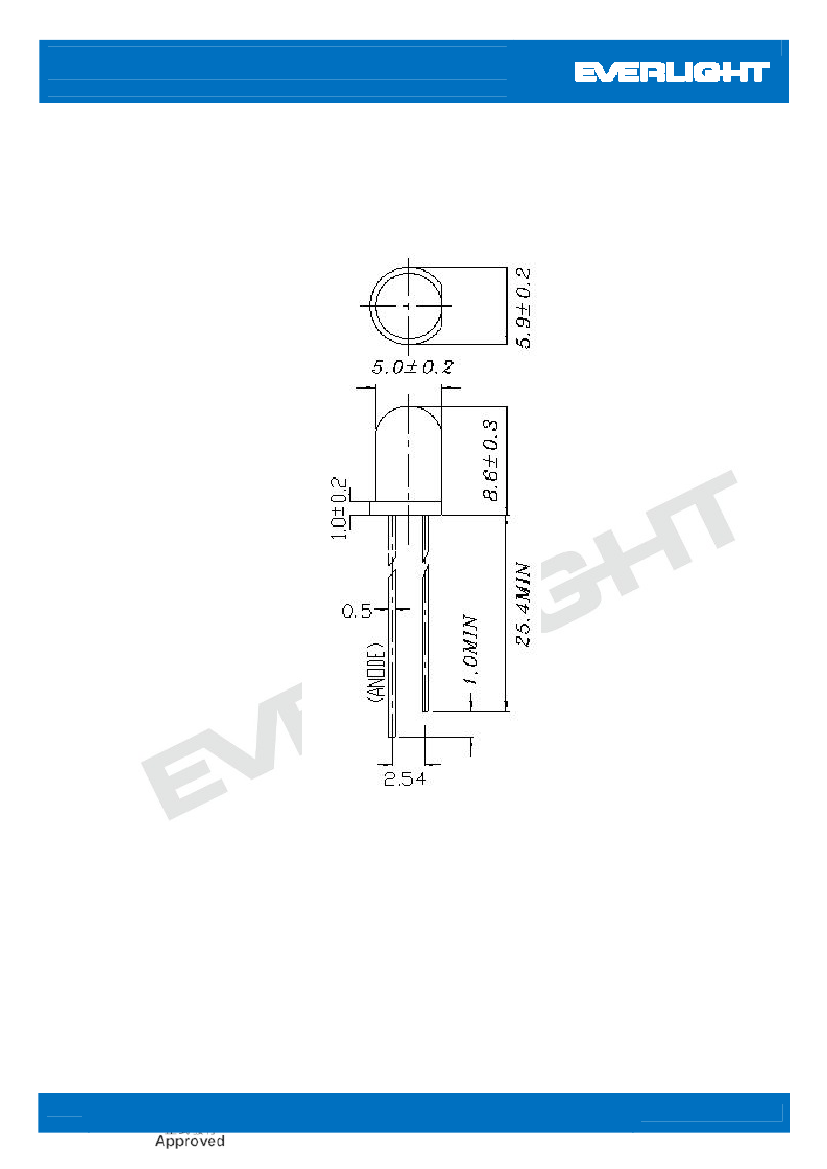

Package Dimension
Note: Note:
1. All dimensions are in millimeters
2. The height of flange must be less than 1.5mm(0.059").
3. Without special declared, the tolerance is ±0.25mm.
4
Revision
Copyright ©
:1
LifecyclePhase:
www.everlight.com
2010, Everlight All Rights Reserved. Release Date : Mar.10 .2014. Issue
Release Date:2014-03-18 16:42:53.0
No:
DLE-0006523
_Rev.1
Expired Period: Forever
DATASHEET
LAMP
333-2SDRD/S530-A3-L

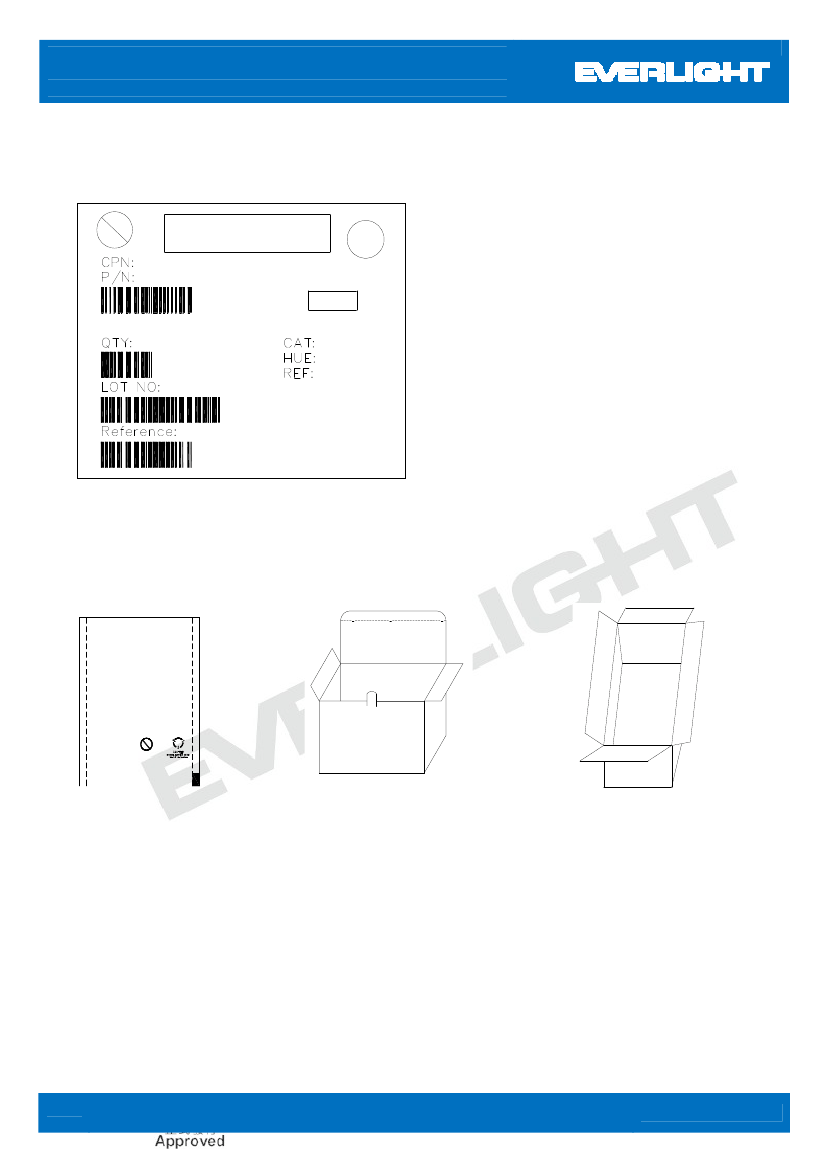

Moisture Resistant Packing Materials
Label Explanation
CPN: Customer's Production Number
Pb
EVERLIGHT
RoHS
X
P/N : Production Number
QTY: Packing Quantity
CAT: Ranks
HUE: Dominant Wavelength
REF: VF
LOT No: Lot Number
333-2SDRD/S530-A3-L
Packing Specification
■ Anti-electrostatic bag
■ Inner Carton
■ Outside Carton
Pb
EL ECTROSTATIC ELECTRONAGNET IC
MAGNETIC OR RADIOACTIVE RELDS
anti-static for 750
■
Packing Quantity
1. 500 PCS/1 Bag, 5 Bags/1 Inner Carton
2. 10 Inner Cartons/1 Outside Carton
5
Revision
Copyright ©
:1
LifecyclePhase:
www.everlight.com
2010, Everlight All Rights Reserved. Release Date : Mar.10 .2014. Issue
Release Date:2014-03-18 16:42:53.0
No:
DLE-0006523
_Rev.1
Expired Period: Forever
