LBAT54XV2T1G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> LBAT54XV2T1G

LBAT54XV2T1G: DescriptionDC reverse withstand voltage (Vr): 30V Average rectified current (Io): - Forward voltage drop (Vf): 1V @ 100mA; CategoryDiscrete semiconductor diode; File Size227KB，4 Pages; ManufacturerLRC; Websitehttp://www.lrc.cn; Environmental Compliance

Download Datasheet Parametric View All

LBAT54XV2T1G Overview

DC reverse withstand voltage (Vr): 30V Average rectified current (Io): - Forward voltage drop (Vf): 1V @ 100mA

LBAT54XV2T1G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	LRC
package instruction	R-PDSO-F2
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.24 V
JESD-30 code	R-PDSO-F2
Maximum non-repetitive peak forward current	0.6 A
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.2 W
Maximum repetitive peak reverse voltage	30 V
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal form	FLAT
Terminal location	DUAL

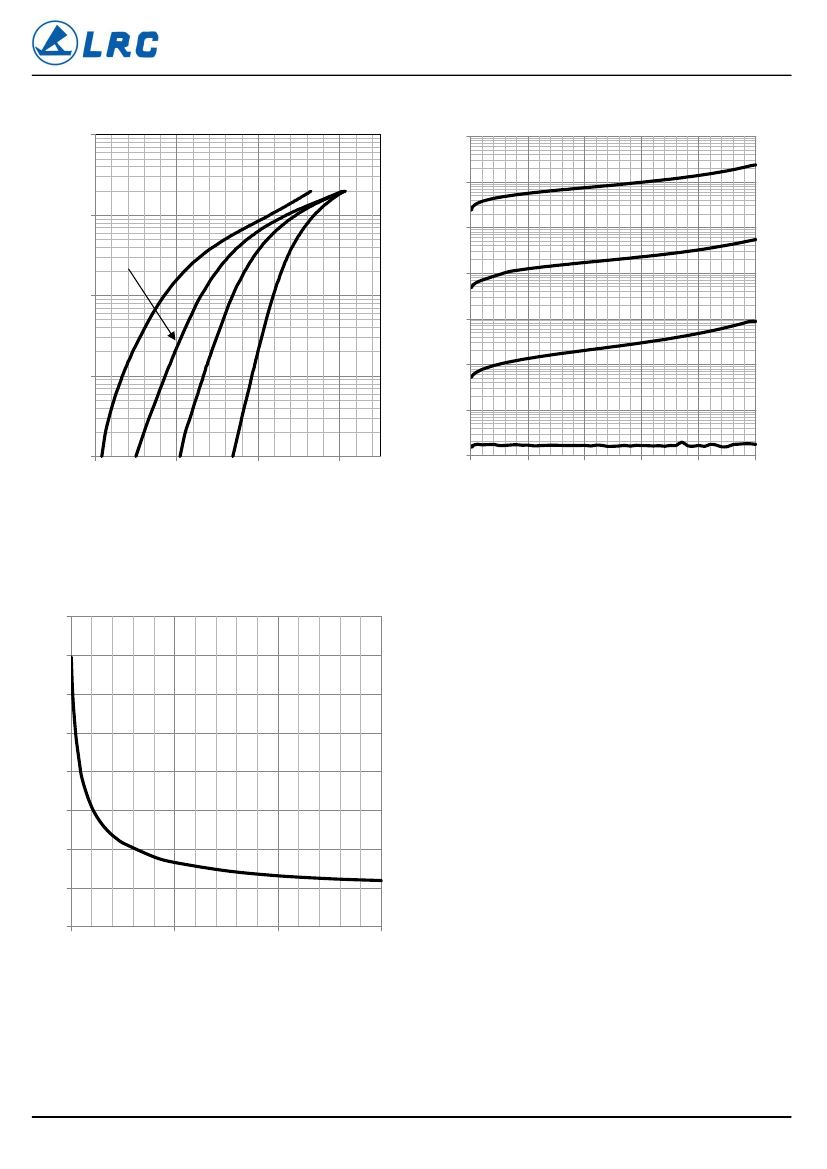

Preview

Download Datasheet

View All

LBAT54XV2T1G

S-LBAT54XV2T1G

Schottky Barrier Diode

1. FEATURES

●

We declare that the material of product compliance with

RoHS requirements and Halogen Free.

S- prefix for automotive and other applications requiring

unique site and control change requirements; AEC-Q101

qualified and PPAP capable.

●

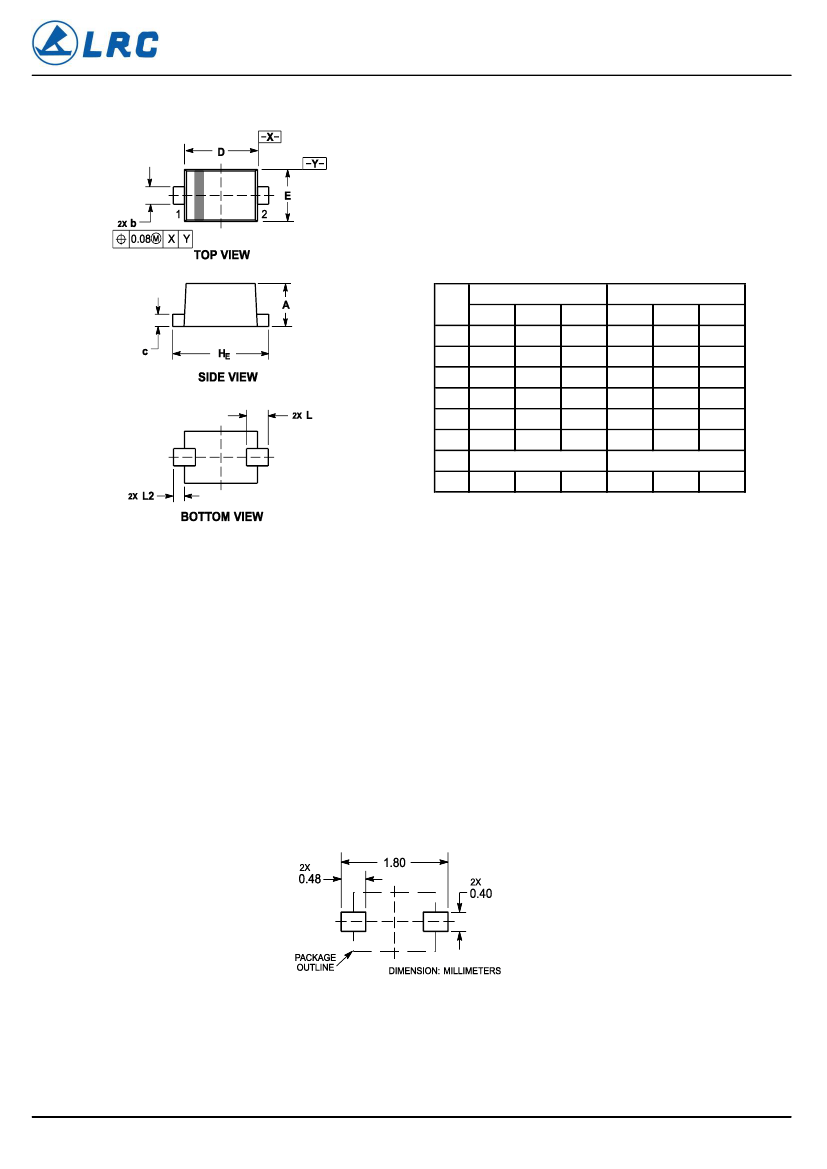

SOD523(SC-79)

●

Extremely Fast Switching Speed

Low Forward Voltage — 0.35 V (Typ) @ IF = 10 Ma

CATHODE

ANODE

2. DEVICE MARKING AND ORDERING INFORMATION

Device

LBAT54XV2T1G

LBAT54XV2T3G

Marking

Shipping

3000/Tape&Reel

10000/Tape&Reel

3. MAXIMUM RATINGS(Ta = 25º

Parameter

Reverse Voltage

Symbol

Limits

Unit

4. THERMAL CHARACTERISTICS

Parameter

Total Device Dissipation,

FR−5 Board (Note 1) @ TA = 25ºC

Derate above 25º

Thermal Resistance,

Junction–to–Ambient

Junction and Storage temperature

1. FR–5 = 1.0×0.75×0.062 in.

TJ,Tstg

−40∼+125

RΘJA

Symbol

200

1.57

635

mW/º

C/W

Limits

Unit

Leshan Radio Company, LTD.

Rev.C Jun. 2018

1/4
