LBAT54ALT1G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> LBAT54ALT1G

LBAT54ALT1G: DescriptionDC reverse withstand voltage (Vr): 30V Average rectified current (Io): 200mA Forward voltage drop (Vf): 320mV @ 1mA 30V, 0.2A, VF=0.32V@1mA; CategoryDiscrete semiconductor diode; File Size362KB，3 Pages; ManufacturerLRC; Websitehttp://www.lrc.cn; Environmental Compliance

Download Datasheet Parametric View All

LBAT54ALT1G Overview

DC reverse withstand voltage (Vr): 30V Average rectified current (Io): 200mA Forward voltage drop (Vf): 320mV @ 1mA 30V, 0.2A, VF=0.32V@1mA

LBAT54ALT1G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	LRC
package instruction	R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.24 V
JEDEC-95 code	TO-236AB
JESD-30 code	R-PDSO-G3
Maximum non-repetitive peak forward current	0.6 A
Number of components	2
Number of terminals	3
Maximum operating temperature	125 °C
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.225 W
Maximum repetitive peak reverse voltage	30 V
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

LESHAN RADIO COMPANY, LTD.

SCHOTTKY BARRIER DIODE

These Schottky barrier diodes are designed for high speed

switching

applications, circuit protection, and voltage clamping. Extremely

low forward voltage reduces conduction loss. Miniature surface

mount is excellent for hand held and portable applications

package

where is limited.

space

●FEATURES

1)Extremely Fast Switching Speed

2) Low Forward Voltage — 0.35 Volts (Typ) @ I

= 10 mAdc

3)We declare that the material of product compliant with

RoHS requirements and Halogen Free.

4)S- Prefix for automotive and other applications requiring unique

site and control change requirements; AEC-Q101 qualified and

PPAP capable.

●DEVICE

MARKING AND ORDERING INFORMATION

Device

Marking

Shipping

3000/Tape&Reel

LBAT54ALT1G

10000/Tape&Reel

LBAT54ALT3G

●MAXIMUM

RATINGS(Ta = 25℃)

Symbol

Limits

Unit

Rating

DC reverse voltage

Forward Power Dissipation

= 25°

225

Derate above 25°

1.8

mW/°

DC forward current

200Max

Junction temperature

125Max

℃

Storage temperature

−55∼+150

Tstg

℃

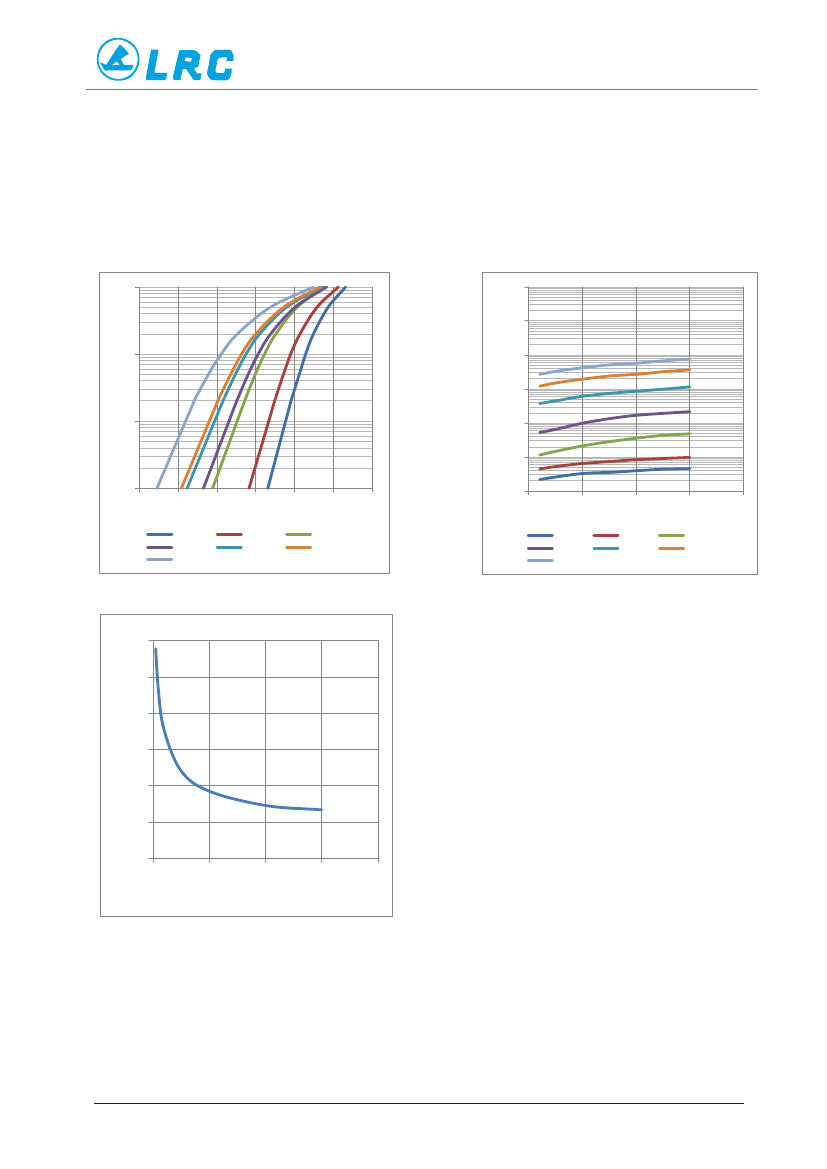

●ELECTRICAL

CHARACTERISTICS (Ta= 25℃)

Parameter

Symbol Min.

Typ.

Reverse Breakdown

(BR)R

–

Voltage

–

Total Capacitance

Reverse current

–

0.5

Forward voltage

–

0.22

Forward voltage

–

0.29

Forward voltage

–

0.35

Forward voltage

–

0.41

Forward voltage

–

0.52

trr

–

Reverse Recovery Time

Repetitive Peak

FRM

–

Forward Current

Non–Repetitive Peak

FSM

–

Forward Current

Max.

–

0.24

0.32

0.4

0.5

300

600

Unit

LBAT54ALT1G

S-LBAT54ALT1G

30 VOLTS SCHOTTKY BARRIER

DETECTOR AND SWITCHING

DIODES

SOT–23 (TO–236AB)

CATHODE

ANODE

CATHODE

Conditions

= 10 μA

= 1.0 V, f = 1.0 MHz

μA

=25V

V I

=0.1mA

V I

=1mA

V I

=10mA

V I

=30mA

V I

=100mA

= I

= 10mA,I

R(REC)

= 1.0 mA

(t < 1.0 s)

May,2015

Rev.C 1/3
