DB107S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DB107S

DB107S: DescriptionReverse peak voltage: 1000V Average rectified current (Io): 1A Forward voltage drop (Vf): 1.05V @ 1A High IFSM, VRRM=1000V, IO=1A, IFSM=50A, VF=1.05V; CategoryDiscrete semiconductor diode; File Size207KB，3 Pages; ManufacturerLRC; Websitehttp://www.lrc.cn

Download Datasheet Parametric Compare View All

DB107S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DB107S	-	-	View	Buy Now

DB107S Overview

Reverse peak voltage: 1000V Average rectified current (Io): 1A Forward voltage drop (Vf): 1.05V @ 1A High IFSM, VRRM=1000V, IO=1A, IFSM=50A, VF=1.05V

DB107S Parametric

Parameter Name	Attribute value
Maker	LRC
Reach Compliance Code	unknown
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
Maximum non-repetitive peak forward current	50 A
Number of components	4
Maximum operating temperature	150 °C
Maximum output current	1 A
Maximum repetitive peak reverse voltage	1000 V
surface mount	YES

Preview

Download Datasheet

View All

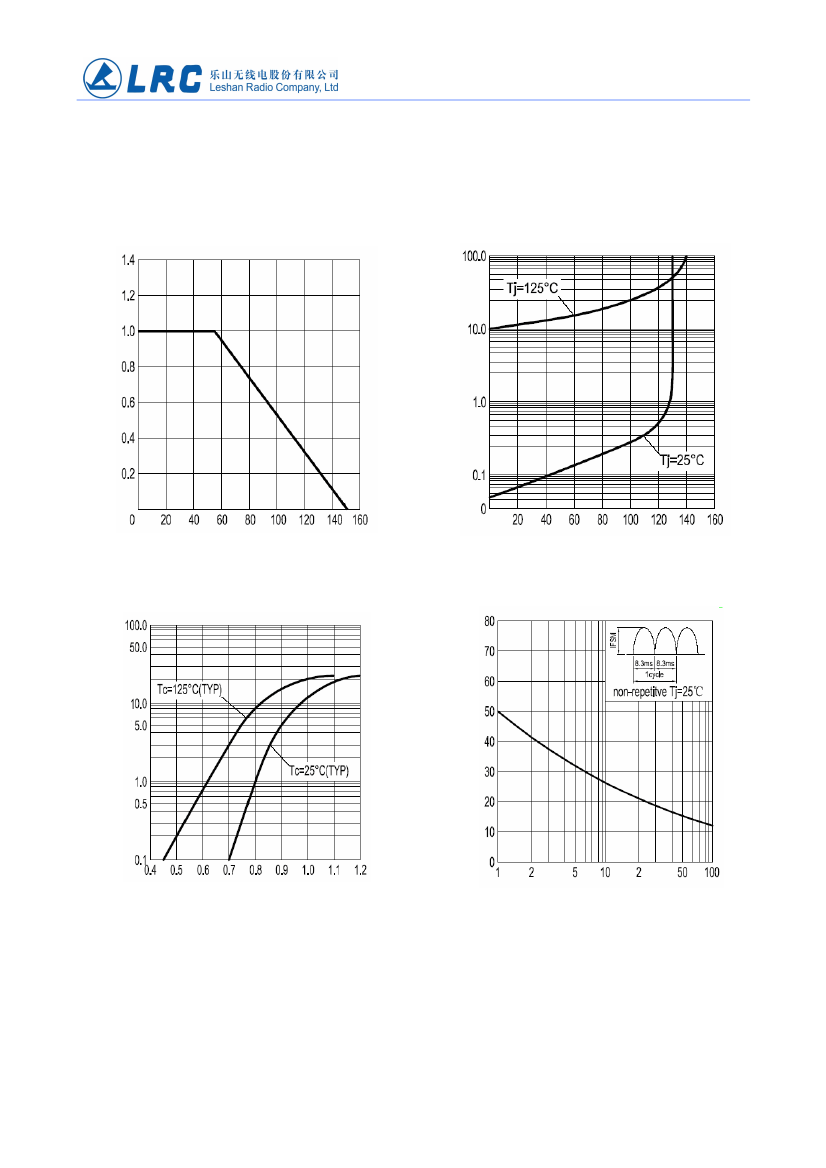

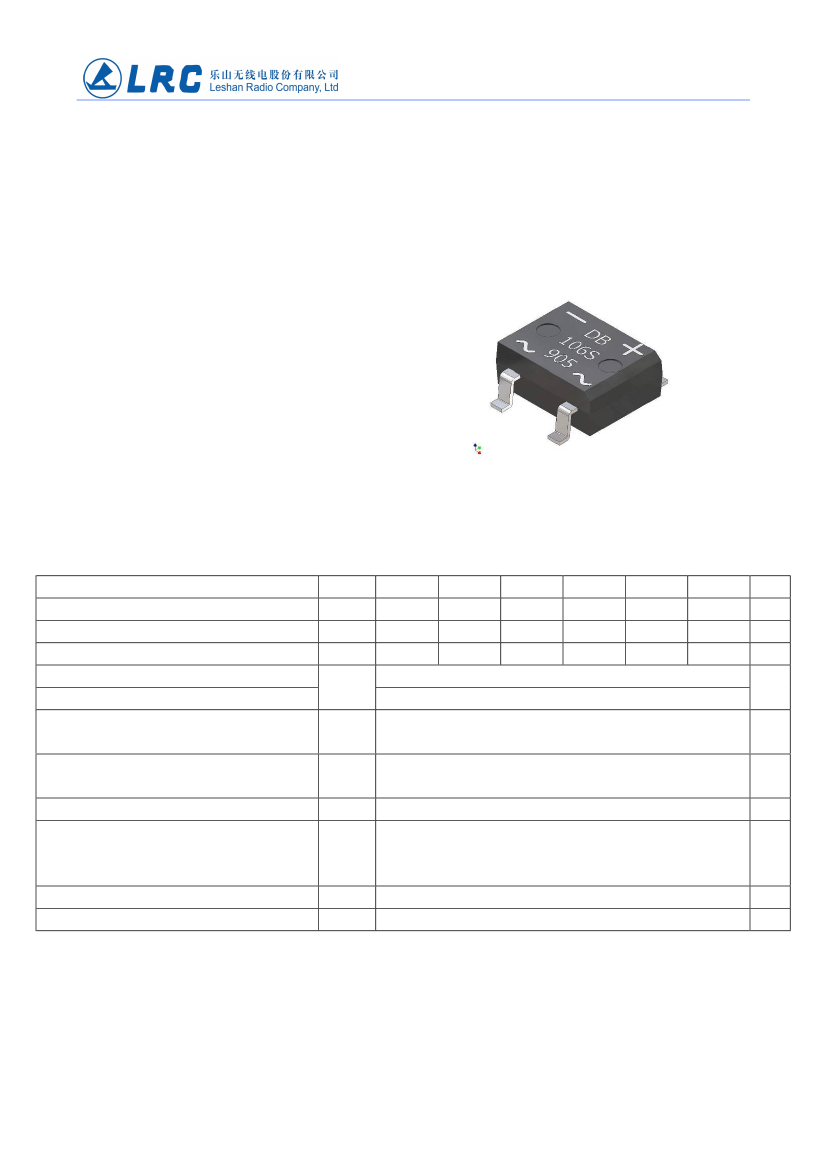

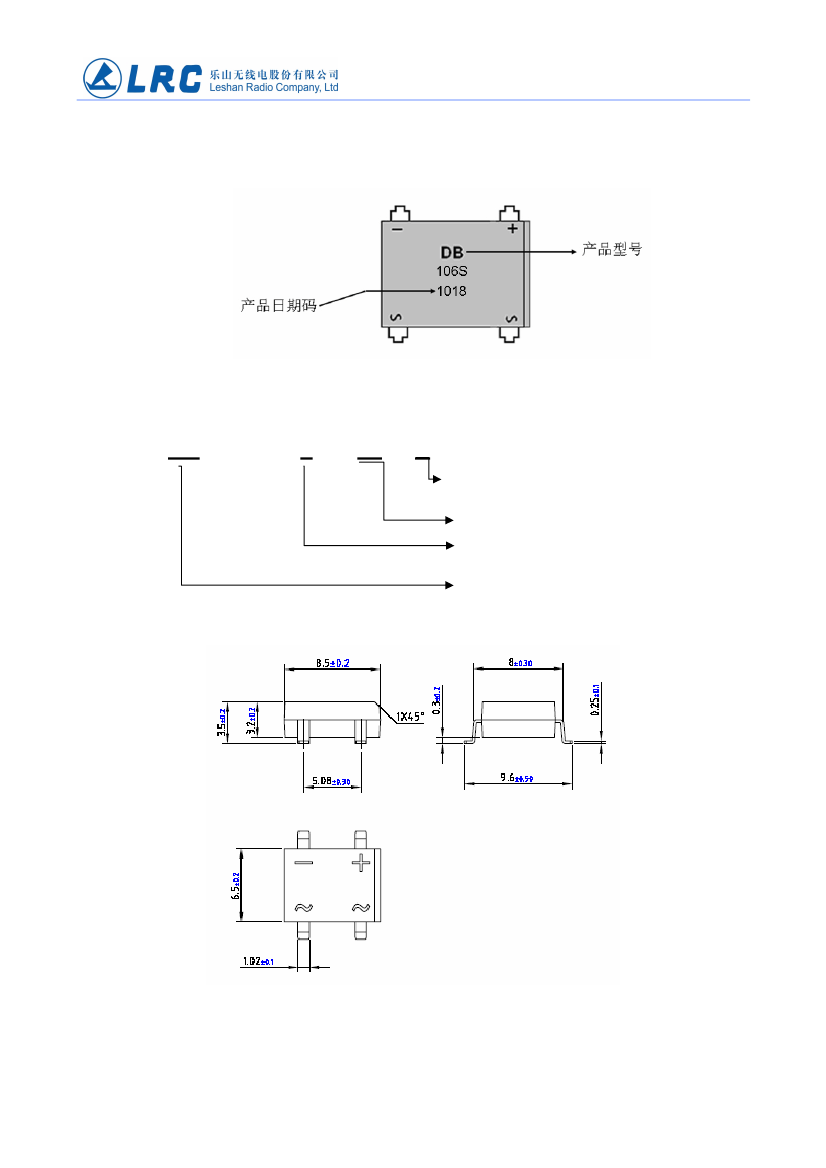

DB102S Thru DB107S

High Current Glass Passivated Molding Single-Phase Bridge Rectifier

Reverse Voltage 100 to 1000V

FEATURES

Plastic Package has Underwriters Laboratory

Flammability Classification 94V-0

High current capacity with small package

Glass passivated chip junctions

Superior thermal conductivity

High IFSM

Forward Current 1.0 A

Maximum & Thermal Characteristics Ratings

at 25℃ ambient temperature unless otherwise specified.

Parameter Symbol

Maximum repetitive voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum DC reverse current TA=25

℃

at rated DC blocking voltage TA=125℃

Average rectified forward current 60Hz Sine

wave Resistance load with Ta=55℃

Peak forward surge current 8.3ms single half

sine-wave superimposed on rated load

Max instantaneous forward voltage at 1.0A

Thermal Resistance

Between junction and ambient

Between junction and lead

Operating junction temperature

Storage temperature

θJ-A

θJ-L

Tstg

134

-55~150

℃

℃/W

Symbol

RRM

RMS

DB102S

100

DB103S

200

140

200

DB104S

400

280

400

500

1.0

DB105S

600

420

600

DB106S

800

560

800

DB107S

1000

700

1000

Unit

µA

IFSM

1.05

DB107S Related Products

	DB107S	DB105S
Description	Reverse peak voltage: 1000V Average rectified current (Io): 1A Forward voltage drop (Vf): 1.05V @ 1A High IFSM, VRRM=1000V, IO=1A, IFSM=50A, VF=1.05V
Maker	LRC	LRC
Reach Compliance Code	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V
Maximum non-repetitive peak forward current	50 A	50 A
Number of components	4	4
Maximum operating temperature	150 °C	150 °C
Maximum output current	1 A	1 A
Maximum repetitive peak reverse voltage	1000 V	600 V
surface mount	YES	YES
