LESHAN RADIO COMPANY, LTD.
LTVS16H5.0T5G
LTVS16H5.0T5G
Features
5V uni-directional ESD diode
Low clamping voltage
Complies with IEC 61000-4-2 standards:
Air discharge: ±30kV
Contact discharge: ±30kV
MARKING
DIAGRAM
XX
M
CATHODE
ANODE
RoHS Compliant
DFN1610-2
Ordering information
Device
Package
Shipping
XX
M
cathode
= Specific Device Code
= Month Code
LTVS16H5.0T5G
DFN1610
8000/Tape&Reel
Absolute Maximum Ratings (T
A
=25°C unless otherwise specified)
Parameter
Peak Pulse Power (8/20µs)
Peak Pulse Current (8/20µs)
Operating Temperature Range
Storage Temperature Range
Symbol
Ppk
I
PP
T
J
Tstg
Value
1250
100
−55 to +125
−55 to +150
Unit
W
A
°C
°C
Electrical Characteristics (T
A
=25°C unless otherwise specified)
Parameter
Reverse Working Voltage
Breakdown Voltage
Reverse Leakage Current
Clamping Voltage
Clamping Voltage
Junction Capacitance
Symbol
V
RWM
V
BR
I
R
V
C
V
C
C
J
Min
Typ
Max
5
Unit
V
V
µA
V
V
pF
Test Condition
6
7.8
2
8.5
I
T
= 1mA
V
R
= 5V
I
PP
= 10A (8 x 20µs pulse)
I
PP
= 80A (8 x 20µs pulse)
VR = 0V, f = 1MHz
1
5
800
Note: Electrical parameters are only for die, performance may alter after assembly.
May,2015
Rev.O 1/3
LESHAN RADIO COMPANY, LTD.
LTVS16H5.0T5G

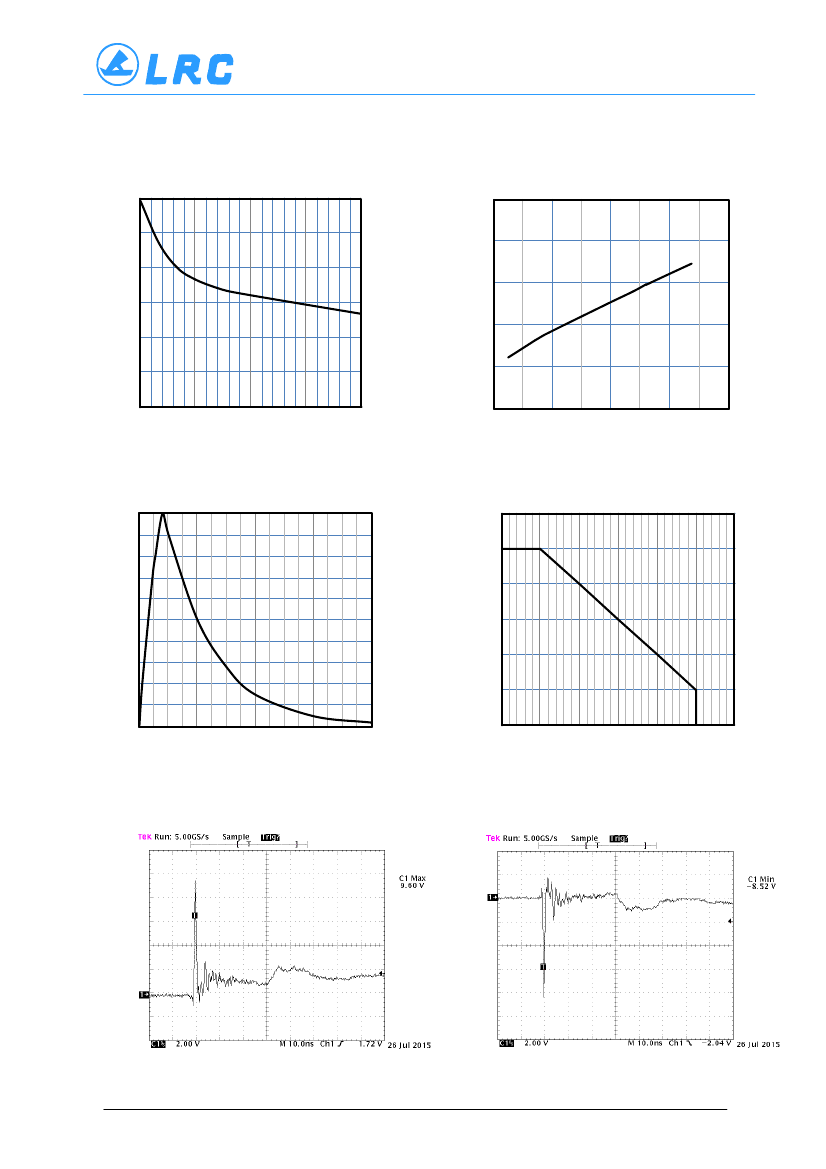

Typical Performance Characteristics (T
A
=25°C unless otherwise Specified)
800
25
Junction Capacitance_Cj (pF)
750
600
450
300
150
0
0
3
6
9
Reverse Voltage_VR (V)
12
Clamping Voltage_Vc (V)
20
15
10
5
0
0
30
60
90
Peak Pulse Current_Ipp (A)
120
Fig1.Junction Capacitance vs. Reverse Voltage
100
90
% of Peak Pulse Current
70
60
50
40
80
Fig
2
.Clamping Voltage vs. Peak Pulse Current
120
100
% of Rated Power
80
60
30
20
10
0
0
20
40
Time_t(uS)
60
80
40
20
0
0
25
50
75
100 125
Ambient Temperature_Ta(℃)
150
Fig
3
. 8 X 20uS Pulse Waveform
Fig4.Power Derating Curve
Fig 5. ESD Clamping Voltage
Positive 8 kV Contact per IEC61000−4−2
May,2015
Fig 6. ESD Clamping Voltage
Negative 8 kV Contact per IEC61000−4−2
Rev.O 2/3
LESHAN RADIO COMPANY, LTD.
LTVS16H5.0T5G
DFN1610
DFN1610-2 Package Outline Drawing
DIMENSIONS
MILLIMETERS
INCHES
MIN
NOM
MAX
MIN
NOM
MAX
0.45
0.50
0.55
0.018
0.020
0.022
0.00
0.75
0.10
1.55
0.95
0.35
0.15
0.02
0.80
0.15
1.60
1.10 BSC
1.00
0.40
0.20
1.05
0.45
0.25
0.038
0.014
0.006
0.05
0.85
0.20
1.65
0.000
0.030
0.004
0.062
0.001
0.032
0.006
0.064
0.044 BSC
0.040
0.016
0.008
0.042
0.018
0.010
0.002
0.034
0.008
0.066
D
e
h
h
SYM
E
b
-
-
A
A1
b
L
Bottom View
c
D
e
E
L
h
A
Suggested Land Pattern
A1
c
SYM
╋
Y1
DIMENSIONS
MILLIMETERS
1.00
0.62
0.60
1.22
1.85
INCHES
0.040
0.025
0.024
0.049
0.074
X
Y3
Y2
Z
Y1
Y2
╋
Y3
Z
X
May,2015
Rev.O 3/3
