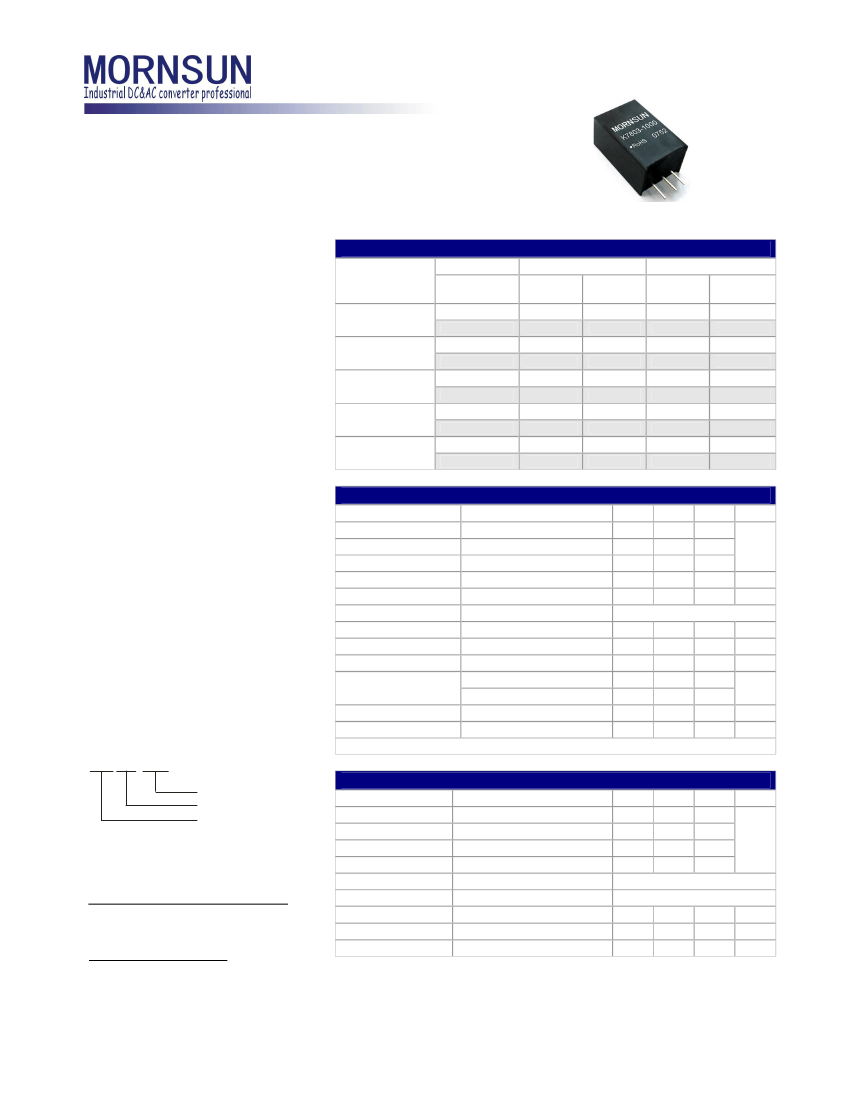

K78XX-1000 Series
WIDE INPUT NON-ISOLATED & REGULATED
SINGLE POSITIVE /NEGATIVE OUTPUT
multi-country patent protection
RoHS
FEATURES
●
Efficiency up to 96%
●
Operating temperature: -40°C to +85°C
●
Pin-out compatible with LM78XX Linear
●
Short circuit protection, thermal Shutdown
●
Low ripple and noise
●
Micro miniature SIP package
●
No heat sink required
●
Industry standard pinout
●
MTBF>2,000,000 hours
●
Can be used to convert a positive voltage
K7803-1000
K7805-1000
K78X6-1000
K7809-1000
K7812-1000
Part Number
PRODUCT PROGRAM
Input
Voltage Range
(VDC)
4.75-28
4.75-25
6.5-32
7.0-27
9.0-32
7.0-25
12-32
7.0-23
16-32
7.0-20
Output
Voltage
(VDC)
3.3
-3.3
5.0
-5.0
6.5
-6.5
9.0
-9.0
12
-12
Current
(mA)
1000
-600
1000
-600
1000
-400
1000
-400
1000
-300
Efficiency (%)
Vin (min.)
90
80
93
85
94
88
95
89
96
89
Vin(max.)
83
82
88
87
90
90
92
91
94
91
into a negative voltage
●
Only two extra capacitors are required
●
Input voltage range can be lower than the
output voltage for higher output voltages
in negative application
OUTPUT SPECIFICATIONS
Item
Output Voltage accuracy
Line regulation
Test conditions
100% full load
Vin=min. to max. at full load
10% to 100% load
20MHZ bandwidth
Min
Typ
±2
±0.2
±0.4
25
0.5
Internal IC junction
100% full load
Positive Output
Negative Output
-40°C to +85
°C
ambient
280
150
330
5
7
450
2000
8
13
0.02
1000
Max
±3
±0.4
±0.6
35
1.8
mVp-p
w
o
Units
%
APPLICATIONS
The
K78xx-1000
Series
high
efficiency
switching regulators are ideally suited to replace
78xx linear regulators and are pin compatible.
The efficiency of up to 96% means that very little
energy is wasted as heat so there is no need for
any heat sinks with their additional space and
mounting costs.
Load regulation
Ripple+Noise*
Short Circuit Input Power
Short circuit protection
Thermal Shutdown
Switching frequency
Output Current Limit
Quiescent current
Temperature coefficient
Max capacitance load
Continuous, automatic recovery
C
KHz
mA
mA
%/°C
μF
MODEL SELECTION
*Test ripple and noise by
“parallel
cable” method.
K78XX-1000
COMMON SPECIFICATION
Output Curre nt
Output Voltage
Product Series
Item
Operating Temperature
Operating Case temp.
Storage Temperature
Lead Temperature
Cooling
Test conditions
Min
-40
-55
Typ
Max
85
100
125
300
Units
o
C
1.5mm from case for 10 seconds
Free Air Convection
Plastic (UL94-V0)
95
2000
3.7
%
K hours
g
MORNSUN Science& Technology co.,Ltd.
Address: 2th floor 6th building, Huangzhou Industrial
District,Guangzhou,China
Tel: 86-20-38601850
Fax:86-20-38601272
Http://www.mornsun-power.com
Case Material
Storage Humidity
MTBF
Package Weight
Note:
1. All specifications measured at T
A
=25°C, humidity<75%, nominal input voltage and rated output load
unless otherwise specified.
2. Only typical models listed. If you need other model, please confirm the power, input voltage and output
voltage, then phone us.
MORNSUN reserves the copyright
Specifications subject to change without notice.
K78XX-1000
A/1-2008
Page 1 of 3
TYPICAL CHARECTERISTICS
EXTERNAL CAPACITOR TABLE
Temperature Derating Graph
Part Number
K7803-1000
K7805-1000
K78X6-1000
K7809-1000
K7812-1000
Operating Temp.(
C
)
C1,C3
(ceramic capacitor)
10uF/50V
10uF/50V
10uF/50V
10uF/50V
10uF/50V
C2,C4
(ceramic capacitor)
22uF/6.3V
22uF/10V
10uF/10V
10uF/16V
10uF/25V
TYPICAL APPLICATION CIRCUIT
APPLICATION EXAMPLE
+Vin
+Vout
Vin
1
K 78XX-1000
2
3
+Vout
1 K78XX-1000 3
C3
2
C4
GND
C1
GND
C2
GN D
1
K78XX-1000 3
2
GND
GND
C1
C2
-Vout
+Vin
1
K78XX-1000
2
3
C1
C2
Note:
1.C1 and C2 are required and should be fitted close to the converter pins.
2.The capacitance of C1 ,C2,C3 and C4 sees external capacitor table,it can be increased
properly if required, and
tantalum or low ESR electrolytic capacitors may also suffice
.
3.No parallel connection or plug and play.
-Vout
STANDARD APPLICATION CIRCUIT
SIP-3 Package
11.50
(0.453)
Third Angle Projection
9.00
(0.354)
MORNSUN
(0.689)
17.50
K78XX-1000
4.10(0.161)
3.21
(0.126)
2.15
(0.085)
RECOMMENDED FOOTPRINT
Top
view,grid:2.54mm(0.1inch),
diameter:1.00mm(0.039inch)
Bottom View
1 2 3
5.08
(0.020)
0.50
(0.020)
1 2 3
FOOTPRINT DETAILS
Note:
Unit:mm(inch)
Pin section:0.50*0.30mm(0.020*0.012inch)
Pin tolerances: 0.10mm( 0.004inch)
General tolerances: 0.25mm( 0.010inch)
Pin
1
2
3
Positive Negative
+Vin
+Vin
GND
+Vout
-Vout
GND
MORNSUN reserves the copyright
Specifications subject to change without notice.
K78XX-1000
A/1-2008
Page 2 of 3

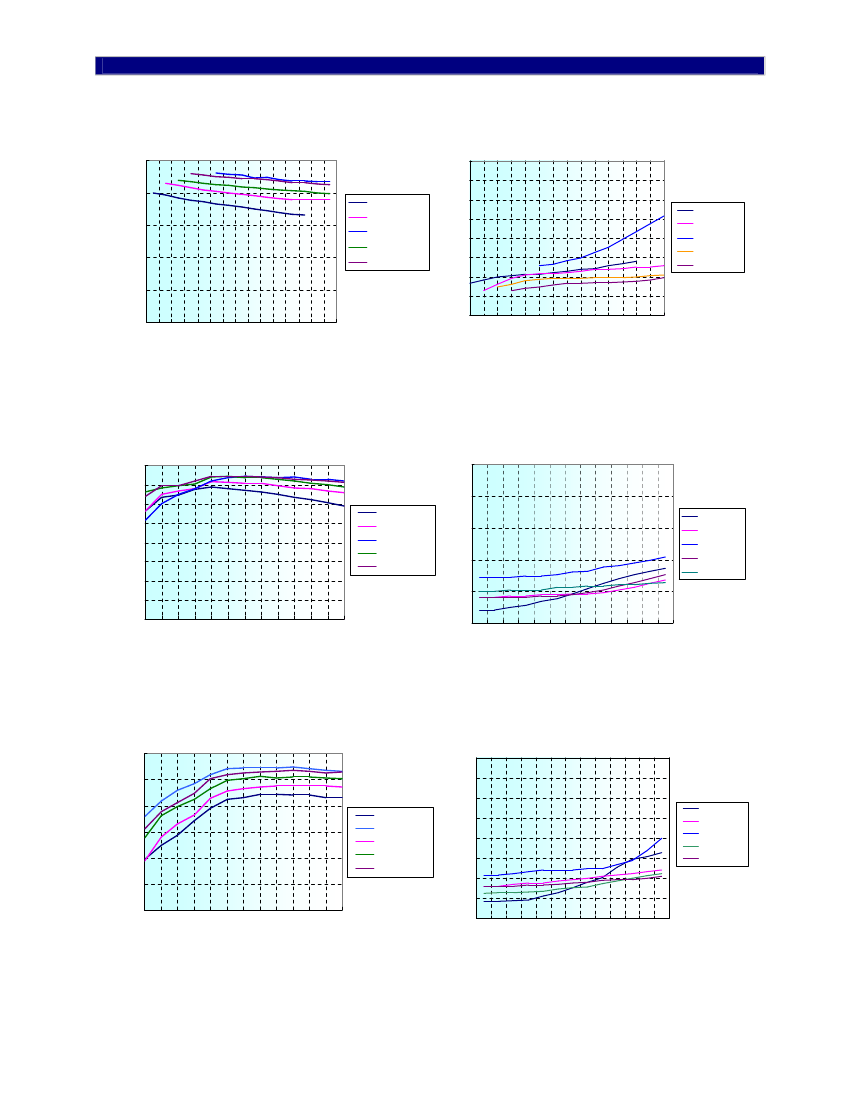

CHARACTERISTICS(POSITIVE VOLTAGE OUTPUT)
Efficiency
Efficiency(%)
100
Ripple
Ripple (mV)
40
35
90
80
70
K7803-1000
K7805-1000
K7812-1000
K78X6-1000
K7809-1000
30
25
20
15
10
K7803-1000
K7805-1000
K7812-1000
K78X6-1000
K7809-1000
60
5
0
4.75
50
4.75
8
12
16
20
24
28
32
Vin(V)
8
12
16
20
24
28
32
Vin (V)
Efficiency VS Vin(Full Load)
Ripple VS Vin ( Full Load)
Efficiency(%)
100
95
90
85
80
75
70
65
60
40
80
200
400
600
800
1000
Load(mA)
Efficiency VS Load(Vin=Vin_min)
Ripple(mV)
25
20
K7803-1000
K7805-1000
K7812-1000
K78X6-1000
K7809-1000
K7803-1000
15
K7805-1000
K7812-1000
10
K78X6-1000
K7809-1000
5
0
40
80
200
400
600
800
1000
Load(mA)
Ripple VS Load(Vin=Vin_min)
Efficiency(%)
Ripple(mV)
100
90
80
70
60
50
40
40
80
200
400
600
800 1000
Efficiency VS Load(Vin=Vin_max)
Load(mA)
K7803-1000
K7812-1000
K7805-1000
K78X6-1000
K7809-1000
40
35
30
25
20
15
10
5
0
40
80
200
400
600
800
1000
Load(mA)
Ripple VS Load(Vin=24V)
K7803-1000
K7805-1000
K7812-1000
K78X6-1000
K7809-1000
MORNSUN reserves the copyright
Specifications subject to change without notice.
K78XX-1000
A/1-2008
Page 3 of 3
