VRB2405ZP-6WR3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> VRB2405ZP-6WR3

VRB2405ZP-6WR3: DescriptionNumber of voltage output groups: 1 Maximum input voltage: 36V Output voltage: 5V Output current (maximum value/full load): 1.2A DC-DC module, input range: 18V~36V, output: 5V; CategoryPower/power management The power supply circuit; File Size2MB，5 Pages; ManufacturerMORNSUN; Websitehttp://www.mornsun-power.com; Environmental Compliance

Download Datasheet Parametric Compare View All

VRB2405ZP-6WR3 Overview

Number of voltage output groups: 1 Maximum input voltage: 36V Output voltage: 5V Output current (maximum value/full load): 1.2A DC-DC module, input range: 18V~36V, output: 5V

VRB2405ZP-6WR3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MORNSUN
package instruction	,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	18 V
Nominal input voltage	24 V
JESD-30 code	R-XDMA-P7
length	32 mm
Maximum load regulation	1%
Number of functions	1
Output times	1
Number of terminals	7
Maximum operating temperature	71 °C
Minimum operating temperature	-40 °C
Maximum output voltage	5.15 V
Minimum output voltage	4.85 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum seat height	11.3 mm
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	6 W
Fine-tuning/adjustable output	NO
width	20 mm

Preview

Download Datasheet

View All

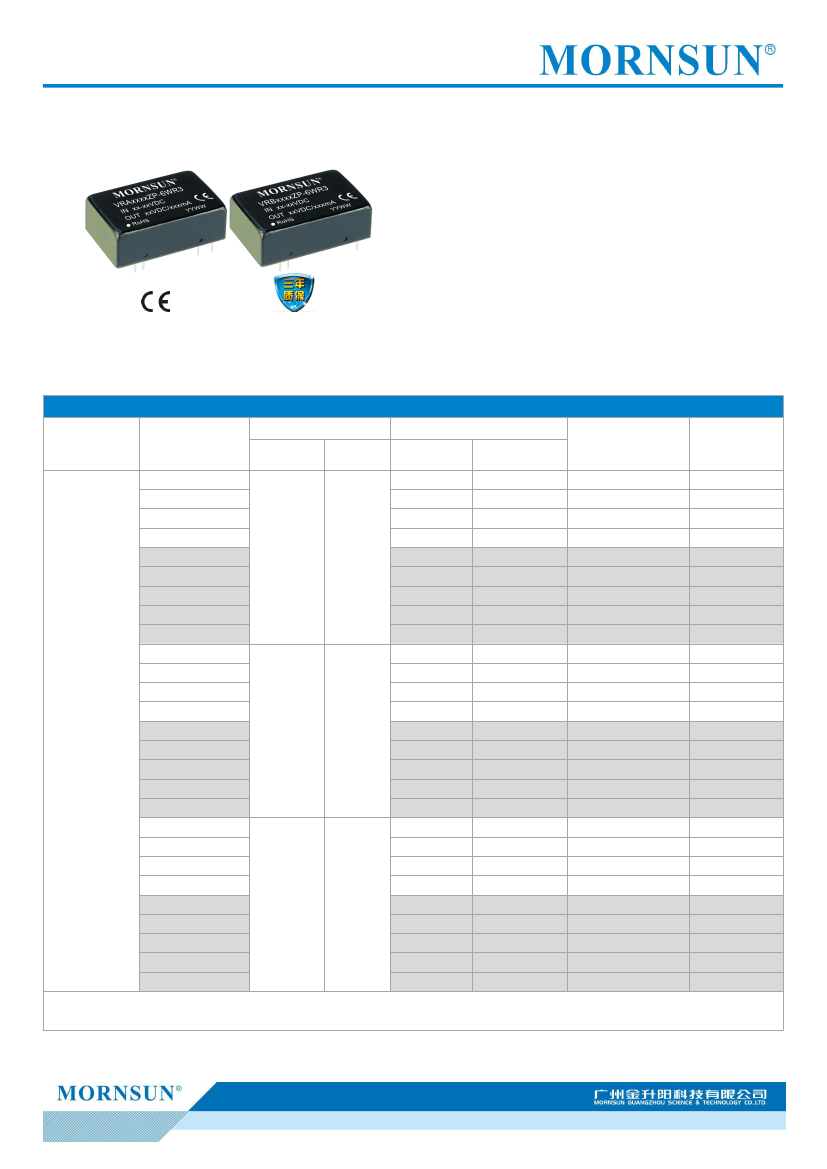

DC/DC

模块电源

VRA_ZP-6WR3 & VRB_ZP-6WR3

系列

6W，½电压输入，隔离稳压正负双路/

单路输出，DIP 封装，DC-DC 模块电源

产品特点



½输入电压范围（2:1）

效率高达

88%

空½½功耗½至

0.09W

隔离电压

1500VDC

工½温度范围：-40℃½+85℃

输入欠压保护，输出短路、过流、过压保护

裸机满足

CISPR22/EN55022 CLASS A

½际标准引脚方式

通过

EN60950

认证

专利保护

RoHS



VRA_ZP-6WR3& VRB_ZP-6WR3

系列产品输出功率为

6W，½电压输入 9-18VDC，18-36VDC，36-75VDC，隔离电压 1500VDC，具

有输入欠压保护，输出过压、过流、短路保护功½，裸机满足

CISPR22/EN55022 CLASS A，广泛应用于工控、电力、仪器仪表、通

信等领域。

选型表

输入电压

(VDC)

认证

产品型号

VRA1205ZP-6WR3

VRA1212ZP-6WR3

VRA1215ZP-6WR3

VRA1224ZP-6WR3

VRB1203ZP-6WR3

VRB1205ZP-6WR3

VRB1212ZP-6WR3

VRB1215ZP-6WR3

VRB1224ZP-6WR3

VRA2405ZP-6WR3

VRA2412ZP-6WR3

VRA2415ZP-6WR3

VRA2424ZP-6WR3

VRB2403ZP-6WR3

VRB2405ZP-6WR3

VRB2412ZP-6WR3

VRB2415ZP-6WR3

VRB2424ZP-6WR3

VRA4805ZP-6WR3

VRA4812ZP-6WR3

VRA4815ZP-6WR3

VRA4824ZP-6WR3

VRB4803ZP-6WR3

VRB4805ZP-6WR3

VRB4812ZP-6WR3

VRB4815ZP-6WR3

VRB4824ZP-6WR3

注：①输入电压不½超过此值，否则可½会造成永久性不可恢复的损坏；

②上述效率值是在输入标称电压和输出额定负½½时测得；

③正负输出两路容性负½½一样。

输出

①

标称值

（范围值）

最大值

输出电压

(VDC)

±5

±12

±15

±24

输出电流

(mA)

(Max./Min.)

±600/0

±250/0

±200/0

±125/0

1500/0

1200/0

500/0

400/0

250/0

±600/0

±250/0

±200/0

±125/0

1500/0

1200/0

500/0

400/0

250/0

±600/0

±250/0

±200/0

±125/0

1500/0

1200/0

500/0

400/0

250/0

效率

(%,Min./Typ.)

最大容性负½½



(µF)

@满½½

78/80

82/84

83/85

82/84

73/75

78/80

82/84

83/85

81/83

84/86

85/87

83/85

76/78

80/82

83/85

84/86

81/83

85/87

83/85

77/79

81/83

85/87

86/88

85/87

680

330

220

100

1800

1000

470

220

100

680

330

220

100

1800

1000

470

220

100

680

330

220

100

1800

1000

470

220

100

②

(9-18)

3.3

±5

±12

±15

±24

(18-36)

3.3

±5

±12

±15

±24

(36-75)

3.3

2016.06.20-A/1

第

页共

页

该版权及产品最终解释权½广州金升阳科技有限公司所有

VRB2405ZP-6WR3 Related Products

	VRB2405ZP-6WR3	VRA2415ZP-6WR3
Description	Number of voltage output groups: 1 Maximum input voltage: 36V Output voltage: 5V Output current (maximum value/full load): 1.2A DC-DC module, input range: 18V~36V, output: 5V	DC-DC Regulated Power Supply Module, 2 Output, 6W, Hybrid, DIP-23/8
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	unknown	unknown
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V	36 V
Minimum input voltage	18 V	18 V
Nominal input voltage	24 V	24 V
JESD-30 code	R-XDMA-P7	R-XDMA-P8
length	32 mm	32 mm
Maximum load regulation	1%	1%
Number of functions	1	1
Output times	1	2
Number of terminals	7	8
Maximum operating temperature	71 °C	71 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output voltage	5.15 V	15.45 V
Minimum output voltage	4.85 V	14.55 V
Nominal output voltage	5 V	15 V
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Maximum seat height	11.3 mm	11.3 mm
surface mount	NO	NO
technology	HYBRID	HYBRID
Temperature level	OTHER	OTHER
Terminal form	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Maximum total power output	6 W	6 W
Fine-tuning/adjustable output	NO	NO
width	20 mm	20 mm
