PT5616A
3-Phase 600V Gate Driver IC
DESCRIPTION

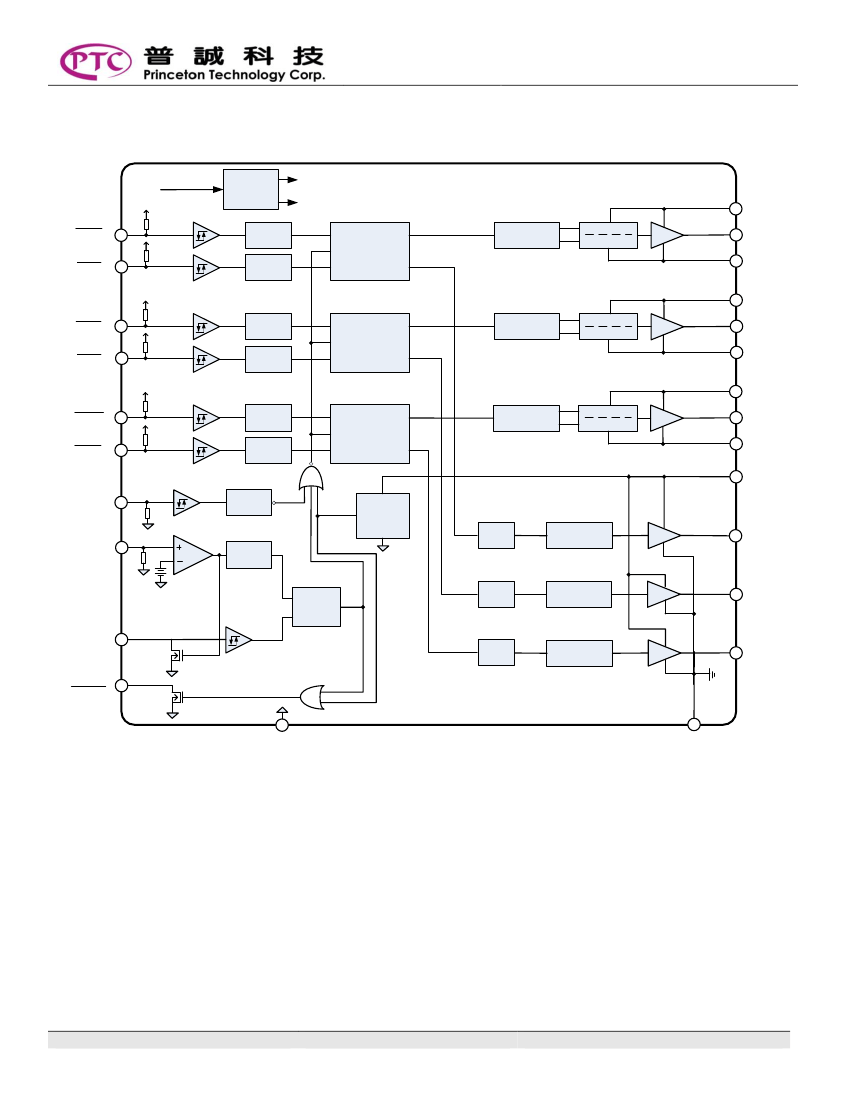

The devices are full bridge drivers to control power
devices like MOS-transistors or IGBTs in 3-phase
systems with a maximum blocking voltage of +600 V.
The six independent drivers are controlled at the
low-side using CMOS and LSTTL compatible signals,
down to 3.3V logic. The device includes an
under-voltage detection unit with hysteresis
characteristic and over-current detection. The
over-current level is adjusted by choosing the resistor
value and the threshold level at pin ITRIP. Both error
conditions (under-voltage and over-current) lead to a
definite shut down of all six switches. An error signal is
provided at the
FAULT
open drain output pin. The
blocking time after over-current can be adjusted with
an RC-network at pin RCIN. Therefore, the resistor
R
RCIN
is optional. The typical output current can be
given with 200mA for pull-up and 400mA for pull down.
Because of system safety reasons a 0.29us dead time
has been realized. The function of inputs EN and ITRIP
can optionally be extended with over-temperature
detection, using an external NTC resistor, diodes and
resistor network.
FEATURES
Drives up to six IGBT/MOSFET power devices
All high side channels fully operate up to +600V
Gate drive supplies up to 18 V per channel
Under-voltage lockout for all channels
Over-current protection
Flexible over-temperature shutdown input
Advanced input filter
Built-in dead-time protection
Shoot-through (cross-conduction) protection
Independent Enable/disable input and fault
reporting
Shut down all switches during error conditions
Adjustable fault clear timing
Separate logic and power grounds
3.3 V/5V input logic compatible (positive logic)
Designed for use with bootstrap power supplies
Matched propagation delays for all channels
Matched dead time
-40°C to 125°C operating range
SOP28 Package available
Lead-free
APPLICATIONS
Appliance motor drives—air conditioners, washing machines, refrigerator, dish washer, Fans
Servo drives
Industrial inverters. General purpose three phase inverters
FEATURES COMPARISON
Part
PT5616
PT5616A
Input Logic
LIN/HIN
______ ______
LIN /HIN
Dead Time
500ns
290ns
t
ON
600ns
500ns
t
OFF
600ns
480ns
V
CCUV+
9.5V
8.9V
V
CCUV-
9V
8.2V
Tel: 886-66296288
‧
Fax: 886-29174598
‧
http://www.princeton.com.tw
‧
2F, 233-1, Baociao Rd.,Sindian Dist., New Taipei City, 23145, Taiwan

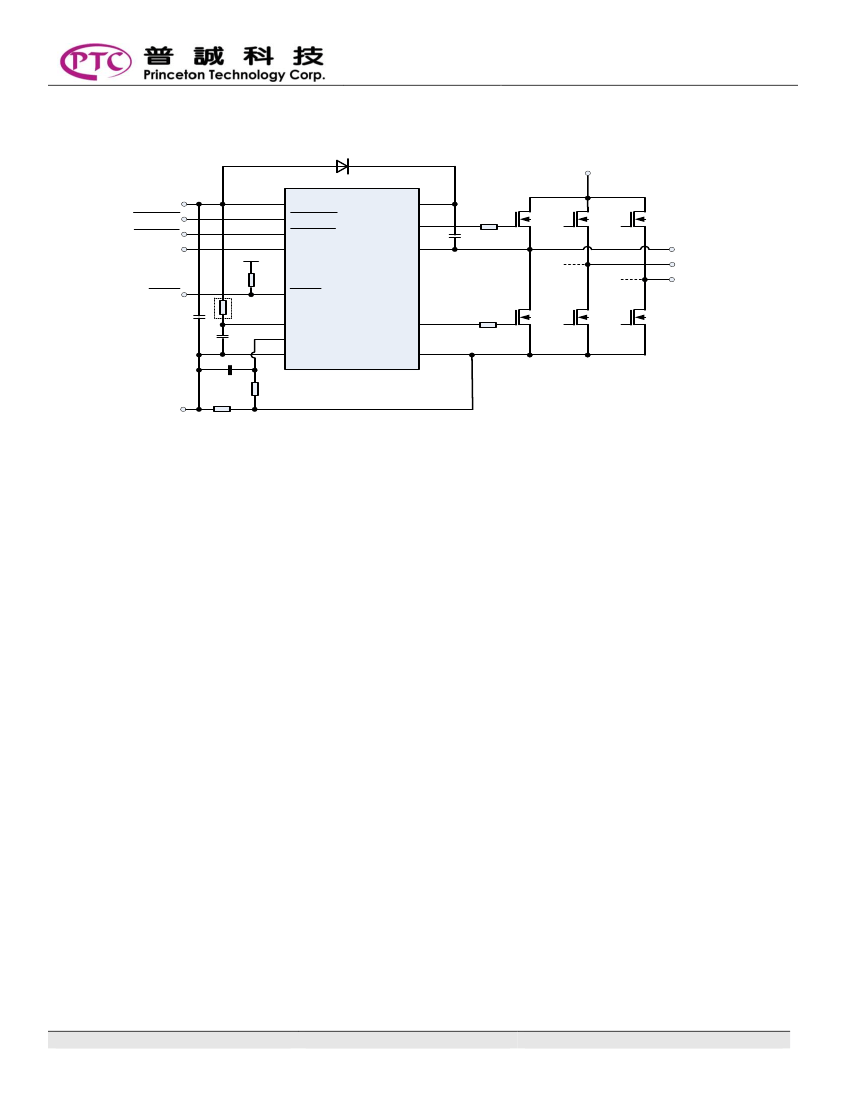

PT5616A

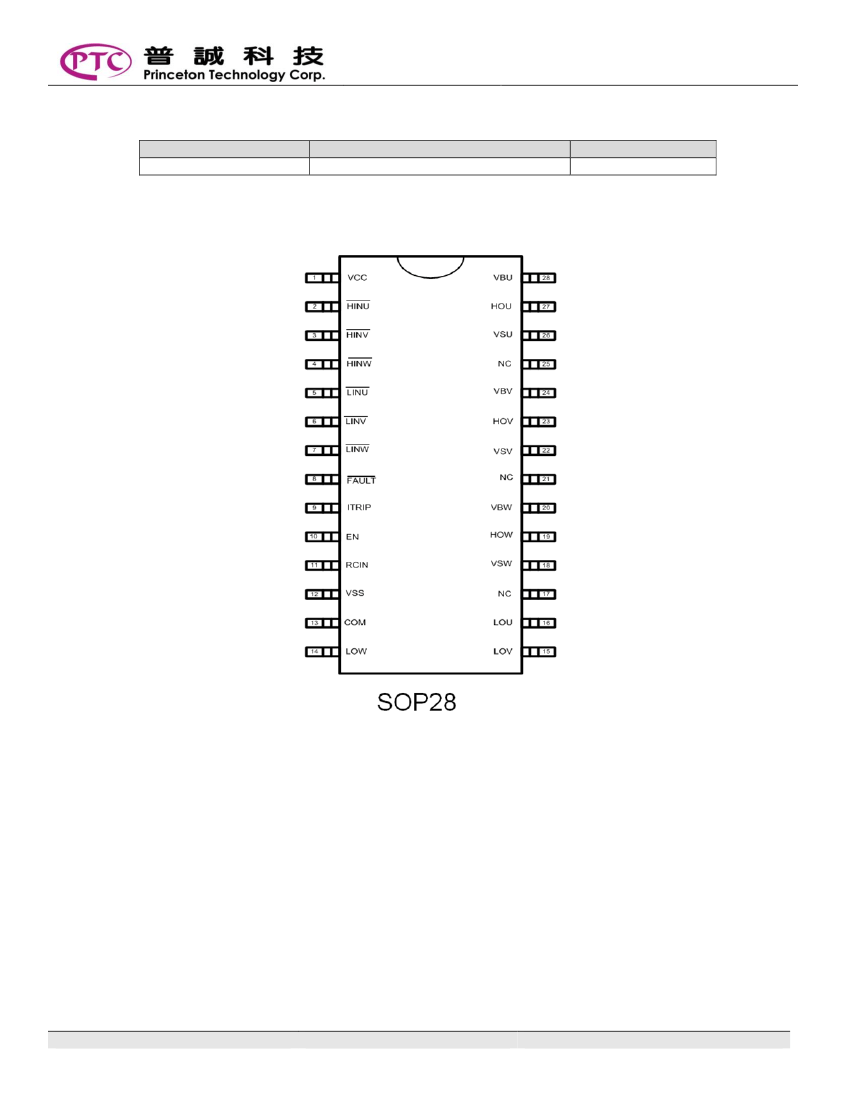

PIN DESCRIPTION
Pin Name
VCC
_________
Description
Logic and low-side gate drivers power supply voltage
Logic inputs for high-side gate driver outputs (phase U); input is out-phase with output
Logic inputs for high-side gate driver outputs (phase V); input is out -phase with output
Logic inputs for high-side gate driver outputs (phase W); input is out -phase with output
Logic inputs for low-side gate driver outputs (phase U); input is out -phase with output
Logic inputs for low-side gate driver outputs (phase V); input is out -phase with output
Logic inputs for low-side gate driver outputs (phase W); input is out -phase with output
Indicates over-current, over-temperature (ITRIP), or low-side under-voltage lockout has
occurred. This pin has negative logic and an open-drain output. The use of over-current and
over-temperature protection requires the use of external components.
Analog input for over-current shutdown. When active, ITRIP shuts down outputs and
activates
___________
___________
Pin No.
1
2
3
4
5
6
7
8
HINU
_________
HINV
_________
HINW
_________
LINU
_________
LINV
_________
LINW
___________
FAULT
ITRIP
FAULT and RCIN low. When ITRIP becomes inactive, FAULT stays active low for an
externally set time t
FLTCLR
, then automatically becomes inactive (open-drain high impedance).
Logic input to shutdown functionality. Logic functions when EN is high (i.e., positive logic). No
___________
9
EN
effect on FAULT and not latched. EN can also be extended as input of over-temperature
protection when equipped with an external NTC resistor.
An external RC network input used to define the FAULT CLEAR delay (t
FLTCLR
) approximately
___________
10
RCIN
VSS
COM
LOW
LOV
LOU
NC.
VSW
HOW
VBW
NC.
VSV
HOV
VBV
NC.
VSU
HOU
VBU
equal to R*C. When RCIN > 8 V, the FAULT pin goes back into an open-drain
high-impedance state.
Logic ground
Low-side gate drive return
Low-side gate driver W-phase output
Low-side gate driver V-phase output
Low-side gate driver U-phase output
Not Connected
High-side driver W-phase floating supply offset voltage
High-side driver W-phase gate driver output
High-side driver W-phase floating supply
Not Connected
High-side driver V-phase floating supply offset voltage
High-side driver V-phase gate driver output
High-side driver V-phase floating supply
Not Connected
High-side driver U-phase floating supply offset voltage
High-side driver U-phase gate driver output
High-side driver U-phase floating supply
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
