H1102NLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> So the transformer> H1102NLT

H1102NLT: DescriptionReturn loss (dB Min): -20 DC resistance (Ω Max): - Distributed capacitance (pF Max): - Line turns ratio: 1:1 Inductance (uH Min): - Insertion loss (dB Max): -1.1 LAN Discrete Transformer Module; CategoryPassive components So the transformer; File Size383KB，3 Pages; ManufacturerPulse

Download Datasheet Parametric Compare View All

H1102NLT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	H1102NLT	-	-	View	Buy Now

H1102NLT Overview

Return loss (dB Min): -20 DC resistance (Ω Max): - Distributed capacitance (pF Max): - Line turns ratio: 1:1 Inductance (uH Min): - Insertion loss (dB Max): -1.1 LAN Discrete Transformer Module

H1102NLT Parametric

Parameter Name	Attribute value
Crosstalk (dB Min)	-45
Return loss (dB Min)	-20
Number of coil groups	2
Common mode rejection\differential mode to common mode rejection (dB Min)	-42
DC resistance (Ω Max)	-
Distributed capacitance (pF Max)	-
Leakage inductance (uH Max)	-
turns ratio	1:1
Inductance ( uH Min )	-
Insulation voltage (Vrms)	1500
Insertion loss (dB Max)	-1.1

Preview

Download Datasheet

View All

10/100Base-T Single Port

Surface Mount Magnetics

With Various Turns Ratios

RoHS peak reflow temperature rating: 245°C

Meets IEEE 802.3 specification

Compact footprint for use in the most space-

restrictive applications

Electrical Specifications @ 25°C - Operating Temperature 0°C to 70°C

Turns Ratio

Part Number

H1100NL

H1101NL

H1102NL

3a, 4

H1121NL

H1183NL

3a, 4

H1199NL

HX1188NL

1, 3a, 4

HX1198NL

1, 3a, 4

H1302NL

2:1

1.25:1

1:1

1:1.414

1:1

Insertion Loss

100 kHz-100

MHz

-1.1

-1.0

-0.9

-1.0

-1.1

Return Loss

(dB TYP)

30 MHz

-20

-18

-20

-16

60 MHz

-14

-12

-14

-12

-14

-10

80 MHz

-11.5

-12

-11

-12

-10

Differential to Common

Mode Rejection

(dB TYP)

Crosstalk

(dB TYP)

30 MHz

-45

-35

-45

-35

60 MHz

-40

-35

-45

-40

-30

100 MHz

-35

-37

-35

-30

Hipot

(Vrms MIN)

1500

30 MHz

-42

-40

-42

50 MHz

-37

-40

-35

-37

100 MHz

-33

-30

-40

-30

-32

1. Operating

temperature -40°C to +85°C

2. For Tape & Reel

packaging, add a

“T”

suffix at the end of the part number when ordering, e.g. H1102NLT.

3. MSL

= Moisture Sensitivity Level a=1 b=2 c=3 d=4

4. Suitable

for Aut-MDIX applications

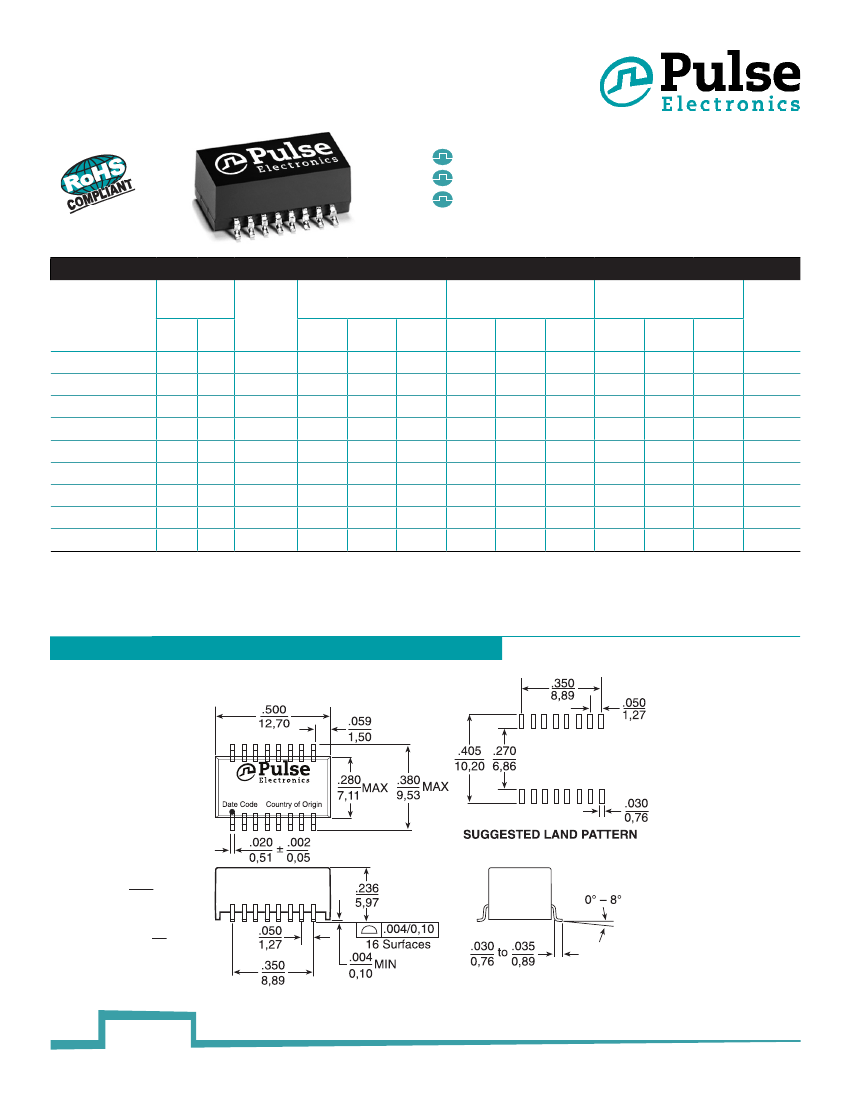

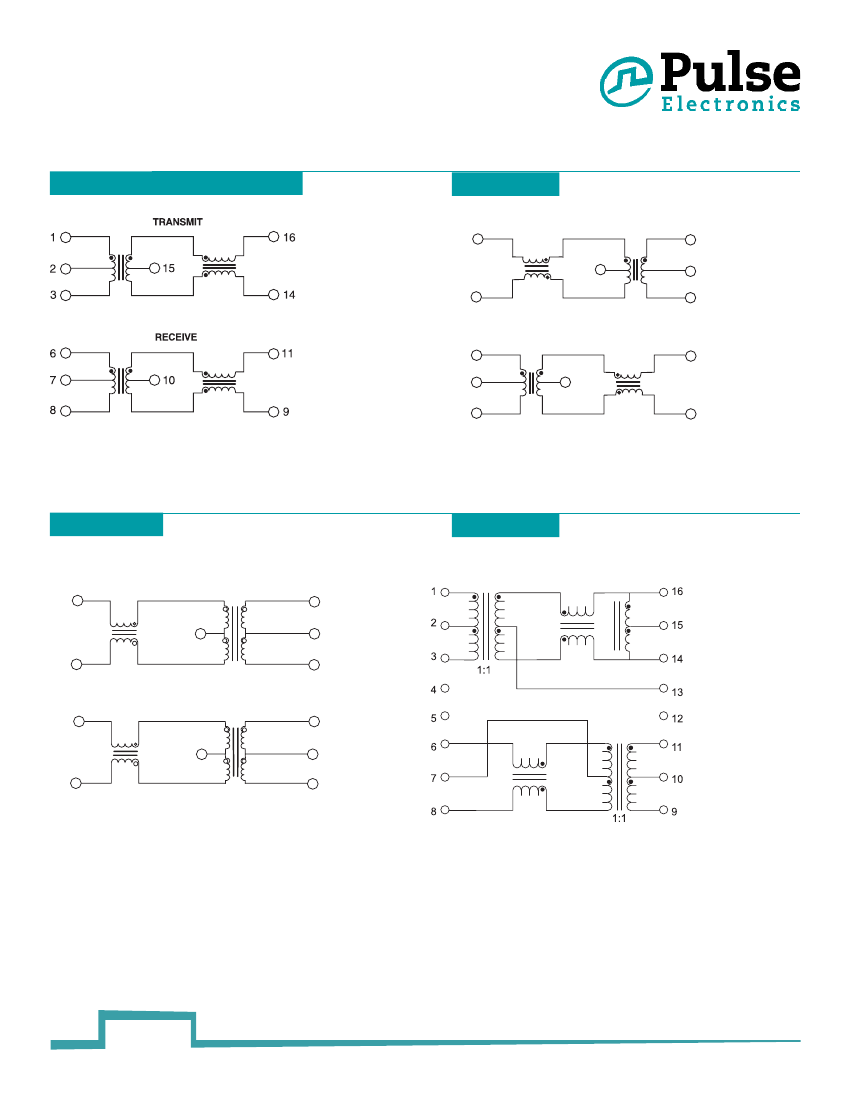

Mechanical

H1100NL, H1101NL, HX1102NL, H1121NL, *H1183NL, H1199NL, HX1188NL, HX1198NL, H1302NL

* For part number H1183NL, all dimensions are the same, except the height is .220” (5,59 mm).

HXXXXNL

Dimensions:

Inches

Unless otherwise specified,

all tolerances are

.010

0,25

Weight

.....................0.9 grams

Tube

.............................40/tube

Tape & Reel

................600/reel

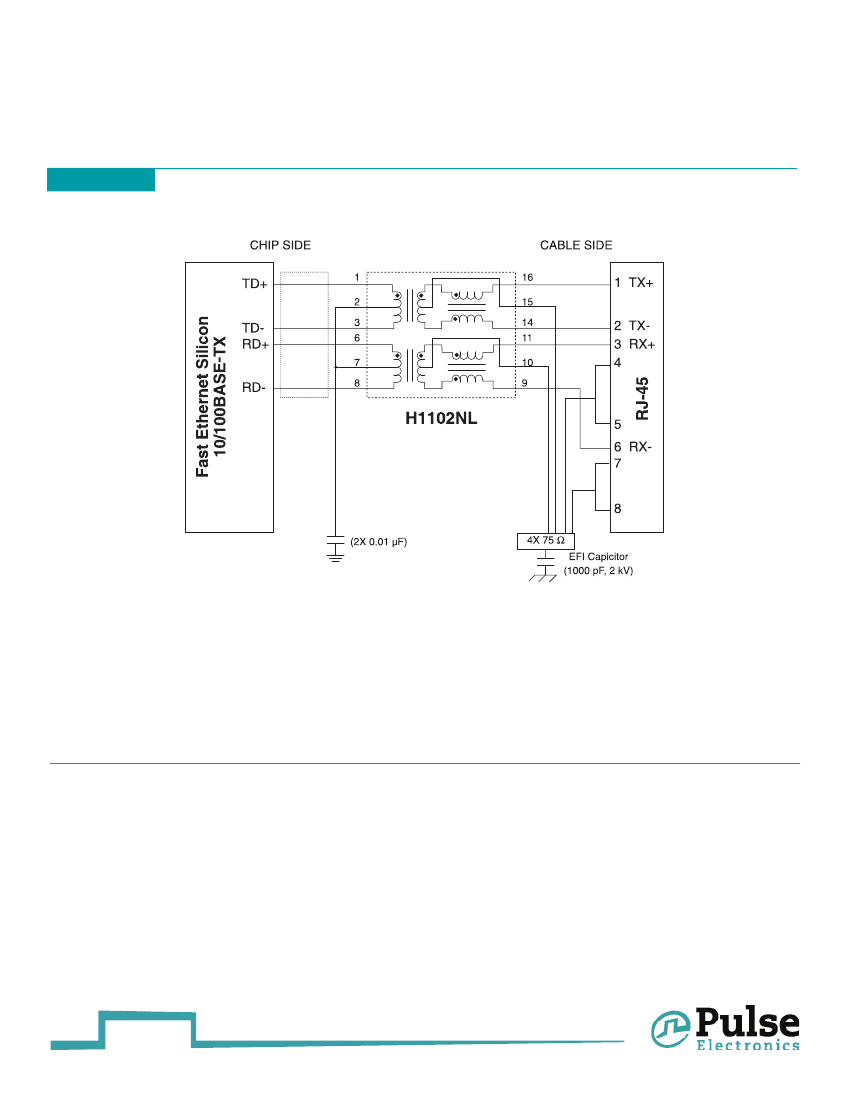

USA 858 674 8100

Germany 49 7032 7806 0

Singapore 65 6287 8998

Shanghai 86 21 62787060

China 86 755 33966678

Taiwan 886 3 4356768

H325.R (04/13)

pulseelectronics.com
