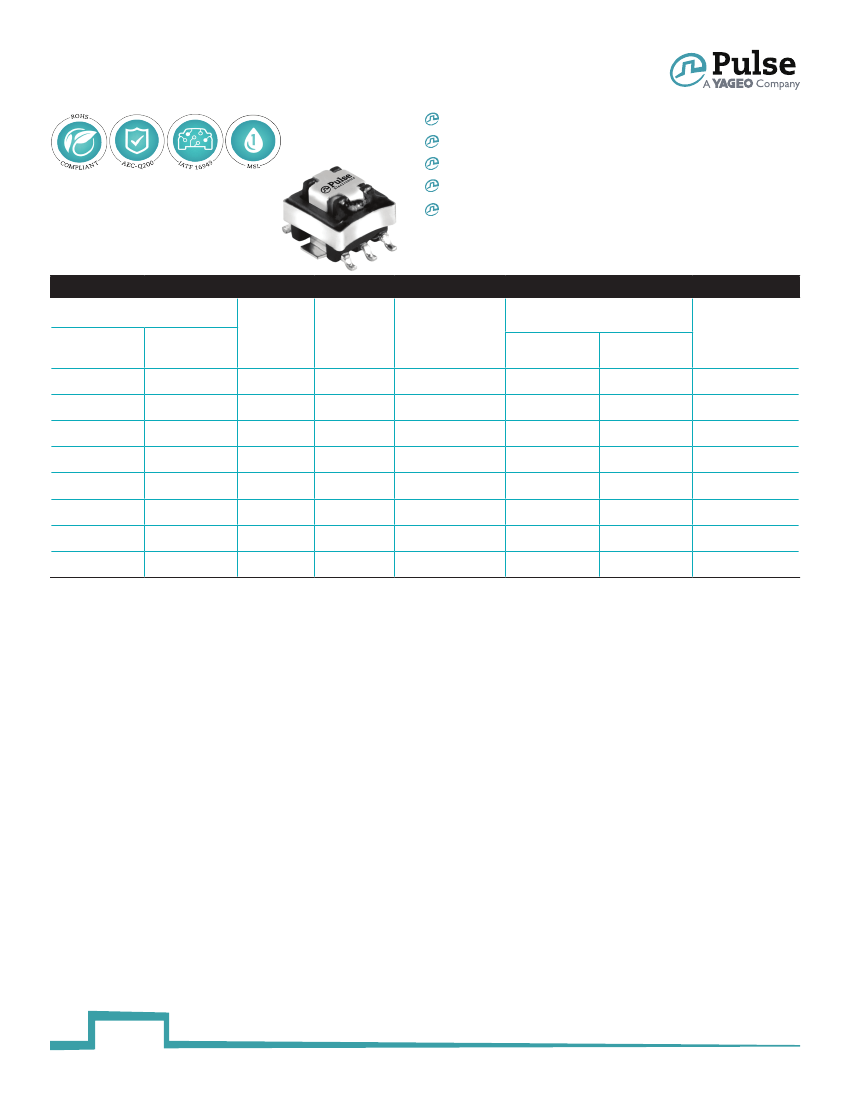

SMT Current Sense Transformers
PA1005.XXXNL and PM2165.XXXNL
Height:
5.5mm Max
Footprint:
8.4mm x 7.2mm Max
Current Rating:
up to 20A
Frequency Range:
20kHz to 1MHz
Low Primary DCR version of P820X
Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C
Part Number
Commerical
PA1005.020NL
PA1005.030NL
PA1005.040NL
PA1005.050NL
PA1005.060NL
PA1005.070NL
PA1005.100NL
PA1005.125NL
Notes:
1. The temperature of component (ambient temperature plus temper-ature rise) must be
within the specified operating temperature range.
2. The maximum current rating is based upon temperature rise of the component and
represents the DC current which will cause a typical temperature rise of 40°C with no
airflow.
3. To calculate value of terminating resistor (Rt) use the following formula:
Rt (W) = Vref * N /(Ipeak_primary)
4. The peak flux density of the device must remain below 2000 Gauss. To calculate the
peak flux density for uni-polar current use following formula:
Bpk = 37.59 * Vref * (Duty_Cycle_Max) * 10
5
/ (N * Freq_kHz)
* for bi-polar current applications divide Bpk (as calculated above) by 2.
5. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part num-
ber (i.e. PA1005.020NL becomes PA1005.020NLT). Pulse complies to industry standard
tape and reel specification EIA481.
6. The “NL” suffix indicates an RoHS-compliant part number. Non-NL suffixed parts are
not necessarily RoHS compliant, but are electrically and mechanically equivalent to NL
versions. If a part number does not have the “NL” suffix, but an RoHS compliant version
is required, please contact Pulse for availability.
7. The PM2165.XXXNL part numbers are AEC-Q200 and IATF16949 certified. The mechanical
dimensions are 100% tested in production but do not necessarily meet aproduct capabil-
ity index (Cpk) >1.33 and therefore may not strictly conform to PPAP.
Automotive
7
PM2165.020NL
PM2165.030NL
PM2165.040NL
PM2165.050NL
PM2165.060NL
PM2165.070NL
PM2165.100NL
PM2165.125NL
Turns Ration
1:20
1:30
1:40
1:50
1:60
1:70
1:100
1:125
Current Rating
2
(A)
20
20
20
20
20
20
20
20
Secondary Inductance
(mH MIN)
0.08
0.18
0.32
0.5
0.72
0.98
2.00
3.00
DCR (mΩ MAX)
Primary
(8-7)
0.75
0.75
0.75
0.75
0.75
0.75
0.75
0.75
Secondary
(1-3)
550
870
1140
1500
2250
4750
5500
6500
Hipot
(V
RMS
)
1000
1000
1000
1000
1000
1000
1000
500
1
power.pulseelectronics.com
SPM2007_58 (02/19)
http://www.power.pulseelectronics.com/contact
SMT Current Sense Transformers
PA1005.XXXNL and PM2165.XXXNL

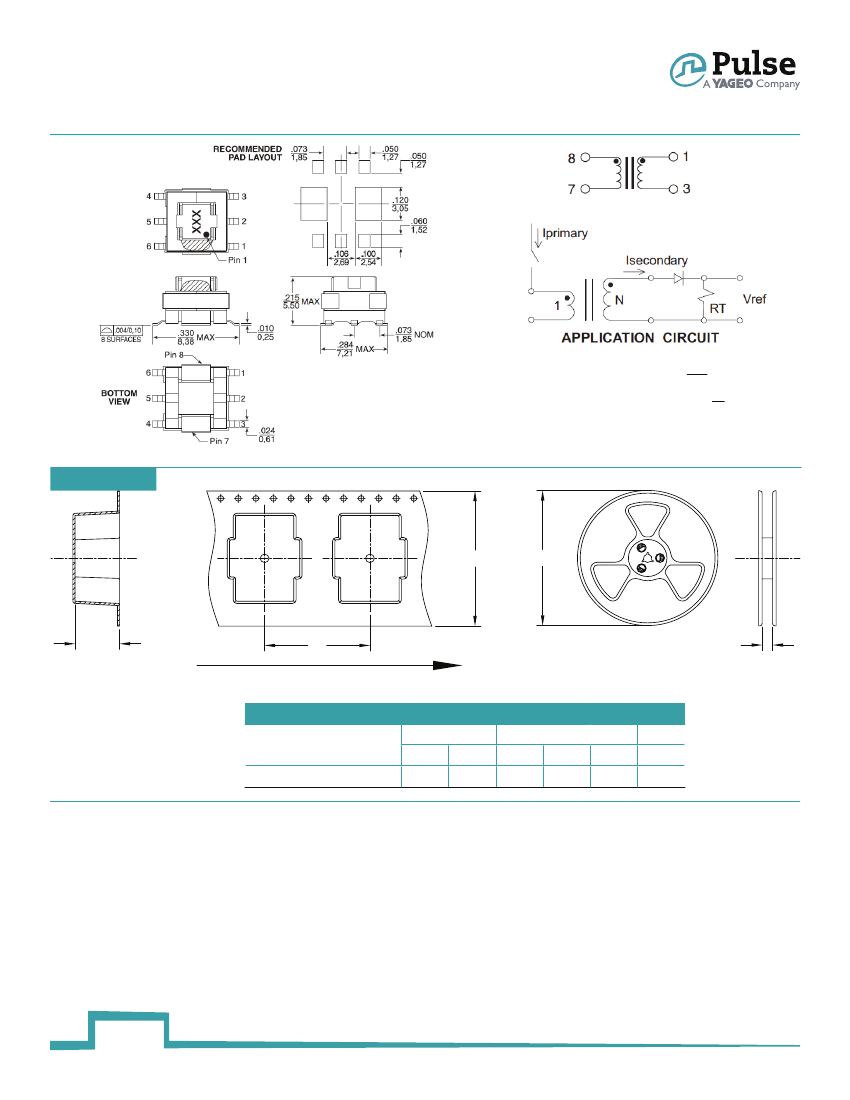

Mechanical
Schematic
Weight
...........................0.34grams
Dimensions:
.
Inches
mm
Tape & Reel
........................900/reel Unless otherwise specified,
.
.010
Tray
.....................................120/tray all tolerances are:
±
0,25
TAPE & REEL INFO
W
A
K
0
P
1
USER DIRECTION OF FEED
G
PART NUMBER
SURFACE MOUNTING TYPE, REEL/TAPE LIST
REEL SIZE (mm)
TAPE SIZE (mm)
A
G
P
1
W
K
0
Ø330
16.4
12
16
5.65
QTY
PCS/REEL
900
Pulse North Asia
1F., No.111 Xiyuan Road
Zhongli District
Taoyuan City 32057
Taiwan (R.O.C)
PA1005.XXXNLT/PM2165.XXXNLT
For More Information
Pulse Worldwide Headquarters
15255 Innovation Drive Ste 100
San Diego, CA 92128
U.S.A.
Pulse Europe
Pulse Electronics GmbH
Am Rottland 12
58540 Meinerzhagen
Germany
Pulse China Headquarters
Pulse Electronics (ShenZhen) CO., LTD
D708, Shenzhen Academy of
Aerospace Technology,
The 10th Keji South Road,
Nanshan District, Shenzhen,
P.R. China 518057
Tel: 86 755 33966678
Fax: 86 755 33966700
Pulse North China
Room 2704/2705
Super Ocean Finance Ctr.
2067 Yan An Road West
Shanghai 200336
China
Tel: 86 21 62787060
Fax: 86 2162786973
Pulse South Asia
3 Fraser Street 0428
DUO Tower
Singapore 189352
Tel: 858 674 8100
Fax: 858 674 8262
Tel: 49 2354 777 100
Fax: 49 2354 777 168
Tel: 65 6287 8998
Fax: 65 6280 0080
Tel: 886 3 4356768
Fax: 886 3 4356820
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned
herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2019. Pulse Electronics, Inc. All rights reserved.
2
power.pulseelectronics.com
SPM2007_58 (02/19)
http://www.power.pulseelectronics.com/contact
