SUNON
SPECIFICATION FOR APPROVAL
CUSTOMER
DESCRIPTION
DIMENSIONS
MODEL
P/N
:
:
:
:
:
DC BRUSHLESS FAN
80X80X38 mm
PMD1208PMB1-A
(2).GN
D08021220G-00
SUNON SPEC. NO. :
APPROVED NO
APPROVED BY
(AUTHORIZED)
:
:
SPEC.NO
DRAWN
D08021220G-00
06. 01. 2005
1
EN80044
Yinina
06/03
CHECKED
Kiddy
March
ISSUE DATE
APPROVED
Jacky
EDITION
E.SPEC
REVISION DATE
06. 03. 2013
201 .0 .
建準電機工業股½有限公司
SUNONWEALTH ELECTRIC MACHINE INDUSTRY CO., LTD.
12FL., 120 CHUNG CHENG 1ST RD.,
TEL:886-7-7163069(41 LINES)
D.C.C.
FAX:886-7-7163086~89
KAOHSIUNG, TAIWAN, R. O. C.
SUNON
DC BRUSHLESS FAN
MODEL : PMD1208PMB1-A
P/N
: (2).GN
CHARACTERISTICS
1. Motor Design
2. Insulation Resistance
:
:
DC brushless 4 pole motor design.
More than 10M ohm between internal stator and
lead wire(+) measured at DC 500V.
3. Dielectric Strength
:
Applied AC 500V for one minute or AC 600V for
2 seconds between housing and lead wire(+)
4. Noise Level
:
Measured in a semi-anechoic chamber
with background noise level below 15
dB(A). The fan is running in free air with the
microphone at a distance of one meter
from the fan intake.
5. Input Power, Current & Speed
:
Measured after continuous 10 minute
operation at rated voltage in clean air, and
at ambient temperature of 25 degrees C.
6. Tolerance
7. Air Performance
:
:
±
15% on rated power and current.
Measured by a double chamber. The values
are recorded when the fan speed has stabilized
at rated voltage.
201 .0 .
SPEC.NO
D08021220G-00
REVISION DATE
06. 03. 2013
建準電機工業股½有限公司
ISSUE DATE 06. 01. 2005 E D I T I O N 1
SUNONWEALTH ELECTRIC
D.C.C.
MACHINE INDUSTRY CO., LTD.
P A G E
2 OF 9
SUNON
SPECIFICATIONS
MODEL
P/N
: PMD1208PMB1-A
: (2).GN
:
12 VDC
6~13.8 VDC
6 VDC (25 deg. C POWER ON/OFF)
5700 RPM
±
10%
84.1 CFM
0.74 Inch-H
2
O
0.76 AMP
9.1 WATTS
55.2 dB(A)
Counter-clockwise viewed from front of fan blade
-10 to +70 deg. C
-40 to +70 deg. C
Precision ball bearing system
175 g
UL/CUR/TUV/CE Approvals
Vibration of acceleration 1.5G and
frequency 5~50~5Hz is applied in all
3 directions(X,Y,Z), in cycles of 1 minute each,
for a total vibration time of 30 minutes.
Automatic Restart Capability
Note: In a situation where the fan is locked by an external
force while the electricity is on, an increase in coil
temperature will be prevented by temporarily turning off
the electrical power to the motor. The fan will
automatically restart when the locked rotor condition is
released.
1-1. Rated Voltage
1-2. Operating Voltage Range :
1-3. Starting Voltage
1-4. Rated Speed
1-5. Air Delivery
1-6. Static Pressure
1-7. Rated Current
1-8. Rated Power
1-9. Noise Level
1-10. Direction of Rotation
1-11. Operating Temperature
1-12. Storage Temperature
1-13. Bearing System
1-14. Weight
1-15. Safety
1-16. Vibration
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1-17. Locked Rotor Protection
:
201 .0 .
SPEC.NO
建準電機工業股½有限公司
ISSUE DATE
SUNONWEALTH ELECTRIC
D.C.C.
MACHINE INDUSTRY CO., LTD
P A G E
D08021220G-00
REVISION DATE
06. 03. 2013
06. 01. 2005 E D I T I O N 1
3 OF 9
SUNON
MODEL : PMD1208PMB1-A
P/N
: (2).GN
PERFORMANCE CURVES
STATIC
PRESSURE
mm-H
2
O
24
0.80
16
0.40
8
Inch-H
2
O
12 VDC
0
CFM
0
0
40
1.13
80
2.26
m
3
/min
SPEC.NO
D08021220G-00
REVISION DATE
06. 03. 2013
建準電機工業股½有限公司
ISSUE DATE 06. 01. 2005 E D I T I O N 1
SUNONWEALTH ELECTRIC
D.C.C.
MACHINE INDUSTRY CO., LTD.
P A G E
4 OF 9
201 .0 .
SUNON
MATERIAL
2-1. Frame
2-2. Impeller
2-3. Bobbin
2-4. Lead Wire
:
:
:
:
Thermoplastic PBT of UL 94V-0
Thermoplastic PBT of UL 94V-0
Thermoplastic PBT of UL 94V-0
UL1007,24 awg,+RED,-BLACK

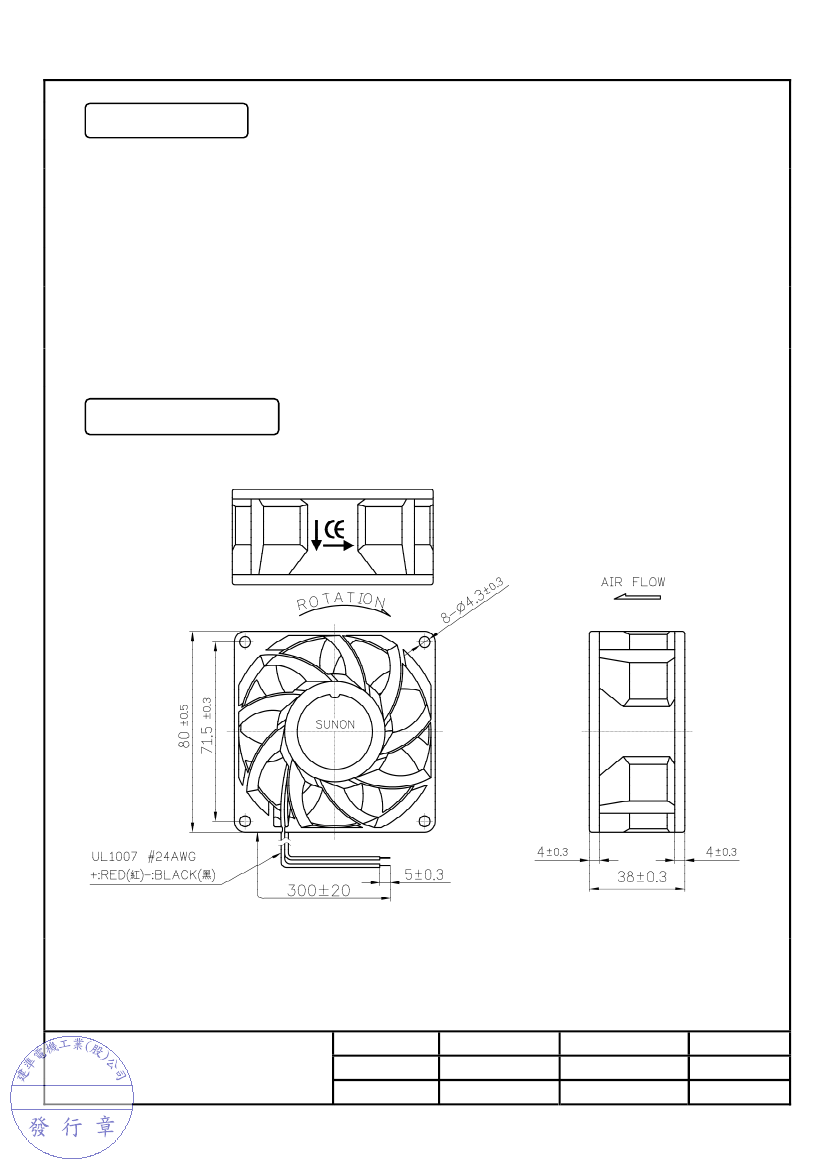

DIMENSIONS
1. Air Flow Direction: Toward label side.
2. Best Mounting Direction: Any orientation.
UNITS
：
mm
SPEC.NO
D08021220G-00
REVISION DATE
06. 03. 2013
建準電機工業股½有限公司
ISSUE DATE 06. 01. 2005 E D I T I O N 1
SUNONWEALTH ELECTRIC
D.C.C.
MACHINE INDUSTRY CO., LTD.
P A G E
5 OF 9
201 .0 .
