ANTI-SULFURATED CHIP RESISTORS
5%, 1%, 0.5%
DATA SHEET
AF series
RoHS compliant & Halogen free
sizes 0201/0402/0603/0805/1206/1210/1218/2010/2512
Product specification – June 07, 2017 V.5
Product specification
2
9
Chip Resistor Surface Mount
AF
SERIES
0201 to 2512
SCOPE
This specification describes
AF0201 to AF2512 chip resistors
with anti-sulfuration capabilities.
APPLICATIONS
Industrial Equipment
Power Application
Networking Application
High-end Computer &
Multimedia Electronics in high
sulfur environment
Automotive electronics
FEATURES
AEC-Q200 qualified
Superior resistance against
sulfur containing atmosphere
Halogen free product and
production
RoHS compliant
Reduces environmentally
hazardous waste
High component and
equipment reliability
Saving of PCB space
Moisture sensitivity level:
MSL 1
ORDERING INFORMATION - GLOBAL PART NUMBER
Part number is identified by the series name, size, tolerance, packaging
type, temperature coefficient, taping reel and resistance value.
GLOBAL PART NUMBER
AF XXXX X X X XX XXXX L
(1)
(2) (3) (4)
(5)
(6)
(7)
(1) SIZE
0201/0402/0603/0805/1206/1210/1218/2010/2512
(2) TOLERANCE
D = ± 0.5%
F = ± 1%
J = ± 5% (for jumper ordering, use code of J)
(3) PACKAGING TYPE
R = Paper taping reel
K = Embossed plastic tape reel
(4) TEMPERATURE COEFFICIENT OF RESISTANCE
–
= Base on spec
(5) TAPING REEL
07 = 7 inch dia. Reel
13 = 13 inch dia. Reel
(6) RESISTANCE VALUE
There are 2~4 digits indicated the resistance value. Letter R/K/M is decimal point.
Detailed resistance rules are displayed in the table of “Resistance rule of global part
number”.
(7) DEFAULT CODE
Letter L is system default code for ordering only
(Note)
Resistance rule of global part
number
Resistance coding rule
Example
XRXX
(1 to 9.76
Ω)
XXRX
(10 to 97.6
Ω)
XXXR
(100 to 976
Ω)
XKXX
(1 to 9.76 KΩ)
XMXX
(1 to 9.76 MΩ)
1R = 1
Ω
1R5 = 1.5
Ω
9R76 = 9.76
Ω
10R = 10
Ω
97R6 = 97.6
Ω
100R = 100
Ω
1K = 1,000
Ω
9K76 = 9760
Ω
1M = 1,000,000
Ω
9M76= 9,760,000
Ω
O
RDERING EXAMPLE
The ordering code for an AF0402
chip resistor, value 100 KΩ with
± 1% tolerance, supplied in 7-inch
tape reel with 10Kpcs quantity is:
AF0402FR-07100KL.
NOTE
1. All our R-Chip products are RoHS
compliant and Halogen free. "LFP" of the
internal 2D reel label states "Lead-Free
Process"
2. On customized label, "LFP" or specific
symbol can be printed
www.yageo.com
Jun. 07, 2017 V.5
Product specification
3
9
Chip Resistor Surface Mount
AF
SERIES
0201 to 2512
MARKING
AF0201 / AF0402
No marking
Fig. 1
AF0603 / AF0805 / AF1206 / AF1210 / AF2010 / AF2512
03
Fig. 2
Value=10 KΩ
E-24 series: 3 digits, ±5%, ≥10Ω
First two digits for significant figure and 3rd digit for number of zeros
AF0603
0
Fig. 3
Value = 24
Ω
E-24 series: 3 digits, ± 1%
One short bar under marking letter
E-96 series: 3 digits, ± 1%
First two digits for E-96 marking rule and 3rd letter for number of zeros
Fig. 4
Value = 12.4 KΩ
AF0805 / AF1206 / AF1210 / AF2010 / AF2512
Fig. 5
Value = 10 KΩ
Both E-24 and E-96 series: 4 digits, ± 1%
First three digits for significant figure and 4th digit for number of zeros
AF1218
Fig. 6
Value = 10 KΩ
E-24 series: 3 digits, ± 5%
First two digits for significant figure and 3rd digit for number of zeros
00
Fig. 7
Value = 10 KΩ
NOTE
Both E-24 and E-96 series: 4 digits, ± 1%
First three digits for significant figure and 4th digit for number of zeros
For further marking information, please see special data sheet “Chip resistors marking”. Marking of AF series is the same as RC series
www.yageo.com
Jun. 07, 2017 V.5
Product specification
4
9
Chip Resistor Surface Mount
AF
SERIES
0201 to 2512

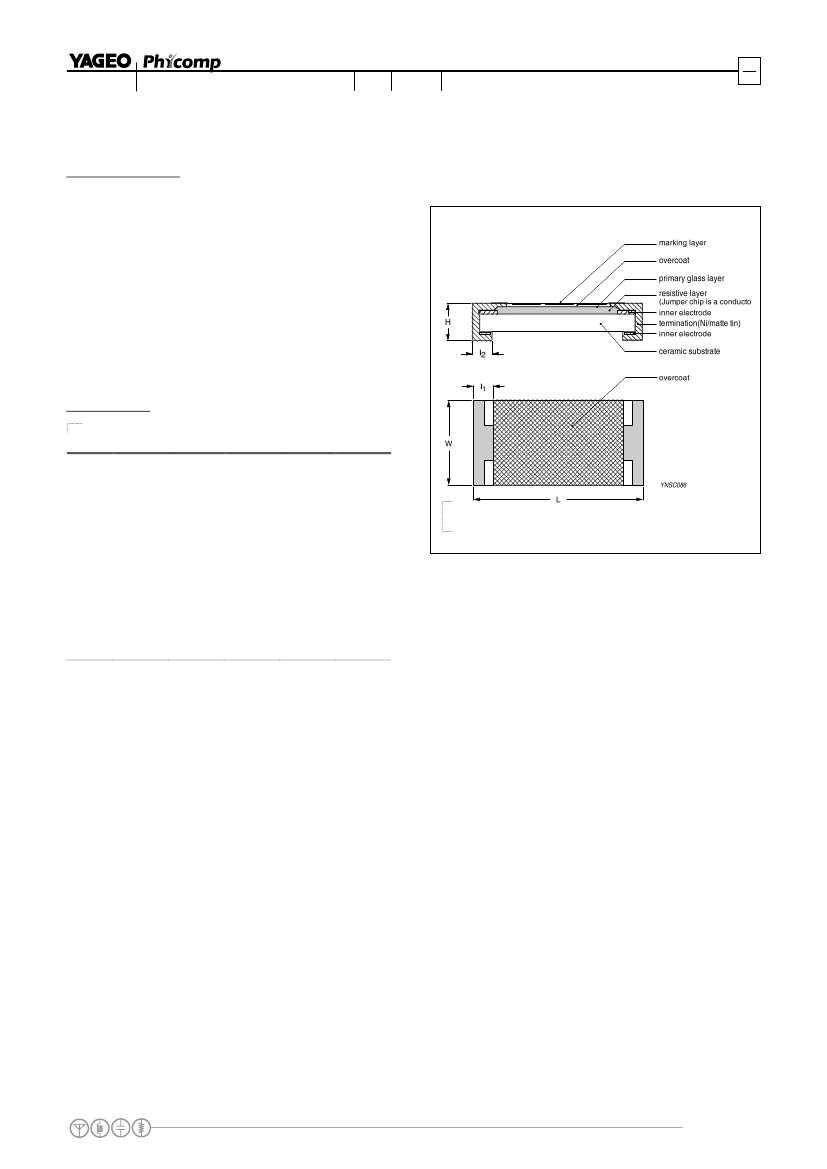

CONSTRUCTION
The resistors are constructed on top of a high grade
ceramic body. Internal metal electrodes are added at
each end and connected by a resistive glaze. The
resistive glaze is covered by a glass.
The composition of the glaze is adjusted to give the
approximate required resistance value and laser trimming
of this resistive glaze achieves the value within tolerance.
The whole element is covered by a protective overcoat.
Size 0603 and bigger is marked with the resistance value
on top. Finally, the two external terminations (Ni / matte
tin) are added. See fig.8
DIMENSIONS
Table 1
For outlines see fig. 8
TYPE
L (mm) W (mm) H (mm)
AF0201
AF0402
AF0603
AF0805
AF1206
AF1210
AF1218
AF2010
AF2512
OUTLINES
For dimensions see Table 1
I
1
(mm)
I
2
(mm)
0.60± 0.03 0.30± 0.03 0.23± 0.03 0.12± 0.05 0.15± 0.05
1.00± 0.05 0.50± 0.05 0.32± 0.05 0.20± 0.10 0.25± 0.10
1.60± 0.10 0.80± 0.10 0.45± 0.10 0.25± 0.15 0.25± 0.15
2.00± 0.10 1.25± 0.10 0.50± 0.10 0.35± 0.20 0.35± 0.20
3.10± 0.10 1.60± 0.10 0.55± 0.10 0.45± 0.20 0.40± 0.20
3.10± 0.10 2.60± 0.15 0.55± 0.10 0.45± 0.15 0.50± 0.20
3.10± 0.10 4.60± 0.10 0.55± 0.10 0.45± 0.20 0.40± 0.20
5.00± 0.10 2.50± 0.15 0.55± 0.10 0.55± 0.15 0.50± 0.20
6.35± 0.10 3.10± 0.15 0.55± 0.10 0.60± 0.20 0.50± 0.20
Fig. 8
Chip resistor outlines
www.yageo.com
Jun. 07, 2017 V.5
Product specification
5
9
Chip Resistor Surface Mount
AF
SERIES
0201 to 2512
ELECTRICAL CHARACTERISTICS
Table 2
CHARACTERISTICS
TYPE
RESISTANCE RANGE
Operating
Max.
Max.
Dielectric
Temperature Working Overload Withstanding
Range Voltage
Voltage
Voltage
Temperature Coefficient
of Resistance
Jumper
Criteria
Rated Current
0.5A
25 V
50 V
50 V
1Ω
≤
R
≤10Ω,
-100/+350 ppm/°C
10Ω < R
≤
10MΩ, ± 200 ppm/°C
Max. Current
1.0A
AF0201
± 5% (E24),
1Ωto 10MΩ
± 0.5%, ± 1% (E24/E96),
1Ω to 10MΩ
Zero Ohm Jumper < 0.05Ω
AF0402
AF0603
± 5% (E24),
1
Ω
to 22 MΩ
± 0.5%, ± 1% (E24/E96),
1
Ω
to 10 MΩ
Zero Ohm Jumper < 0.05
Ω
–55
°C to +155 °C
AF1206
50 V
75 V
100 V
150 V
100 V
150 V
1
Ω
≤ R ≤ 10
Ω,
± 200 ppm/°C
Rated Current
1.0A
Max. Current
2.0A
Rated Current
2.0A
Max. Current
5.0A
Rated Current
2.0A
AF0805
150 V
300 V
300 V
10
Ω
< R ≤ 10 MΩ,
± 100 ppm/°C
10 MΩ
< R ≤ 22 MΩ,
± 200 ppm/°C
200 V
± 5% (E24),
1Ω to 10MΩ
± 0.5%, ± 1% (E24/E96),
1Ω to 10M
Zero Ohm Jumper < 0.05Ω
± 5% (E24),
1Ω to 1MΩ
± 0.5%, ± 1% (E24/E96),
1Ω to 1M
Zero Ohm Jumper < 0.05Ω
± 5% (E24),
1Ω to 10MΩ
± 0.5%, ± 1% (E24/E96),
1Ω to 10M
Zero Ohm Jumper < 0.05Ω
400 V
500 V
Max. Current
10.0A
Rated Current
2.0A
AF1210
200 V
500 V
500 V
Max. Current
10.0A
1Ω
≤
R
≤
10Ω, ± 200 ppm/°C
10Ω < R
≤
10MΩ, ± 100 ppm/°C
Rated Current
2.0A
Max. Current
10.0A
Rated Current
2.0A
Max. Current
10.0A
AF1218
200 V
500 V
500 V
AF2010
AF2512
200 V
200V
500 V
500V
500 V
500V
www.yageo.com
Jun. 07, 2017 V.5
