UNISONIC TECHNOLOGIES CO., LTD
DTA114Y
DIGITAL TRANSISTOR
(BUILT- IN BIAS RESISTORS)
FEATURES
* Built-in bias resistors that implies easy ON/OFF applications.
* The bias resistors are thin-film resistors with complete isolation
to allow positive input.
PNP SILICON TRANSISTOR
3
3
2
1
2
1
SOT-23
3
SOT-323
EQUIVALENT CIRCUIT
2
1
1
TO-92
SOT-523
Lead-free:
DTA114YL
Halogen-free:DTA114YG
ORDERING INFORMATION
Normal
DTA114Y-AE3-R
DTA114Y-AL3-R
DTA114Y-AN3-R
DTA114Y-T92-B
DTA114Y-T92-K
Ordering Number
Lead Free Plating
DTA114YL-AE3-R
DTA114YL-AL3-R
DTA114YL-AN3-R
DTA114YL-T92-B
DTA114YL-T92-K
Halogen Free
DTA114YG-AE3-R
DTA114YG-AL3-R
DTA114YG-AN3-R
DTA114YG-T92-B
DTA114YG-T92-K
Package
SOT-23
SOT-323
SOT-523
TO-92
TO-92
Pin Assignment
1
2
3
G
I
O
G
I
O
G
I
O
G
O
I
G
O
I
Packing
Tape Reel
Tape Reel
Tape Reel
Tape Box
Bulk
MARKING(For SOT Package)
AB4Y
Y: Lead Free
Y: Halogen Free
www.unisonic.com.tw
Copyright © 2009 Unisonic Technologies Co., Ltd
1 of 3
QW-R206-073,F
DTA114Y
ABSOLUTE MAXIMUM RATING
PARAMETER
SYMBOL
V
CC
V
IN
I
OUT
I
C(MAX)
PNP SILICON TRANSISTOR
RATINGS
Supply Voltage
-50
Input Voltage
-40~+6
-70
Output Current
-100
SOT-523
150
Power Dissipation
P
D
SOT-23/SOT-323
200
TO-92
625
Junction Temperature
T
J
+150
Storage Temperature
T
STG
-55~+150
Note Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
UNIT
V
V
mA
mA
mW
mW
mW
℃
℃
THERMAL DATA
PARAMETER
Junction to Ambient
SOT-23
SOT-323
SOT-523
TO-92
SOT-23
SOT-323
SOT-523
TO-92
SYMBOL
θ
JA
RATINGS
302
315
318
183
145
143
130
89
UNIT
°C/W
°C/W
°C/W
°C/W
°C/W
°C/W
°C/W
°C/W
Junction to Case
θ
JC
ELECTRICAL CHARACTERISTICS
(T
a
=25℃, unless otherwise specified)
SYMBOL
V
IN(OFF)
Input Voltage
V
IN(ON)
Output Voltage
V
OUT (ON)
Input Current
I
IN
Output Current
I
OUT(OFF)
DC Current Gain
h
FE
Input Resistance
R
1
Resistance Ratio
R
2
/R
1
Transition Frequency
f
T
Note: Transition frequency of the device
PARAMETER
TEST CONDITIONS
V
CC
=-5V, I
OUT
=-100μA
V
OUT
=-0.3V, I
OUT
=-1mA
I
OUT
/I
IN
=-5mA/-0.25mA
V
IN
=-5V
V
CC
=-50V, V
IN
=0V
V
OUT
=-5V, I
OUT
=-5mA
MIN
-1.4
-0.1
-0.3
-0.88
-0.5
13
5.7
TYP
MAX
-0.3
UNIT
V
V
V
mA
μA
KΩ
MHz
68
7
3.7
V
CE
=-10V, I
E
=5mA, f=100MHz(Note)
10
4.7
250
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 3
QW-R206-073,F
DTA114Y

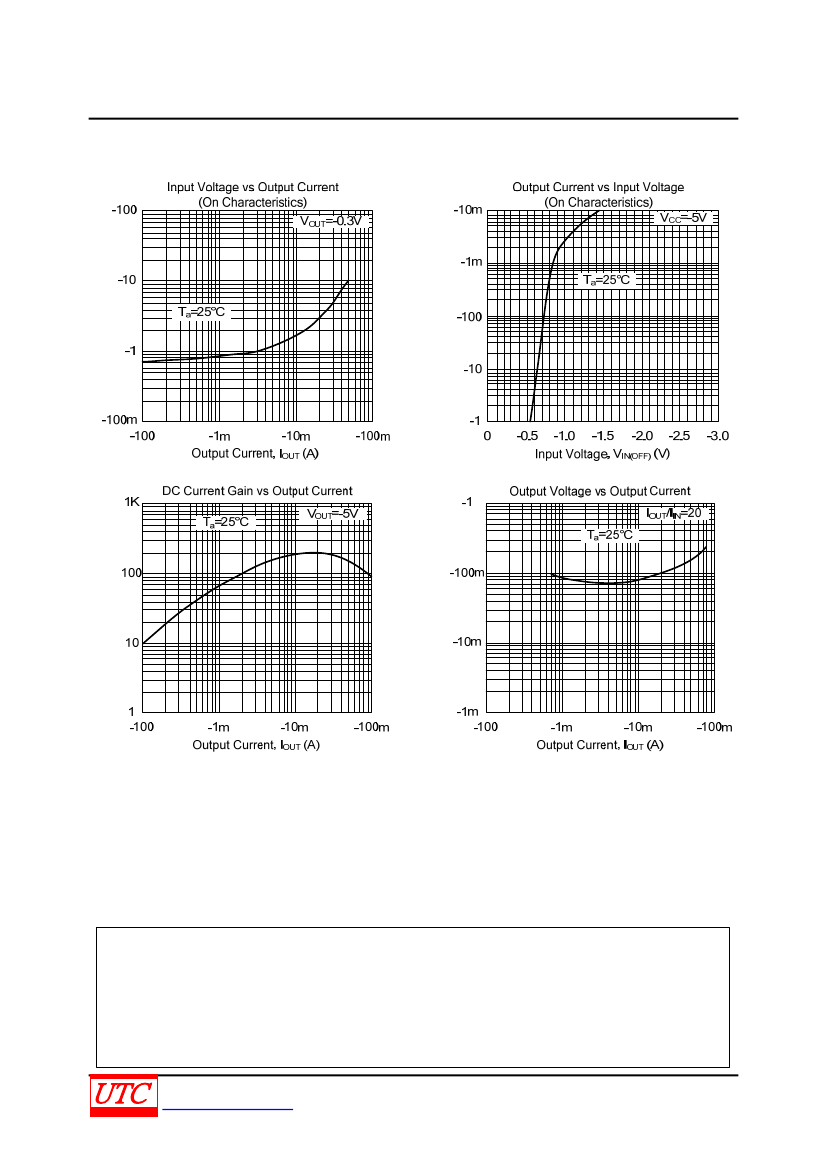

TYPICAL CHARACTERISTICS
PNP SILICON TRANSISTOR
Input Voltage ,V
IN(ON)
(V)
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
Output Voltage, V
OUT(ON)
(V)
DC Current Gain, h
FE
Output Current, I
OUT
(A)
3 of 3
QW-R206-073,F
