1N6816R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N6816R

1N6816R: DescriptionLOW LEAKAGE SCHOTTKY DIODE; CategoryDiscrete semiconductor diode; File Size78KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

1N6816R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1N6816R	-	-	View	Buy Now

1N6816R Overview

LOW LEAKAGE SCHOTTKY DIODE

1N6816R Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
package instruction	S-CXSO-G1
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	S-CXSO-G1
JESD-609 code	e0
Maximum non-repetitive peak forward current	125 A
Number of components	1
Phase	1
Number of terminals	1
Maximum output current	25 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	45 V
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

2830 S. Fairview St.

Santa Ana, CA 92704

PH: (714) 979-8220

FAX: (714) 966-5256

Features

•

Tungsten schottky barrier

Oxide passivated structure for very low leakage currents

Guard ring protection for increased reverse energy capability

Epitaxial structure minimizes forward voltage drop

Hermetically sealed, low profile ceramic surface mount power package

Low package inductance

•

Very low thermal resistance

•

Available as standard polarity (strap-to-anode, 1N6816) and reverse

polarity (strap-to-cathode: 1N6816R)

MSASC25W45K

(1N6816)

MSASC25W45KR

(1N6816R)

45 Volts

25 Amps

LOW LEAKAGE

SCHOTTKY DIODE

MAX.

(3.3)

125

-55 to +175

1.25

1.35

UNIT

Volts

Amps

Amps/°

Amps

Amp

C/W

Maximum Ratings @ 25° (unless otherwise specified)

DESCRIPTION

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

Average Rectified Forward Current, Tc≤ 145°

derating, forward current, Tc≥ 145°

Nonrepetitive Peak Surge Current, tp= 8.3 ms, half-sinewave

Peak Repetitive Reverse Surge Current, tp= 1µs, f= 1kHz

Junction Temperature Range

Storage Temperature Range

Thermal Resistance, Junction to Case:

1N6816

1N6816R

SYMBOL

RRM

RWM

F(ave)

/dT

FSM

RRM

stg

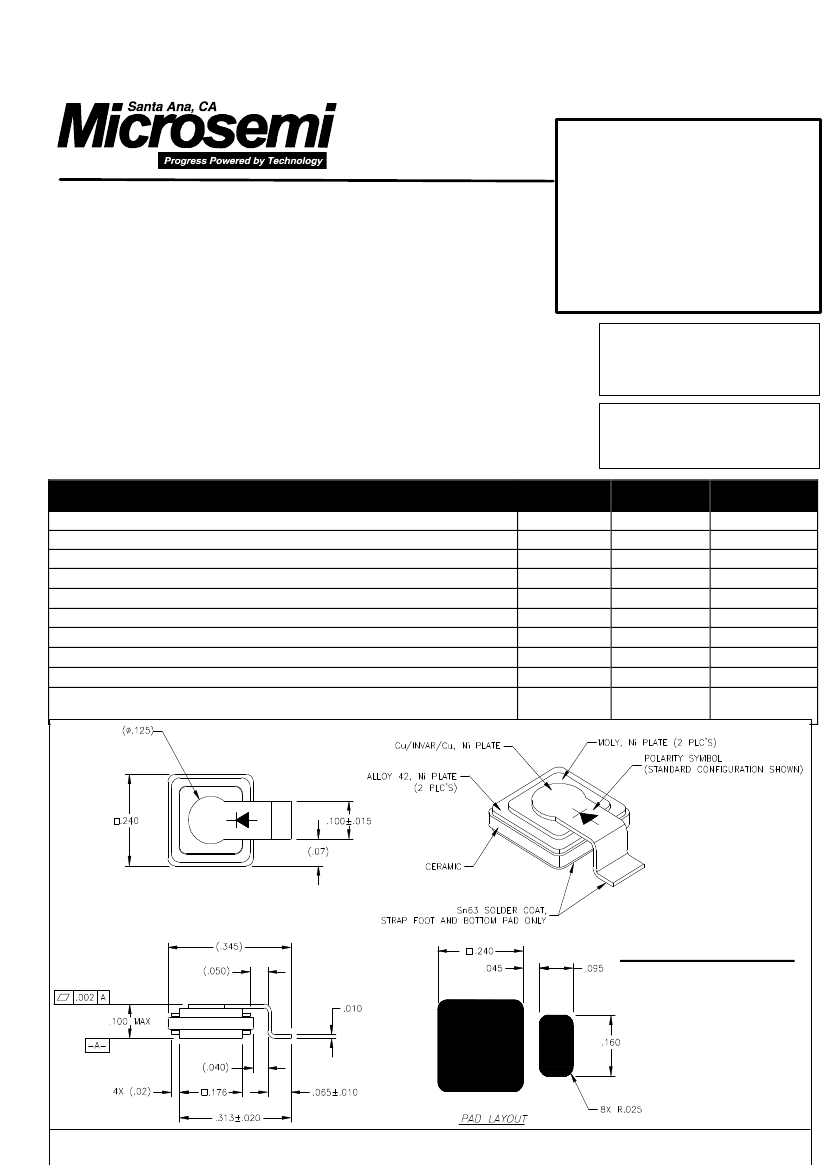

Mechanical Outline

ThinKey™ 2

Datasheet# MSC1033A

1N6816R Related Products

	1N6816R	1N6816	MSASC25W45KR	MSASC25W45K
Description	LOW LEAKAGE SCHOTTKY DIODE	LOW LEAKAGE SCHOTTKY DIODE	LOW LEAKAGE SCHOTTKY DIODE	LOW LEAKAGE SCHOTTKY DIODE
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Microsemi	Microsemi	Microsemi	Microsemi
Reach Compliance Code	compliant	compliant	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	S-CXSO-G1	S-CXSO-G1	S-CXSO-G1	S-CXSO-G1
JESD-609 code	e0	e0	e0	e0
Maximum non-repetitive peak forward current	125 A	125 A	125 A	125 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	1	1	1	1
Maximum output current	25 A	25 A	25 A	25 A
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	45 V	45 V	45 V	45 V
surface mount	YES	YES	YES	YES
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
