BNX025H01L

CategoryAnalog mixed-signal IC    filter
File Size286KB,3 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Environmental Compliance
Download Datasheet Parametric View All

BNX025H01L Online Shopping

Suppliers Part Number Price MOQ In stock
BNX025H01L - - View Buy Now

BNX025H01L Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMurata
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time6 weeks
Samacsys DescriptionMurata BNX02 Series 15A 25 V dc 50 kHz → 1 GHz SMD EMI Filter, with Flat Contact Terminals
filter typeDATA LINE FILTER
high3.5 mm
Minimum insulation resistance50 MΩ
JESD-609 codee1
length12.1 mm
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output impedance50 OHM Ω
method of packingTAPE AND REEL
physical sizeL12.1XB9.1XH3.5 (mm)/L0.476XB0.358XH0.138 (inch)
Rated current15 A
Rated voltage25 V
Terminal surfaceTin/Silver/Copper (Sn/Ag/Cu)
width9.1 mm
产品搜索 数据表
注:这张数据表有可½不是最新的。
请从村田制½所的官方½站下½½BNX025H01#的最新数据表。
http://www.murata.com/zh-cn/products/productdetail?partno=BNX025H01%23

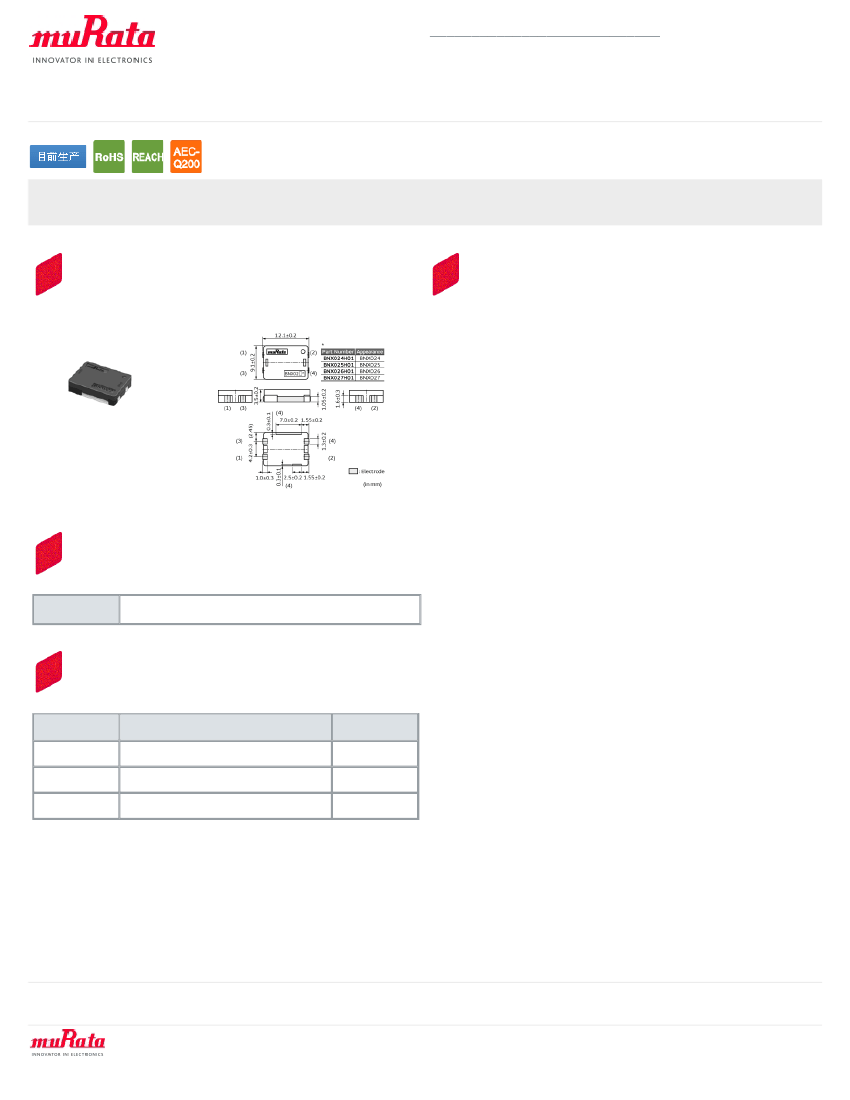

BNX025H01#
“#”处为包装规格代号。
<品名(附包装代号)一览>
BNX025H01B
BNX025H01K
BNX025H01L
外观&½状
特点
BNX024H/025H/026H/027H (Block Type EMIFIL for automotive)
is EMI suppression filter supporting large current,
wide frequency.
And it also supports SMD mounting.
This product is effective for noise suppression
for DC switching line of automotive device and
FA/OA device, because it covers wide temperature
range from -55C degrees to 125 C degrees.
Features
1. Supporting large current (15A)
2. Supporting wide frequency range
From 40kHz to 1GHz:35dB min.(BNX027)
3. Suitable for miniaturization with SMD shape.
Applications
Automotive devices/Displays (PDP/LCD-TV)/
Digital AV equipments/Amusement equipments/
PC peripheral equipments/Industry equipments/
Measurement equipments/Power supplies
用途
½½用途
动力传动/安全
包装信息
包装
B
K
L
规格
散装袋
330mm压纹带
180mm压纹带
最小订购单½
100
1500
400

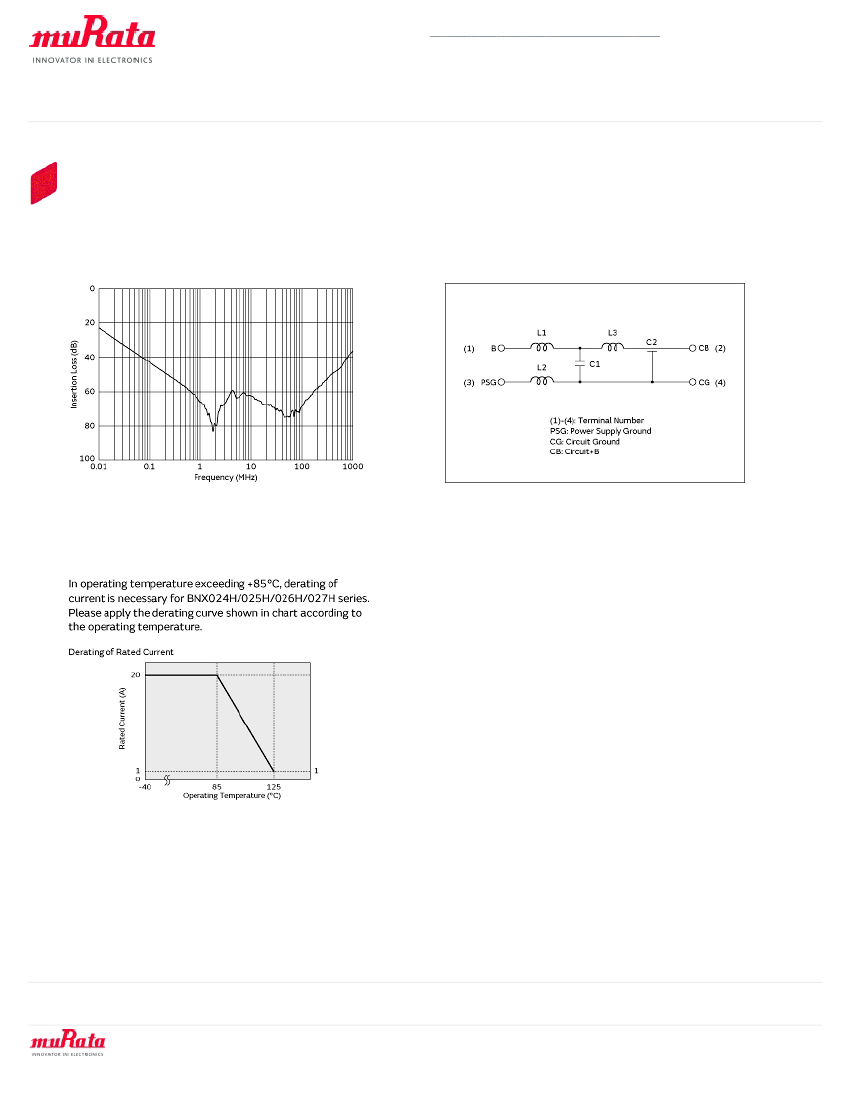

在1 / 3页
注意
1. 本目½是从株式会社村田制½所½站中下½½的。规格若有变更,或若其中产品停产,请在订购时确认,恕不另行通知。
2. 本目½因没有足够的空间说明详细规格,仅½½明标准规格。因此,在订购产品之前,谨请核准其规格或者办理产品规格表。
URL : http://www.murata.com/
½成日期: 2017/08/23
