BNX002-11

Description
EMI Filter LC-Circuit 10A 50VDC PC Pins Thru-Hole Box
File Size465KB,3 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Environmental Compliance
Download Datasheet Parametric View All

BNX002-11 Online Shopping

Suppliers Part Number Price MOQ In stock
BNX002-11 - - View Buy Now

BNX002-11 Overview

EMI Filter LC-Circuit 10A 50VDC PC Pins Thru-Hole Box

BNX002-11 Parametric

Parameter NameAttribute value
EU restricts the use of certain hazardous substancesCompliant
ECCN (US)EAR99
Part StatusActive
HTS8548.90.01.00
Number of Terminals4
Maximum Current Rating (A)10
Maximum Voltage Rating50VDC
Minimum Operating Temperature (°C)-40
Maximum Operating Temperature (°C)85
MountingThrough Hole
Termination StylePC Pins
Product Length (mm)12
Product Depth (mm)11
Product Height (mm)12.5
Note: This datasheet may be out of date.
Product Search Data Sheet
Please download the latest datasheet of BNX002-11 from the official website of Murata Manufacturing
Co., Ltd.
http://www.murata.com/en/products/productdetail?partno=BNX002-11
BNX002-11

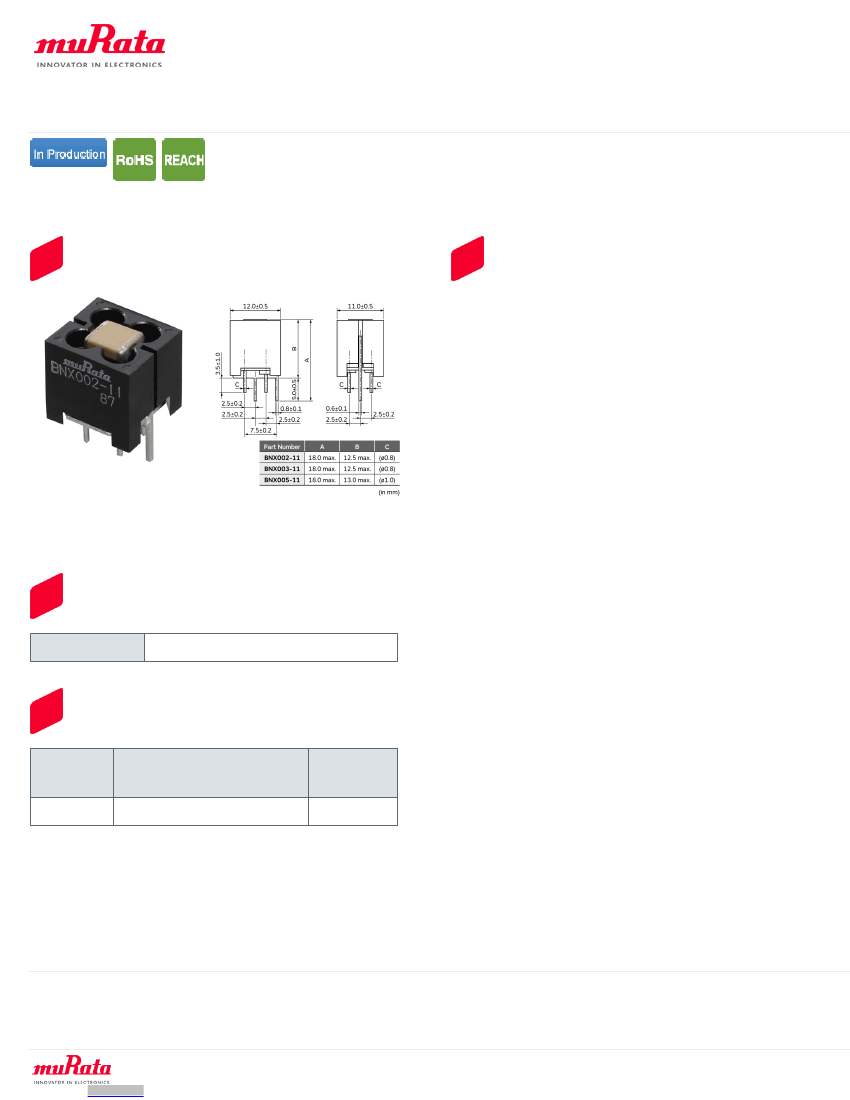

Appearance & Shape
Features
The block type "EMIFIL" BNX series incorporates
through-type capacitor, monolithic chip capacitors and
bead. The BNX is high performance for use in DC power
circuits.
Features
1. The filter enables obtaining high insertion loss in
wide frequency ranges from 0.5MHz to 1GHz.
2. Effective for impulse noise such as electrostatic
discharge or spike noise.
3. There are no connection routes in the current
circuits, thus ensuring highly reliable performance.
Applications
1. Displays (PDP/LCD-TV)
2. Digital AV equipment
3. Amusement equipment
4. PC peripheral equipment
5. Industry equipment
Applications
Other Usage
For general
Packaging Information
Standard
Packaging
Specifications
Packing
Quantity
-
Box
100

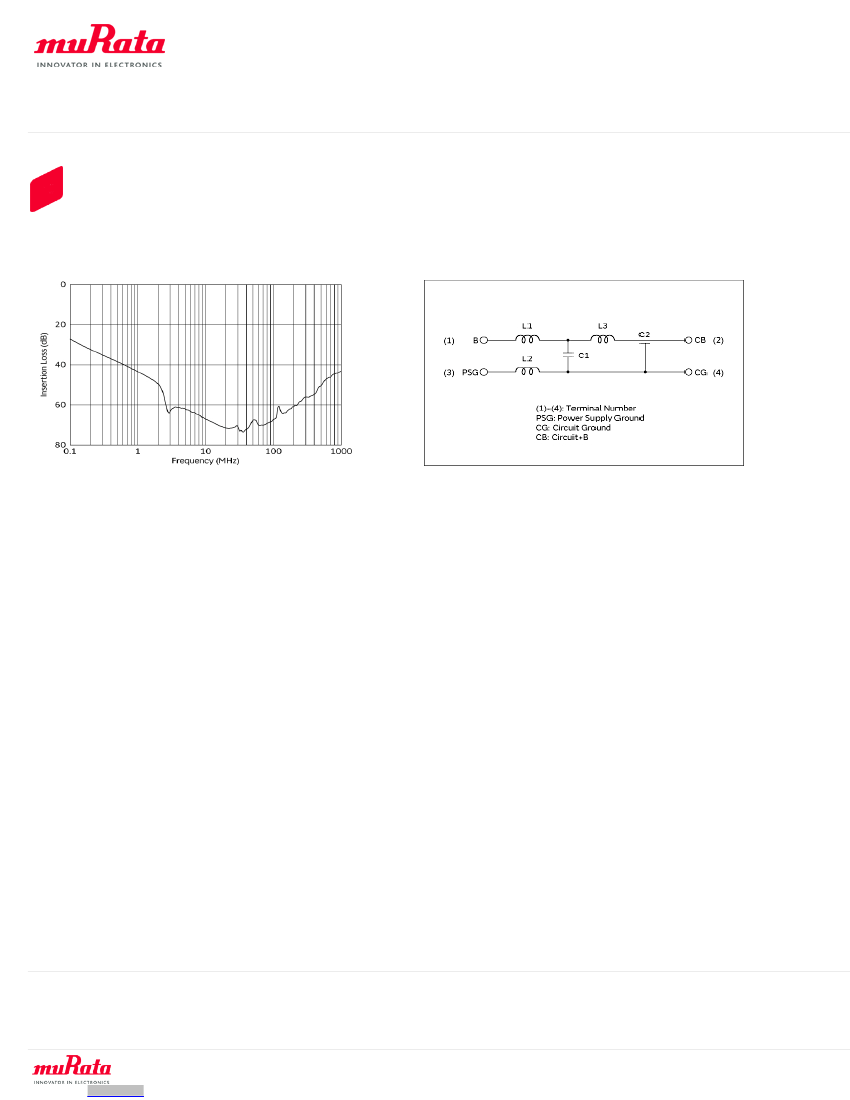

1 of 3
Attention
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : https://www.murata.com/
Last updated02/07/2021
