Datasheet> All Categories > Analog mixed-signal IC> filter> BLM15BA050SN1D

Preview

BLM15BA050SN1D: DescriptionImpedance @ Frequency: 5Ω @ 100MHz Number of Lines: 1 Rated Current (Max): 100mA DC Resistance (DCR) (Max): 300mΩ; CategoryAnalog mixed-signal IC filter; File Size200KB，3 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

BLM15BA050SN1D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BLM15BA050SN1D	-	-	View	Buy Now

BLM15BA050SN1D Overview

Impedance @ Frequency: 5Ω @ 100MHz Number of Lines: 1 Rated Current (Max): 100mA DC Resistance (DCR) (Max): 300mΩ

BLM15BA050SN1D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	0402
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Samacsys Description	BLM15_N1D Series EMI Suppression Filter 5Ω±25% at 100MHz 300mA @85℃
shell code	0402
structure	Chip Bead
Maximum DC resistance	0.1 Ω
filter type	FERRITE CHIP
maximum frequency	100 MHz
minimum frequency	100 MHz
high	0.5 mm
JESD-609 code	e3
length	1 mm
Material	Ferrite
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	5 OHM Ω
method of packing	TR, PAPER, 7 INCH
physical size	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)
Rated current	0.3 A
Terminal surface	Tin (Sn)
width	0.5 mm

Preview

Download Datasheet

View All

Product Search Data Sheet

Note: This datasheet may be out of date.

Please download the latest datasheet of BLM15BA050SN1# from the official website of Murata Manufacturing

Co., Ltd.

https://www.murata.com/en-us/products/productdetail?partno=BLM15BA050SN1%23

BLM15BA050SN1#

“#” indicates a package specification code.

< List of part numbers with package codes >

BLM15BA050SN1B BLM15BA050SN1D BLM15BA050SN1J

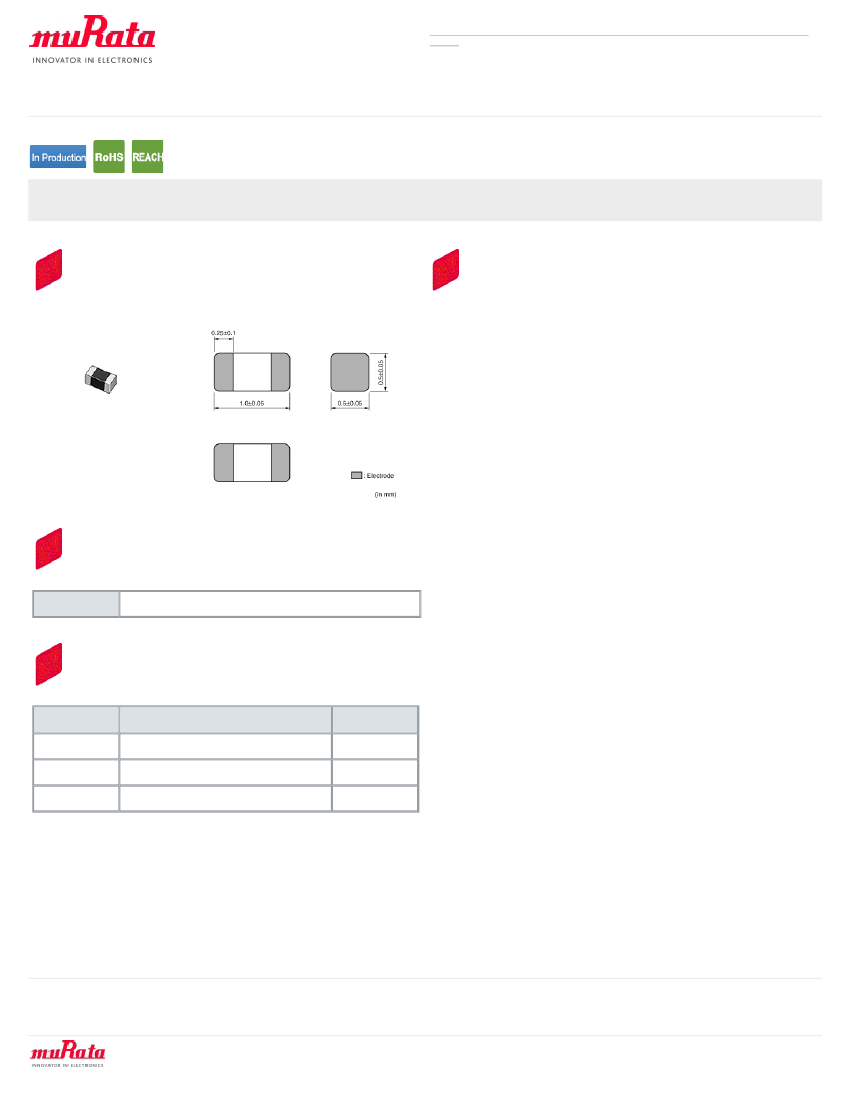

Appearance & Shape

Features

The chip ferrite beads BLM series is designed to

work nearly as a resistor at noise frequencies,

which greatly reduces the possibility of resonance and

leaves signal wave forms undistorted.

BLM series is effective in circuits without stable

ground lines because BLM series does not need a

connection to ground.

BLM_B series can minimize attenuation of the

signal waveform due to its sharp impedance

characteristics. Various impedances are available to

match signal frequency.

The nickel barrier structure of the external

electrodes provides excellent solder heat resistance.

Applications

Other Usage

For general

Packaging Information

Packaging

B

D

J

Specifications

Bulk(Bag)

180mm Paper Tape

330mm Paper Tape

Minimum

Order Quantity

1000

10000

50000

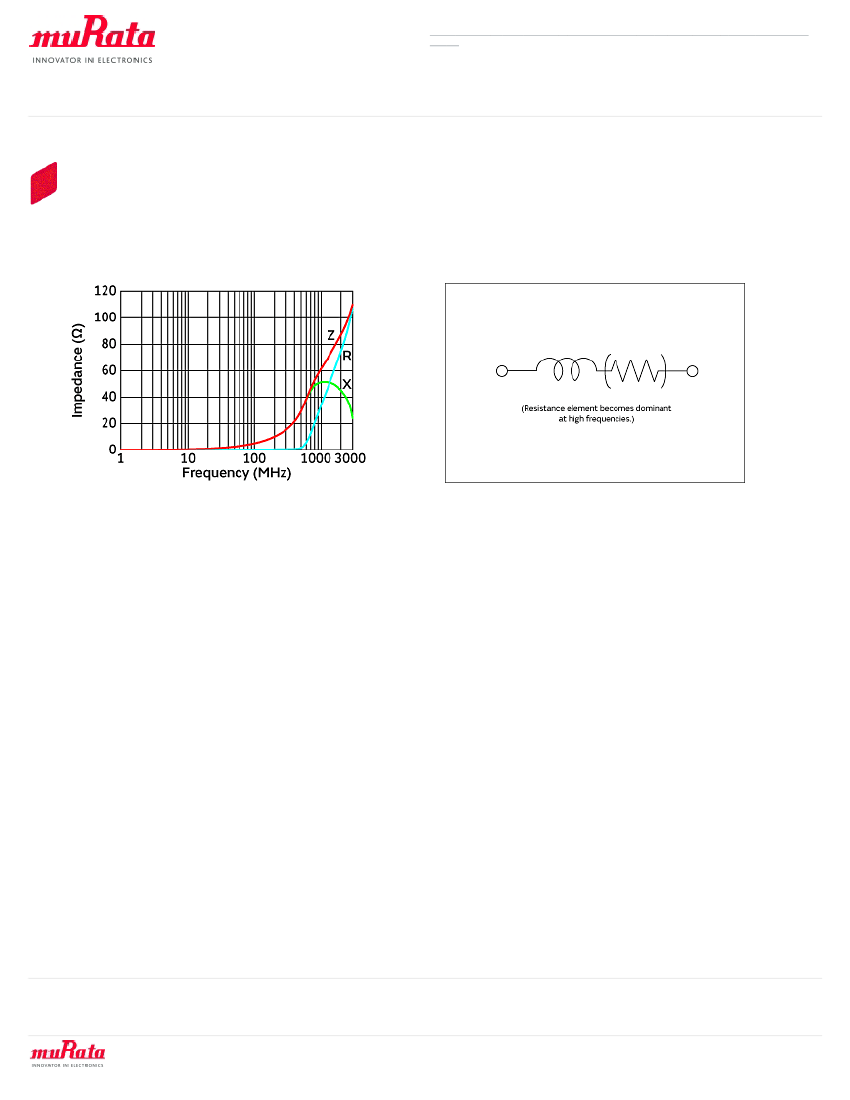

1 of 3

Atten ti o n

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated

：

2018/03/09
