35ZLH220MEFC8X11.5: DescriptionCapacitance: 220uF Accuracy: ±20% Rated voltage: 35V Working life: 8000Hrs @ 105℃ Appearance size (￠DxL, mm): 8x11.5 Miniaturization, long life, low ESR; CategoryPassive components Linear aluminum electrolytic capacitor; File Size132KB，3 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric Compare View All

35ZLH220MEFC8X11.5 Overview

Capacitance: 220uF Accuracy: ±20% Rated voltage: 35V Working life: 8000Hrs @ 105℃ Appearance size (￠DxL, mm): 8x11.5 Miniaturization, long life, low ESR

35ZLH220MEFC8X11.5 Parametric

Parameter Name	Attribute value
type	Lead type
Foot distance (mm)	3.5
Capacitance	220uF
Accuracy	±20%
Rated voltage	35V
life span	8000Hrs @ 105℃
Appearance size(￠DxL,mm)	8x11.5
Operating temperature	-40℃ ~ +105℃

Preview

Download Datasheet

View All

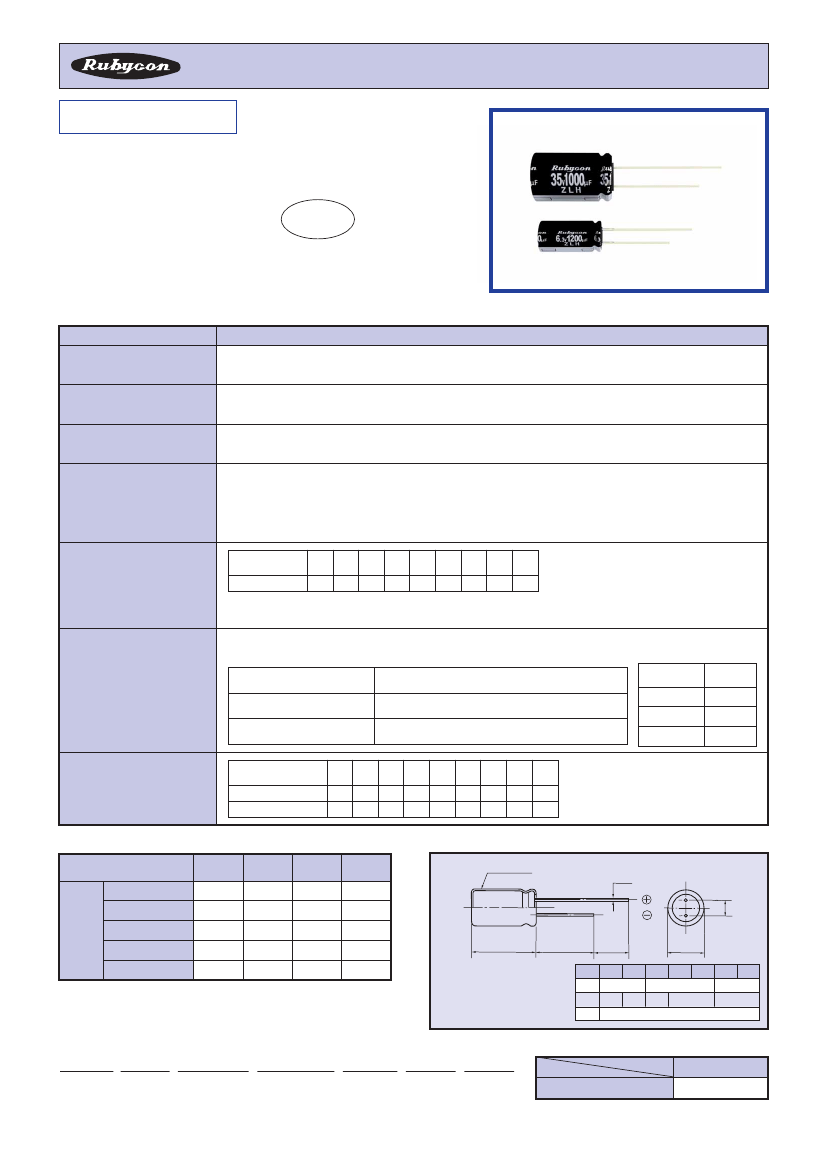

RADIAL LEAD ALUMINUM ELECTROLYTIC CAPACITORS

ZLH

SERIES

105℃ Miniaturized, Long Life, Low Impedance

・

Load Life : 105℃ 6000∼10000 hours.

RoHS

compliance

◆SPECIFICATIONS

Items

Category Temperature Range

Characteristics

−40∼＋105℃

6.3∼100Vdc

±20％

（20℃，

120Hz）

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

I＝0.01CV

or 3μA whichever is greater.(After 2 minutes)

I＝

Leakage Current

(μA) C＝

Capacitance

(μF) V＝

Rated Voltage

(Vdc)

Rated Voltage

120Hz）

6.3 10 16 25 35 50 63 80 100

（20℃，

(Vdc)

tanδ

0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08 0.08

When capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every 1000μF.

After applying rated voltage with rated ripple current for speciﬁed time at 105℃,

the capacitors shall meet the following requirements.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Rated Voltage

6.3

(Vdc)

Z

（−25℃）（20℃） 2

/Z

Z

（−40℃）（20℃） 3

/Z

Within ±25％ of the initial value.

(6.3Vdc, 10Vdc ±30%)

：

Not more than 200％ of the speciﬁed value.

Not more than the speciﬁed value.

Case Size

φD≦ 6.3

φD＝

8

Life Time

(hrs)

6000

8000

10000

Dissipation Factor(MAX)

(tanδ)

φD≧ 10

Low Temperature Stability

Impedance Ratio(MAX)

10

2

3

16

2

3

25

2

3

35

2

3

50

2

3

63

2

3

80 100

2

3

2

3

（120Hz）

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency

（Hz）

◆DIMENSIONS

100k≦

1.00

L＋ MAX

α

15MIN

4MIN

φD＋0.5MAX

SLEEVE(PET)

（mm）

F ±0.5

φd

120

0.42

0.50

0.55

0.60

0.70

1k

0.70

0.73

0.77

0.80

0.85

10k

0.90

0.92

0.94

0.96

0.98

8.2∼33μF

47∼270μF

Coeﬃcient

330∼680μF

820∼1800μF

2200∼8200μF

φD

φd

F

α

5

2.0

6.3

0.5

2.5

8

3.5

10

0.6

12.5

16

18

0.8

7.5

5.0

L≦16 : α

＝1.5 L≧20 : α

＝2.0

◆PART NUMBER

□□□

Rated Voltage

◆OPTION

□□□□□

Capacitance

ZLH

Series

M

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size

PET Sleeve

Code

Ｅ

ＦC

35ZLH220MEFC8X11.5 Related Products
