350BXF22M10X20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Linear aluminum electrolytic capacitor> 350BXF22M10X20

350BXF22M10X20: DescriptionCapacitance: 22uF Accuracy: ±20% Rated voltage: 350V Working life: 10000Hrs @ 105℃ Rated ripple current: 500mA @ 100kHz Appearance size (￠DxL, mm): 10x20; CategoryPassive components Linear aluminum electrolytic capacitor; File Size73KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric Compare View All

350BXF22M10X20 Overview

Capacitance: 22uF Accuracy: ±20% Rated voltage: 350V Working life: 10000Hrs @ 105℃ Rated ripple current: 500mA @ 100kHz Appearance size (￠DxL, mm): 10x20

350BXF22M10X20 Parametric

Parameter Name	Attribute value
type	Lead type
Foot distance (mm)	5
Capacitance	22uF
Accuracy	±20%
Rated voltage	350V
ESR series resistor	-
life span	10000Hrs @ 105℃
Rated ripple current	500mA @ 100kHz
Appearance size(￠DxL,mm)	10x20
Operating temperature	-25℃ ~ +105℃

Preview

Download Datasheet

View All

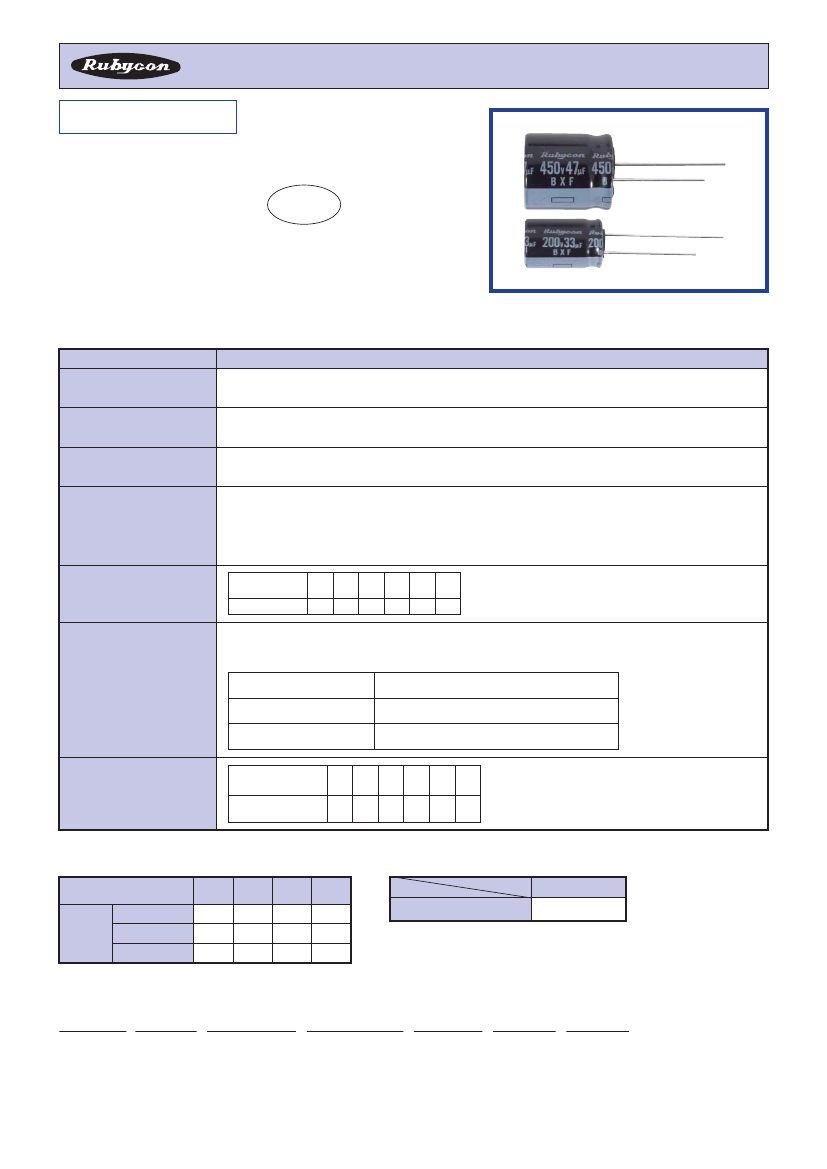

RADIAL LEAD ALUMINUM ELECTROLYTIC CAPACITORS

BXF

SERIES

Load Life : 105℃ 10000 hours

・

20mm height Max.

RoHS

compliance

◆SPECIFICATIONS

Items

Category Temperature Range

Characteristics

−25∼＋105℃

160∼450Vdc

±20％

（20℃，

120Hz）

I＝0.04CV+100μA

(After 1 minute application of rated voltage)

I＝0.02CV+25μA

(After 5 minutes application of rated voltage)

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

I＝

Leakage Current

(μA) C＝

Capacitance

(μF) V＝

Rated Voltage

(Vdc)

Rated Voltage

160 200 250 350 400 450

(Vdc)

tanδ

0.15 0.15 0.15 0.20 0.20 0.20

Dissipation Factor(MAX)

（20℃，

120Hz）

(tanδ)

After applying voltage with rated ripple current for 10000 hours at 105℃, the capacitors shall

meet the following requirement.

Within ±25％ of the initial value.

Not more than 200％ of the speciﬁed value.

Not more than the speciﬁed value.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Low Temperature Stability

Impedance Ratio(MAX)

Rated Voltage

(Vdc)

160 200 250 350 400 450

（120Hz）

（−25℃）（20℃） 3

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency

（Hz）

◆OPTION

Code

PET Sleeve

Blank

120

10k 100k≦

0.90 1.00

10∼18μF

Coeﬃcient

0.30 0.60

0.40 0.70

22∼82μF

100∼220μF 0.45 0.75

◆PART NUMBER

□□□

Rated Voltage

BXF

Series

□□□□□

Capacitance

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size

350BXF22M10X20 Related Products

	350BXF22M10X20	400BXF47M16X20	200BXF47MT810X20	250BXF100M16X20	450BXF10MT810X16
Description	Capacitance: 22uF Accuracy: ±20% Rated voltage: 350V Working life: 10000Hrs @ 105℃ Rated ripple current: 500mA @ 100kHz Appearance size (￠DxL, mm): 10x20	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT	Capacitance: 47uF Accuracy: ±20% Rated voltage: 200V Working life: 10000Hrs @ 105℃ Rated ripple current: 800mA @ 100kHz Appearance size (￠DxL, mm): 10x20	Capacitance: 100uF Accuracy: ±20% Rated voltage: 250V Working life: 10000Hrs @ 105℃ Rated ripple current: 1.8A @ 100kHz Appearance size (￠DxL, mm): 16x20	Capacitance: 10uF Accuracy: ±20% Rated voltage: 450V Working life: 10000Hrs @ 105℃ Appearance size (￠DxL, mm): 10x16
type	Lead type	-	Lead type	Lead type	Lead type
Foot distance (mm)	5	-	5	7.5	5
Capacitance	22uF	-	47uF	100uF	10uF
Accuracy	±20%	-	±20%	±20%	±20%
Rated voltage	350V	-	200V	250V	450V
life span	10000Hrs @ 105℃	-	10000Hrs @ 105℃	10000Hrs @ 105℃	10000Hrs @ 105℃
Rated ripple current	500mA @ 100kHz	-	800mA @ 100kHz	1.8A @ 100kHz	-
Appearance size(￠DxL,mm)	10x20	-	10x20	16x20	10x16
Operating temperature	-25℃ ~ +105℃	-	-25℃ ~ +105℃	-25℃ ~ +105℃	-25℃ ~ +105℃
