100ZLH100MEFCT810X20 datasheet, PDF

Datasheet> All Categories > Passive components> Linear aluminum electrolytic capacitor> 100ZLH100MEFCT810X20

100ZLH100MEFCT810X20: DescriptionCapacitance: 100uF Accuracy: ±20% Rated voltage: 100V Working life: 10000Hrs @ 105℃ Rated ripple current: 1.04A @ 100kHz Appearance size (￠DxL, mm): 10x20 Miniaturization, long life, low ESR; CategoryPassive components Linear aluminum electrolytic capacitor; File Size647KB，3 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric Compare View All

100ZLH100MEFCT810X20 Overview

Capacitance: 100uF Accuracy: ±20% Rated voltage: 100V Working life: 10000Hrs @ 105℃ Rated ripple current: 1.04A @ 100kHz Appearance size (￠DxL, mm): 10x20 Miniaturization, long life, low ESR

100ZLH100MEFCT810X20 Parametric

Parameter Name	Attribute value
type	Lead type
Foot distance (mm)	5
Capacitance	100uF
Accuracy	±20%
Rated voltage	100V
ESR series resistor	-
life span	10000Hrs @ 105℃
Rated ripple current	1.04A @ 100kHz
Appearance size(￠DxL,mm)	10x20
Operating temperature	-40℃ ~ +105℃

Preview

Download Datasheet

View All

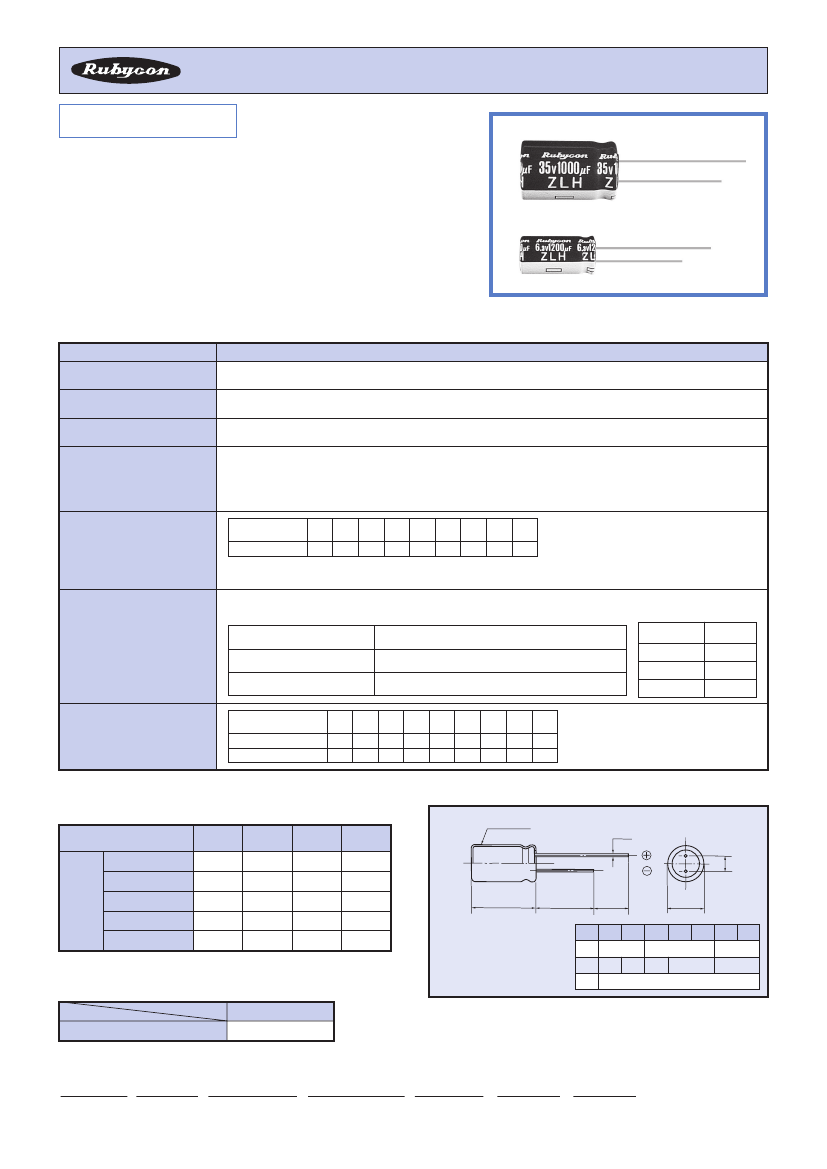

小型铝电解电容器

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

ZLH

105

•

SERIES

Miniaturized, Long Life, Low Impedance

FEATURES

Achieved endurance improvement and miniaturization of ZL series, as well as high

frequency impedance reduction.

• 105

6000 10000

6000

10000 hours.

• RoHS

RoHS compliance.

Load Life : 105

SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

6.3

105

100Vdc

120Hz)

)

(Vdc)

Rated Voltage

20% (20

0.01CV 3µA

(

(µF)

Capacitance

0.01CV or 3µA whichever is greater. (After 2 minutes)

Leakage Current(MAX)

(µA)

Leakage Current

(tan

Dissipation Factor(MAX)

)

(Vdc)

6.3 10

80 100

Rated Voltage

0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08 0.08

tan

(20

120Hz)

1000µF

When capacitance is over 1000µF, tan

1000µF

shall be added 0.02 to the listed value with increase of every 1000µF.

0.02

105

After applying rated voltage with rated ripple current for specified time at 105 , the capacitors shall meet the following requirements.

Capacitance Change

Endurance

Dissipation Factor

Leakage Current

(Vdc)

Rated Voltage

Z( 25 )/ Z(20 )

40 )/ Z(20 )

25%

(6.3Vdc,10Vdc : 30%)

Within 25% of the initial value. (6.3Vdc,10Vdc :

200%

Not more than 200% of the specified value.

Not more than the specified value.

30%)

Case Size

D 6.3

(hrs)

Life Time

6000

8000

10000

Low Temperature Stability

6.3

100

(120Hz)

(

)

Impedance Ratio(MAX)

DIMENSIONS

MULTIPLIER FOR RIPPLE CURRENT

Frequency

(mm)

8.2

33µF

0.42

0.50

0.55

0.60

0.70

0.73

0.77

0.80

0.85

0.90

0.92

0.94

0.96

0.98

1.00

MAX

47 270µF

Coefficient

330 680µF

820

1800µF

2200 8200µF

15MIN

4MIN

D 0.5MAX

6.3

0.5

0.6

12.5

± 0.5

(Hz)

SLEEVE(PET)

120

10k

100k

0.8

7.5

2.0

2.5

L 16 :

3.5

5.0

1.5 L 20 :

OPTION

Code

2.0

PET

PET Sleeve

EFC

PART NUMBER

ZLH

Rated Voltage

Series

Capacitance

Capacitance Tolerance

Option

Lead Forming

Case Size

100ZLH100MEFCT810X20 Related Products

	100ZLH100MEFCT810X20	63ZLH100MEFC8X16	10ZLH1000MEFC8X16	16ZLH680MEFC8X16	10ZLH4700MEFCG412.5X30	16ZLH1000MEFC8X20
Description	Capacitance: 100uF Accuracy: ±20% Rated voltage: 100V Working life: 10000Hrs @ 105℃ Rated ripple current: 1.04A @ 100kHz Appearance size (￠DxL, mm): 10x20 Miniaturization, long life, low ESR	Capacitance: 100uF Accuracy: ±20% Rated voltage: 63V Working life: 8000Hrs @ 105℃ Appearance size (￠DxL, mm): 8x16 High ripple current, Low ESR	Capacitance: 1000uF Accuracy: ±20% Rated voltage: 10V Working life: 8000Hrs @ 105℃ Rated ripple current: 1.25A @ 100kHz Appearance size (￠DxL, mm): 8x16 Miniaturization, long life, low ESR	Capacitance: 680uF Accuracy: ±20% Rated voltage: 16V Working life: 8000Hrs @ 105℃ Rated ripple current: 1.25A @ 100kHz Appearance size (￠DxL, mm): 8x16 Miniaturization, long life, low ESR	Capacitance: 4700uF Accuracy: ±20% Rated voltage: 10V Working life: 10000Hrs @ 105℃ Rated ripple current: 3.45A @ 100kHz Appearance size (￠DxL, mm): 12.5x30	Capacitance: 1000uF Accuracy: ±20% Rated voltage: 16V Working life: 8000Hrs @ 105℃ Rated ripple current: 1.5A @ 100kHz Appearance size (￠DxL, mm): 8x20 Miniaturization, long life, low ESR
type	Lead type	Lead type	Lead type	Lead type	Lead type	Lead type
Foot distance (mm)	5	3.5	3.5	3.5	5	3.5
Capacitance	100uF	100uF	1000uF	680uF	4700uF	1000uF
Accuracy	±20%	±20%	±20%	±20%	±20%	±20%
Rated voltage	100V	63V	10V	16V	10V	16V
life span	10000Hrs @ 105℃	8000Hrs @ 105℃	8000Hrs @ 105℃	8000Hrs @ 105℃	10000Hrs @ 105℃	8000Hrs @ 105℃
Appearance size(￠DxL,mm)	10x20	8x16	8x16	8x16	12.5x30	8x20
Operating temperature	-40℃ ~ +105℃	-40℃ ~ +105℃	-40℃ ~ +105℃	-40℃ ~ +105℃	-40℃ ~ +105℃	-40℃ ~ +105℃
Rated ripple current	1.04A @ 100kHz	-	1.25A @ 100kHz	1.25A @ 100kHz	3.45A @ 100kHz	1.5A @ 100kHz
