New Products
Multilayer RF Inductor
NEW
Multilayer Ceramic Inductor
Super High-Q type
High-
MHQ0603
W
Series
MHQ0603W
0.1 to 39nH
0.1 to 4.3nH 0.1step and
4.7 to 39nH all E24 series
[ Tight tolerance ]
MHQ0603W
(0201)
TDK Inductor web site : http://product.tdk.com/inductor/ind/en/
TDK Virtual Component Library : http://www.tdk.co.jp/etvcl/index.htm
TDK CORPORATION
2015. Apr.01
C212-038
New Products
Multilayer RF Inductor

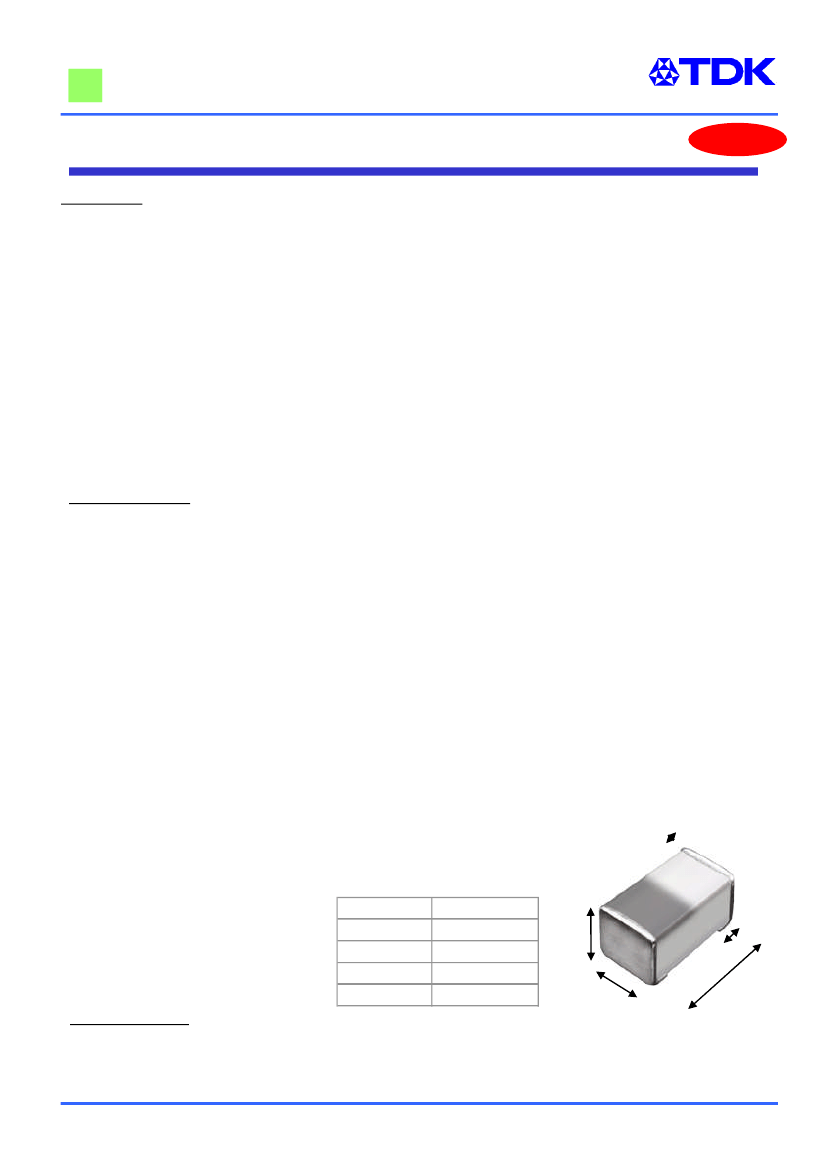

----- Outline -------
Features
NEW
By make full use of the technology of advanced materials and structures design,
we achieve corresponding high-Q value to wire wound inductor.
MHQ0603W realized the highest Q characteristic in Multi-layer type.
In addition, it is the product which did about 30% Q up than High-Q/MLG0603P/W
type. ***Reference : It is about 50% Q up than MLG0603S type***
Also flexible inductance line-up 0.1nH steps & E24 is available, it’s helpful to
engineer’s circuit design.
Specification
- Inductance range: [New] 0.1nH to 4.3nH (0.1nH step)
& 4.7 to 39nH (all E24 series)
- Inductance, Q value measurement frequency
Inductance : @ 100MHz
*Residual inductance of short bar = 0.00nH
Q : @100MHz
-
Tolerance: +/-0.1nH(B), & +/-3%(H)
(In the future, we plan to narrow tolerance +/-0.1nH, & +/-2%, +/-3%)
-Operating & storage temperature range: -55 to +125 deg
-Shape: L:0.65*W:0.35*T:0.35mm
L
W
T
B
C
Unit: mm
0.65+/-0.05
0.35+/-0.05
0.35+/-0.05
0.15+/-0.05
0.09+/-0.04
C
T
W
B
L
Environment
- RoHS Compliance
2015. Apr.01
- Lead free. Correspond to Lead free soldering
C212-038
New Products
Multilayer RF Inductor
----- ELECTRICAL CHARACTERISTICS -------
MHQ0603W series
[0.1 to 4.3nH 0.1step+4.7 to 39nH all E24, Tight tolerance]
Item
New
New
New
New
New
New
New
New
New
NEW
0.1 step
E12 series
E24 series
L [nH]
at 100MHz
0.1±0.1nH
0.2±0.1nH
0.3±0.1nH
0.4±0.1nH
0.5±0.1nH
0.6±0.1nH
0.7±0.1nH
0.8±0.1nH
0.9±0.1nH
1.0±0.1nH
1.1±0.1nH
1.2±0.1nH
1.3±0.1nH
1.4±0.1nH
1.5±0.1nH
1.6±0.1nH
1.7±0.1nH
1.8±0.1nH
1.9±0.1nH
2.0±0.1nH
2.1±0.1nH
2.2±0.1nH
2.3±0.1nH
2.4±0.1nH
2.5±0.1nH
2.6±0.1nH
2.7±0.1nH
2.8±0.1nH
2.9±0.1nH
3.0±0.1nH
3.1±0.1nH
3.2±0.1nH
3.3±0.1nH
3.4±0.1nH
3.5±0.1nH
3.6±0.1nH
3.7±0.1nH
3.8±0.1nH
3.9±0.1nH
4.0±0.1nH
4.1±0.1nH
4.2±0.1nH
4.3±3%
4.7±3%
5.1±3%
5.6±3%
6.2±3%
6.8±3%
7.5±3%
8.2±3%
9.1±3%
10±3%
11±3%
12±3%
13±3%
15±3%
16±3%
18±3%
20±3%
22±3%
24±3%
27±3%
30±3%
33±3%
36±3%
39±3%
Q min.
at 100MHz
-
-
-
-
-
-
-
-
-
7
7
7
7
7
7
7
7
7
7
6
6
6
6
6
6
6
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
6
7
6
6
7
6
6
6
5
6
5
6
6
6
5
6
6
7
7
7
7
7
RDC [ohm]
max.
0.07
0.07
0.07
0.07
0.07
0.07
0.08
0.10
0.10
0.10
0.10
0.10
0.12
0.12
0.12
0.15
0.15
0.15
0.15
0.25
0.25
0.25
0.25
0.30
0.30
0.30
0.20
0.20
0.25
0.25
0.25
0.25
0.25
0.30
0.35
0.35
0.35
0.35
0.35
0.35
0.40
0.40
0.40
0.40
0.40
0.40
0.70
0.70
0.50
0.90
0.90
1.20
1.30
1.40
1.50
1.50
1.70
1.70
2.00
2.00
2.20
2.20
2.70
2.80
2.80
3.00
typ.
0.02
0.02
0.02
0.02
0.03
0.03
0.04
0.06
0.06
0.05
0.06
0.07
0.07
0.08
0.08
0.08
0.09
0.08
0.08
0.17
0.16
0.16
0.18
0.19
0.19
0.19
0.13
0.13
0.15
0.14
0.17
0.16
0.17
0.19
0.23
0.26
0.22
0.23
0.23
0.24
0.28
0.29
0.25
0.24
0.29
0.30
0.52
0.48
0.37
0.63
0.61
0.86
0.89
0.77
1.01
1.05
1.21
1.21
1.38
1.40
1.55
1.55
1.98
2.06
2.08
2.24
SRF [GHz]
min.
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
7.0
7.0
7.0
6.5
6.5
6.5
6.5
6.5
6.5
6.0
6.0
6.0
6.0
6.0
6.0
6.0
5.5
5.5
5.0
5.0
4.0
4.0
3.8
3.8
3.5
3.5
3.2
3.2
3.2
2.8
2.5
2.4
2.4
2.2
2.1
2.0
1.9
1.8
1.7
1.6
typ.
20.0
20.0
20.0
18.8
19.3
19.3
20.0
20.0
18.6
19.5
17.5
16.7
15.8
16.1
13.8
12.7
13.2
12.5
11.7
11.1
11.1
10.5
10.6
10.8
10.3
10.5
9.5
9.5
9.6
9.3
9.5
9.1
9.1
9.1
9.2
8.5
8.3
8.2
8.2
8.1
8.0
8.1
7.9
7.8
6.7
6.9
6.6
6.3
5.6
5.6
5.5
5.2
4.6
4.6
4.5
4.2
4.0
3.7
3.5
3.3
3.1
2.9
2.7
2.5
2.4
2.3
IDC [mA]
max.
1000
1000
1000
1000
1000
1000
1000
800
800
800
800
800
700
700
700
700
700
700
700
500
500
500
500
450
450
450
550
550
500
500
500
500
450
450
400
400
400
400
400
400
350
350
350
350
350
350
300
300
250
250
250
240
240
240
180
180
180
180
160
160
160
160
160
160
160
160
New
New
New
New
New
New
New
New
New
New
New
New
New
New
New
New
New
New
New
New
New
New
New
New
New
MHQ0603W0N1BT000
MHQ0603W0N2BT000
MHQ0603W0N3BT000
MHQ0603W0N4BT000
MHQ0603W0N5BT000
MHQ0603W0N6BT000
MHQ0603W0N7BT000
MHQ0603W0N8BT000
MHQ0603W0N9BT000
MHQ0603W1N0BT000
MHQ0603W1N1BT000
MHQ0603W1N2BT000
MHQ0603W1N3BT000
MHQ0603W1N4BT000
MHQ0603W1N5BT000
MHQ0603W1N6BT000
MHQ0603W1N7BT000
MHQ0603W1N8BT000
MHQ0603W1N9BT000
MHQ0603W2N0BT000
MHQ0603W2N1BT000
MHQ0603W2N2BT000
MHQ0603W2N3BT000
MHQ0603W2N4BT000
MHQ0603W2N5BT000
MHQ0603W2N6BT000
MHQ0603W2N7BT000
MHQ0603W2N8BT000
MHQ0603W2N9BT000
MHQ0603W3N0BT000
MHQ0603W3N1BT000
MHQ0603W3N2BT000
MHQ0603W3N3BT000
MHQ0603W3N4BT000
MHQ0603W3N5BT000
MHQ0603W3N6BT000
MHQ0603W3N7BT000
MHQ0603W3N8BT000
MHQ0603W3N9BT000
MHQ0603W4N0BT000
MHQ0603W4N1BT000
MHQ0603W4N2BT000
MHQ0603W4N3HT000
MHQ0603W4N7HT000
MHQ0603W5N1HT000
MHQ0603W5N6HT000
MHQ0603W6N2HT000
MHQ0603W6N8HT000
MHQ0603W7N5HT000
MHQ0603W8N2HT000
MHQ0603W9N1HT000
MHQ0603W10NHT000
MHQ0603W11NHT000
MHQ0603W12NHT000
MHQ0603W13NHT000
MHQ0603W15NHT000
MHQ0603W16NHT000
MHQ0603W18NHT000
MHQ0603W20NHT000
MHQ0603W22NHT000
MHQ0603W24NHT000
MHQ0603W27NHT000
MHQ0603W30NHT000
MHQ0603W33NHT000
MHQ0603W36NHT000
MHQ0603W39NHT000
