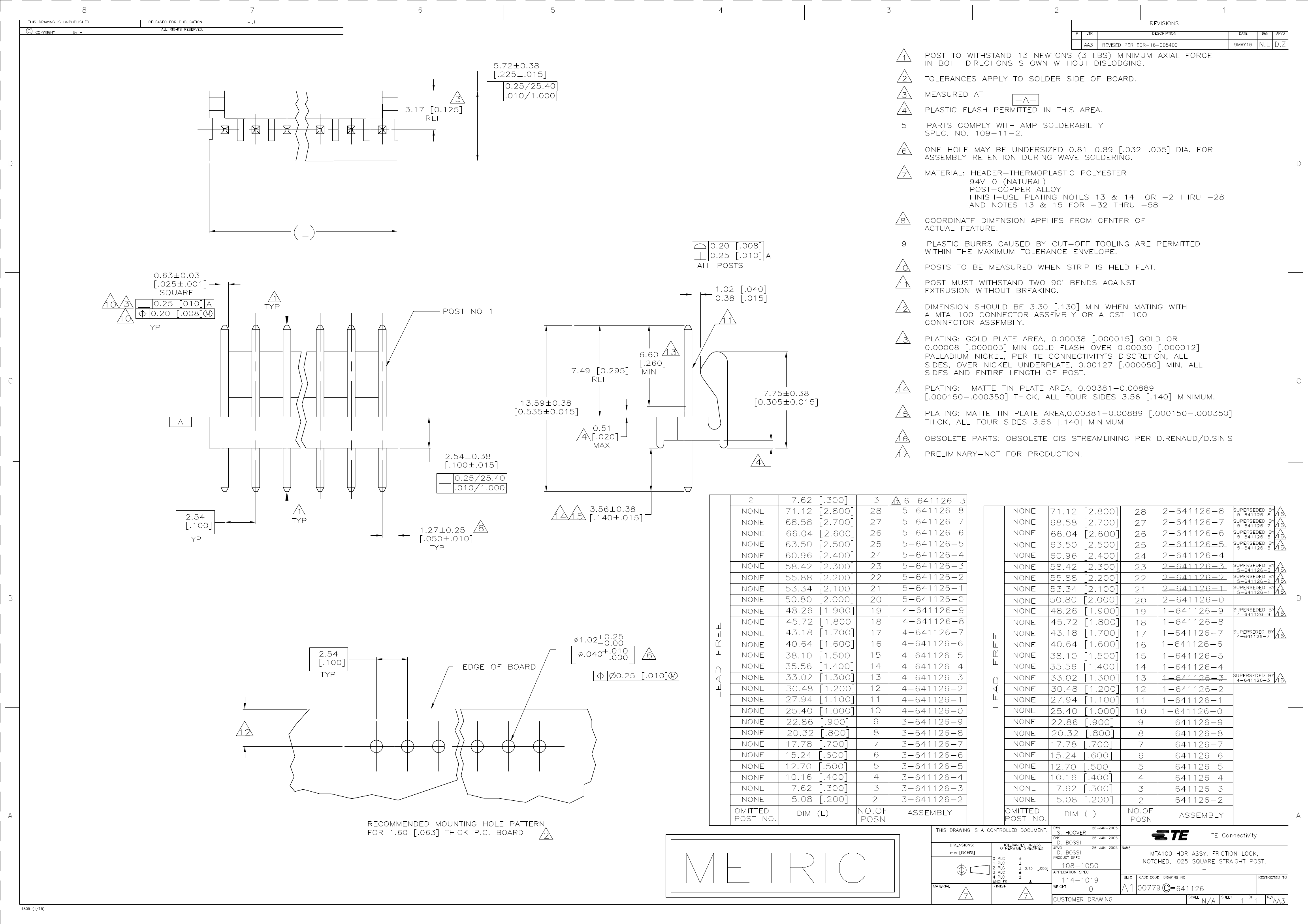

3-641126-5: DescriptionPin Count: 5 Connector Type: Head Contact Type: Male Pin Pitch: 0.100" (2.54mm) Series: - 5 Position Header Connector Pitch 2.54mm Through Hole Gold; CategoryThe connector The connector; File Size204KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-641126-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-641126-5	-	-	View	Buy Now

3-641126-5 Overview

Pin Count: 5 Connector Type: Head Contact Type: Male Pin Pitch: 0.100" (2.54mm) Series: - 5 Position Header Connector Pitch 2.54mm Through Hole Gold

3-641126-5 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	13 weeks
Samacsys Confidence	3
Samacsys Status	Released
Samacsys PartID	722435
Samacsys Pin Count	5
Samacsys Part Category	Connector
Samacsys Package Category	Header, Shrouded
Samacsys Footprint Name	3-641126-5
Samacsys Released Date	2018-12-13 13:08:27
Is Samacsys	N
body width	0.225 inch
subject depth	0.31 inch
body length	0.5 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15)
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	NATURAL
insulator material	POLYESTER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.14 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0
Base Number Matches	2

Preview

Download Datasheet

View All

3-641126-5 Related Products

	3-641126-5	3-641126-2	3-641126-3
Description	Pin Count: 5 Connector Type: Head Contact Type: Male Pin Pitch: 0.100" (2.54mm) Series: - 5 Position Header Connector Pitch 2.54mm Through Hole Gold	02P MTA100 HDR ASY FL/STR LF	03P MTA100 HDR ASY FL/STR LF
Brand Name	AMP	AMP	AMP
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Maker	TE Connectivity	TE Connectivity	TE Connectivity
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant
Is Samacsys	N	N	N
body width	0.225 inch	0.225 inch	0.225 inch
subject depth	0.31 inch	0.31 inch	0.31 inch
body length	0.5 inch	0.2 inch	0.3 inch
Body/casing type	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15)	GOLD (15)	GOLD (15)
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insulator color	NATURAL	NATURAL	NATURAL
insulator material	POLYESTER	POLYESTER	POLYESTER
JESD-609 code	e3	e3	e3
MIL compliance	NO	NO	NO
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING
Installation option 2	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	1	1	1
Number of rows loaded	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	15u inch	15u inch	15u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.14 inch	0.14 inch	0.14 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	5	2	3
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	2	2	2
Factory Lead Time	13 weeks	-	9 weeks
