390088-1 datasheet, PDF - EEWORLD Datasheet

390088-1: Description2P top opening spacing 2.54mm gold; CategoryThe connector The connector; File Size98KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

390088-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	390088-1	-	-	View	Buy Now

2P top opening spacing 2.54mm gold

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	14 weeks
Other features	NO. OF SHUNTS: 32 OF 2 POSITIONS EACH, FEMALE, POLYESTER
subject depth	0.247 inch
body length	0.196 inch
Body/casing type	PLUG
Connector type	INTERCONNECTION DEVICE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
maximum insertion force	3.4472 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Plating thickness	30u inch
Rated current (signal)	3.2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Total number of contacts	2
Evacuation force-minimum value	.1668 N
Base Number Matches	1

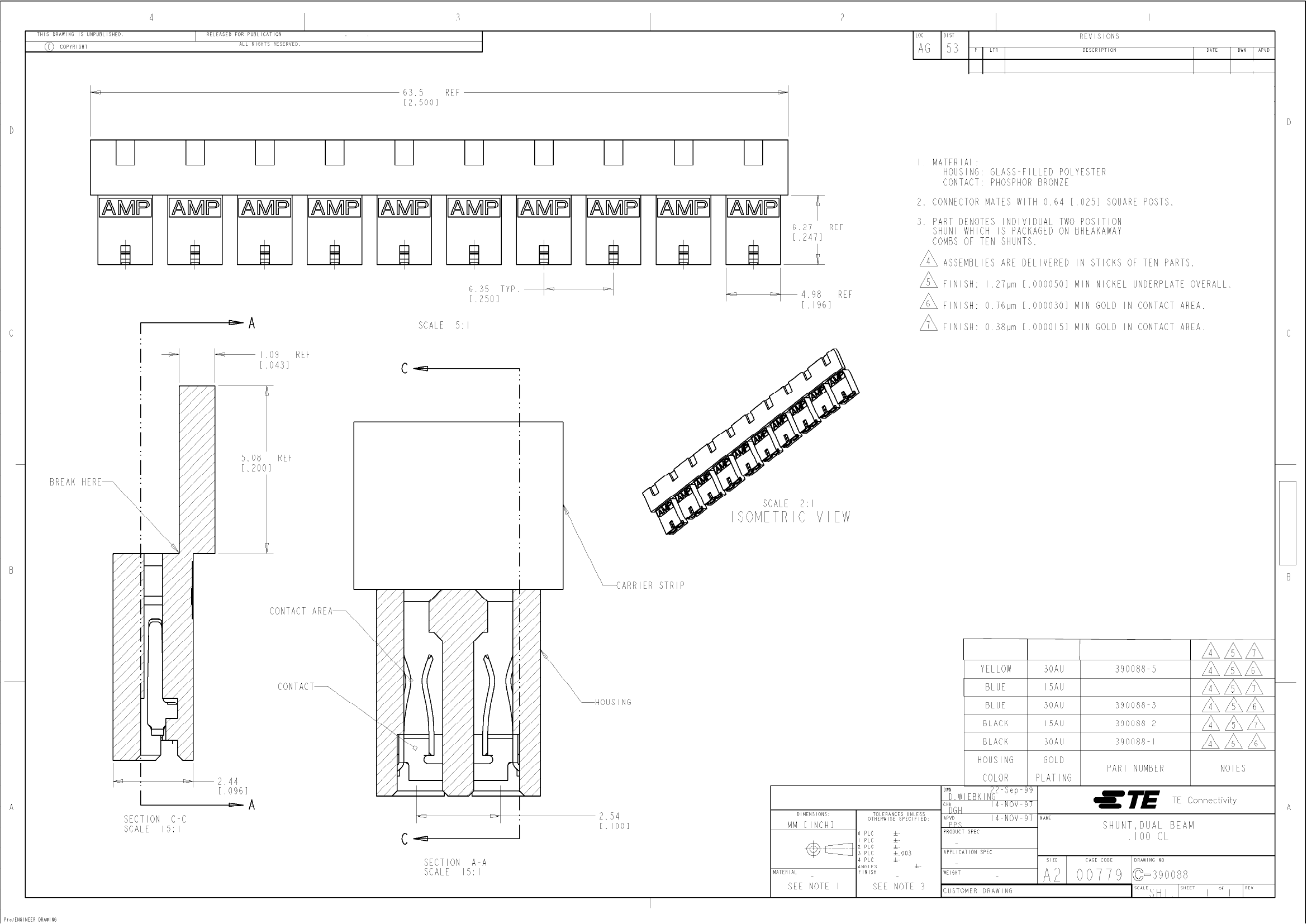

A3

REVISED PER ECO-15-004656

30MAR2015

NK

MM

YELLOW

15AU

390088-6

390088-4

A3

390088

	390088-1	390088-2
Description	2P top opening spacing 2.54mm gold	2 Pin top opening spacing 2.54mm
Brand Name	AMP	AMP
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
Factory Lead Time	14 weeks	11 weeks
Other features	NO. OF SHUNTS: 32 OF 2 POSITIONS EACH, FEMALE, POLYESTER	NO. OF SHUNTS: 32 OF 2 POSITIONS EACH, FEMALE, POLYESTER
subject depth	0.247 inch	0.247 inch
body length	0.196 inch	0.196 inch
Body/casing type	PLUG	PLUG
Connector type	INTERCONNECTION DEVICE	INTERCONNECTION DEVICE
Contact to complete cooperation	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V	1000VAC V
Durability	25 Cycles	25 Cycles
maximum insertion force	3.4472 N	3.4472 N
Insulation resistance	10000000000 Ω	10000000000 Ω
Insulator color	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Plug contact pitch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE
Number of rows loaded	1	1
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-65 °C	-65 °C
Plating thickness	30u inch	15u inch
Rated current (signal)	3.2 A	3.2 A
Guideline	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Total number of contacts	2	2
Evacuation force-minimum value	.1668 N	.1668 N
Base Number Matches	1	1
