8-338069-0: Description(8-338069-0) MICRO-MATCH SMD FTE; CategoryThe connector The connector; File Size2MB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

8-338069-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-338069-0	-	-	View	Buy Now

8-338069-0 Overview

(8-338069-0) MICRO-MATCH SMD FTE

8-338069-0 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1940815848
Reach Compliance Code	compliant
Samacsys Description	Body Features: Daisy Chain Without \| Primary Product Color Red \| Connector Profile Standard \| Configuration Features: Number of Rows 2 \| PCB Mount Orientation Vertical \| Number of Positions 10 \| Contact Features: Contact Current Rating (Max) 1.5 AMP \| PCB Contact Termination Area Plating Material Thickness 3 â€“ 5 MICM \| Contact Shape & Form Dual Beam \| Contact Type Socket \| Contact Mating Area Plating Material Tin \| Contact Base Material Phosphor Bronze \| PCB Contact Termination Area Plating Material Thick
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2024-04-05 12:40:31
YTEOL	9.4
Other features	STAGGERED CONFIGURATION
body width	0.205 inch
subject depth	0.27 inch
body length	0.681 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT APPLICABLE
Contact point gender	FEMALE
Contact material	NOT APPLICABLE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Durability	20 Cycles
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
Insulator color	RED
insulator material	POLYAMIDE46
MIL compliance	NO
Power Connector Ratings	1.5A
Plug contact pitch	0.05 inch
Match contact row spacing	0.059 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	4.4958 mm
Panel mounting	NO
Plating thickness	196.85u inch
polarization key	POLARIZED
Rated current (signal)	1.5 A
Rated voltage	100 V
Guideline	UL
Terminal length	0.208 inch
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
UL Flammability Code	94V-0
Evacuation force-minimum value	1.0008 N

Preview

Download Datasheet

View All

4

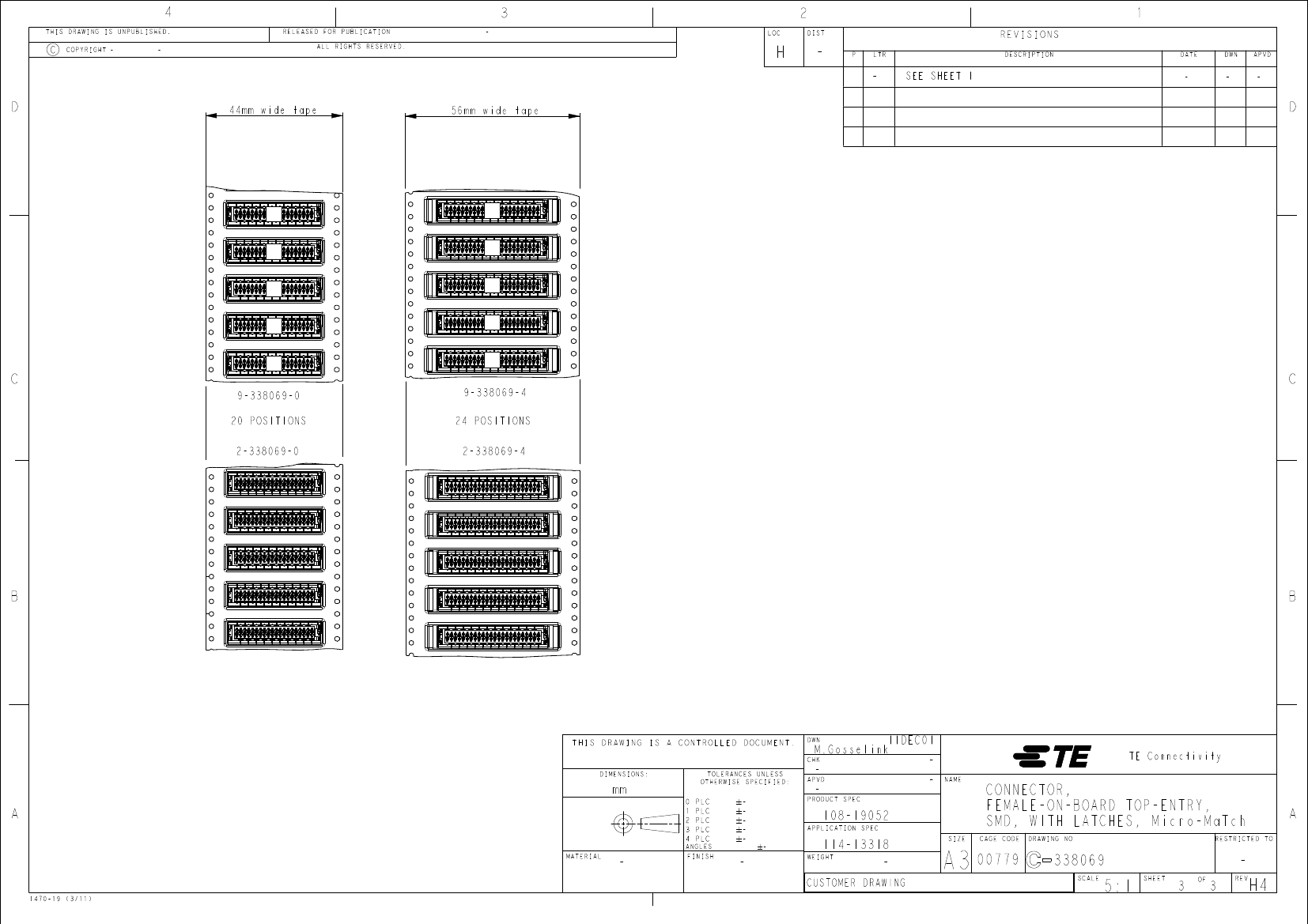

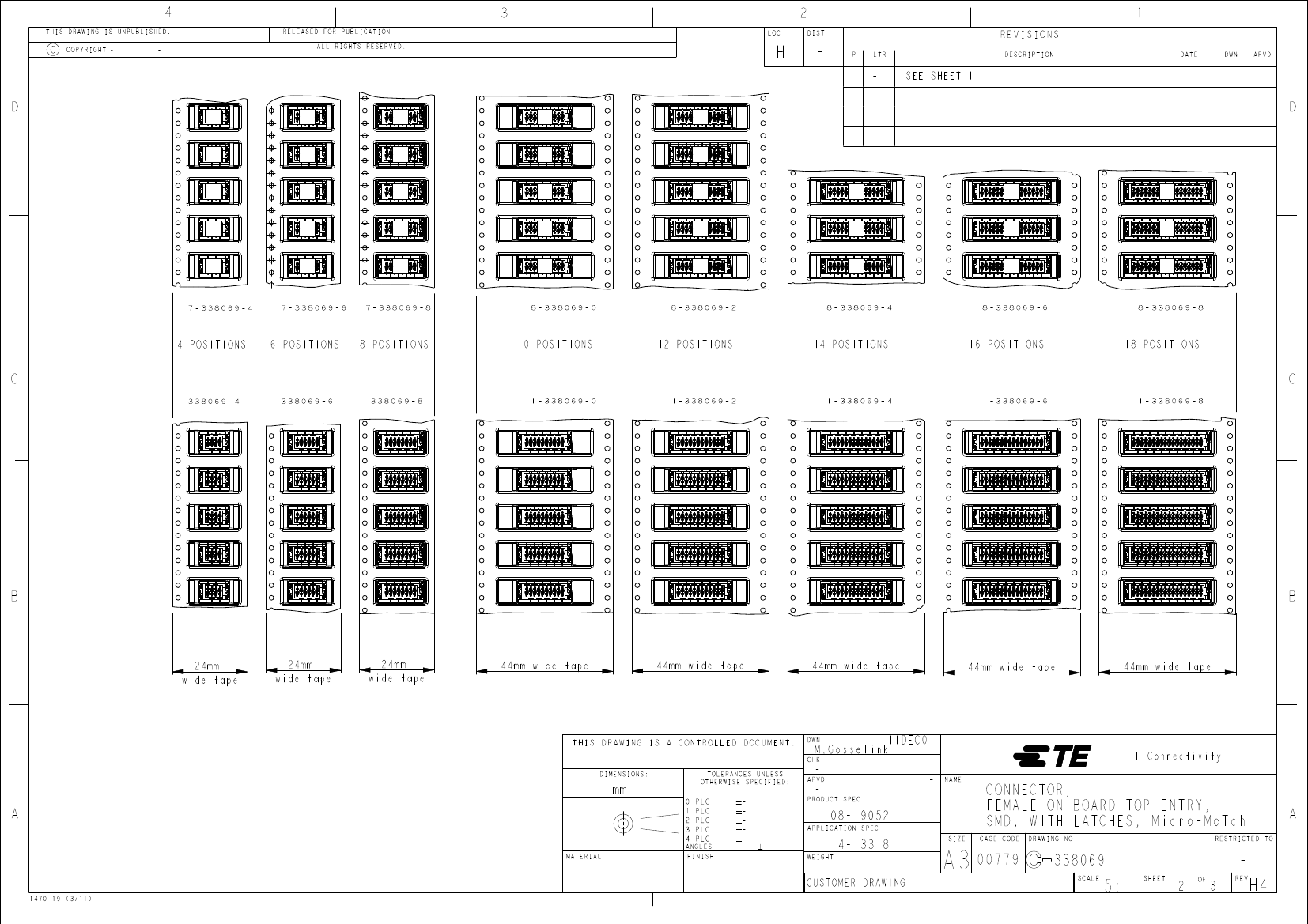

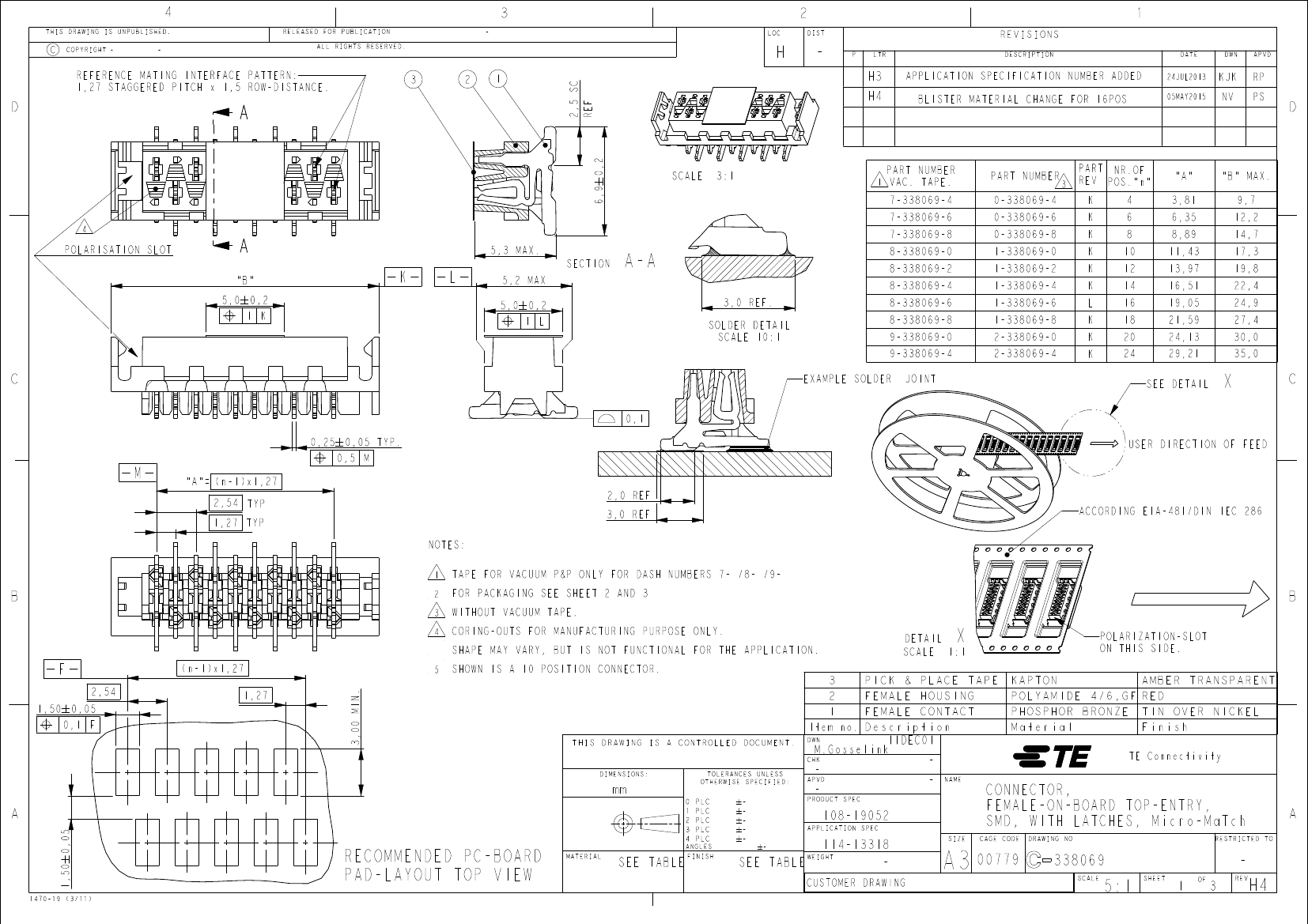

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

-

3

LOC

2

DIST

1

C

COPYRIGHT -

-

2,5 SC

REF

REFERENCE MATING INTERFACE PATTERN:

1,27 STAGGERED PITCH x 1,5 ROW-DISTANCE.

H

3

2

1

-

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

H3

H4

APPLICATION SPECIFICATION NUMBER ADDED

24JUL2013

05MAY2015

KJK

NV

RP

PS

D

BLISTER MATERIAL CHANGE FOR 16POS

D

6,9 # 0,2

SCALE

3:1

PART NUMBER

1

VAC. TAPE.

7-338069-4

7-338069-8

7-338069-6

PART NUMBER

0-338069-4

0-338069-6

1-338069-0

1-338069-2

1-338069-4

1-338069-8

2-338069-0

2-338069-4

1-338069-6

0-338069-8

3

PART NR.OF

REV POS."n"

K

L

K

4

8

6

"A"

6,35

8,89

3,81

"B" MAX.

12,2

17,3

19,8

22,4

24,9

27,4

35,0

30,0

14,7

9,7

4

POLARISATION SLOT

"B"

5,0 0,2

1 K

5,3 MAX.

K

L

5,2 MAX

5,0 0,2

1 L

SECTION

A-A

3,0 REF.

SOLDER DETAIL

SCALE 10:1

EXAMPLE SOLDER

0,1

8-338069-0

8-338069-2

8-338069-4

8-338069-8

9-338069-4

JOINT

9-338069-0

8-338069-6

10

12

14

16

20

18

11,43

13,97

16,51

19,05

21,59

29,21

24,13

24

C

SEE DETAIL

X

C

0,25 0,05 TYP.

M

0,5 M

USER DIRECTION OF FEED

"A"= (n-1)x1,27

2,54 TYP

1,27 TYP

NOTES:

1

2,0 REF

3,0 REF

ACCORDING EIA-481/DIN IEC 286

TAPE FOR VACUUM P &P ONLY FOR DASH NUMBERS 7- /8- /9-

FOR PACKAGING SEE SHEET 2 AND 3

WITHOUT VACUUM TAPE.

CORING-OUTS FOR MANUFACTURING PURPOSE ONLY.

SHAPE MAY VARY, BUT IS NOT FUNCTIONAL FOR THE APPLICATION.

SHOWN IS A 10 POSITION CONNECTOR.

DETAIL

SCALE 1:1

3

2

1

B

2

3

4

B

X

KAPTON

POLARIZATION-SLOT

ON THIS SIDE.

AMBER TRANSPARENT

TIN OVER NICKEL

Finish

F

1,50 0,05

2,54

0,1 F

(n-1)x1,27

3,00 MIN.

1,27

5

PICK & PLACE TAPE

FEMALE HOUSING

FEMALE CONTACT

POLYAMIDE 4/6,GF RED

PHOSPHOR BRONZE

Material

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

A

1,50 0,05

RECOMMENDED PC-BOARD

PAD-LAYOUT TOP VIEW

0

1

2

3

4

MATERIAL

ANGLES

PLC

SEE TABLE

FINISH

114-13318

WEIGHT

-

SEE TABLE

-

11DEC01

M.Gosselink

CHK

-

APVD

-

DWN

PRODUCT SPEC

APPLICATION SPEC

Item no. Description

TE Connectivity

NAME

108-19052

SIZE

CUSTOMER DRAWING

A3

00779

CAGE CODE

CONNECTOR,

FEMALE-ON-BOARD TOP-ENTRY,

SMD, WITH LATCHES, Micro-MaTch

DRAWING NO

A

RESTRICTED TO

338069

SCALE

1470-19 (3/11)

5:1

SHEET

1

OF

3

REV

-

H4

8-338069-0 Related Products

	8-338069-0	8-338069-8	7-338069-8
Description	(8-338069-0) MICRO-MATCH SMD FTE	(8-338069-8) MICRO-MATCH SMD FTE	Number of Pins: 8 Connector Type: Head Contact Type: Fork Pitch: 0.100" (2.54mm) Series: - 8 Position Socket Connector Pitch 2.54mm Surface Mount Tin UL94 V-0
Brand Name	AMP	AMP	AMP
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant
Other features	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION
body width	0.205 inch	0.205 inch	0.205 inch
subject depth	0.27 inch	0.27 inch	0.209 inch
body length	0.681 inch	1.07 inch	0.579 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	STAGGERED
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO
Durability	20 Cycles	20 Cycles	20 Cycles
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
maximum insertion force	4.8928 N	4.8928 N	4.8928 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	RED	RED	RED
insulator material	POLYAMIDE46	POLYAMIDE46	POLYAMIDE
MIL compliance	NO	NO	NO
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch
Mixed contacts	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	4.4958 mm	4.4958 mm	4.4958 mm
polarization key	POLARIZED	POLARIZED	POLARIZED HOUSING
Guideline	UL	UL	UL
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Termination type	SURFACE MOUNT	SOLDER	SURFACE MOUNT
Total number of contacts	10	18	8
Evacuation force-minimum value	1.0008 N	1.0008 N	1.0008 N
Objectid	1940815848	1940815852	-
YTEOL	9.4	9.15	-
Electromagnetic interference shielding	NO	NO	-
empty shell	YES	YES	-
Power Connector Ratings	1.5A	1.5A	-
Match contact row spacing	0.059 inch	0.059 inch	-
Installation option 2	FRICTION LOCK	FRICTION LOCK	-
Number of ports	1	1	-
Panel mounting	NO	NO	-
Plating thickness	196.85u inch	196.85u inch	-
Rated current (signal)	1.5 A	1.5 A	-
Rated voltage	100 V	100 V	-
Terminal length	0.208 inch	0.208 inch	-
UL Flammability Code	94V-0	94V-0	-
reliability	-	COMMERCIAL	COMMERCIAL

Recommended Resources

Gate circuit multi-ground control circuit

Overvoltage protection circuit diagram composed of fuse and thyristor

Low Cost Wien Bridge Oscillator Circuit Diagram

Fantasy lantern controller circuit

trombone circuit

3.5w ultra-high amplifier (600-860MHZ) circuit
