1-1903128-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-1903128-4

1-1903128-4: CategoryThe connector The connector; File Size416KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1-1903128-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1903128-4	-	-	View	Buy Now

1-1903128-4 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	unknown
Is Samacsys	N
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

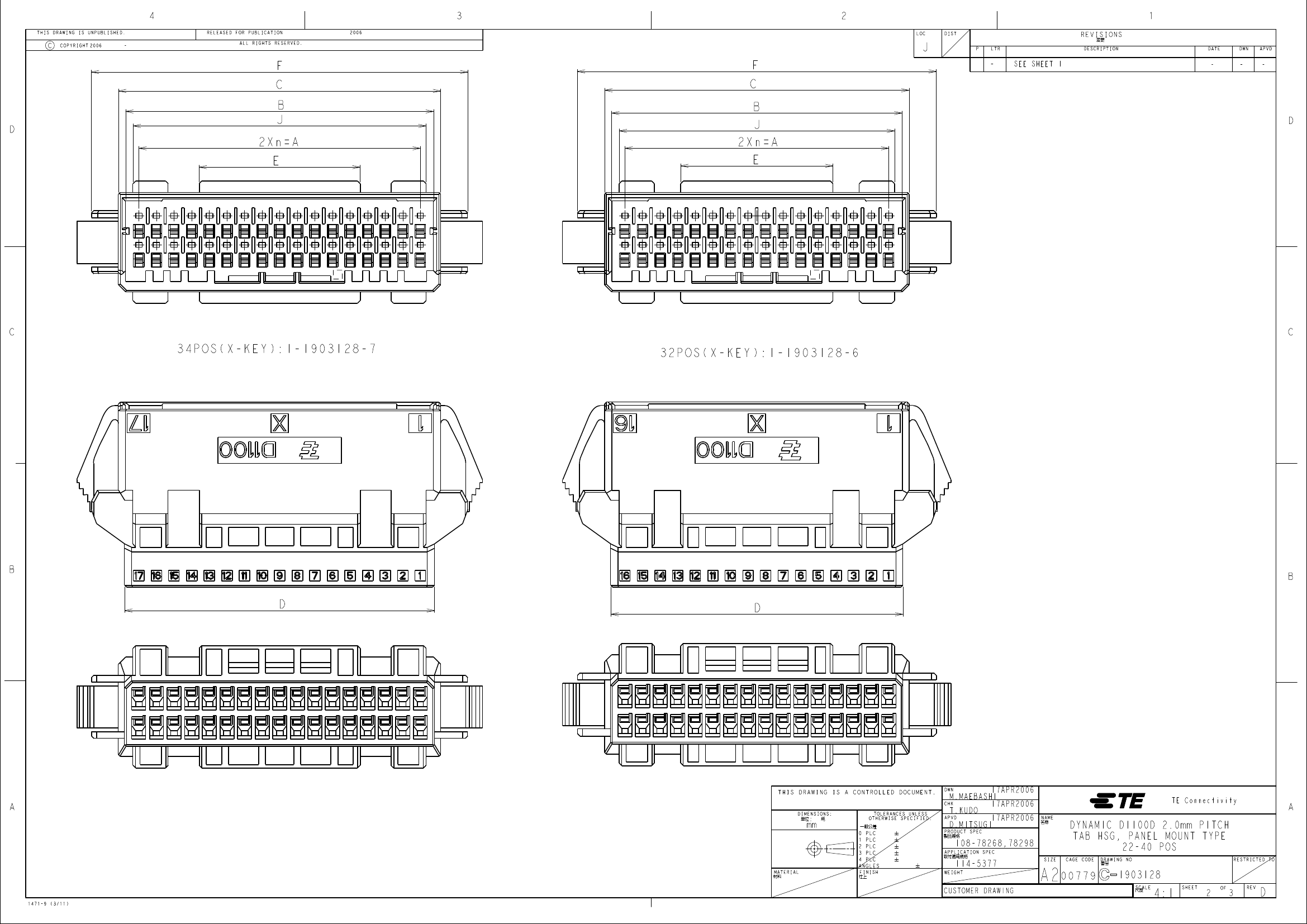

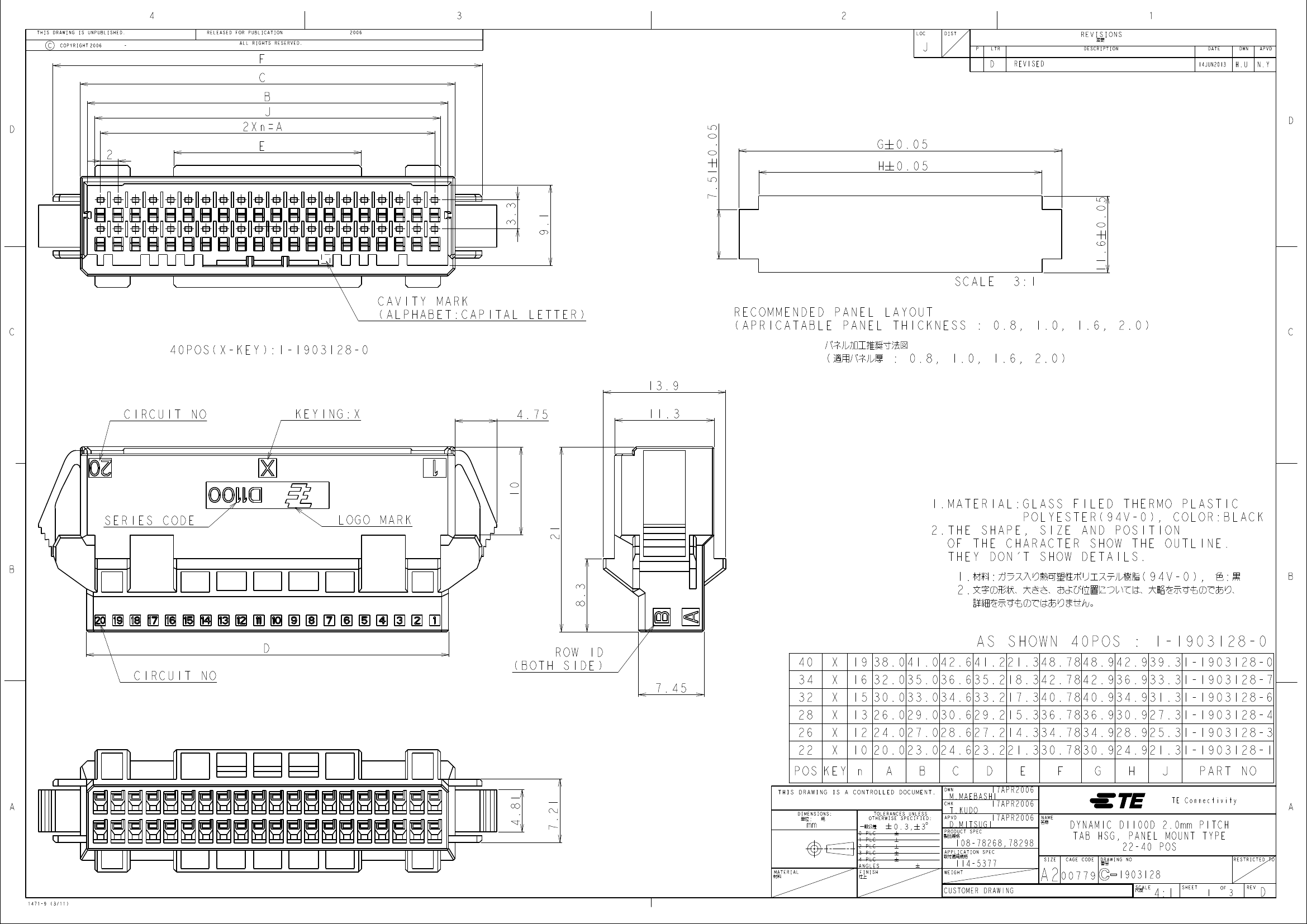

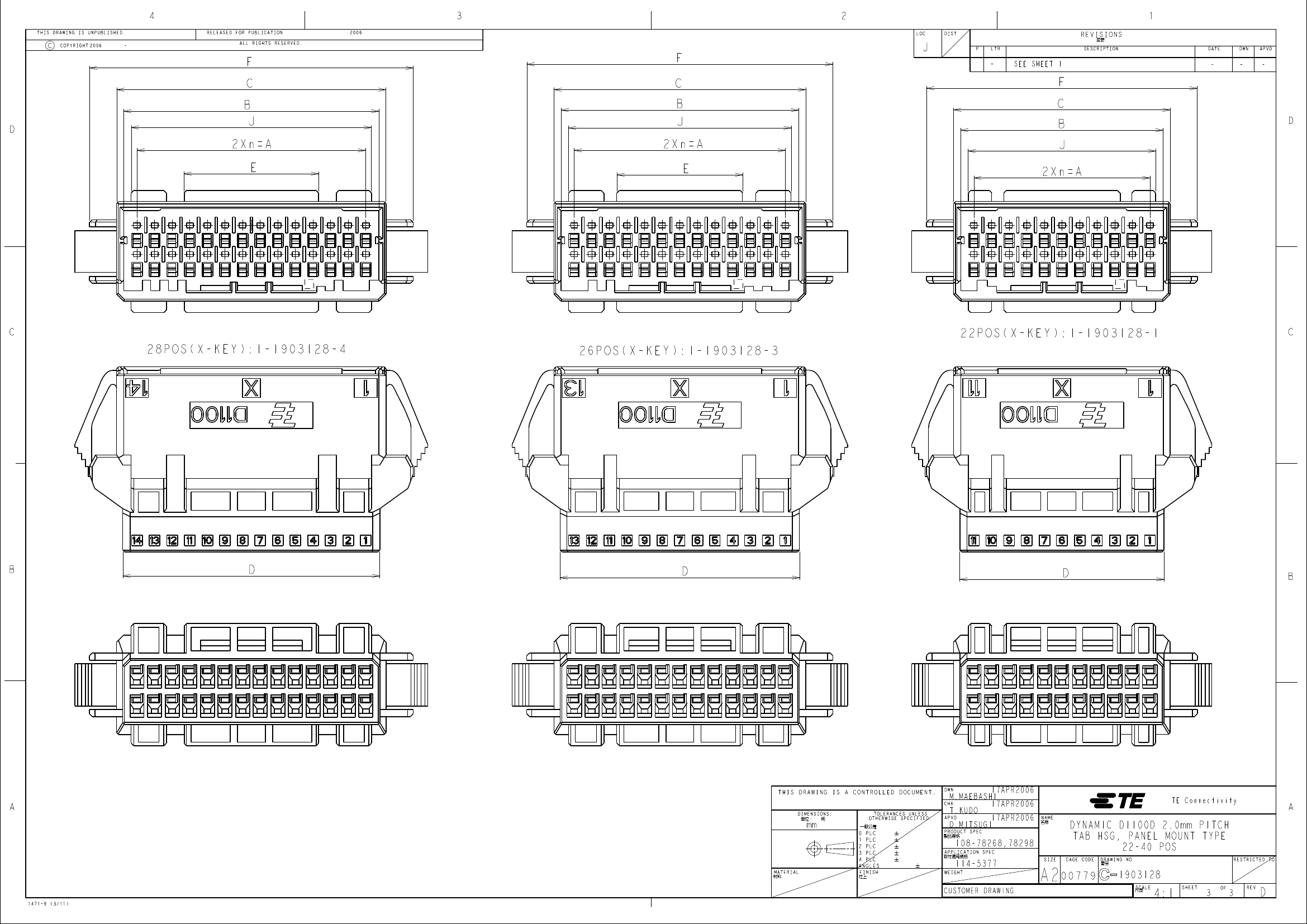

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

2006

LOC

DIST

LTR

2006

REVISIONS

DESCRIPTION

DATE

DWN

APVD

0.05

2Xn=A

REVISED

14JUN2013

H.U

N.Y

G # 0.05

H # 0.05

0.05

SCALE

3:1

RECOMMENDED PANEL LAYOUT

(APRICATABLE PANEL THICKNESS : 0.8, 1.0, 1.6, 2.0)

(

: 0.8, 1.0, 1.6, 2.0)

11.6

3.3

CAVITY MARK

(ALPHABET:CAPITAL LETTER)

40POS(X-KEY):1-1903128-0

13.9

CIRCUIT NO

KEYING:X

4.75

11.3

9.1

7.51

SERIES CODE

LOGO MARK

1.MATERIAL:GLASS FILED THERMO PLASTIC

POLYESTER(94V-0), COLOR:BLACK

2.THE SHAPE, SIZE AND POSITION

OF THE CHARACTER SHOW THE OUTLINE.

THEY DON'T SHOW DETAILS.

8.3

(94V-0),

CIRCUIT NO

ROW ID

(BOTH SIDE)

7.45

19 38.0 41.0 42.6 41.2 21.3 48.78 48.9 42.9 39.3 1-1903128-0

16 32.0 35.0 36.6 35.2 18.3 42.78 42.9 36.9 33.3 1-1903128-7

15 30.0 33.0 34.6 33.2 17.3 40.78 40.9 34.9 31.3 1-1903128-6

13 26.0 29.0 30.6 29.2 15.3 36.78 36.9 30.9 27.3 1-1903128-4

12 24.0 27.0 28.6 27.2 14.3 34.78 34.9 28.9 25.3 1-1903128-3

10 20.0 23.0 24.6 23.2 21.3 30.78 30.9 24.9 21.3 1-1903128-1

DWN

CHK

AS SHOWN 40POS : 1-1903128-0

POS KEY n

4.81

7.21

DIMENSIONS:

T.KUDO

PART NO

TE Connectivity

THIS DRAWING IS A CONTROLLED DOCUMENT.

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

M.MAEBASHI

17APR2006

NAME

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.3, # 3 $

APVD

PRODUCT SPEC

D.MITSUGI

APPLICATION SPEC

108-78268,78298

114-5377

SIZE

WEIGHT

CUSTOMER DRAWING

1471-9 (3/11)

00779

CAGE CODE

DYNAMIC D1100D 2.0mm PITCH

TAB HSG, PANEL MOUNT TYPE

22-40 POS

DRAWING NO

RESTRICTED TO

1903128

SCALE

4:1

SHEET

REV
