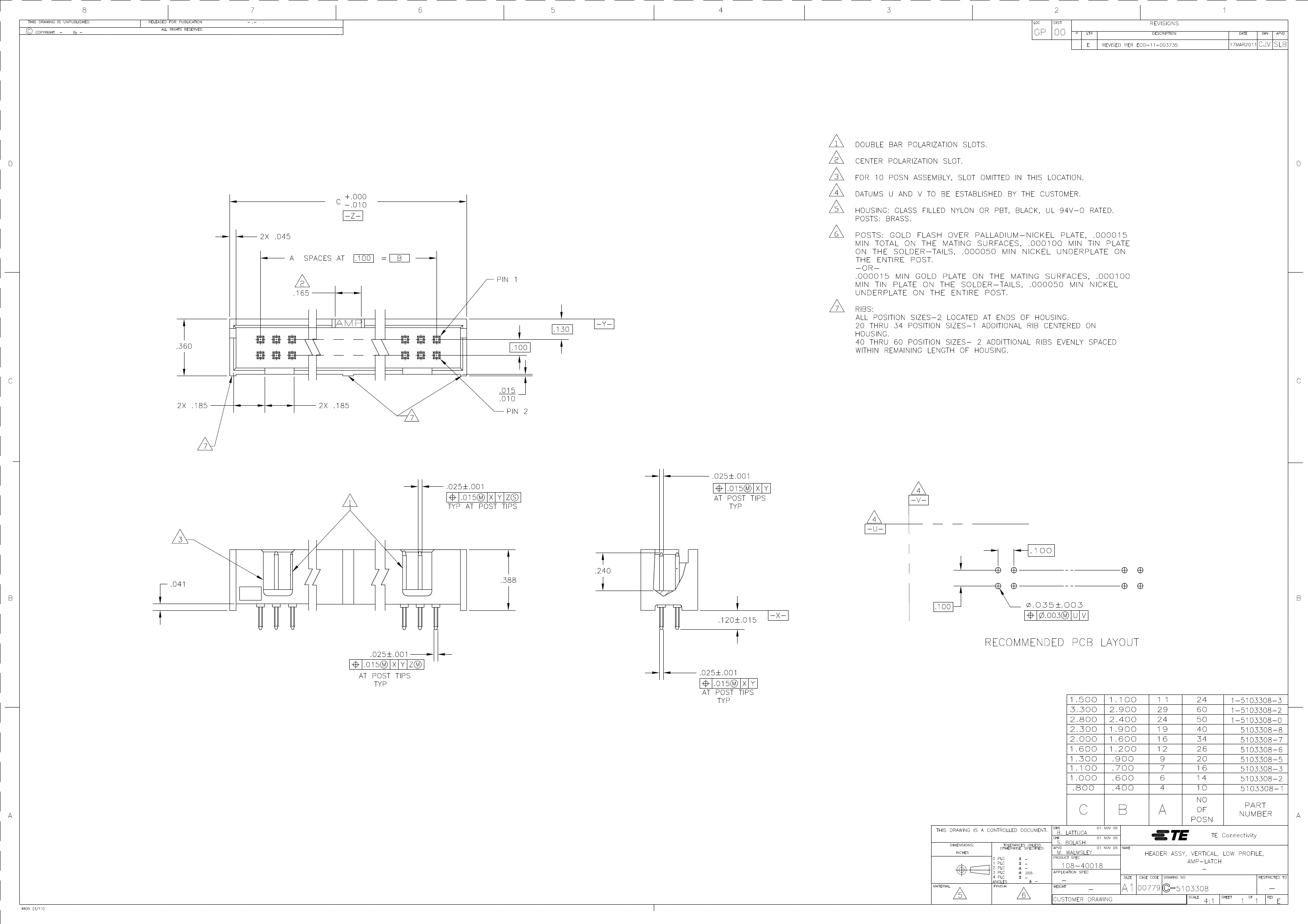

Pin Count: 20 Connector Type: Head Contact Type: Male Pin Pitch: 0.100" (2.54mm) Series: - 20 Position Header Connector Pitch 2.54mm Through Hole
| Parameter Name | Attribute value |
| Brand Name | AMP |
| Is it Rohs certified? | conform to |
| Maker | TE Connectivity |
| package instruction | ROHS COMPLIANT |
| Reach Compliance Code | compliant |
| Factory Lead Time | 8 weeks |
| Samacsys Confidence | 3 |
| Samacsys Status | Released |
| Samacsys PartID | 272754 |
| Samacsys Pin Count | 20 |
| Samacsys Part Category | Connector |
| Samacsys Package Category | Header, Shrouded |
| Samacsys Footprint Name | 5103308-5/ |
| Samacsys Released Date | 2017-04-20 12:52:39 |
| Is Samacsys | N |
| Other features | LOW PROFILE, POLARIZED |
| body width | 0.36 inch |
| subject depth | 0.388 inch |
| body length | 1.3 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (15) OVER PALLADIUM NICKEL |
| Contact completed and terminated | Tin (Sn) - with Nickel (Ni) barrier |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED NYLON |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -65 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| polarization key | CTR W/GUIDE SLOTS |
| Rated current (signal) | 1 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.12 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 20 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
