1-1827875-3: Description(1-1827875-3) DYNAMIC 1200D HDR ASSY V 6P X BLACK GOLD; CategoryThe connector The connector; File Size405KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1-1827875-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1827875-3	-	-	View	Buy Now

1-1827875-3 Overview

(1-1827875-3) DYNAMIC 1200D HDR ASSY V 6P X BLACK GOLD

1-1827875-3 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1747242416
Reach Compliance Code	unknown
YTEOL	7.7
Other features	POLARIZED, SHROUDED
Board mount options	SOLDERABLE RETENTION CLIPS
body width	0.445 inch
subject depth	0.49 inch
body length	0.398 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact style	SQ PIN-SKT
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Power Connector Ratings	5A
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Plating thickness	15u inch
polarization key	POLARIZED
Rated current (signal)	5 A
Guideline	UL
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

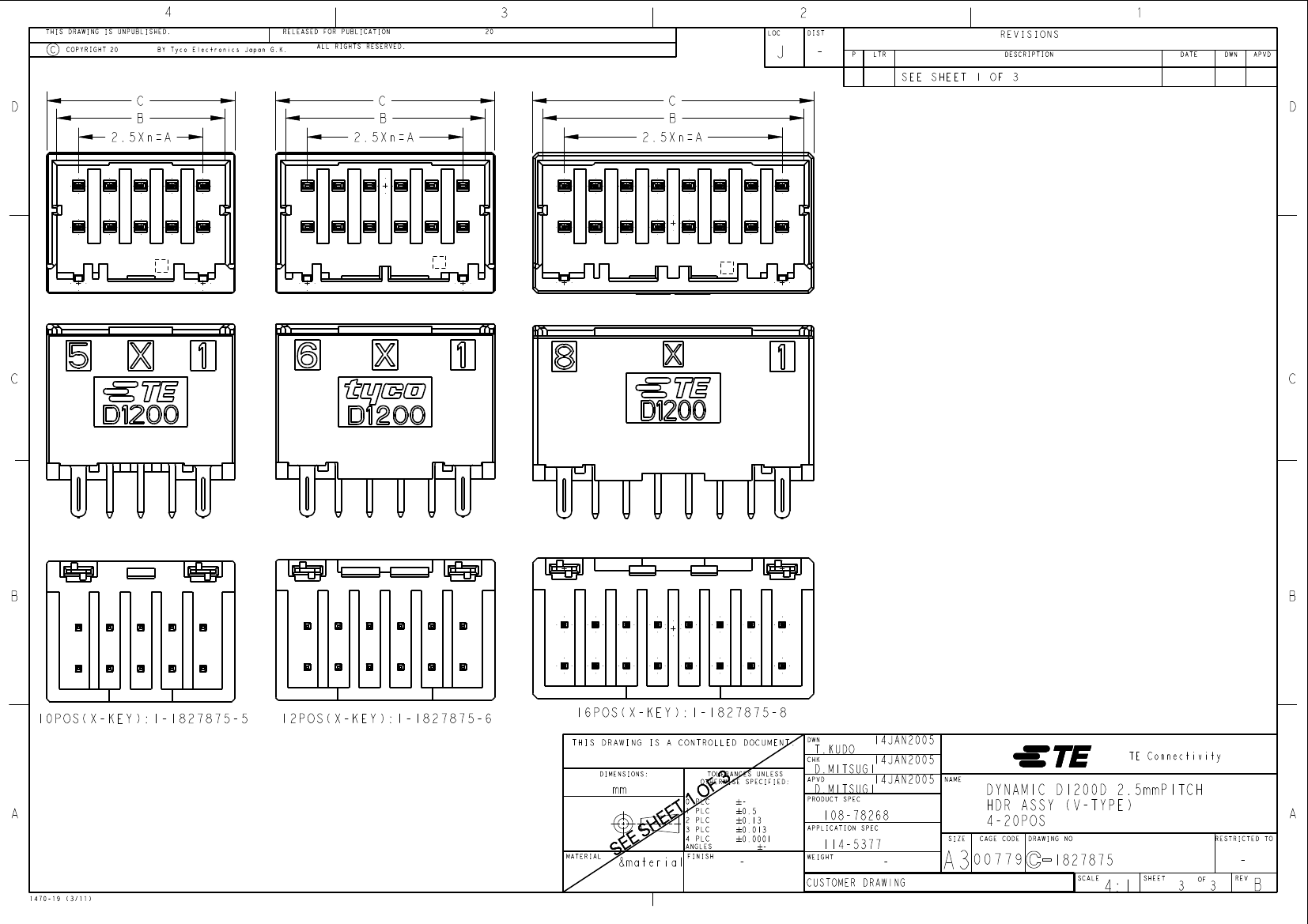

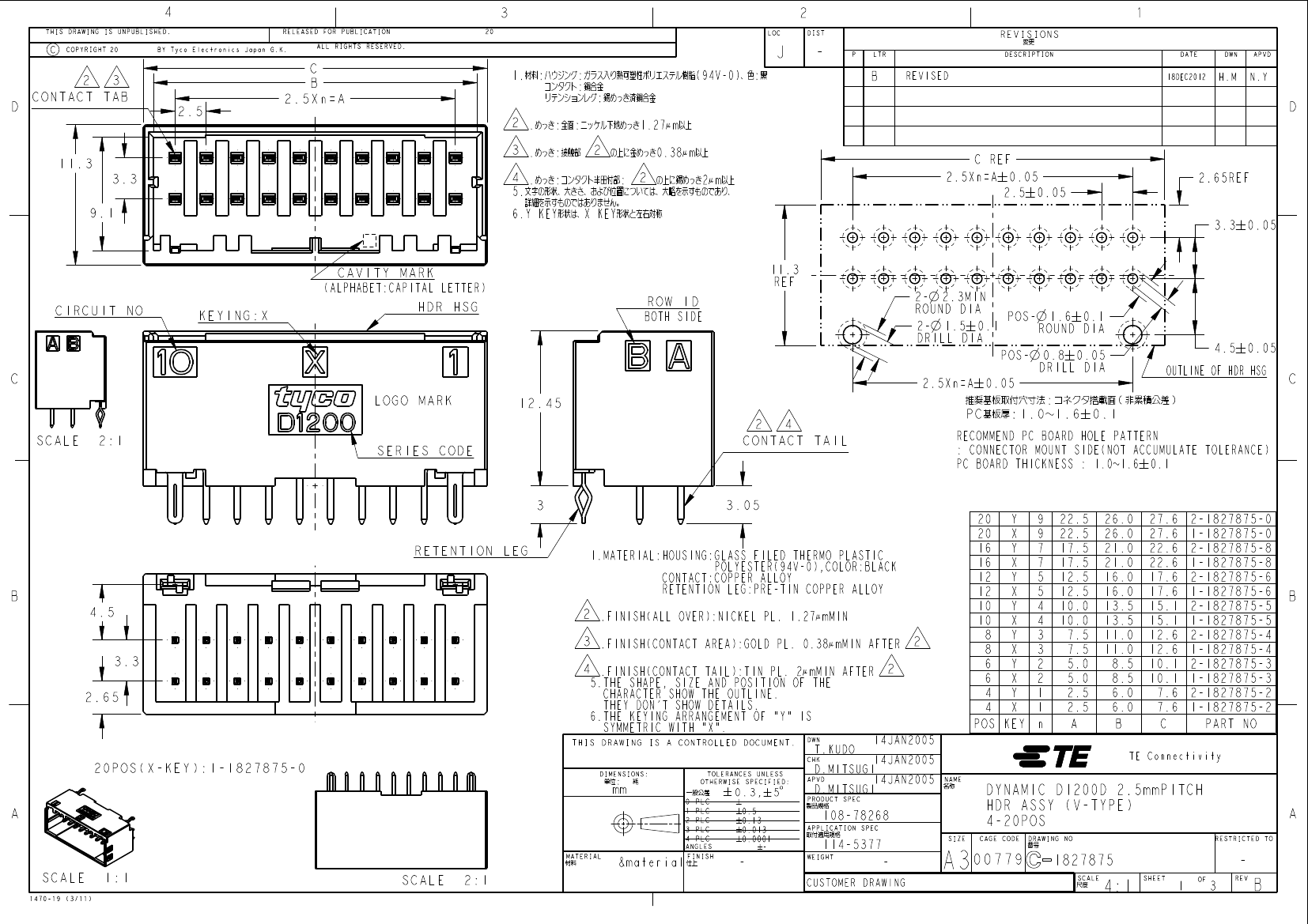

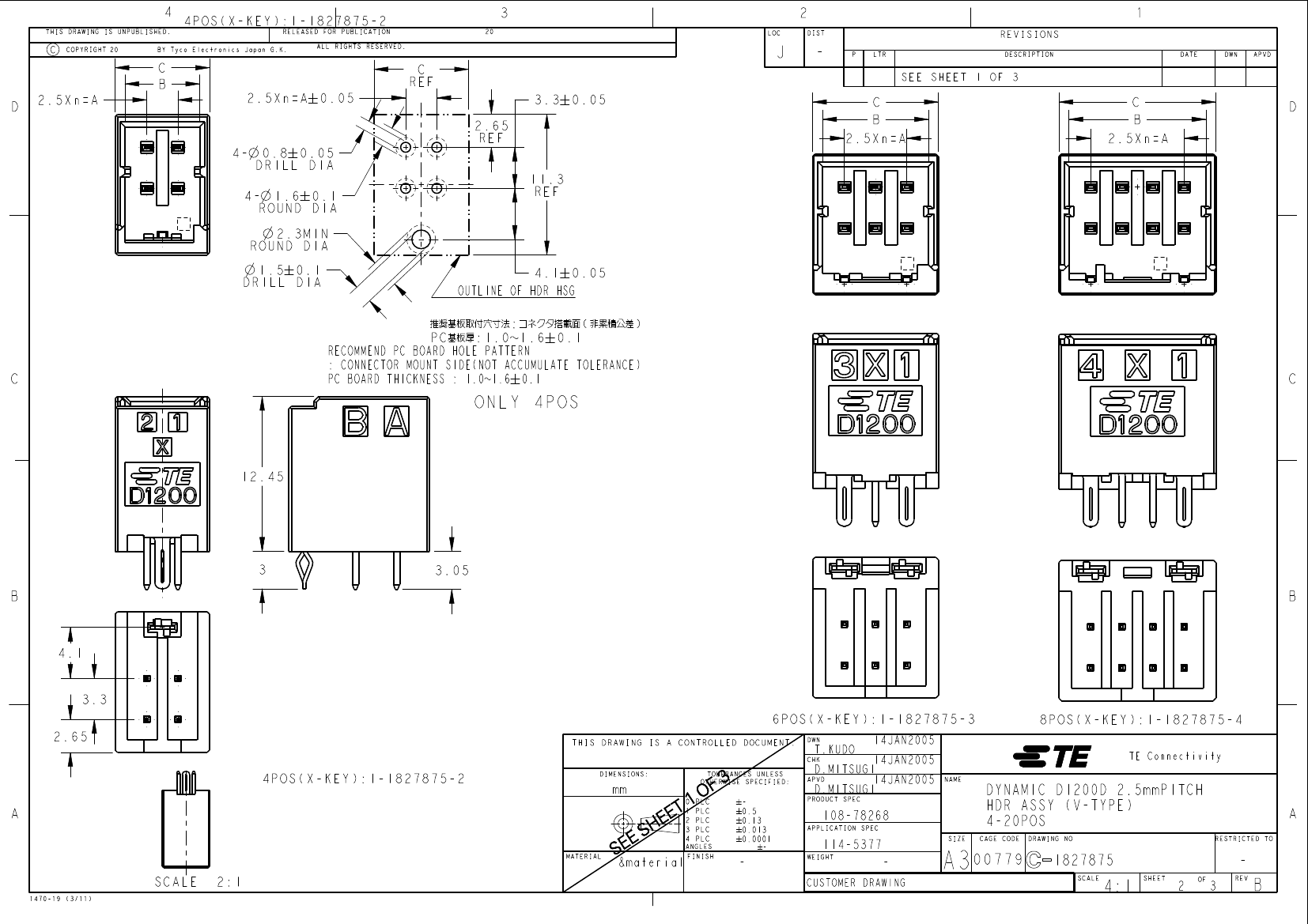

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

LTR

REVISIONS

DESCRIPTION

DATE

DWN

APVD

2.5

2.5Xn=A

C REF

2.5Xn=A

0.05

2.5 0.05

11.3

9.1

3.3

2.65 REF

3.3

0.05

CAVITY MARK

(ALPHABET:CAPITAL LETTER)

CIRCUIT NO

KEYING:X

HDR HSG

ROW ID

BOTH SIDE

11.3

REF

LOGO MARK

SCALE

2:1

SERIES CODE

12.45

2- 2.3 MIN

ROUND DIA

POS- 1.6 0.1

2- 1.5 0.1

ROUND DIA

DRILL DIA

POS- 0.8 0.05

DRILL DIA

2.5Xn=A

0.05

(

:1.0~1.6

0.1

4.5

0.05

OUTLINE OF HDR HSG

)

RECOMMEND PC BOARD HOLE PATTERN

: CONNECTOR MOUNT SIDE(NOT ACCUMULATE TOLERANCE)

PC BOARD THICKNESS : 1.0~1.6

0.1

3.05

RETENTION LEG

4.5

3.3

2.65

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

PRODUCT SPEC

NAME

POS KEY

22.5

17.5

12.5

10.0

7.5

5.0

2.5

26.0

21.0

16.0

13.5

11.0

8.5

6.0

27.6

22.6

17.6

15.1

12.6

10.1

7.6

2-1827875-0

1-1827875-0

2-1827875-8

1-1827875-8

2-1827875-6

1-1827875-6

2-1827875-5

1-1827875-5

2-1827875-4

1-1827875-4

2-1827875-3

1-1827875-3

2-1827875-2

1-1827875-2

PART NO

20POS(X-KEY):1-1827875-0

TE Connectivity

MATERIAL

ANGLES

PLC

APPLICATION SPEC

FINISH

WEIGHT

SCALE

1470-19 (3/11)

1:1

SCALE

2:1

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

SCALE

SHEET

REV

1-1827875-3 Related Products

	1-1827875-3	1-1827875-2	2-1827875-2	1-1827875-6	1-1827875-5
Description	(1-1827875-3) DYNAMIC 1200D HDR ASSY V 6P X BLACK GOLD	(1-1827875-2) DYNAMIC 1200D HDR ASSY V 4P X BLACK GOLD	DYNAMIC 1200D HDR ASSY V 4P Y BLACK GOLD	(1-1827875-6) DYNAMIC 1200D HDR ASSY V 12PX BLACK GOLD	(1-1827875-5) DYNAMIC 1200D HDR ASSY V 10PX BLACK GOLD
Brand Name	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	GOLD (15) OVER NICKEL (50)	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE	NOT APPLICABLE	TIN (79) OVER NICKEL (50)	NOT APPLICABLE	NOT APPLICABLE
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	COPPER ALLOY	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO
empty shell	YES	YES	NO	YES	YES
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	6	4	4	12	10
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Objectid	1747242416	1747242415	-	1747242419	1747242418
YTEOL	7.7	7.57	-	7.57	7.57
Other features	POLARIZED, SHROUDED	POLARIZED, SHROUDED	-	-	POLARIZED, SHROUDED
Board mount options	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS	-	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS
body width	0.445 inch	0.445 inch	-	-	0.445 inch
subject depth	0.49 inch	0.49 inch	-	-	0.49 inch
body length	0.398 inch	0.299 inch	-	-	0.594 inch
Body/casing type	PLUG	PLUG	-	-	PLUG
Contact style	SQ PIN-SKT	SQ PIN-SKT	-	-	SQ PIN-SKT
Electromagnetic interference shielding	NO	NO	-	NO	NO
Insulator color	BLACK	BLACK	-	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Power Connector Ratings	5A	5A	-	5A	5A
Installation method	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE	-	ONE	ONE
Number of ports	1	1	-	1	1
Number of rows loaded	2	2	-	2	2
Maximum operating temperature	105 °C	105 °C	-	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C
Panel mounting	NO	NO	-	NO	NO
Plating thickness	15u inch	15u inch	-	15u inch	15u inch
polarization key	POLARIZED	POLARIZED	-	POLARIZED	POLARIZED
Rated current (signal)	5 A	5 A	-	5 A	5 A
Guideline	UL	UL	-	UL	UL
Terminal pitch	2.5 mm	2.5 mm	-	2.5 mm	2.5 mm
Samacsys Description	-	Header vert 4w 2row TAB 2.5mm X key D-1	-	Header vert 12w 2row TAB 2.5mm X key D-1	Header,vert 10w,Tab 2.5mm,X-key,1200D
Samacsys Manufacturer	-	TE Connectivity	-	TE Connectivity	TE Connectivity
Samacsys Modified On	-	2023-03-07 16:10:32	-	2023-03-07 16:10:32	2023-03-07 16:10:32
