D2n* Relay V23105
n
n
n
n
n
n
n
AXICOM

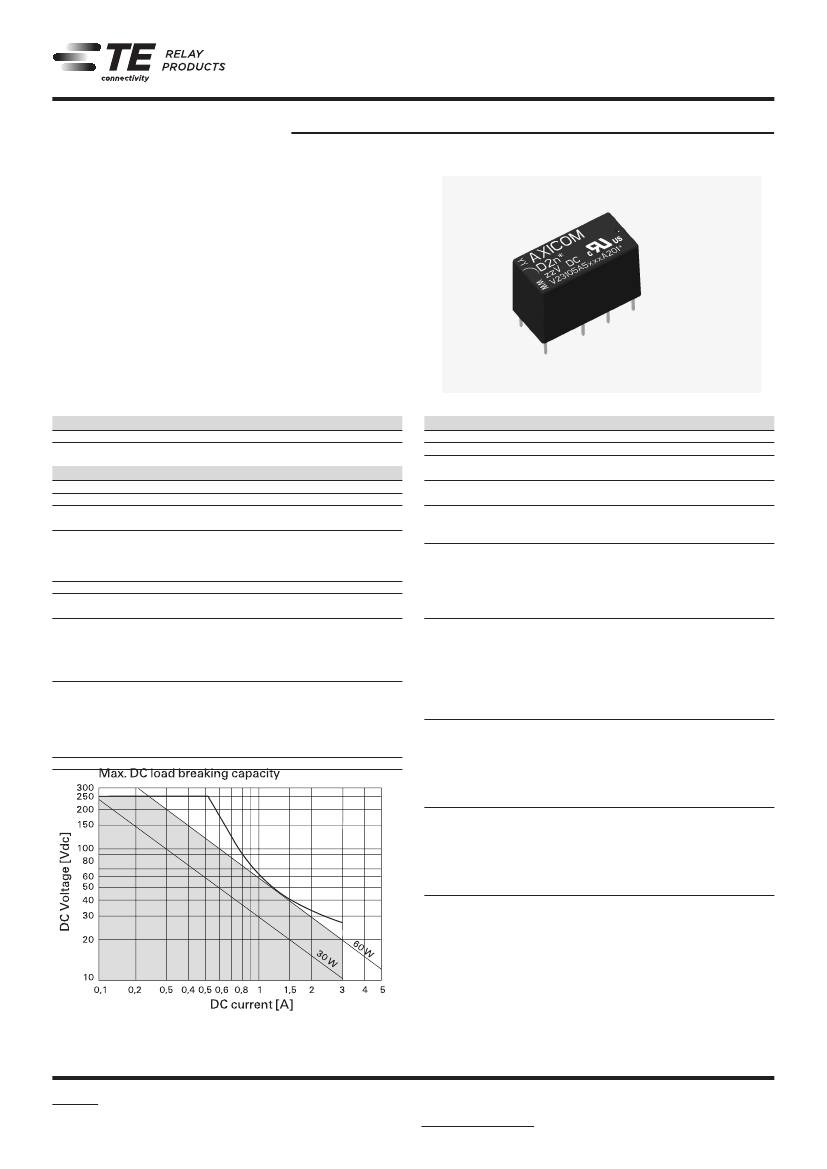

Standard DIL relay

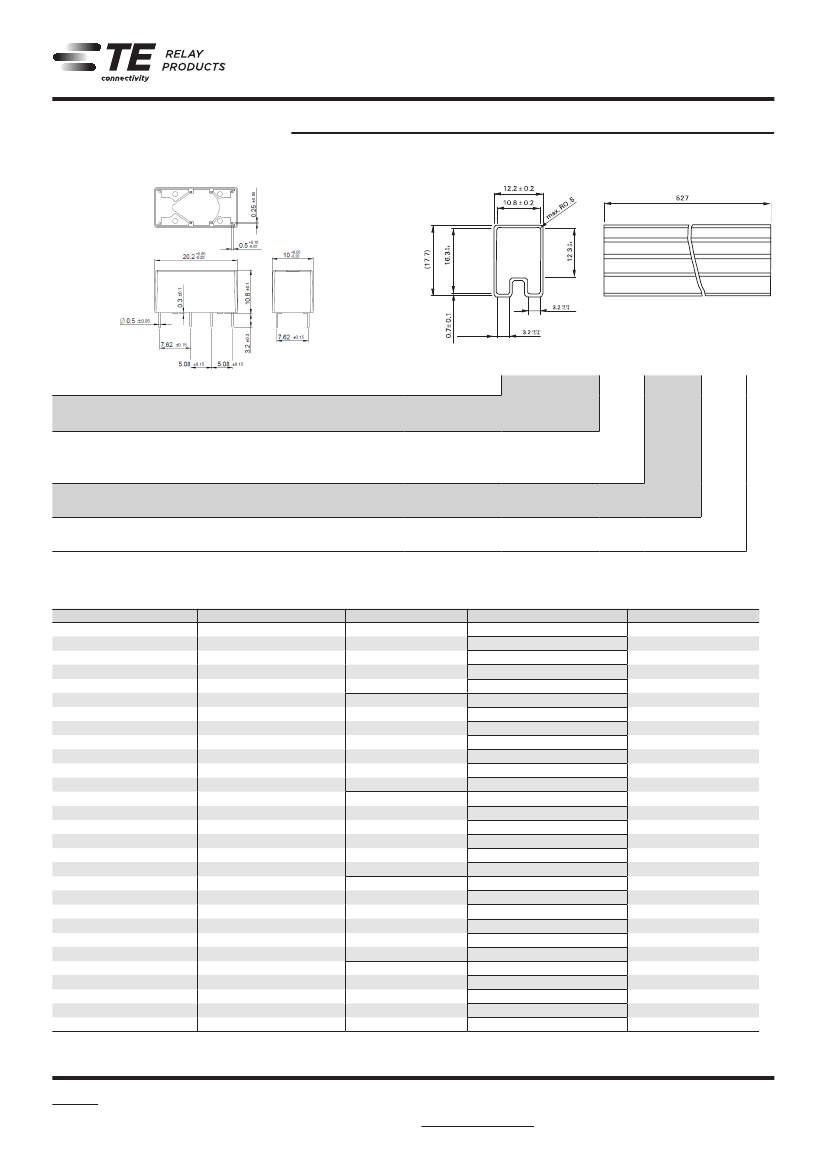

Dimensions 20x10x11mm (.795x.394x.433”)
Switching and continous current 3A
2 form C contacts (2 CO, 2 changeover contacts)
Immersion cleanable
Four different coil sensitivities, 150mW, 200mW, 400mW, >500mW
Surge voltage resistance meets FCC Part 68 requirement: 1.5kV
(10/700μs) between coil and contacts
Typical applications
Communications equipment, office equipment, measurement and control
equipment, entertainment electronics, medical equipment, consumer
electronics.
Z
Coil Data
Magnetic system
Coil voltage range
Max. coil temperature
Thermal resistance
Coil versions, monostable
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
min.
150mW coil power
001
5
4.0
002
6
4.8
006
9
7.2
003
12
9.6
005
24
19.2
200mW coil power
308
3
2.1
301
5
3.5
302
6
4.2
306
9
6.3
303
12
8.4
305
24
16.8
307
48
33.6
400mW coil power
401
5
3.5
402
6
4.2
406
9
6.3
403
12
8.4
405
24
16.8
407
48
33.6
>500mW coil power
501
5
3.5
502
6
4.2
506
9
6.3
503
12
8.4
505
24
16.8
507
48
33.6
Limiting
Voltage
VDC
max.
11.7
14.0
21.0
28.0
56.0
6.1
10.1
12.2
18.2
24.3
48.6
97.2
7.2
8.6
12.9
17.2
34.3
68.6
6.1
7.3
10.9
14.5
29.1
58.1
neutral
3 to 48VDC
85 °C
< 85K/W
Release
Coil
Rated coil
voltage resistance power
VDC
min.
Ω±10%
mW
0.25
0.30
0.45
0.60
1.20
0.15
0.25
0.30
0.45
0.60
1.20
2.40
0.25
0.30
0.42
0.60
1.20
2.40
0.25
0.30
0.45
0.60
1.20
2.40
167
240
540
960
3840
45
125
180
405
720
2880
11520
62
90
203
360
1440
5760
36
70
140
280
1050
4000
150
150
150
150
150
200
200
200
200
200
200
200
400
400
400
400
400
400
695
515
580
515
550
575
Approvals
UL 508; UL/CSA 60950-1 File No. E 111441
Technical data of approved types on request
Contact Data
Contact arrangement
Max. switching voltage
Rated current
Limiting continuous current, 85°C
Contact material
Min. recommended contact load
Minimum switching voltage
Initial contact resistance
Frequency of operation without load
Operate / release time max.
Bounce time max.
Electrical endurance
at 230VAC/0.5A
at 6VDC/0.1A
at 30VDC/1A
at 30VDC/2A
UL contact ratings
2 form C (CO)
220VDC, 250VAC
3A
3A
AgNi, gold-covered
10mA at 20mV
100μV
<100mΩ at 10mA, 20mV
max. 50 operations/s
6ms/4ms
5 ms
typ. 3x10
5
operations
typ. 2x10
6
operations
typ. 5x10
5
operations
typ. 1x10
5
operations
60 VDC, 0.3 A
30 VDC, 1 A
24 VDC, 1.25 A
42.4 V peak, 50/60 Hz, 0.5 A
42.4 V peak, 50/60 Hz, 1 A
typ. 15x10
6
operations
(2 NO/NC contacts provided)
Mechanical endurance
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Other coil voltages on request.
10-2017, Rev. 1017
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
1
AXICOM
Signal
Signal Relays
108-98007 Rev A
AXICOM
Telecom-, Signal and RF Relays
D2n V23105
Relay V23105
(Continued)
D2n*
Relay
Coil Data
(continued)
3.0
2.8
2.6
2.4
2.2

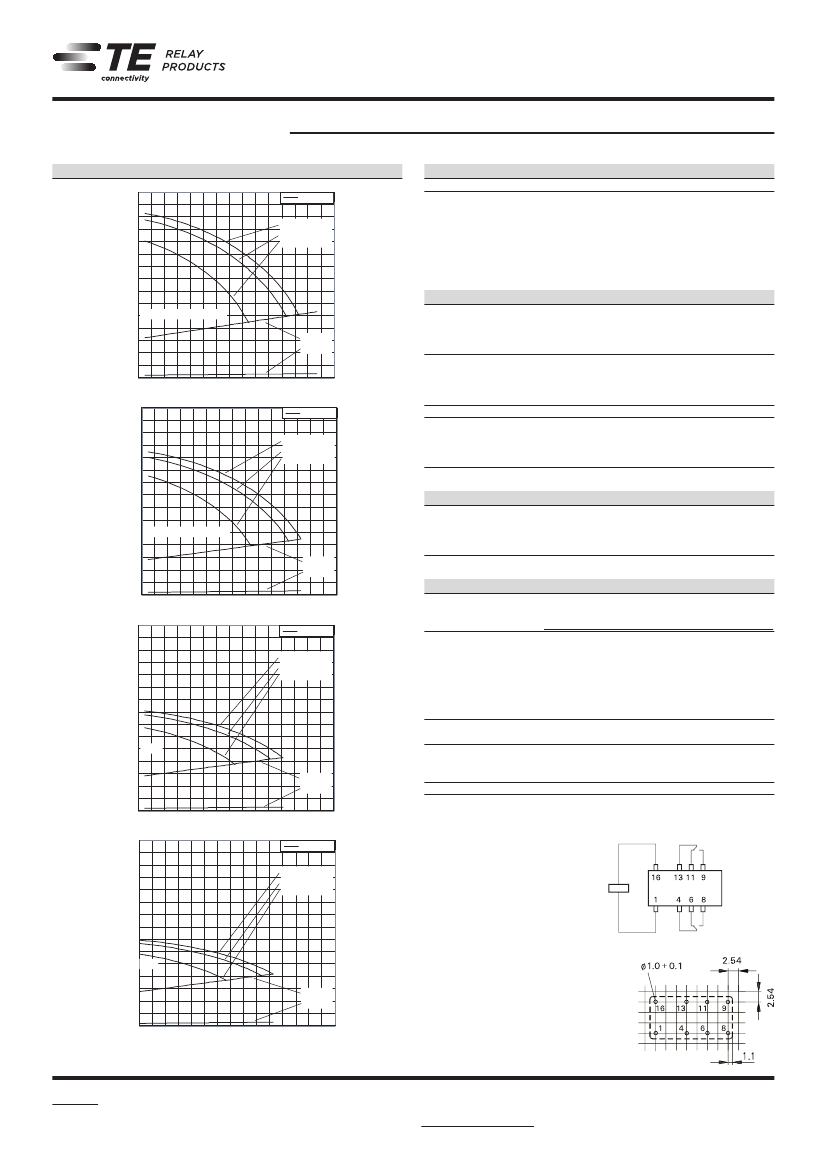

Coil Operating Range
