TLP2745(TP,E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> TLP2745(TP,E

TLP2745(TP,E: DescriptionInput type: DC Number of channels: 1 Isolation voltage: 5000Vrms Product type: IC output; CategoryLED optoelectronic/LED photoelectric; File Size703KB，19 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

TLP2745(TP,E Overview

Input type: DC Number of channels: 1 Isolation voltage: 5000Vrms Product type: IC output

TLP2745(TP,E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Toshiba Semiconductor
Reach Compliance Code	unknown
Factory Lead Time	12 weeks
Samacsys Description	High Speed Optocouplers Photocoupler
Optoelectronic device types	LOGIC IC OUTPUT OPTOCOUPLER

Preview

Download Datasheet

View All

TLP2745

Photocouplers

GaAℓAs Infrared LED & Photo IC

TLP2745

1. Applications

•

Intelligent Power Module Signal Isolation

Programmable Logic Controllers (PLCs)

High-Speed Digital Interfacing for Instrumentation and Control Devices

2. General

The Toshiba TLP2745 consists of high-output GaAℓAs light-emitting diode coupled with a high-gain, high-speed

photo detector. It is housed in a thin SO6L package of 2.3 mm (max). The TLP2745 has guaranteed the isolation

voltage 5 kVrms and compliant with international safety standards for reinforced insulation. This product can

operate in power supply voltage 4.5 V to 30 V with the maximum operative temperature of 110

.

Since TLP2745

has guaranteed 3 mA low supply current (I

CCL

CCH

), and 1.6 mA low threshold input current(I

FLH

), it contributes

to energy saving of devices. It can drive directly from a microcomputer for a low input current. The detector has

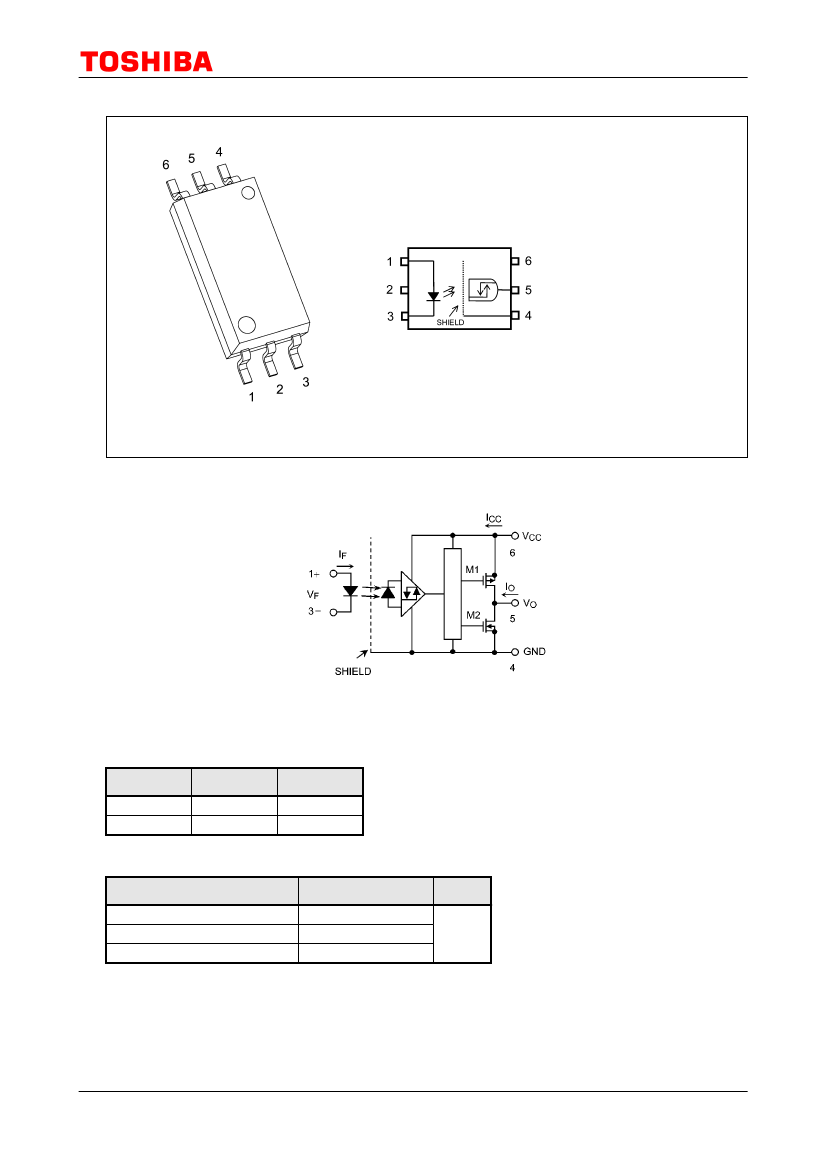

a totem-pole output stage with current sourcing and sinking capabilities. The TLP2745 has an internal Faraday

shield that provides a guaranteed common-mode transient immunity of

±30

kV/µs. The TLP2745 has a buffer

output. An inverter output version, the TLP2748, is also available.

3. Features

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

Buffer logic type (totem pole output)

Package: SO6L

Operating temperature: -40 to 110



Supply voltage: 4.5 to 30 V

Threshold input current: 1.6 mA (max)

Supply current: 3 mA (max)

Propagation delay time: 120 ns (max)

Pulse width distortion: 40 ns (max)

Common-mode transient immunity:

±30

kV/µs (min)

(10) Isolation voltage: 5000 Vrms (min)

(11) Safety standards

UL-approved: UL1577, File No.E67349

cUL-approved: CSA Component Acceptance Service No.5A File No.E67349

VDE-approved: EN60747-5-5, EN60065, EN60950-1, EN 62368-1 (Note 1)

Note 1: When a VDE approved type is needed, please designate the Option (D4)

(D4).

Start of commercial production

2015-05

2017-06-09

Rev.4.0

TLP2745(TP,E Related Products

	TLP2745(TP,E	TLP2745(D4(T	TLP2745(D4)	TLP2745(D4,E(T	TLP2745(D4-TP	TLP2745(D4-TP(T	TLP2745(T	TLP2745(TP	TLP2745(TP(T
Description	Input type: DC Number of channels: 1 Isolation voltage: 5000Vrms Product type: IC output	LOGIC OUTPUT OPTOCOUPLER	LOGIC OUTPUT OPTOCOUPLER	LOGIC OUTPUT OPTOCOUPLER	LOGIC OUTPUT OPTOCOUPLER	LOGIC OUTPUT OPTOCOUPLER	LOGIC OUTPUT OPTOCOUPLER	LOGIC OUTPUT OPTOCOUPLER	LOGIC OUTPUT OPTOCOUPLER
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Optoelectronic device types	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER	LOGIC IC OUTPUT OPTOCOUPLER
Objectid	-	8098570418	8098570419	8098570420	8098570425	8098570422	8098570432	8098570431	8098570428
Other features	-	OPEN COLLECTOR, UL APPROVED, VDE APPROVED	OPEN COLLECTOR, UL APPROVED, VDE APPROVED	OPEN COLLECTOR, UL APPROVED, VDE APPROVED	OPEN COLLECTOR, UL APPROVED, VDE APPROVED	OPEN COLLECTOR, UL APPROVED, VDE APPROVED	OPEN COLLECTOR, UL APPROVED	OPEN COLLECTOR, UL APPROVED	OPEN COLLECTOR, UL APPROVED
Configuration	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	-	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A
Maximum insulation voltage	-	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V
Installation features	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of components	-	1	1	1	1	1	1	1	1
Number of functions	-	1	1	1	1	1	1	1	1
Maximum on-state current	-	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Maximum operating temperature	-	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C	110 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum response time	-	3e-8 s	3e-8 s	3e-8 s	3e-8 s	3e-8 s	3e-8 s	3e-8 s	3e-8 s
Nominal response time	-	3e-9 ns	3e-9 ns	3e-9 ns	3e-9 ns	3e-9 ns	3e-9 ns	3e-9 ns	3e-9 ns
Minimum supply voltage	-	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
surface mount	-	YES	YES	YES	YES	YES	YES	YES	YES
