TLP716
TOSHIBA Photocoupler GaAℓAs IRED & Photo
-
IC
TLP716
6.8±0.25
Plasma display panel
High Speed Interface
Factory Automation

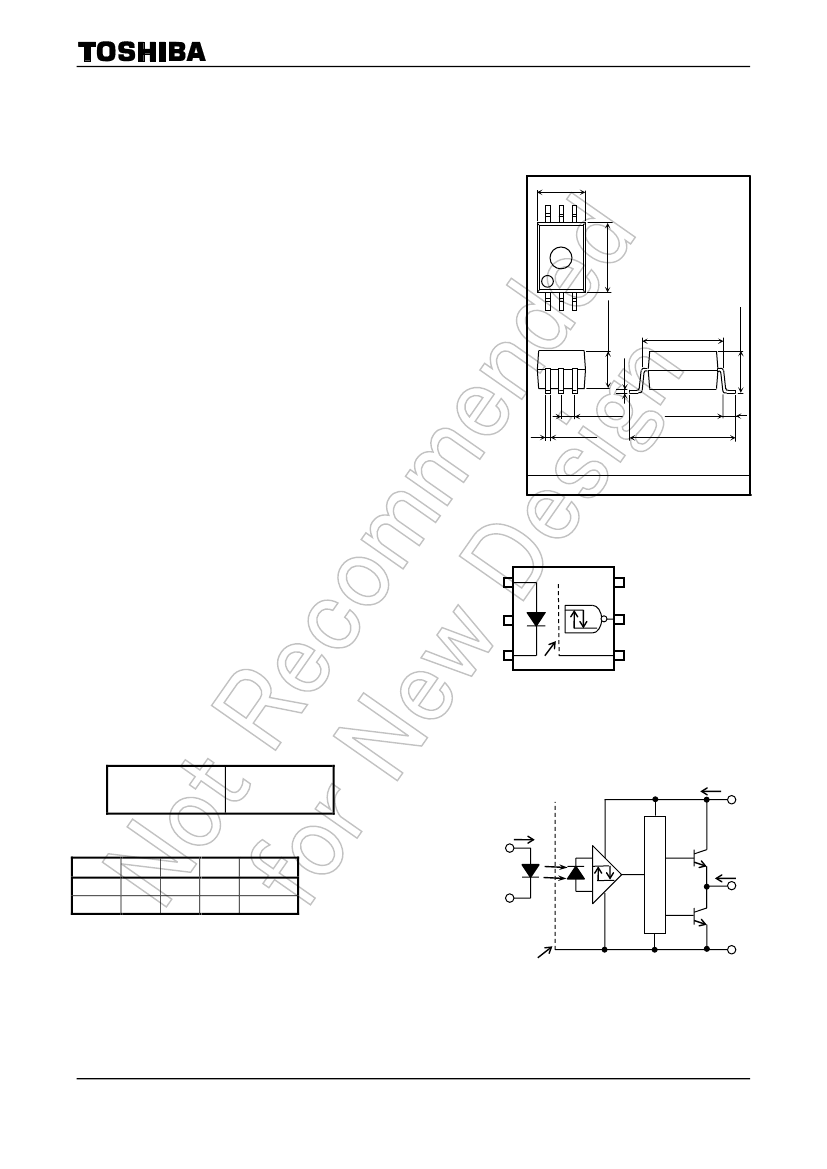

The TOSHIBA TLP716 consists of a GaAℓAs light emitting diode and a high
speed photodetector. This unit is 6-lead SDIP. TLP716 is 50% smaller than
8PIN DIP and has suited the safety standard reinforced insulation class. So,
mounting area in safety standard required equipment can be reduced.
Unit: mm
4.58±0.25
6 5
4
3.65
+0.15
-0.25
1 2
3
Inverter Logic (totempole output)
Package Type : SDIP6
Guaranteed Performance Over Temperature : -40 to 100°C
Power Supply Voltage: 4.5 to 5.5 V
Input Thresholds Current: I
FHL
= 6.5 mA (max)
Propagation delay Time (t
pHL
/t
pLH
): 75 ns (max)
Switching speed: 15 MBd (typ.)
Common mode transient immunity: ±10 kV/μs (min)
Isolation voltage: 5000 Vrms (min)
TOSHIBA
0.4±0.1
1.27±0.2
0.25
+0.10
-0.05
7.62±0.25
1.25±0.25
9.7±0.3
11-5J1
11-5J1
Weight: 0.26 g (t yp .)
Pin Configuration (Top View)
1
2
3
GND
SHIELD
V
CC
UL approved : UL1577, File No.E67349
c-UL approved : CSA Component Acceptance Service
No. 5A, File No.E67349
Option (D4) VDE approved :
EN60747-5-5 EN60065 EN60950-1(Note 1)
EN62368-1(Pending)
Note 1: When a EN60747-5-5 approved type is needed,
please designate “Option(D4)”
Construction Mechanical Rating
Creepage Distance
Clearance
Insulation Thickness
7.0 mm (min)
7.0 mm (min)
0.4 mm (min)
6
5
4
1: ANODE
2: N.C.
3: CATHODE
4: GND
5: V
O
6: V
CC
Schematic
I
CC
Truth Table
Input
H
L
LED
ON
OFF
Tr1
OFF
ON
Tr2
ON
OFF
Output
L
H
I
F
1＋
V
F
Tr1
I
O
Tr2
V
O
3－
SHIELD
4
Note: 0.1
μF
bypass capacitor must be connected
between pins 6 and 4.
Start of commercial production
2006-06
1
2017-05-24
4.0
-0.20
+0.25
6
V
CC
5
GND
TLP716
Absolute Maximum Ratings (Ta=25°C)
CHARACTERISTIC
Forward Current
(Ta ≤ 85°C)
(Note1)
SYMBOL
I
F
∆I
F
/∆Ta
I
FPT
V
R
P
D
∆P
D
/∆Ta
T
j
I
O
∆I
O
/∆Ta
V
O
V
CC
P
C
∆P
C
/∆Ta
T
j
T
opr
T
stg
T
sol
(Note2)
BV
S
RATING
20
-0.5
1
5
40
-1.0
125
10
-0.25
-0.5 to 6
-0.5 to 6
40
-1.0
125
-40 to 100
-55 to 125
260
5000
UNIT
mA
mA/°C
A
V
mW
mW/°C
°C
mA
mA/°C
V
V
mW
mW/°C
°C
°C
°C
°C
Vrms
Forward Current Derating (Ta > 85°C)
LED
DETECTOR
Peak Transient Forward Current
Reverse Voltage
Diode power dissipation
Diode power dissipation derating (Ta >85°C)
Junction Temperature
Output Current (Ta ≤ 85°C)
Output Current Derating (Ta > 85°C)
Output Voltage (V
O
≤ V
CC
)
Supply Voltage
Power Dissipation (Ta ≤ 85°C)
Power Dissipation Derating (Ta > 85°C)
Junction Temperature
Operating Temperature Range
Storage Temperature Range
Lead Solder Temperature(10 s)
Isolation Voltage (AC, 60 s, R.H. ≤ 60%)
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if
the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings and the operating ranges.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc.).
Note 1: Pulse width PW ≤ 1 μs, 300 pps.
Note 2: Device Considered a two terminal device: pins 1, 2 and 3 shorted together and pins 4, 5 and 6 shorted
together.
Recommended Operating Conditions
CHARACTERISTIC
Input Current, ON
Input Voltage, OFF
Supply Voltage (Note1)(Note2)(Note 3)
SYMBOL
I
F
(ON)
V
F
(OFF)
V
CC
MIN
8
0
4.5
TYP.
12
MAX
18
0.8
5.5
UNIT
mA
V
V
—
5
Note: Recommended operating conditions are given as a design guideline to obtain expected performance of the
device. Additionally, each item is an independent guideline respectively. In developing designs using this
product, please confirm specified characteristics shown in this document.
Note 1: This item denotes operating ranges, not meaning of recommended operating conditions.
Note 2: The detector of this product requires a power supply voltage (V
CC
) of 4.5 V or higher for stable operation. If
the V
CC
is lower than this value, an I
CC
may increase, or an output may be unstable. Be sure to use the
product after checking the supply current, and the operation of a power-on/-off.
Note 3: A ceramic capacitor (0.1 μF) should be connected from pin 6 to pin 4 to stabilize the operation of the high
gain linear amplifier. Failure to provide the bypassing may impair the switching property. The total lead length
between capacitor and coupler should not exceed 1 cm.
2
2017-05-24
TLP716
The correlation between input current and switching speed and drive circuit
(reference information)
Input Current
(I
F
)
12mA
8mA
8mA
TEST CIRCUIT (Psge 4)
1
1
2
(with Speed up capacitor)
Typical Switching Speed
14 – 16 MBd
11 – 13 MBd
16 – 20 MBd
Electrical Characteristics
(Unless otherwise specified, Ta =
-
40 to 100°C, V
CC
= 4.5 to 5.5 V)
CHARACTERISTIC
Input Forward Voltage
Temperature Coefficient
of Forward Voltage
Input Reverse Current
Input Capacitance
Logic Low Output Voltage
SYMBOL
V
F
ΔV
F
/ΔTa
I
R
C
T
V
OL
V
OH
I
CCL
I
CCH
I
FHL
V
FLH
CONDITION
I
F
= 10 mA, Ta = 25°C
I
F
= 10 mA
V
R
= 5 V, Ta = 25°C
V = 0 V, f = 1 MHz, Ta = 25°C
I
OL
= 1.6 mA, I
F
= 12 mA
V
CC
= 5 V
I
OH
= -0.02 mA, V
F
= 1.05 V
V
CC
= 5 V
I
F
= 12 mA
V
F
= 0 V
I
O
= 1.6 mA, V
O
< 0.4 V
I
O
= -0.02 mA, V
O
> 4.0 V
MIN
—
—
—
—
—
4.0
—
—
—
0.8
TYP.
1.65
-2.0
—
45
—
—
—
—
—
—
MAX
1.8
—
10
—
0.4
—
5.0
5.0
6.5
—
UNIT
V
mV/°C
μA
pF
V
V
mA
mA
mA
V
Logic High Output Voltage
Logic Low Supply Current
Logic High Supply Current
Input Current Logic Low Output
Input Voltage Logic High Output
Note:
All typical values are at Ta = 25°C, V
CC
= 5 V, I
F(ON)
= 12 mA unless otherwise specified
Isolation Characteristics
(Ta = 25°C)
CHARACTERISTIC
Capacitance input to output
Isolation resistance
SYMBOL
C
S
R
S
TEST CONDITION
V
S
= 0 V , f = 1 MHz
(Note 1)
MIN
―
TYP.
0.8
10
14
―
10000
10000
MAX
―
―
―
―
―
UNIT
pF
Ω
Vrms
Vdc
R.H. ≤ 60%, V
S
= 500 V (Note 1) 1×10
12
AC, 60 s
5000
―
―
Isolation voltage
BV
S
AC, 1 s, in oil
DC, 60 s, in oil
Note 1: Device Considered a two terminal device: pins 1, 2 and 3 shorted together and pins 4, 5 and 6 shorted
together.
3
2017-05-24
TLP716

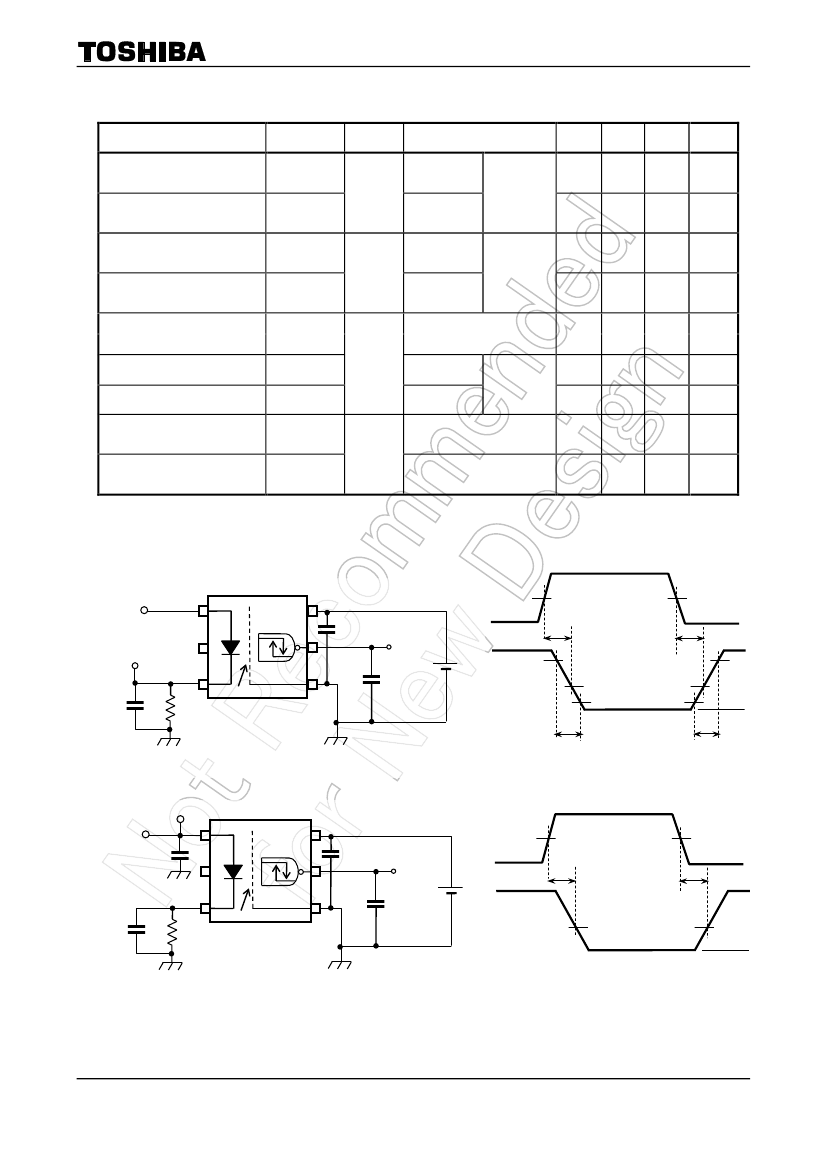

Switching Characteristics
(Unless otherwise specified, Ta =
-
40 to 100°C, V
CC
= 4.5 to 5.5 V)
CHARACTERISTIC
propagation Delay Time
to Logic Low output
propagation Delay Time
to Logic High output
propagation Delay Time
to Logic Low output
propagation Delay Time
to Logic High output
Switching Time Dispersion
between ON and OFF
Output Fall Time (90 to 10%)
Output Rise Time (10 to 90%)
Common Mode transient
Immunity at High Level Output
Common Mode transient
Immunity at Low Level Output
SYMBOL
tpHL
TEST
CIRCUIT
CONDITION
I
F
=0→12mA
RIN=100Ω
C
L
=15pF
(Note 1)
R
IN
=430Ω
C
IN=
33pF
C
L
=15pF
(Note 1)
MIN
TYP.
MAX
75
75
65
65
45
UNIT
ns
ns
ns
ns
ns
ns
ns
V/μs
V/μs
—
—
—
—
—
—
—
10000
-10000
—
—
—
—
—
15
15
1
tpLH
tpHL
2
tpLH
| tpLH - tpHL |
t
f
t
r
CM
H
3
CM
L
1
I
F
=12→0mA
V
IN
=0→5V
(I
F
=0→8mA)
V
IN
=5→0V
(I
F
=8→0mA)
C
L
=15pF
I
F
=0→12mA
I
F
=12→0mA
I
F
=12mA, R
IN
=100Ω,
(Note 1)
R
IN
=100Ω
C
L
=15pF
(Note 1)
—
—
—
—
V
CM
=1000Vp-p, I
F
=0mA,
V
O(Min)
=4V, Ta=25°C
V
CM
=1000Vp-p, I
F
=12mA,
V
O(Max)
=0.4V, Ta=25°C
—
—
Note: All typical values are at Ta = 25°C
Note 1: CL is approximately 15pF which includes probe and Jig/stray wiring capacitance.
TEST CIRCUIT 1: tpLH, tpHL
I
F
=12mA(P.G)
(f = 5 MHz, duty = 50%)
0.1μF
0.1μF
I
F
50%
tp HL
90%
1.5 V
10%
1.5 V
10%
tp LH
50%
V
CC
V
O
INPUT
MONITORING NODE
MONITORING NODE
V
O
SHIELD
C
L
= 15 pF
R
IN
= 100
Ω
GND
V
CC
C
L
= 15 pF
V
OH
90%
tf
tr
V
OL
TEST CIRCUIT 2: tpLH, tpHL
V
IN
= 5 V (P.G)
(f = 5 MHz,
duty = 50%)
INPUT MONITORING NODE
V
CC
50%
0.1μF
0.1μF
50%
C
L
= 15 pF
GND
V
O
V
IN
V
O
tp HL
tp LH
V
OH
MONITORING NODE
SHIELD
C
IN
= 33 pF
R
IN
= 430Ω
C
L
= 15 pF
V
CC
1.5 V
1.5 V
V
OL
The PROBE and JIG capacitances are included in C
L
.
(P.G) : Pulse Generatior
4
2017-05-24
TLP716

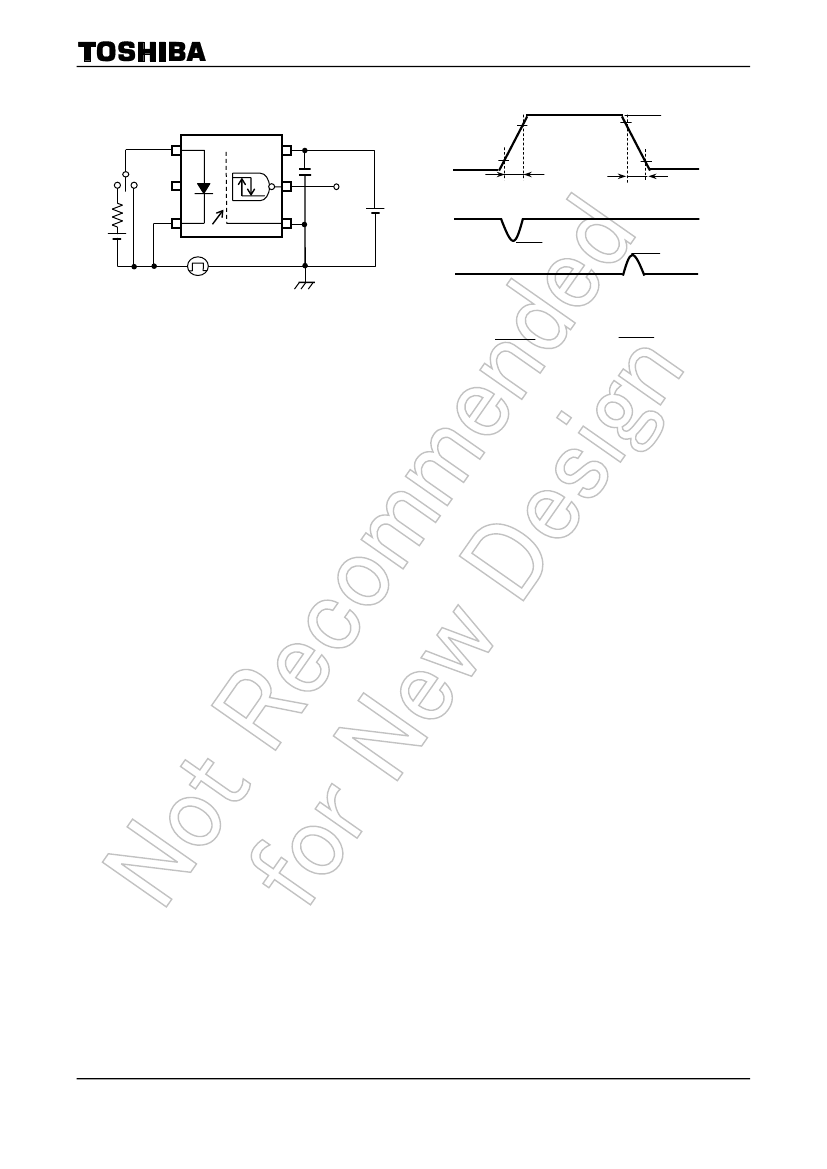

TEST CIRCUIT 3: Common-Mode Transient Immunity Test Circuit
I
F
1
2
3
SHIELD
V
CM
6
V
CC
5
GND
4
0.1μF
V
O
V
CC
90%
V
CM
10%
→
SW
A
B
90%
1000 V
t
r
t
f
10%
・SW
B :I
F
= 0 mA
V
O
4V
0.4 V
CM
H
・SW
A : I
F
= 12 mA
800(V)
tr
(μs)
800(V)
tf
(μs)
CM
L
CM
H
=
CM
L
=-
Note: CM
L
(CM
H
) is the maximum rate of fall (rise) of the common mode voltage that can be sustained with the output
voltage in the low (high) state.
5
2017-05-24
