TLP170A
TOSHIBA Photocoupler
Photorelay
TLP170A
Telecommunications
Control Equipment
Data Acquisition System
Security Equipment
Measurement Equipment

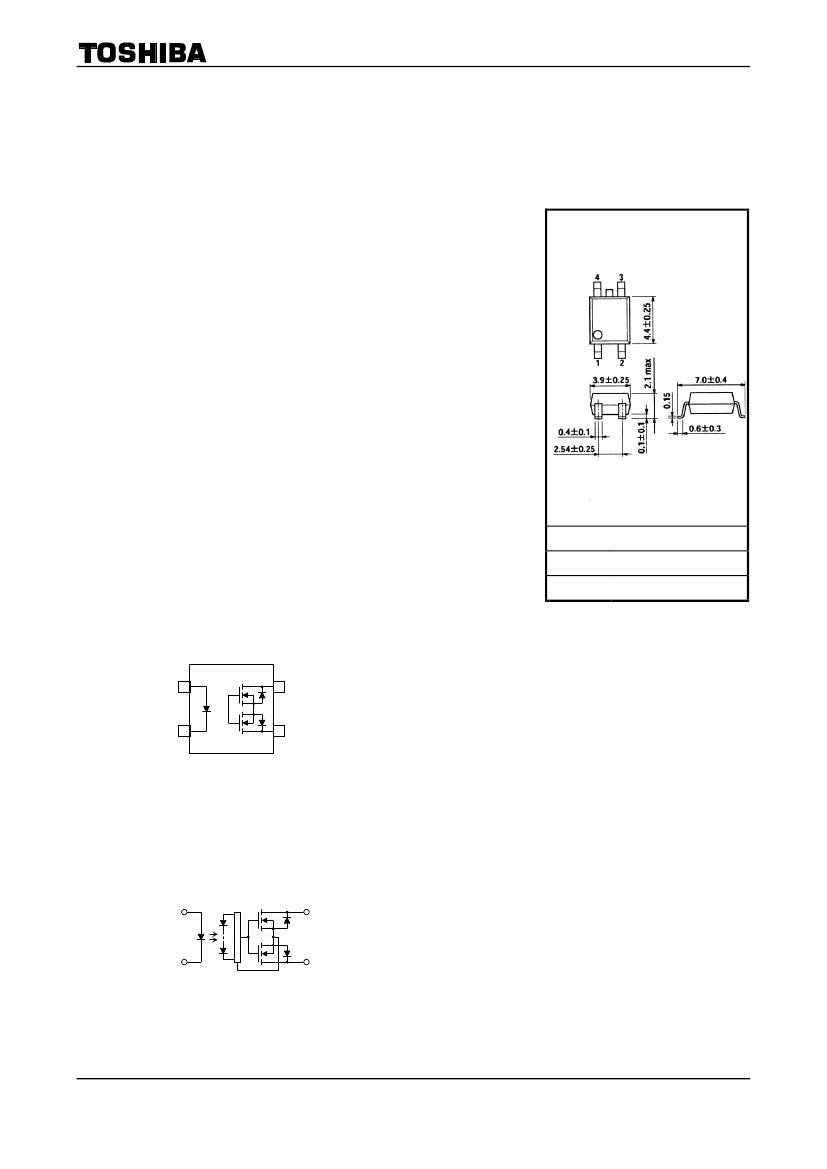

The Toshiba TLP170A consists of a gallium arsenide infrared emitting
diode optically coupled to a photo-MOSFET in a 4-pin SOP package.
This photorelay requires 1mA of LED current to turn it on. It is suitable
for applications that need electrical power savings.
•
•
•
•
•
•
•
•
•
4-pin SOP (2.54 SOP4): Height = 2.1 mm, pitch = 2.54 mm
Normally open (1-Form-A) device
Peak off-state voltage: 60 V (min)
Trigger LED current: 1 mA (max)
ON-state current: 400 mA (max)
ON-state resistance: 2
Ω
(max)
Isolation voltage: 1500 Vrms (min)
UL recognized: UL1577, File No.E67349
cUL recognized: CSA Component Acceptance Service No. 5A
File No.E67349
JEDEC
JEITA
TOSHIBA
Weight: 0.1 g (typ.)
―
―
11-5H1
Unit: mm
Pin Configuration
(top view)
1
4
2
1: Anode
2: Cathode
3: Drain
4: Drain
3
Internal Circuit
1
4
2
3
Start of commercial production
2009-06
1
2017-05-22
TLP170A
Absolute Maximum Rating
(Ta
=
25°C)
Characteristics
Forward current
Forward current derating (Ta
≥
25°C)
Reverse voltage
LED
Pulse forward current(100
μs
pulse, 100 pps)
Diode power dissipation
Diode power dissipation derating (Ta >25°C)
Junction temperature
OFF-state output terminal voltage
ON-state current
Detector
Forward current derating (Ta
≥
25°C)
Output power dissipation
Output power dissipation derating (Ta ≥ 25°C)
Junction temperature
Storage temperature
Operating temperature
Lead soldering temperature (10 s)
Isolation voltage (AC, 1 minute, R.H.
≤
60%)
(Note 1)
Symbol
I
F
∆I
F
/°C
V
R
I
FP
△P
D
/
°C
P
D
T
j
V
OFF
I
ON
∆I
ON
/°C
P
O
ΔP
O
/ °C
T
j
T
stg
T
opr
T
sol
BV
S
Rating
50
−0.5
5
1
50
-0.5
125
60
400
−4.0
300
−3.0
125
−55
to 125
−40
to 85
260
1500
Unit
mA
mA/°C
V
A
mW
mW/
°C
°C
V
mA
mA/°C
mW
mW / °C
°C
°C
°C
°C
Vrms
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if
the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Note 1: LED pins are shorted together. Detector pins are also shorted together.
Recommended Operating Conditions
Characteristics
Supply voltage
Forward current
ON-state current
Operating temperature
Symbol
V
DD
I
F
I
ON
T
opr
Min
―
―
―
−20
Typ.
―
2
―
―
Max
48
25
320
65
Unit
V
mA
mA
°C
Note: Recommended operating conditions are given as a design guideline to obtain expected performance of the
device. Additionally, each item is an independent guideline respectively. In developing designs using this
product, please confirm specified characteristics shown in this document.
Electrical Characteristics
(Ta
=
25°C)
Characteristics
Forward voltage
LED
Reverse current
Capacitance between terminals
Detector
OFF-state current
Capacitance between terminals
Symbol
V
F
I
R
C
T
I
OFF
C
OFF
Test Condition
I
F
=
10 mA
V
R
=
5 V
V
F
=
0 V, f
=
1 MHz
V
OFF
=
60 V
V
=
0 V, f
=
1 MHz
Min
1.0
Typ.
1.15
30
1
130
Max
1.3
10
1000
Unit
V
μA
pF
nA
pF
2
2017-05-22
TLP170A
Coupled Electrical Characteristics
(Ta
=
25°C)
Characteristics
Trigger LED current
Return LED current
On-state resistance
Symbol
I
FT
I
FC
R
ON
Test Condition
I
ON
=
400 mA
I
OFF
=
100
μA
I
ON
=
400 mA, I
F
=
2 mA
Min
0.1
Typ.
0.4
1
Max
1
2
Unit
mA
mA
Ω
Isolation Characteristics
(Ta
=
25°C)
Characteristics
Capacitance input to output
Isolation resistance
Symbol
C
S
R
S
BV
S
Test Condition
V
S
=
0 V, f
=
1 MHz
V
S
=
500 V, R.H.
≤
60%
AC, 1 minute
Isolation voltage
AC, 1 second, in oil
DC, 1 minute, in oil
Min
5
×
10
10
Typ.
0.8
10
14
Max
Unit
pF
Ω
Vrms
Vdc
1500
3000
3000
Switching Characteristics
(Ta
=
25°C)
Characteristics
Turn-on time
Turn-on time
Turn-off time
Symbol
t
ON
t
ON
t
OFF
Test Condition
R
L
=
200
Ω
V
DD
=
20 V, I
F
=
2 mA
R
L
=
200
Ω
V
DD
=
20 V, I
F
=
5 mA
R
L
=
200
Ω
V
DD
=
20 V, I
F
=
2 mA
(注 2)
(注 2)
(注 2)
Min
Typ.
3.0
1.0
Max
8.0
5.0
3.0
ms
Unit
Note 2: Switching time test circuit
I
F
V
DD
I
F
V
OUT
2
3
V
OUT
10%
t
ON
90%
t
OFF
1
4
R
L
3
2017-05-22
