BYG21M-E3/TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYG21M-E3/TR

BYG21M-E3/TR: DescriptionReverse recovery time (trr): 120ns DC reverse withstand voltage (Vr): 1kV Average rectified current (Io): 1.5A Forward voltage drop (Vf): 1.6V @ 1.5A Fast Avalanche SMD Rectifier; CategoryDiscrete semiconductor diode; File Size89KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

BYG21M-E3/TR Overview

Reverse recovery time (trr): 120ns DC reverse withstand voltage (Vr): 1kV Average rectified current (Io): 1.5A Forward voltage drop (Vf): 1.6V @ 1.5A Fast Avalanche SMD Rectifier

BYG21M-E3/TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	DO-214AC
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FREE WHEELING DIODE
application	FAST SOFT RECOVERY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.5 V
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	30 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse recovery time	0.12 µs
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

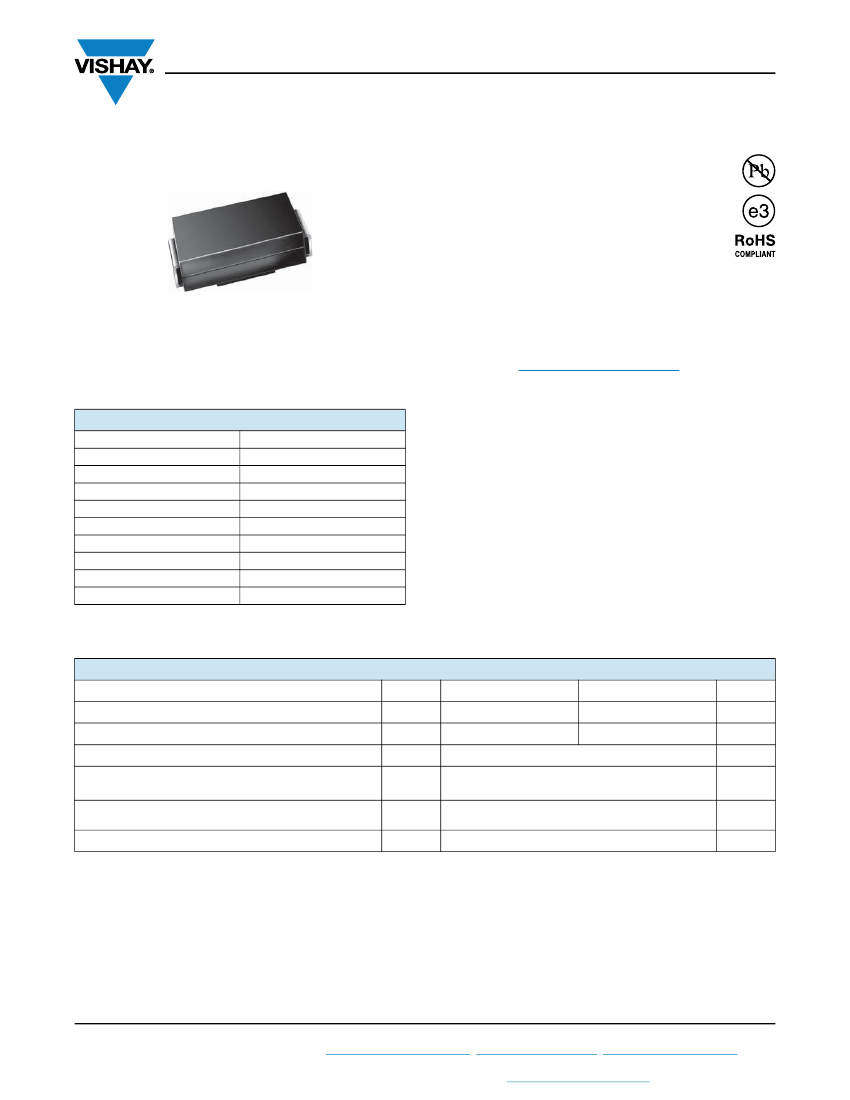

BYG21K-E3/HE3, BYG21M-E3/HE3

www.vishay.com

Vishay General Semiconductor

Fast Avalanche SMD Rectifier

FEATURES

• Low profile package

• Ideal for automated placement

• Glass passivated junction

• Low reverse current

• Soft recovery characteristic

• Fast reverse recovery time

• Meets MSL level 1, per J-STD-020, LF maximum peak of

260 °C

• AEC-Q101 qualified

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

DO-214AC (SMA)

TYPICAL APPLICATIONS

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

Package

Diode variation

1.5 A

800 V, 1000 V

30 A

1.0 μA

1.6 V

120 ns

20 mJ

150 °C

DO-214AC (SMA)

Single die

For use in fast switching rectification of power supply,

inverters, converters, and freewheeling diodes for

consumer, automotive, and telecommunication.

MECHANICAL DATA

Case:

DO-214AC (SMA)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3 suffix meets JESD 201 class 2 whisker test, HE3 suffix

meets JESD 201 class 2 whisker test

Polarity:

Color band denotes the cathode end

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Device marking code

Maximum repetitive peak reverse voltage

Average forward current

Peak forward surge current 10 ms single half sine-wave

superimposed on rated load

Pulse energy in avalanche mode, non repetitive

(inductive load switch off) I

(BR)R

= 1 A, T

= 25 °C

Operating junction and storage temperature range

RRM

F(AV)

FSM

, T

STG

SYMBOL

BYG21K

800

1.5

- 55 to + 150

BYG21M

1000

°C

UNIT

Revision: 21-Aug-13

Document Number: 88961
